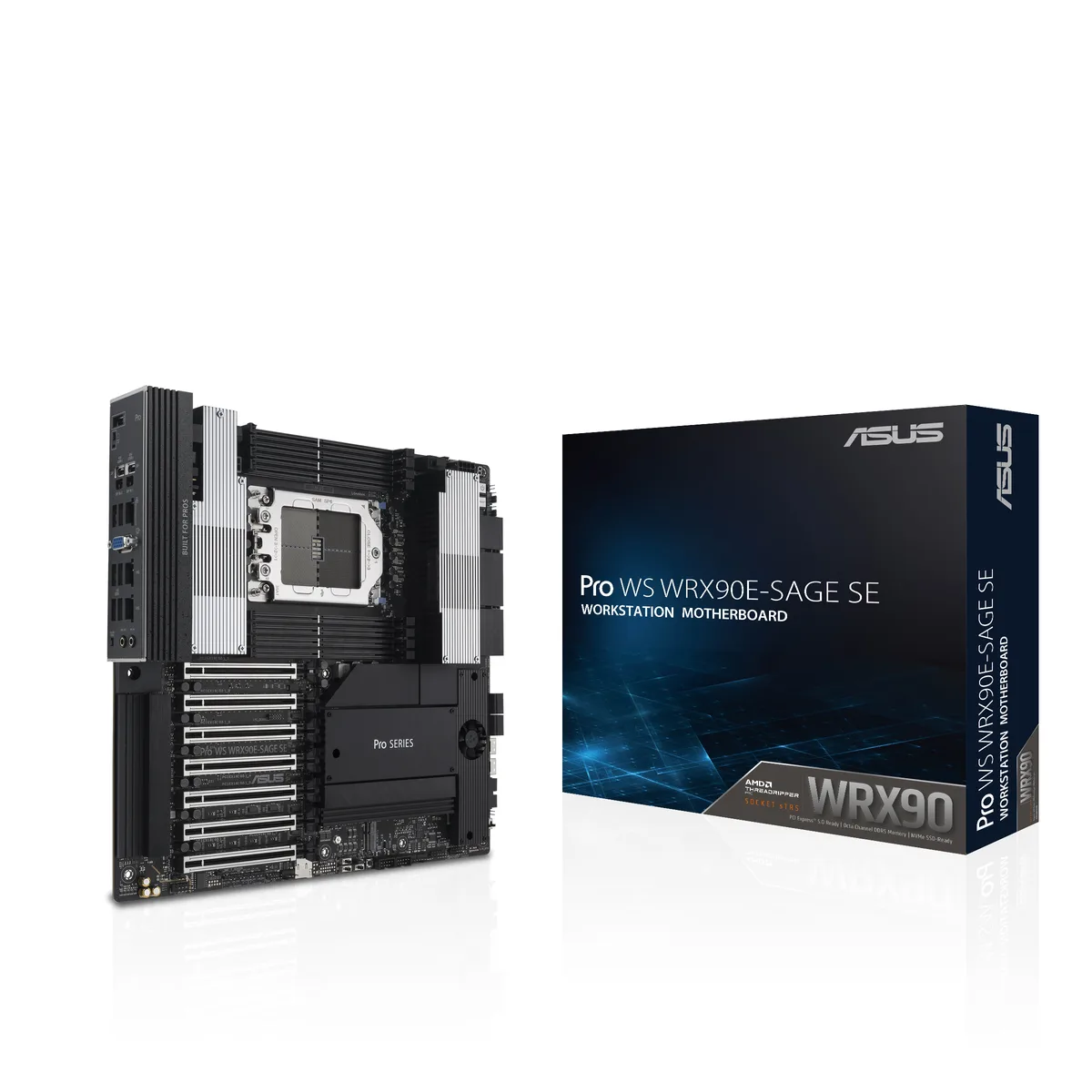

Rectangular EEB server board, dark PCB with silver heatsinks and multiple expansion slots

ASUS

ASUS Pro WS WRX90E-SAGE SE server motherboard

SKU CH-ZEYV-17NWN MPN Pro WS WRX90E-SAGE SE

Supports AMD Ryzen Threadripper PRO 7000 and 9000 series CPUs with up to 96 cores, 2 TB DDR5 ECC R-DIMM across eight slots, seven PCIe 5.0 x16 slots, four M.2 slots.

  • CPU Socket TypeSocket sTR5
  • CPU TypeAMD Ryzen Threadripper PRO 7000 Series / AMD Ryzen Threadrip
  • North BridgeAMD WRX90
  • Memory Slots8 x DDR5 288-pin
  • Maximum Memory Supported2TB
  • Channel SupportedQuad Channel

Option

  • ASUS Pro WS WRX90E-SAGE SE EEB Workstation motherboard
  • ASUS Pro WS WRX90E-SAGE SE EEB Workstation motherboard + TEAMGROUP CTCMD564G6000HC32AQC01 T-Create Master 64GB kits(16GBx4) DDR5 6000 (PC5-48000) Overclock ECC
  • ASUS Pro WS WRX90E-SAGE SE EEB Workstation motherboard + TEAMGROUP CTCMD5128G6000HC32AOC01 T-Create Master 128GB kits(16GBx8) DDR5 6000 (PC5-48000) Overclock EC
  • ASUS Pro WS WRX90E-SAGE SE EEB Workstation motherboard + TEAMGROUP CTCMD5128G6000HC30FQC01 T-Create Master 128GB kits(32GBx4) DDR5 6000 (PC5-48000) Overclock EC
  • ASUS Pro WS WRX90E-SAGE SE EEB Workstation motherboard + TEAMGROUP CTCMD5256G6000HC30FOC01T-Create Master 256GB kits(32GBx8) DDR5 6000 (PC5-48000) Overclock ECC

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports up to 96-core Threadripper CPUs via socket sTR5
  • Seven PCIe 5.0 x16 slots for maximum expansion bandwidth
  • 2TB quad-channel DDR5 ECC R-DIMM capacity for heavy workloads
  • Dual 10Gb LAN plus two USB4 40Gbps Type-C ports
  • 32 power stages with active VRM and M.2 cooling

AMD sTR5 Workstation Board

The ASUS Pro WS WRX90E-SAGE SE is an EEB server motherboard built for AMD Ryzen Threadripper PRO 7000 and 9000 WX-Series processors up to 96 cores. It targets professionals who need maximum multi-threaded throughput for rendering, simulation or virtualisation workloads. The WRX90 chipset unlocks the full platform I/O for demanding workstation builds.

32-Stage Power and PCIe 5.0 Density

A 32-stage VRM fed by dual 8-pin CPU connectors delivers stable current to high-core-count CPUs, while massive heatsinks and active M.2 fans manage thermals under sustained load. Seven PCIe 5.0 x16 slots, four M.2 sockets supporting 2242, 2260, 2280 and 22110 lengths, and two rear USB4 40 Gbps Type-C ports provide expansive connectivity for GPUs, accelerators and fast storage. Dual 10 Gb Ethernet and a dedicated IPMI LAN port enable remote management via the AST2600 BMC.

Quad-Channel DDR5 Upgrade Path

The board replaces earlier Threadripper PRO platforms by supporting up to 2 TB of ECC registered DDR5 across eight slots in quad-channel mode. Builders moving from systems limited to lower memory capacities or PCIe 4.0 storage gain headroom for larger datasets and faster scratch disks. The jump is worth it when workloads exceed the memory or I/O bandwidth of previous-generation workstations.

Points forts

  • Supports up to 96-core Threadripper CPUs via socket sTR5
  • Seven PCIe 5.0 x16 slots for maximum expansion bandwidth
  • 2TB quad-channel DDR5 ECC R-DIMM capacity for heavy workloads
  • Dual 10Gb LAN plus two USB4 40Gbps Type-C ports
  • 32 power stages with active VRM and M.2 cooling

Caractéristiques

BrandASUS
ModelPro WS WRX90E-SAGE SE
CPU Socket TypeSocket sTR5
CPU TypeAMD Ryzen Threadripper PRO 7000 Series / AMD Ryzen Threadripper PRO 9000 Series
North BridgeAMD WRX90
Memory Slots8 x DDR5 288-pin
Maximum Memory Supported2TB
Channel SupportedQuad Channel
ECC SupportedYes
RegisteredYes
PCI Express 5.0 x166 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)
SATA4 x SATA 6.0Gb/s
SATA RAIDAMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
M.2M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Audio ChipsetRealtek ALC1220P
Audio ChannelsRealtek ALC1220P Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
*A chassis with an HD audio module in the front panel is required to support 5.1 Surr
LAN ChipsetASUS LANGuard
Max LAN Speed10Gbps

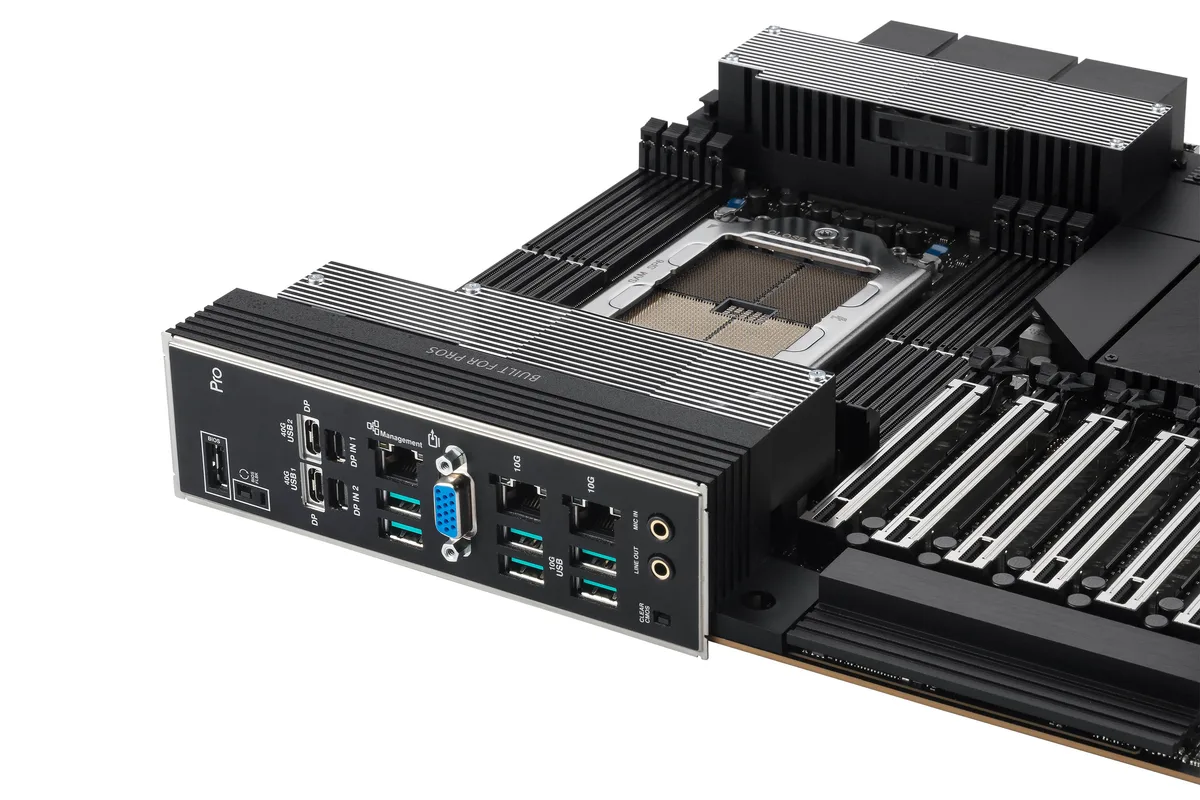

Back I/O Ports2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (2 x Type-A)
1 x VGA port
2 x mini DisplayPort IN
1 x Intel dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector supports USB Type-C
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
5 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port
Miscellaneous
1 x Chassis intrusion header
1 x COM port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x LN2 mode jumper
1 x M.2 slot (Key E)
7 x ProbeIt measurement points
1 x ReTry button
1 x RSVD switch
1 x Slow mode switch
1 x Safe boot button
1 x SPI TPM header (14-
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate and onboard thermal pads
- M.2 heatsink
- Steel backplate
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I
Form FactorEEB
Dimensions (W x L)12" x 13"
Package ContentsCables
2 x PCIe 8-pin to CPU power cables
1 x 24-pin power cable (Y cable)
2 x Mini DisplayPort cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x Q-connector
1 x M.2 Q-Latch package
1 x AMI license sticker
4 x M.2 rubber packages
1 x Screw package for M.2 Key E
Documentation
1 x ACC Express Activation Key Card
1 x Quick start guide
Poids d’expédition3.99 kg
Dimensions du colis381 × 315 × 83 mm

Questions sur cet article

What does the PCIe 5.0 x16 layout deliver for expansion cards?

Seven PCIe 5.0 x16 slots are provided, six running at full x16 speed and one at x8, giving maximum bandwidth for GPUs and add-in cards.

What case clearance and power connectors does the EEB board require?

The board uses the EEB form factor and needs two 8-pin CPU power connectors plus room for the large VRM heatsink and active M.2 fans.

How does the PCIe Q-Release Slim mechanism work for graphics cards?

Pull the graphics card straight up to release it; no latch press is needed, reducing risk of damage during swaps.
