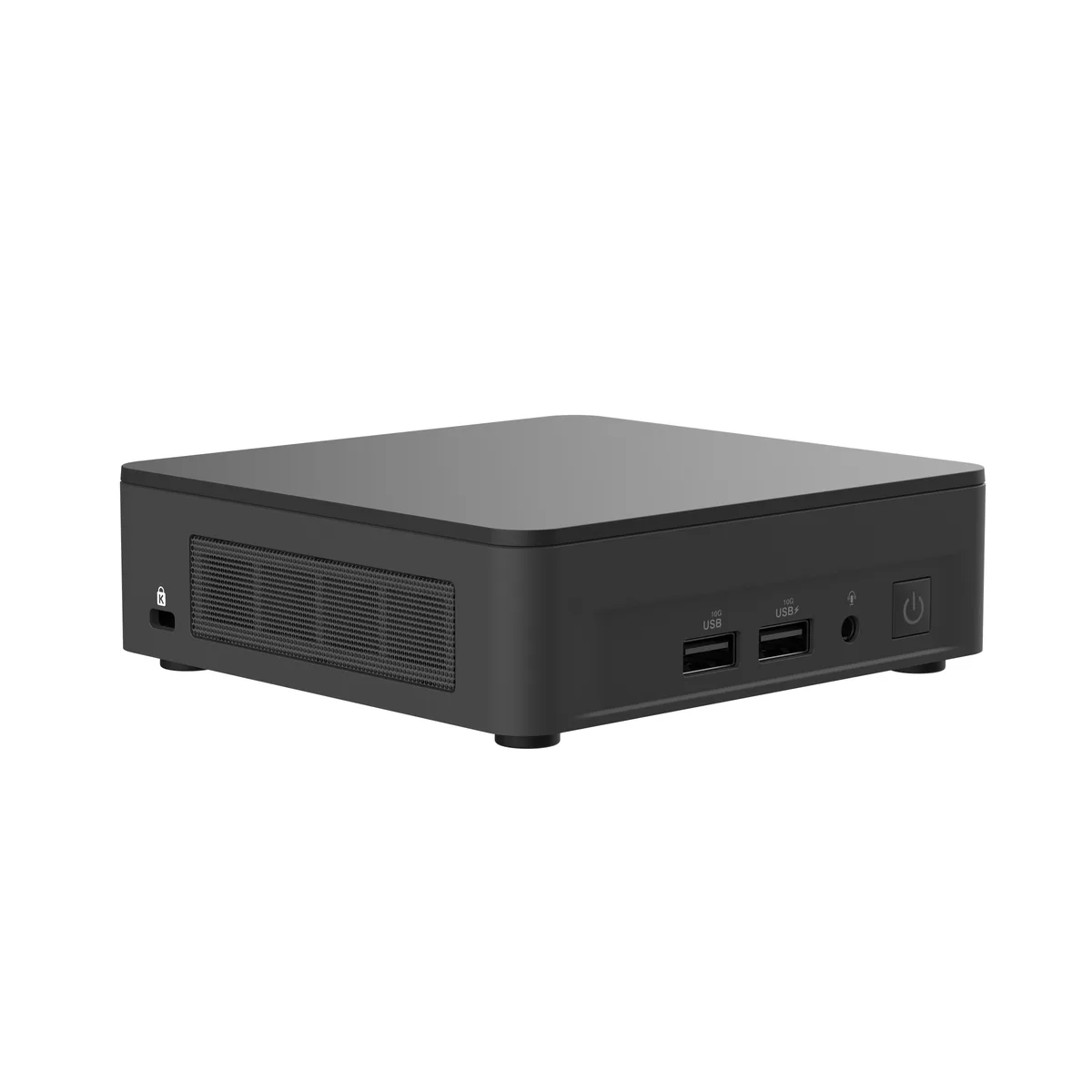

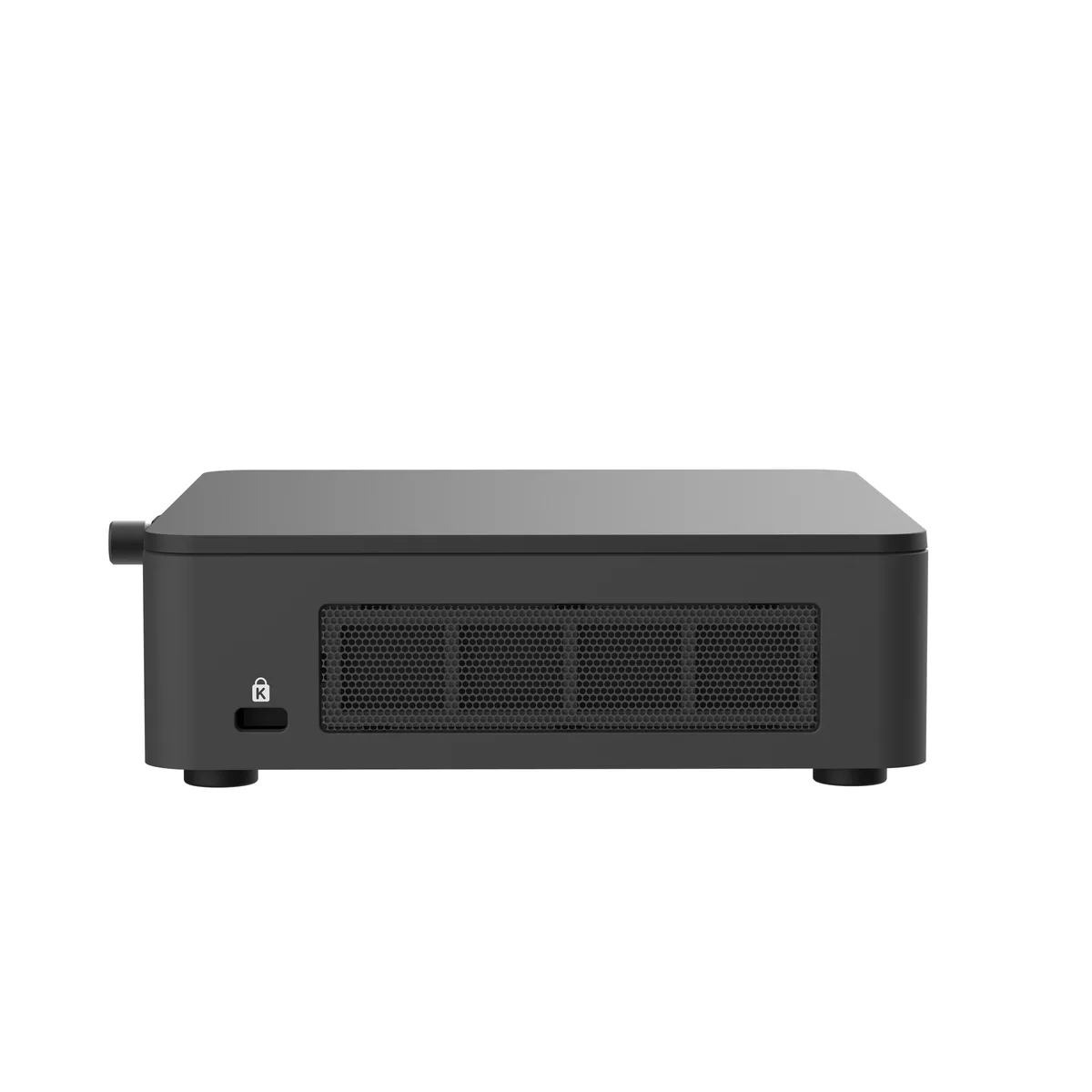

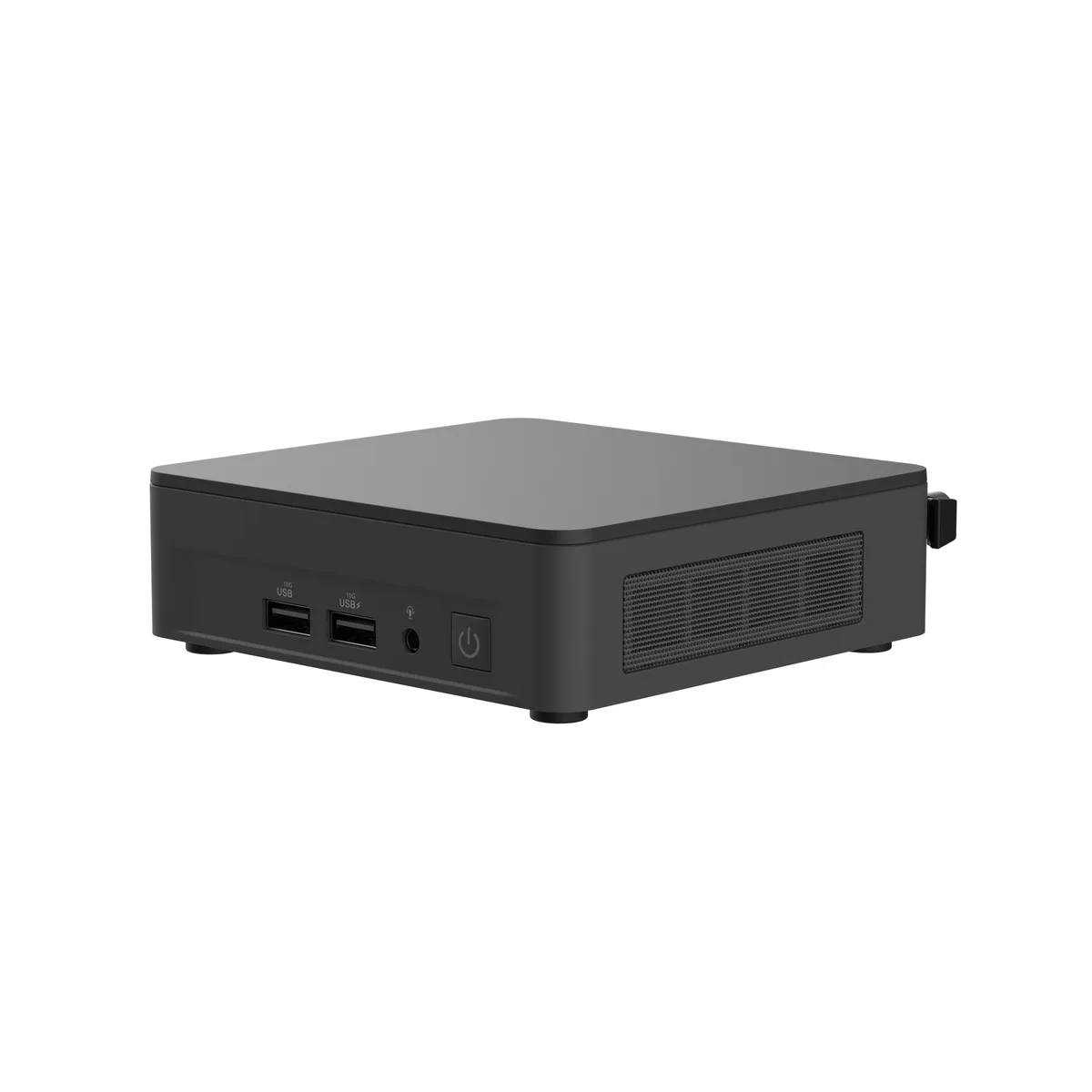

Black slim barebone mini PC with VESA mount bracket

ASUS

ASUS RNUC13ANKH70000UI Core i7-13620H barebone mini PC

SKU CH-1GDV-AP36E MPN RNUC13ANKH70000UI

Barebone mini PC with a 13th Gen Intel Core i7-13620H processor supporting up to 64 GB DDR4-3200 RAM, dual M.2 storage slots, Thunderbolt 4, Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gbps Ethernet

  • ColorBlack
  • Form FactorSlim
  • CPU TypeIntel Core i7-13620H
  • CPU Cores10-Core (4P+6E)
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM

CPU 13th Gen Intel Core i7-13620H

  • 13th Gen Intel Core i5-13420H
  • 13th Gen Intel Core i7-13620H

Les versions barrées existent, mais ne sont pas disponibles ici.

Size Slim

  • Slim
  • Tall

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 13th Gen Intel Core i7-13620H with 10 cores for strong multitasking
  • Dual-channel DDR4 3200 supports up to 64 GB RAM for smooth workloads
  • Two M.2 slots allow NVMe and SATA storage in one compact unit
  • 5 Gbps Ethernet plus Wi-Fi 6E and Bluetooth 5.3 for fast wired and wireless links
  • VESA mount included enables 24/7 wall or behind-monitor deployment

Core i7-13620H barebone mini PC

This ASUS NUC 13 Pro Slim kit arrives as a barebone system with the 10-core Intel Core i7-13620H processor already installed. It supports up to 64 GB of DDR4 3200 memory across two SO-DIMM slots and offers dual M.2 storage bays for NVMe and SATA drives. Integrated Intel UHD Graphics drives up to four 4K displays via dual HDMI and dual Thunderbolt 4 ports.

Suits compact workstations and signage.

Builders who need a tiny, VESA-mountable PC for office productivity, digital signage or light content creation will appreciate the 2.5 Gbps Ethernet, Wi-Fi 6E and Bluetooth 5.3 connectivity. The chassis is qualified for 24/7 operation and includes a Kensington lock slot. Buyers who require a dedicated graphics card or more than two memory channels should consider a larger form factor.

Check DDR4 SO-DIMM and M.2 keying before ordering

You must supply two 260-pin DDR4 3200 SO-DIMM modules to reach the 64 GB maximum. The primary M.2 2280 slot accepts PCIe Gen 4 x4 NVMe drives from 128 GB to 8 TB, while the secondary 2242 slot takes either PCIe Gen 3 x1 or SATA SSDs from 256 GB to 1 TB. Verify that your chosen drives match the key types and length limits.

Points forts

  • 13th Gen Intel Core i7-13620H with 10 cores for strong multitasking
  • Dual-channel DDR4 3200 supports up to 64 GB RAM for smooth workloads
  • Two M.2 slots allow NVMe and SATA storage in one compact unit
  • 5 Gbps Ethernet plus Wi-Fi 6E and Bluetooth 5.3 for fast wired and wireless links
  • VESA mount included enables 24/7 wall or behind-monitor deployment

Caractéristiques

BrandASUS
SeriesNUC 13 PRO
ModelRNUC13ANKH70000UI
Part Number90AR0031-M002A0
ColorBlack
Form FactorSlim
CPU TypeIntel Core i7-13620H
CPU Cores10-Core (4P+6E)
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe G4x4 NVMe SSD (supports 128GB ~ 8TB) Key type M
1 x M.2 2242 PCIe G3x1 or SATA SSD (supports 256GB ~ 1TB) Key type B
Integrated GraphicsIntel UHD Graphics
Onboard AudioRealtek ALC269
Channel2 Channel
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211 (Gig+), 2x2
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
Front USB1 x USB 3.2 Gen2 Type-A (with BC1.2 | 5V/0.9A, 10Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x 3.5mm Audio Jack (Line out/Mic in/Headphone out)
HDMI2 x HDMI 2.1 (with TMDS, up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Kensington Lock Slot
1 x Cable Locking Arm
1 x DC-in
Power Supply120W Power Adapter
Dimensions4.61" x 4.41" x 1.46"
Weight1.07 lbs.
PackagingVESA Mount & Screws / AC Power Adapter / Power Cord, US Cord for USA
Poids d’expédition1.54 kg
Dimensions du colis193 × 171 × 108 mm

Questions sur cet article

Does the ASUS NUC 13 Pro Slim barebone kit require me to buy DDR4 3200 SO-DIMM modules before it will boot?

Yes, the system ships with no memory installed and needs two DDR4 3200 SO-DIMM modules up to 64 GB total to operate.

Will my existing M.2 2242 SATA SSD work in the secondary slot alongside a new PCIe 4.0 NVMe drive?

The second M.2 2242 slot accepts either a PCIe 3.0 x1 NVMe or a SATA SSD up to 1 TB, so your current SATA drive is compatible.

How can I confirm the Intel Wi-Fi 6E AX211 and 2.5 Gbps Ethernet are active after I install memory and storage?

In Device Manager the network adapters list will show Intel Wi-Fi 6E AX211 and Intel I226-V 2.5GbE, and both should report link speeds of 2.5 Gbps and 6 GHz Wi-Fi respectively.
