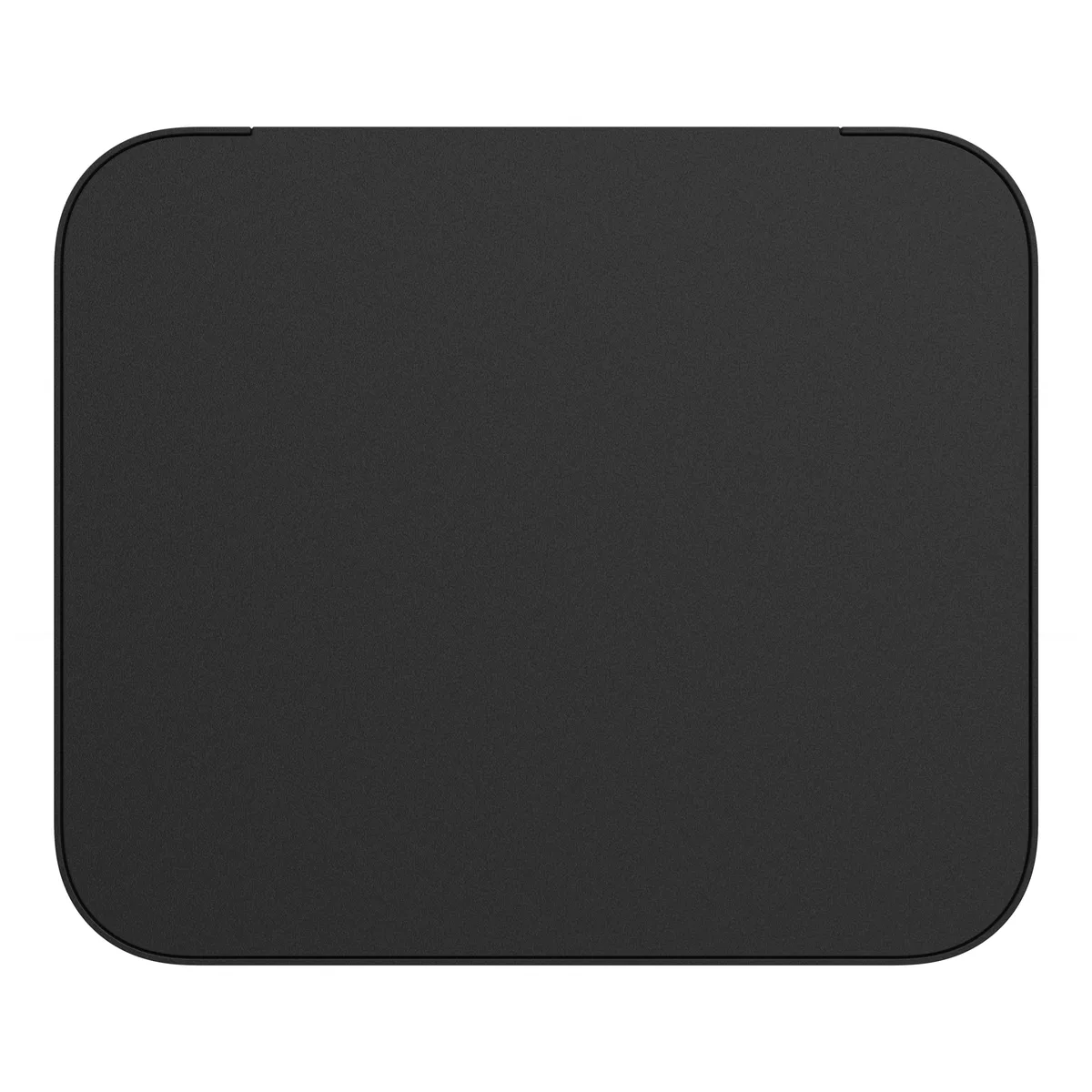

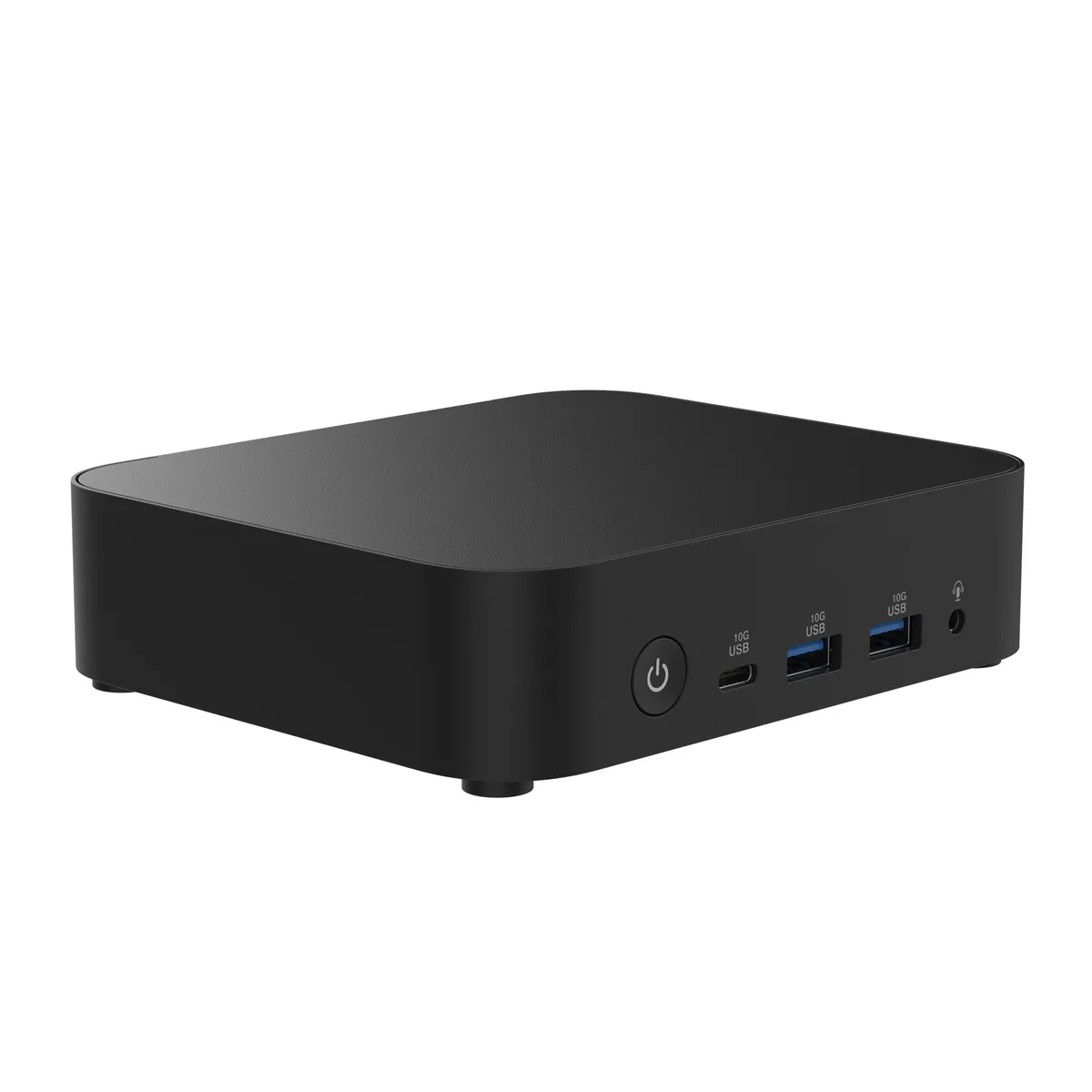

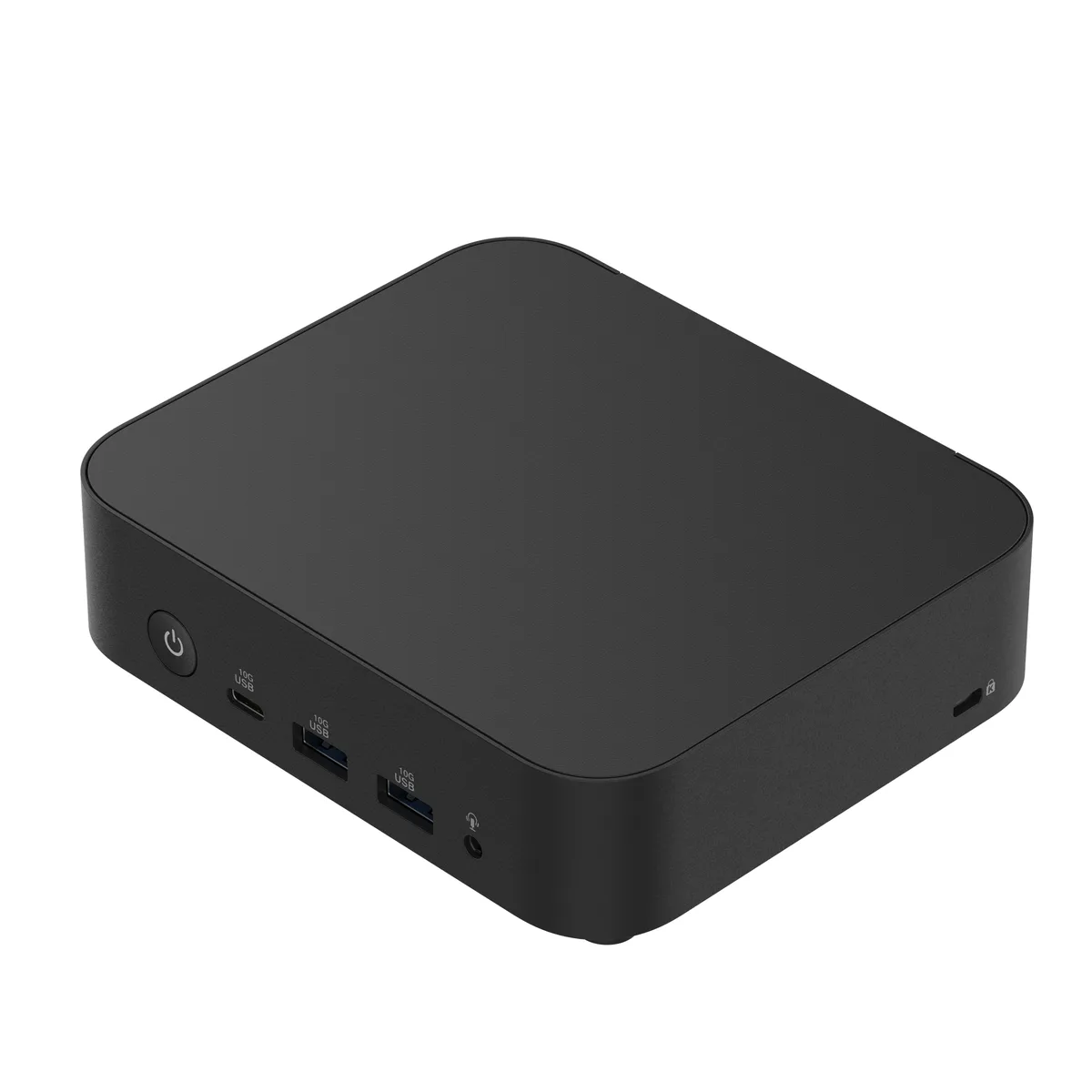

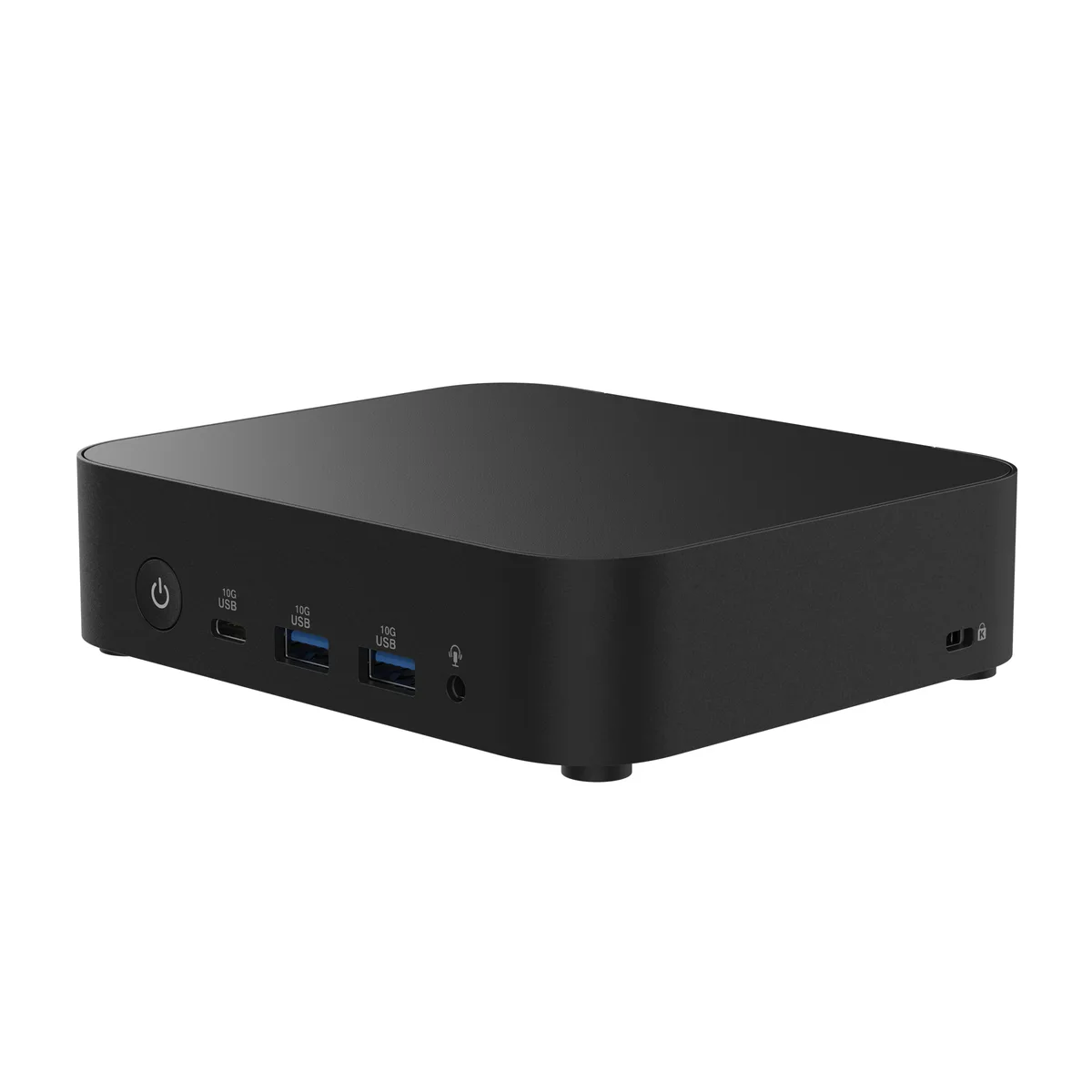

Small black square mini PC with rounded edges, compact 0.56L chassis, VESA mount visible

ASUS

ASUS RNUC14MNK250000U NUC 14 Essential barebone mini PC Intel N250 DDR5 16GB M.2 2.5G Wi-Fi 6E Bluetooth 5.3

SKU CH-S14X-M3X70 MPN RNUC14MNK250000U

Barebone mini PC with an Intel N250 processor, a single DDR5-4800 SO-DIMM slot for up to 16 GB, one M.2 2280 slot for NVMe or SATA storage, 2.5 GbE LAN, Wi-Fi 6E and Bluetooth 5.3.

  • ColorBlack
  • CPU TypeIntel Processor N250
  • North BridgeSoC
  • Memory installedNo Memory
  • Memory slot1 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 4800
  • Efficient Intel N250 processor with low power consumption
  • Triple 4K display support via HDMI 2.1, DisplayPort 1.4 and USB-C
  • 5G LAN plus Wi-Fi 6E and Bluetooth 5.3 connectivity
  • Single DDR5-4800 SO-DIMM slot supporting up to 16GB
  • M.2 2280 slot for PCIe 3.0 x4 or SATA SSD

Purpose-built barebone

The ASUS NUC 14 Essential RNUC14MNK250000U is a 0.56L mini PC barebone kit built around the Intel Processor N250. It targets buyers who want a compact, low-power platform for office work, media playback or light content creation and who prefer to add their own DDR5 memory and M.2 storage.

Installation notes

The chassis opens easily for access to the single 262-pin SO-DIMM slot and the single M.2 2280/2242 socket. Only one DDR5-4800 module up to 16 GB can be fitted, and the M.2 slot accepts either a PCIe 3.0 x4 NVMe or a SATA SSD between 128 GB and 4 TB; mixing interface types is not possible because there is only one slot.

Interface limits

Triple 4K output at 60 Hz is available through DisplayPort 1.4, HDMI 2.1 and the front USB-C 3.2 Gen2 port, but the integrated Intel Graphics tops out at 4096 x 2160. The 2.5 GbE LAN port and Wi-Fi 6E AX211 wireless share the same Realtek and Intel controllers, so total throughput cannot exceed the 2.5 GbE ceiling.

Points forts

  • Efficient Intel N250 processor with low power consumption
  • Triple 4K display support via HDMI 2.1, DisplayPort 1.4 and USB-C
  • 5G LAN plus Wi-Fi 6E and Bluetooth 5.3 connectivity
  • Single DDR5-4800 SO-DIMM slot supporting up to 16GB
  • M.2 2280 slot for PCIe 3.0 x4 or SATA SSD

Caractéristiques

BrandASUS
SeriesASUS NUC 14 Essential
Part NumberRNUC14MNK250000U
ColorBlack
CPU TypeIntel Processor N250
North BridgeSoC
Memory installedNo Memory
Memory slot1 x 262Pin SO-DIMM
Memory Type SupportedDDR5 4800
Max Memory Supported16GB
M.2 Slot1 x M.2 2280/2242 PCIe Gen3x4 NVMe or SATA SSD (empty)
(M.2 SSD / supports 128GB ~ 4TB)
Integrated GraphicsIntel Graphics
1.25 GHz
32 Execution Units
DisplayPort 1.4 Max Resolution: 4096x2160@60Hz
HDMI Max Resolution: 4096x2160@60Hz
Supports Triple Displays
Onboard AudioRealtek ALC3251
LAN1 x Realtek RTL8125BG-CG (2.5 GbE)
Wireless LANIntel Wi-Fi 6E AX211 (Gig+), 2x2
BluetoothBluetooth 5.3
Front USB1 x USB 3.2 Gen2 Type-C (5V/3A, 10Gbps)
2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x 3.5mm Audio Out
HDMI1 x HDMI 2.1 (with TMDS, up to 4K@60Hz)
DisplayPort1 x DisplayPort 1.4
Rear USB1 x USB 3.2 Gen2 Type-C (with DP1.4 / 5V/3A, 10Gbps)
2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Realtek 2.5G LAN (RJ45)
Power Supply19V DC-IN
65W 19V AC-DC Adapter
Dimensions135 x 115 x 36mm
5.31" x 4.53" x 1.42" (in inches)
Weightproduct net weight :2.05 lbs
FeaturesfTPM 2.0 (Intel PTT)
PackagingVESA Screws / AC Power Adapter / Power Cord
Poids d’expédition1.18 kg
Dimensions du colis203 × 171 × 102 mm

Questions sur cet article

How do I verify the Intel N250 is running at its 1.25 GHz graphics clock after assembly?

The integrated Intel Graphics operate at 1.25 GHz with 32 Execution Units; once the system posts and drivers load, that frequency is reported in the graphics control panel.

What components are missing from the barebone kit and must be purchased separately?

The kit includes the chassis, board, 2.5 GbE LAN, Wi-Fi 6E AX211, Bluetooth 5.3 and VESA mount; you must add a DDR5-4800 SO-DIMM up to 16 GB and an M.2 2280/2242 NVMe or SATA SSD.

Which DDR5 SO-DIMM capacity should I choose for the single 262-pin slot?

The slot supports one DDR5-4800 module with a maximum of 16 GB; select an 8 GB or 16 GB stick depending on your workload.
