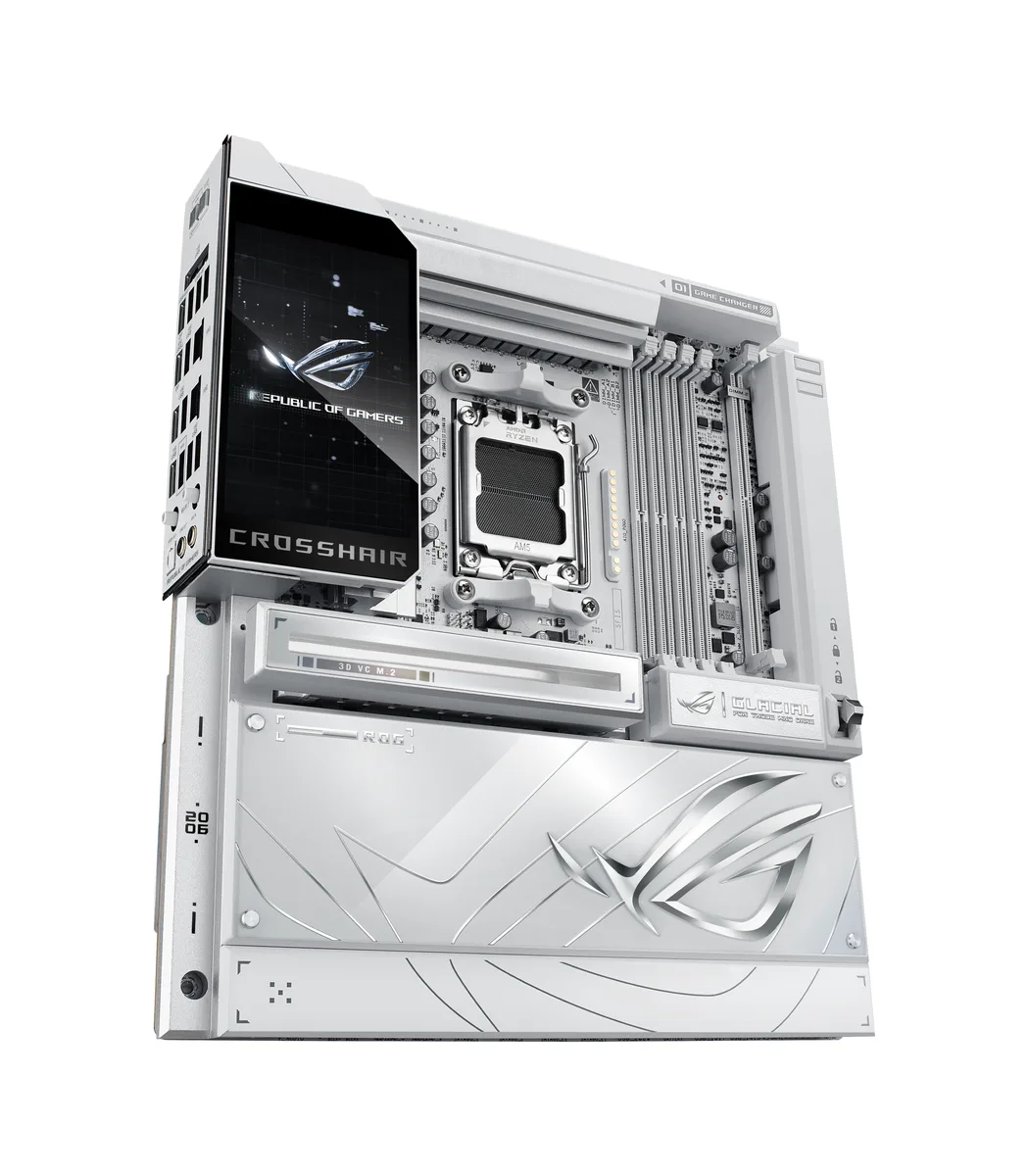

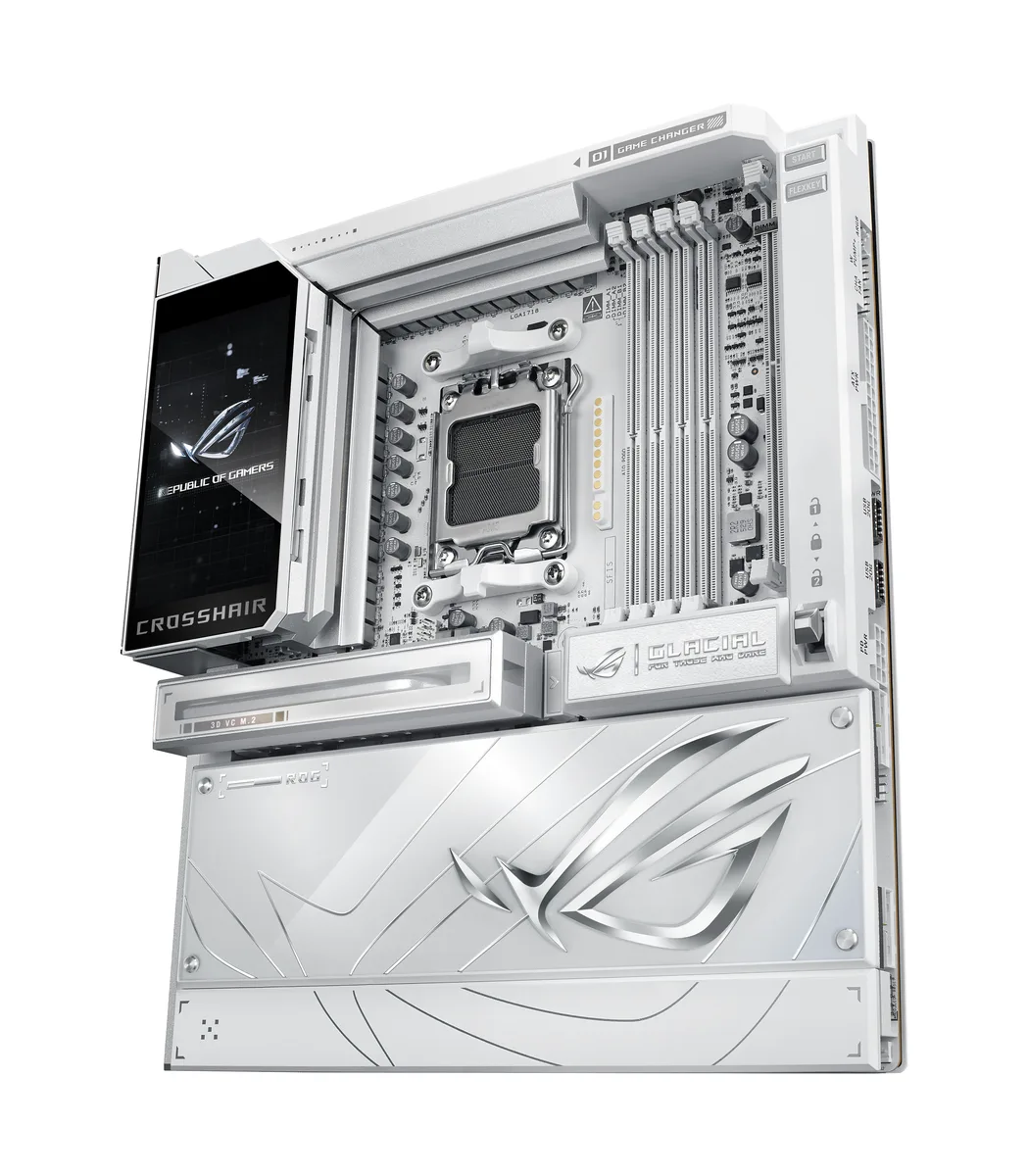

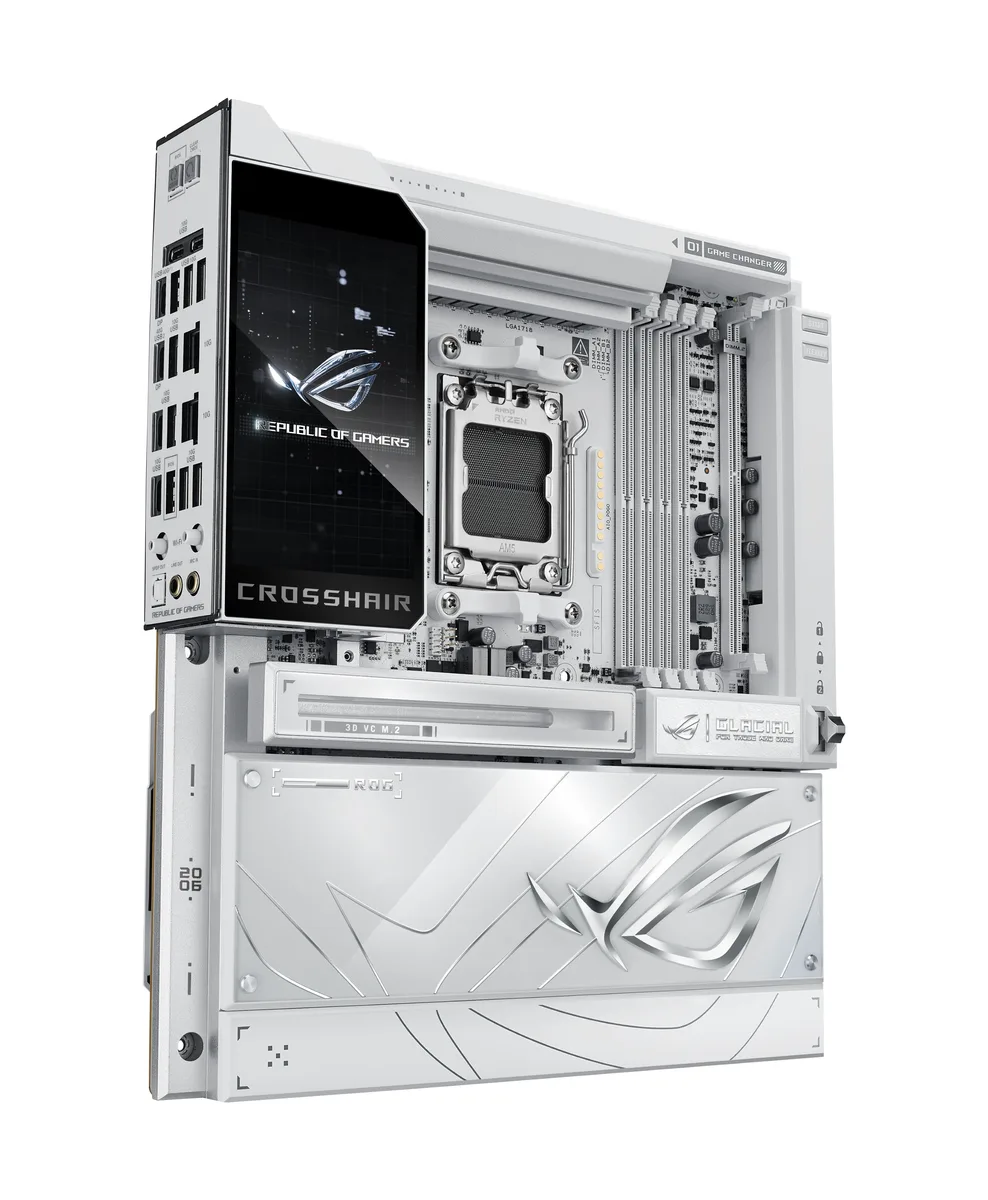

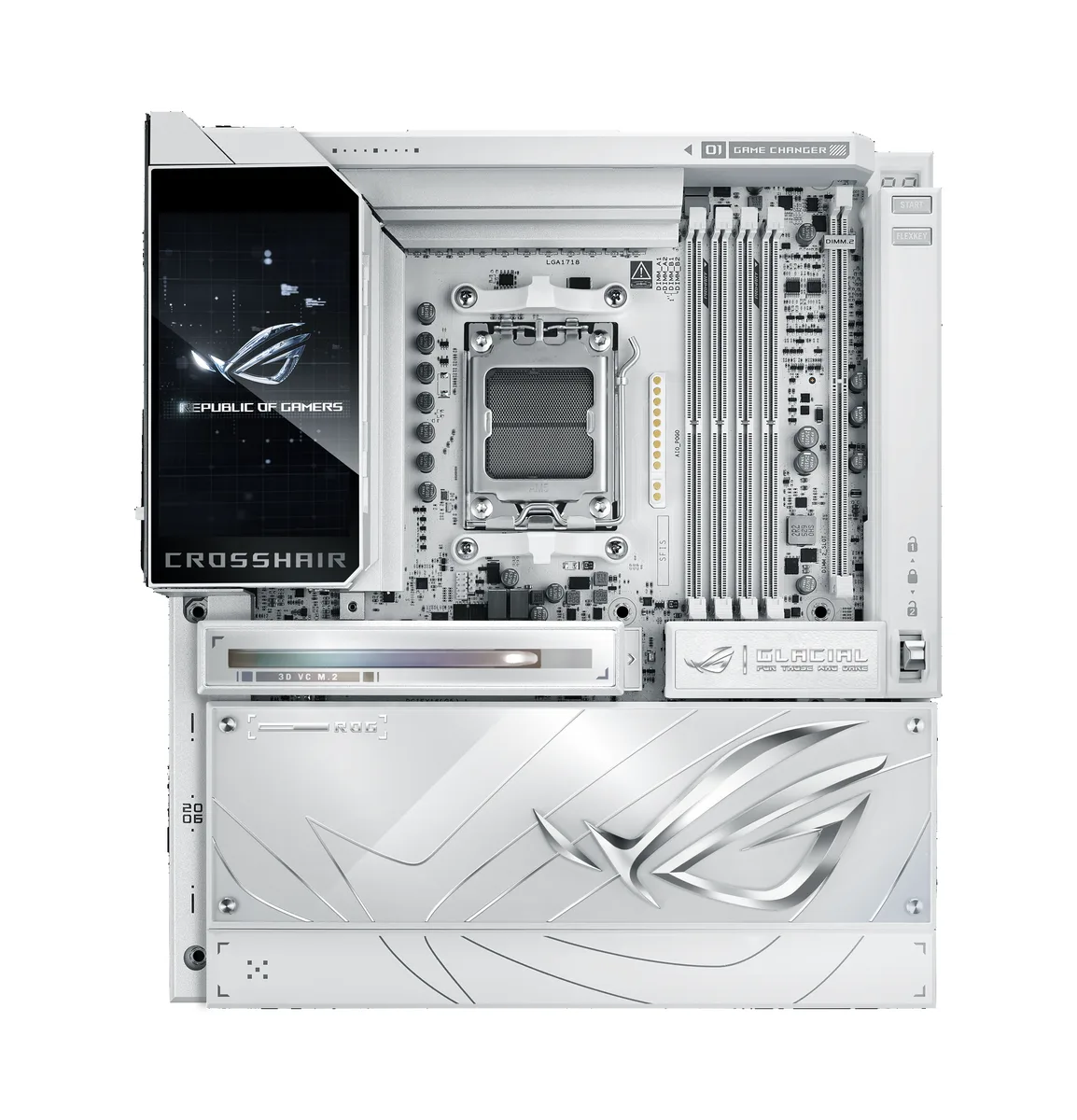

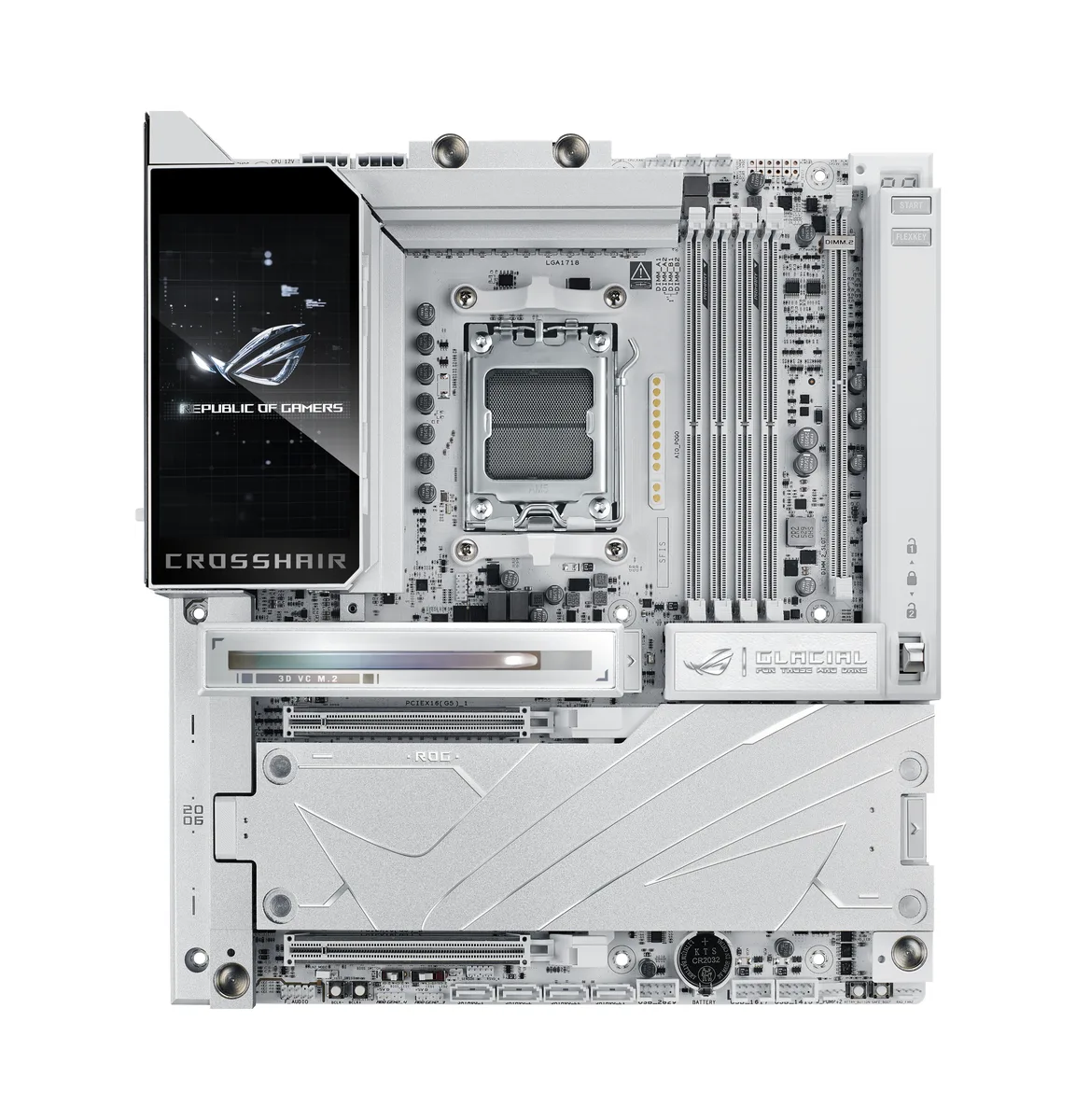

White E-ATX motherboard with full cover heatsinks and a five inch LCD display

ASUS

ASUS ROG CROSSHAIR X870E GLACIAL AMD motherboard

SKU CH-F538-XDH0H MPN ROG CROSSHAIR X870E GLACIAL

AM5 motherboard with 24+2+2 power stages, DDR5 up to 9600 MT/s, seven M.2 slots, dual 10G Ethernet, Wi-Fi 802.11 be, Bluetooth 5.4, two USB4 ports, two USB 20Gbps Type-C front connectors, and a

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 S
  • Maximum Memory Supported256GB

Option ROG CROSSHAIR X870E GLACIAL

  • Robust 24+2+2 power stages with 110A rating deliver stable overclocking headroom
  • Seven M.2 slots including two PCIe 5.0 and one PCIe 4.0 onboard plus expansion cards maximise high-speed storage capacity
  • Dual 10Gbps Ethernet plus Wi-Fi 802.11 be and Bluetooth 5.4 provide fast, reliable wired and wireless connectivity
  • Two USB4 Type-C ports and two USB 20Gbps front-panel connectors with 60W Quick Charge 4+ enable versatile high-bandwidth peripheral support
  • Full-colour 5-inch LCD display gives real-time system monitoring and customisation at a glance

Built for AMD AM5 flagships

The ASUS ROG Crosshair X870E Glacial is an extended-ATX motherboard for AMD Ryzen 7000, 8000 and 9000 series processors. It delivers a 24+2+2 power stage design rated at 110 A per stage and supports up to 256 GB of DDR5 across four 288-pin slots. Dual 10 Gbps Ethernet, Wi-Fi 802.11 be and Bluetooth 5.4 provide high-speed networking. A full-colour 5-inch LCD adds real-time system monitoring.

Enthusiasts who need maximum expansion

Seven M.2 slots accept 2242, 2260, 2280 and 22110 form factors, with two running at PCIe 5.0 x4 and one cooled by a 3D vapour-chamber heatsink. Two PCIe 5.0 x16 SafeSlots support x16 or x8/x8 configurations via a Q-Release switch. Builders who only need a single GPU and fewer drives should consider a smaller board with less M.2 capacity.

Fits extended-ATX cases with strong cooling

The board requires an E-ATX compatible chassis and a power supply with dual ProCool II connectors for the 24+2+2 phase VRM. Four SATA 6 Gb/s ports and twelve USB 10 Gbps ports free up front-panel headers for other devices. Two USB4 Type-C ports and two USB 20 Gbps front-panel connectors (one with 60 W Quick Charge 4+) handle high-speed peripherals. ROG SupremeFX 7.1 audio with ALC4082 codec drives headphones directly.

Points forts

  • Robust 24+2+2 power stages with 110A rating deliver stable overclocking headroom
  • Seven M.2 slots including two PCIe 5.0 and one PCIe 4.0 onboard plus expansion cards maximise high-speed storage capacity
  • Dual 10Gbps Ethernet plus Wi-Fi 802.11 be and Bluetooth 5.4 provide fast, reliable wired and wireless connectivity
  • Two USB4 Type-C ports and two USB 20Gbps front-panel connectors with 60W Quick Charge 4+ enable versatile high-bandwidth peripheral support
  • Full-colour 5-inch LCD display gives real-time system monitoring and customisation at a glance

Caractéristiques

BrandASUS
ModelROG Crosshair X870E Glacial
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to
8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 Series Processors
9600+MT/s(OC)/9200+MT/s(OC) with Ryzen 8000 Series Processors
8000+MT/s(OC)/8000+MT/s(OC) with Ryzen 7000 Series Processors
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with PCIe Q-Release Switch (supports x16 or x8/x8 or x8/x4/x4 or x4/x4/x4/x4 modes)**
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
AMD Ryzen 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
* Specifications vary by CPU types.
**
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)
Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10*
* SATA ports from ASM1162 cannot support RAID
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
Supports LHDC, high-definition bluetooth audio codec, transmission with up to 400 kbps bitrate
Max LAN Speed2 x 10Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
12 x USB 10Gbps ports (8 x Type-A + 4 x USB Type-C)
1 x Wi-Fi Module
2 x Realtek 10Gb Ethernet ports
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB2 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x AIO Q-Connector
1 x Extra Flow Fan header
Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
2 x BCLK button
1 x BIOS Switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
12 x ProbeIt Measurement Points
Form FactorExtended ATX
Dimensions (W x L)12.0" x 10.9"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
BIOS Feature2 x 512 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- LCD Display
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- WiFi Q-Antenna
- MLO Wizard
ASUS DriverHub
- ASUS MB Manage
- ASUS AI Advisor
- AIDA64 Extreme (1 year full version)
- HWiNFO
- Turbo Vcore
- ASUS GlideX
- USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
Integrated WiFi Driver Support
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
-
Poids d’expédition6.40 kg
Dimensions du colis382 × 324 × 127 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Which AMD Ryzen processor do I need installed before the 24+2+2 power stages can deliver full current to the CPU?

The board accepts Ryzen 7000, 8000 and 9000 series processors in the AM5 socket; choose the generation that matches your performance target and the power stages will supply up to 110 A per stage.

Will my existing DDR5 modules rated below 8600 MT/s still run stably on the four 288-pin slots?

Yes, the board supports DDR5 speeds from standard JEDEC up to 8600+ MT/s with Ryzen 9000, 9600+ MT/s with Ryzen 8000 and 8000+ MT/s with Ryzen 7000, so slower kits will operate at their rated frequency.

How can I confirm the 5-inch full-colour LCD is displaying live hardware data after first boot?

Enter the BIOS or launch Armoury Crate in Windows; the LCD should show real-time temperatures, fan speeds, voltages and the AI Cache Boost status once the ROG drivers are installed.
