ASUS
ASUS ROG RYUJIN II 360 liquid cooler 360mm
A 360 mm liquid cooler with three 120 mm PWM fans reaching 2000 RPM and 71.6 CFM airflow, plus a 1.77" OLED panel for live system stats
- TypeLiquid Cooling System
- Block Compatibility - AMDAM4/TR4*
- Block Compatibility - Intel2066 /2011-v3 /2011 /1366 /1156 /1155 /1151 /1150
- Pump Dim.100mm*100mm*70mm
- Radiator Size394mm*122mm*27mm
- Radiator MaterialAluminum
- 77" full-colour OLED panel displays live system stats and custom animations via LiveDash software
- Industrial-grade 2000 RPM PWM Noctua fans push 71.6 CFM airflow at just 29.7 dBA noise
- Embedded micro-fan inside pump housing actively cools VRM and M.2 components
- Aura Sync addressable RGB lighting synchronises colours across compatible components
- 394 mm aluminium radiator with three 120 mm fans fits 360 mm mounts for high-capacity cooling
High-performance liquid CPU cooler
The ASUS ROG RYUJIN II 360 is a 360mm all-in-one liquid cooler built for enthusiasts who demand strong thermal headroom for overclocked processors. It combines a large aluminium radiator with three 120mm PWM fans to dissipate heat from modern high-wattage CPUs effectively.
OLED monitoring and embedded micro fan

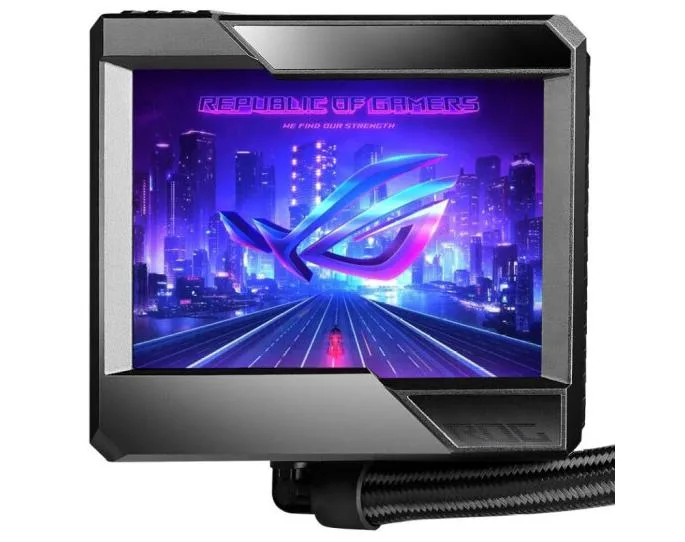

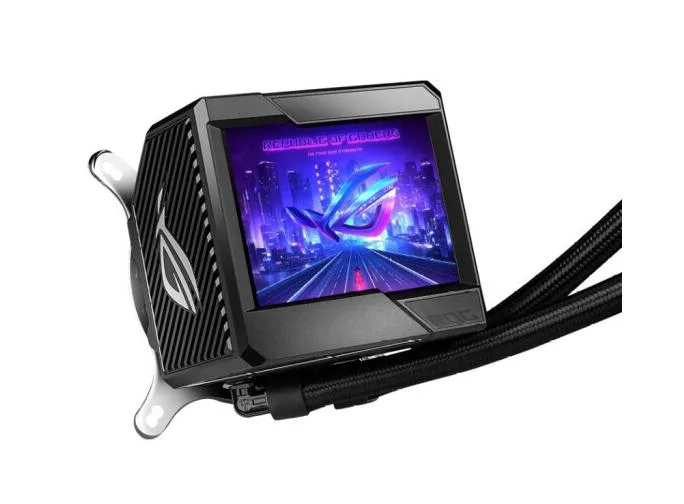

A 1.77-inch full-colour OLED panel on the pump head displays real-time system statistics or custom animations controlled via LiveDash software. An embedded micro fan inside the 100mm x 100mm x 70mm pump housing directs airflow toward VRM and M.2 areas, while reinforced sleeved tubing and an aluminium cover add durability.
Socket support and acoustic limits
The cold plate mounts to Intel LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011 and 2066 sockets plus AMD AM4 and TR4 platforms. Three 120mm fans spin between 450 and 2000 RPM delivering up to 71.6 CFM at 29.7 dBA, so builders needing quieter operation or different socket brackets must look elsewhere.
Points forts
- 77" full-colour OLED panel displays live system stats and custom animations via LiveDash software
- Industrial-grade 2000 RPM PWM Noctua fans push 71.6 CFM airflow at just 29.7 dBA noise
- Embedded micro-fan inside pump housing actively cools VRM and M.2 components
- Aura Sync addressable RGB lighting synchronises colours across compatible components
- 394 mm aluminium radiator with three 120 mm fans fits 360 mm mounts for high-capacity cooling
Caractéristiques
| Brand | ASUS |
|---|---|
| Model | Freeze 360 |
| Type | Liquid Cooling System |
| Block Compatibility - AMD | AM4/TR4* |
| Block Compatibility - Intel | 2066 /2011-v3 /2011 /1366 /1156 /1155 /1151 /1150 |
| Pump Dim. | 100mm*100mm*70mm |
| Radiator Size | 394mm*122mm*27mm |
| Radiator Material | Aluminum |
| Fan Size | 3 Fan Slots (120 mm) |
| Fan Dim. | 120mm*120mm*25mm |
| Fan RPM | 450-2000RPM |
| Fan Air Flow | 71.6CFM |
| Fan Noise | 29.7dBA |
| Color | Black |
| LED Color | N/A |
Questions sur cet article
Does the 1.77" OLED panel connect via USB or an internal header?
The OLED panel is driven by the pump's internal controller and configured through ASUS LIVEDASH software; no separate cable is required beyond the pump's standard connections.
Will the 394mm x 122mm x 27mm radiator fit a standard 360mm top mount?
Yes, the 394mm length matches typical 360mm radiator mounting holes, but verify 27mm thickness plus 25mm fan clearance against your case specifications.
How do you connect the three 120mm 4-pin PWM fans and the pump to the motherboard?
Plug the three fans into the included splitter, then into a single CPU_FAN header; connect the pump's dedicated cable to CPU_OPT or AIO_PUMP for full speed control.
