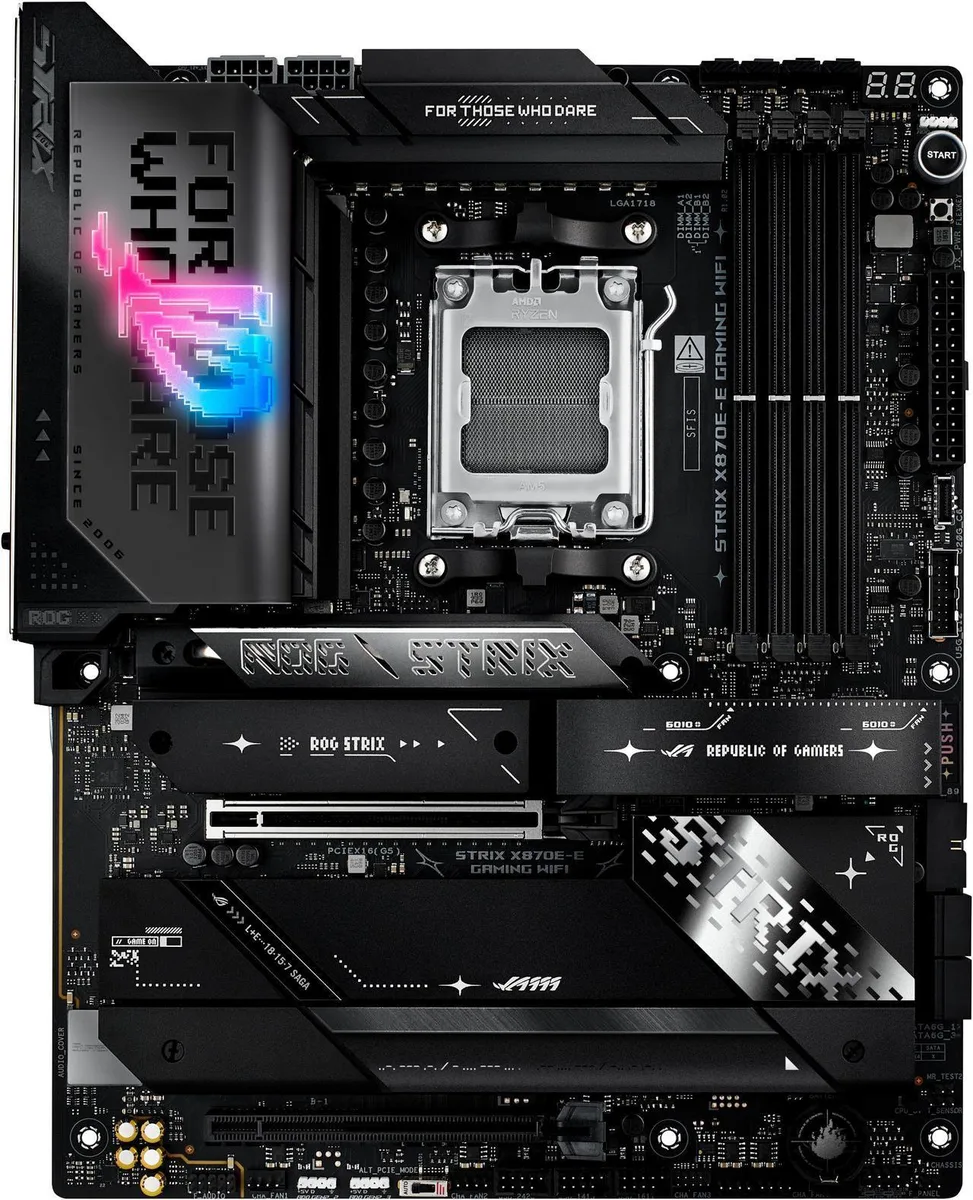

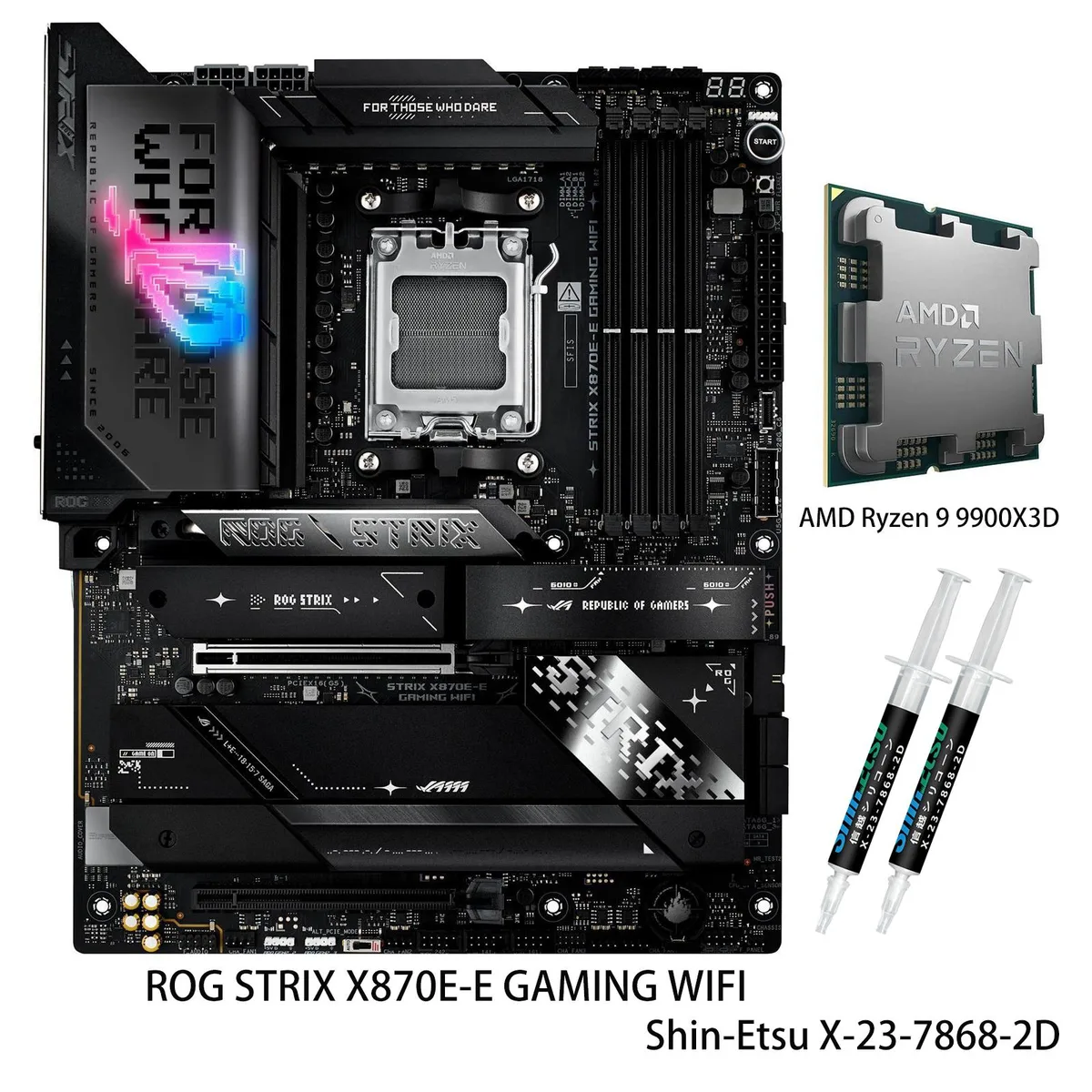

Black ATX motherboard with silver heatsinks, installed CPU, and four DDR5 slots

ASUS

ASUS ROG STRIX X870E-E GAMING WIFI + Ryzen 9 9900X3D combo

SKU CH-CGRC-48WAH

Pairs an AMD Ryzen 9 9900X3D processor with an X870E ATX motherboard offering 18+2+2 power stages, five M.2 slots, WiFi 7 and USB4 connectivity

  • CPU Socket TypeAMD Ryzen 9 9900X3D
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel

model ROG STRIX X870E-E GAMING WIFI

+CPU +R9 9900X3D

  • Supports up to 192 GB DDR5 memory with 4 slots
  • 18+2+2 power stages rated 110 A each for stable multi-core delivery
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots with substantial cooling
  • Dual USB4 Type-C ports and WiFi 7 for high-speed connectivity
  • Ryzen 9 9900X3D includes 128 MB L3 cache and AMD Radeon graphics

Combo purpose

This bundle pairs the ROG STRIX X870E-E GAMING WIFI motherboard with the Ryzen 9 9900X3D processor. The AM5 platform supports Ryzen 9000, 8000 and 7000 series CPUs. It targets builders who want a single SKU for high-end gaming and AI workloads.

Bundled advantages

The motherboard adds three PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, each with substantial cooling. Dual USB4 Type-C ports, a USB 20Gbps front-panel connector and a USB 10Gbps port with PD 3.0 up to 30W expand peripheral options. AI Overclocking, AI Cooling II, AI Networking and AEMP automate tuning. Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement give manual overclocking granularity.

Build and connectivity

An 18+2+2 power solution rated for 110A per stage uses dual ProCool II connectors, alloy chokes and durable capacitors. Four DDR5 slots accept up to 192GB at 4400MT/s with ECC support. WiFi 7 and 5Gbps LAN handle networking. ROG SupremeFX 7.1 audio with ALC4080 drives front and rear headphone outputs. PCIe 5.0 x16 and PCIe 4.0 x4 slots cover graphics and add-in cards.

Points forts

  • Supports up to 192 GB DDR5 memory with 4 slots
  • 18+2+2 power stages rated 110 A each for stable multi-core delivery
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots with substantial cooling
  • Dual USB4 Type-C ports and WiFi 7 for high-speed connectivity
  • Ryzen 9 9900X3D includes 128 MB L3 cache and AMD Radeon graphics

Caractéristiques

BrandASUS
ModelROG STRIX X870E-E GAMING WIFI+R9 9900X3D
CPU Socket TypeAMD Ryzen 9 9900X3D
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported192GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to
8000+MT/s(OC) with Ryzen 9000 Series Processors,
8400+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
PCI Express 5.0 x16AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slots (supports x16 mode)
PCI Express 4.0 x16AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
SATA RAID*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge)
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
USB 3.0USB4
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package Contents1 x AMD Ryzen 9 9900X3D CPU
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 Rubbers
Documentation
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the 18+2+2 power stages rated at 110A each need replacement under heavy load?

The 18+2+2 power stages are rated for 110A per stage with high-quality alloy chokes and durable capacitors designed for sustained multi-core operation. No user-serviceable replacement is expected.

What limits the Ryzen 9 9900X3D first during all-day workloads — its 120W TDP or the 110A power stages?

The CPU has a 120W TDP and the VRM delivers 110A per stage across 18+2+2 phases, providing ample headroom. Thermal limits from the cooler typically appear before electrical limits.

How loud and hot does the combo run with AI Cooling II active all day?

AI Cooling II manages fan curves based on real-time temperatures. The motherboard includes substantial heatsinks on all five M.2 slots and VRM areas to dissipate heat quietly under sustained loads.
