Silver-white ATX motherboard with large VRM heatsinks and CPU in socket

ASUS

ASUS ROG STRIX Z790-A GAMING WIFI S Intel motherboard & Ultra 5 245K CPU combo

SKU CH-VFQ6-AM33W

Z790 motherboard with Intel Ultra 5 245K, DDR5 to 8000, WiFi 7, Bluetooth 5.4, five M.2 slots, 16+1+2 phase 70A power

  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel
  • Memory FeatureSupports Intel® Extreme Memory Profile (XMP) memory module S
  • PCI Express 5.0 x16Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 5

model ROG STRIX Z790-A GAMING WIFI S

+CPU +Ultra 5 245K

  • 16+1+2 phase 70A power delivery handles 125W CPU
  • DDR5 up to 8000 with DIMM Flex and 192GB capacity
  • Five M.2 slots with full thermal armour and PCIe 5.0 graphics slot
  • WiFi 7 plus 2.5G LAN and Bluetooth 5.4 connectivity
  • 12 rear USB ports including 20Gbps Type-C and 7.1 audio

Combo Platform

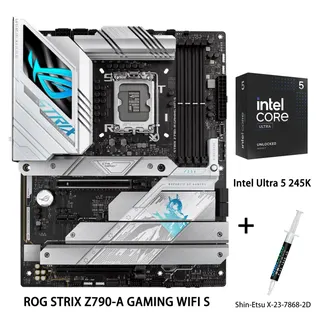

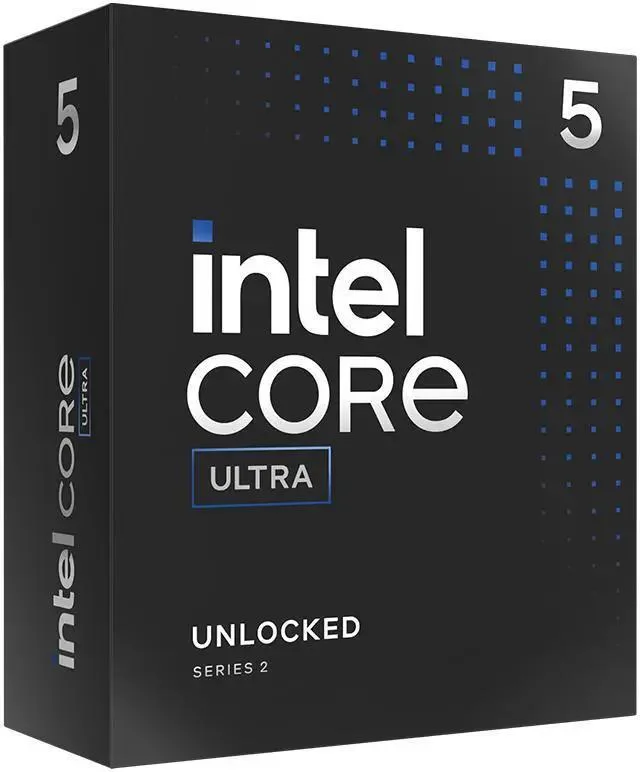

The package pairs an ASUS ROG STRIX Z790-A GAMING WIFI S motherboard with an Intel Ultra 5 245K processor and a tube of Shin-Etsu X-23-7868-2D thermal grease. It targets builders who want a ready-matched CPU and board for gaming or content creation. The board uses the Intel Z790 chipset and an LGA 1700 socket. The CPU is a 3 nm Arrow Lake part with a 125 W base power rating.

Build Integration

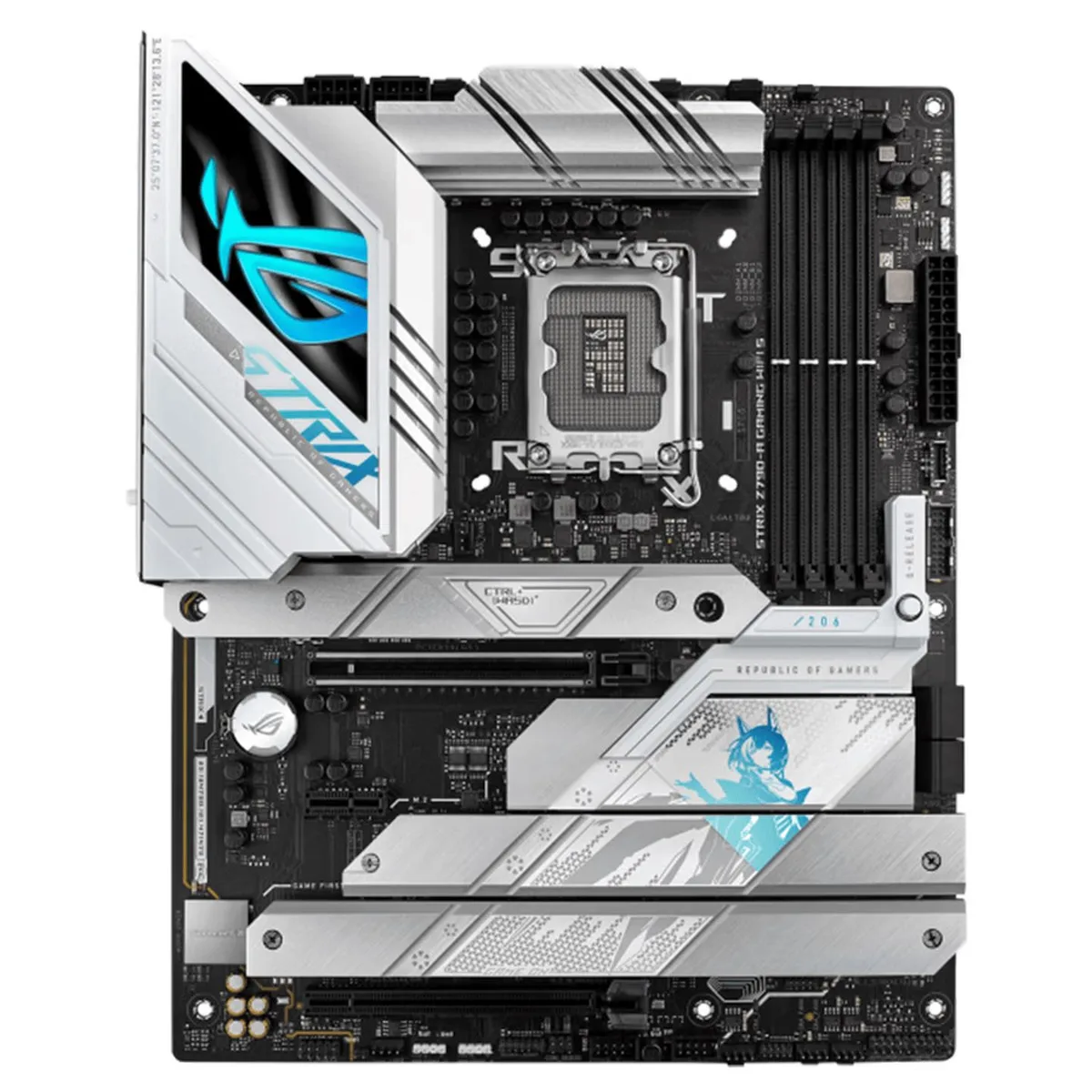

The ATX board supplies four DDR5 slots supporting up to 192 GB in dual-channel mode with XMP, DIMM Flex, OptiMem II and AEMP II. One PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot running at x4 handle graphics and high-speed add-in cards. Five M.2 slots and four SATA 6 Gb/s ports cover storage expansion. Rear I/O includes USB 20 Gbps, USB 10 Gbps, USB 5 Gbps and USB 2.0 ports plus DisplayPort, HDMI, 2.5 Gb Ethernet and Wi-Fi 7 with Bluetooth 5.4.

Capacity Headroom

The 16+1+2 phase 70 A DrMOS VRM is rated to handle an i9-14900K, giving ample headroom for the included Ultra 5 245K and most overclocking scenarios. DDR5 memory can be pushed beyond 8000 MT/s when modules and cooling allow. The bundled thermal grease offers 6.2 W/m·k conductivity and 0.07 °C·cm²/W resistance for efficient heat transfer. AI Cooling II automates fan curves, while VRM and M.2 heatsinks manage sustained loads.

Points forts

  • 16+1+2 phase 70A power delivery handles 125W CPU
  • DDR5 up to 8000 with DIMM Flex and 192GB capacity
  • Five M.2 slots with full thermal armour and PCIe 5.0 graphics slot
  • WiFi 7 plus 2.5G LAN and Bluetooth 5.4 connectivity
  • 12 rear USB ports including 20Gbps Type-C and 7.1 audio

Caractéristiques

BrandASUS
SeriesROG STRIX Z790-A GAMING WIFI S+Intel Ultra 5 245K
ModelROG STRIX Z790-A GAMING WIFI S+Intel Ultra 5 245K
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureSupports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
OptiMem II
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
PCI Express 5.0 x16Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
PCI Express x41 x PCIe 4.0 x16 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
SATA RAID* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Audio Channels7.1 Channels
Max LAN Speed5Gbps + 2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Onboard USBRear USB (Total 12 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps (supports USB Type-C® with up to with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over voltage jumper
1 x Front panel audio header (F_AUDIO)
1 x 20-3 pin system panel header with Chassis intrude function
1 x Thermal sensor header
1 x Thunderbolt™ (USB4®) header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- Power Saving
- Sonic Studio
- Two-Way AI Noise Cancelation
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyASUS
USB Wattage Watcher
Intel® Unison™
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Fla
Windows 11Windows® 11, Windows® 10 64-bit
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin main power connector
2 x 8-pin +12V power connector
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- S
Package Contents1 x intel Ultra 5 245K CPU
1 x Thermal grease: Shin-Etsu X-23-7868-2D
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi Q-Antenna
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
2 x M.2 rubber packages
1 x M.2 backplate Rubber package
Documentation
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What power phase count does the board use for the CPU Vcore and will it throttle at 125 W sustained load?

The motherboard provides 16+1+2 phases of 70 A DrMOS power delivery, rated to handle an i9-14900K overclock, so the 125 W Ultra 5 245K runs well within its thermal headroom.

How loud and hot does the VRM get when all cores run at 100 % for hours?

Dual VRM heatsinks with heat pipes and AI Cooling II auto-tuning keep temperatures low; fan curves stay quiet because the 70 A phases run cool even at the CPU 125 W base power.

Which cooler mounting hardware and memory kit must I already own to install this combo?

The LGA 1700 socket reuses existing LGA 1700 coolers, and you need DDR5 DIMMs — 288-pin modules up to 192 GB total across four slots.
