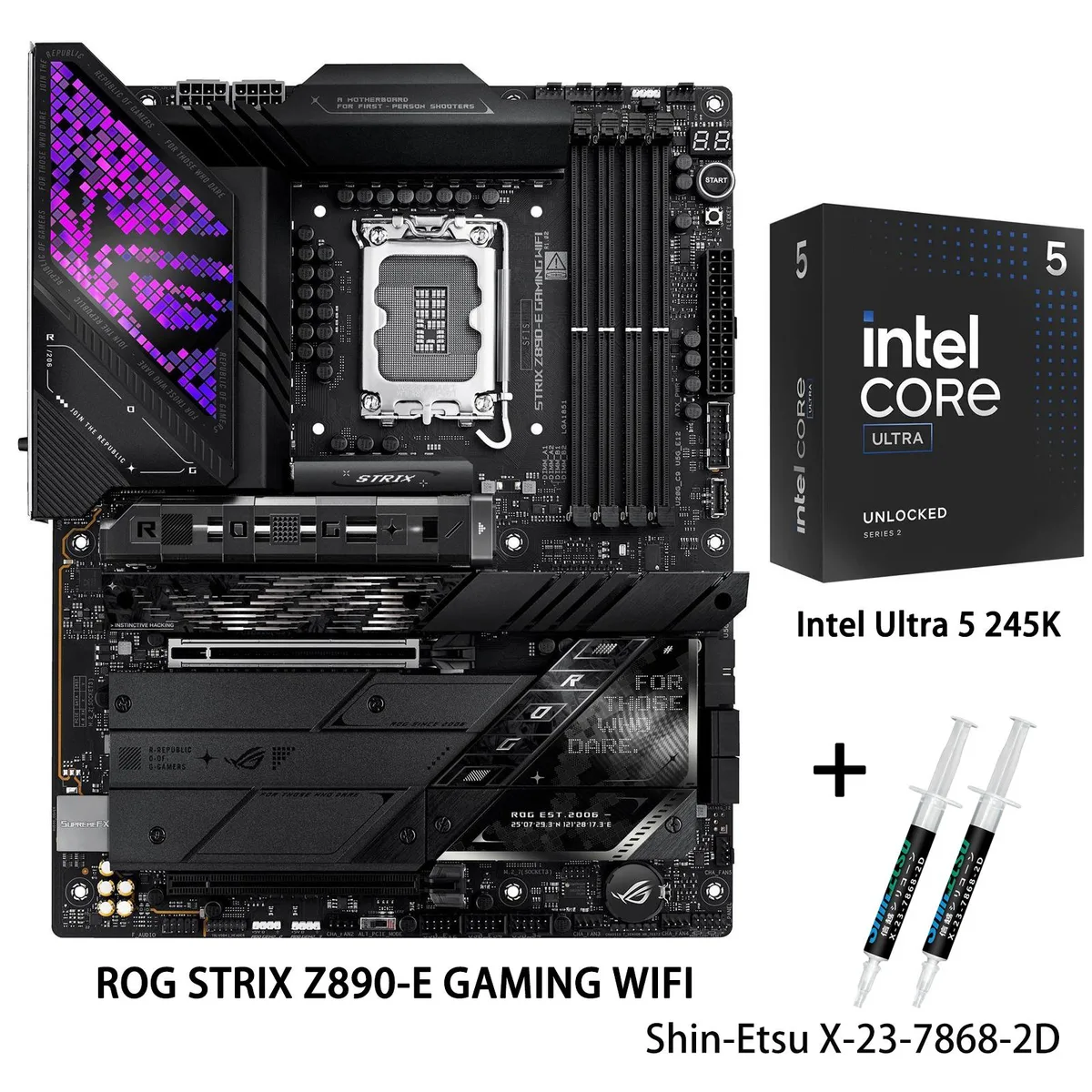

Black ATX motherboard with silver heatsinks and integrated I/O shield, boxed Intel Core Ultra 5 245K CPU alongside

ASUS

ASUS ROG STRIX Z890-E GAMING WIFI + Core Ultra 5 245K Combo

SKU CH-DFQQ-H0VV6

Z890 ATX board paired with a Core Ultra 5 245K, DDR5 to 8800 MT/s, WiFi 7, 5 GbE, three PCIe 5.0 M.2 slots and Thunderbolt 4

  • CPU Socket TypeLGA 1851
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Memory FeatureSupport up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DI
  • PCI Express 5.0 x16Intel Core Ultra Processors(series 2)* 1 x PCIe 5.0 x16 slot

model ROG STRIX Z890-E GAMING WIFI

+CPU +Ultra 5 245K

  • Ready for advanced AI computing with LGA 1851 socket and Intel Core Ultra 5 245K
  • AI-driven tuning via NPU Boost, AI Overclocking, AI Cooling II and AI Advisor
  • DDR5 memory simplified by DIMM Flex, DIMM Fit and AEMP III up to 8800 MT/s
  • Robust 18+2+1+2 power stage design with 110 A, 90 A and 80 A ratings
  • High-speed connectivity including WiFi 7, Bluetooth 5.4, Thunderbolt 4 and 5 Gbps LAN

Ready for Advanced AI PCs

This combo pairs the ASUS ROG STRIX Z890-E GAMING WIFI motherboard with the Intel Core Ultra 5 245K processor. The LGA 1851 platform targets enthusiasts building systems for demanding AI workloads and high-performance gaming. DDR5 memory support up to 8800 MT/s and WiFi 7 connectivity provide the throughput modern applications require.

Thermals, noise and power draw

The CPU carries a 125 W base power rating, while the motherboard delivers current through 18 110 A stages plus auxiliary 90 A and 80 A stages. ProCool II connectors and MicroFine alloy chokes keep voltage stable under load. AI Cooling II manages fan curves across the 4-pin CPU, AIO pump and five chassis headers to balance airflow and acoustic output.

Build quality and daily connectivity

Massive heatsinks with an integrated I/O cover and a C-shaped heatpipe cool the VRM and three PCIe 5.0 M.2 slots. The rear panel supplies two Thunderbolt 4 USB Type-C ports, nine USB 10 Gbps ports, three USB 5 Gbps ports, HDMI, DisplayPort, 5 Gbps LAN, WiFi 7 and Bluetooth 5.4. Internal headers add a USB 20 Gbps Type-C connector, four USB 5 Gbps ports, six USB 2.0 ports and three addressable Gen 2 headers for lighting.

Points forts

  • Ready for advanced AI computing with LGA 1851 socket and Intel Core Ultra 5 245K
  • AI-driven tuning via NPU Boost, AI Overclocking, AI Cooling II and AI Advisor
  • DDR5 memory simplified by DIMM Flex, DIMM Fit and AEMP III up to 8800 MT/s
  • Robust 18+2+1+2 power stage design with 110 A, 90 A and 80 A ratings
  • High-speed connectivity including WiFi 7, Bluetooth 5.4, Thunderbolt 4 and 5 Gbps LAN

Caractéristiques

BrandASUS
ModelROG STRIX Z890-E GAMING WIFI+Ultra 5 245K
CPU Socket TypeLGA 1851
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Memory FeatureSupport up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
PCI Express 5.0 x16Intel Core Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slots (supports x16 mode)
PCI Express 4.0 x16Intel Z890 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
Intel Z890 Chipset
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2
SATA RAID* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x Thunderbolt 4 USB Type-C ports (2 x USB Type-C)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
TurboV Core
USB Wattage Watcher
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
FlexKey
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
FeaturesExtreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package ContentsCables
1 x Intel Core Ultra 5 245K CPU
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
7 x M.2 Rubbers
Documentation
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the CPU into the LGA 1851 socket without bending pins?

Align the notches on the Core Ultra 5 245K with the socket keys, lower it straight down without pressure, then engage the independent loading mechanism lever until it clicks; the common mistake is forcing the lever before the chip sits flat.

Which components will need replacement or maintenance after extended use?

The 256 Mb UEFI AMI BIOS flash ROM may require firmware updates for new CPU microcode, and the six 4-pin fan headers plus three addressable Gen 2 headers should be checked for dust buildup on connected coolers and LED strips.

What thermal limit appears first when the 125 W processor runs sustained workloads?

The 18+2+1+2 power-stage VRM with 110 A, 90 A and 80 A ratings and the C-shaped heatpipe-linked heatsinks define the thermal ceiling before throttling engages.
