ASUS
ASUS TUF GAMING B550M-E WIFI AMD motherboard with Ryzen 7 5700X
Micro ATX AM4 board with built-in Wi-Fi, four DDR4 slots up to 128 GB and an eight-core Ryzen 7 5700X at 3.4 GHz included
- CPU TypeRyzen 5000 Series
- ChipsetAMD B550
- Number of Memory Slots4x288pin (DDR4)
- Memory Standard4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(O
- Maximum Memory Supported128GB
- Channel SupportedDual Channel
- 8-core 3.4 GHz CPU handles heavy workloads
- 65 W TDP keeps power draw and heat low
- Micro-ATX B550 board fits compact cases
- Dual-channel DDR4 supports up to 128 GB
- PCIe 4.0 x16 slot ready for modern GPUs
ASUS TUF B550M-E WiFi with Ryzen 7 5700X

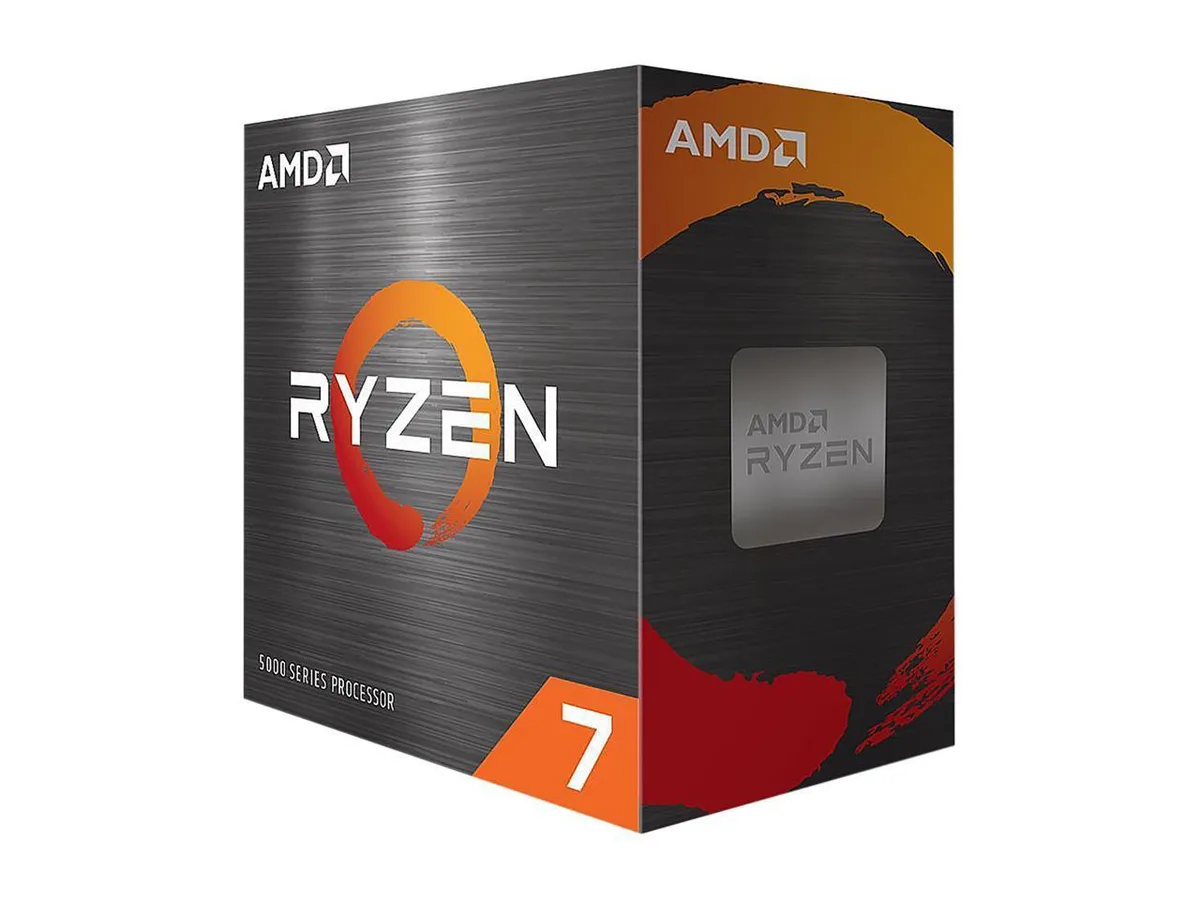

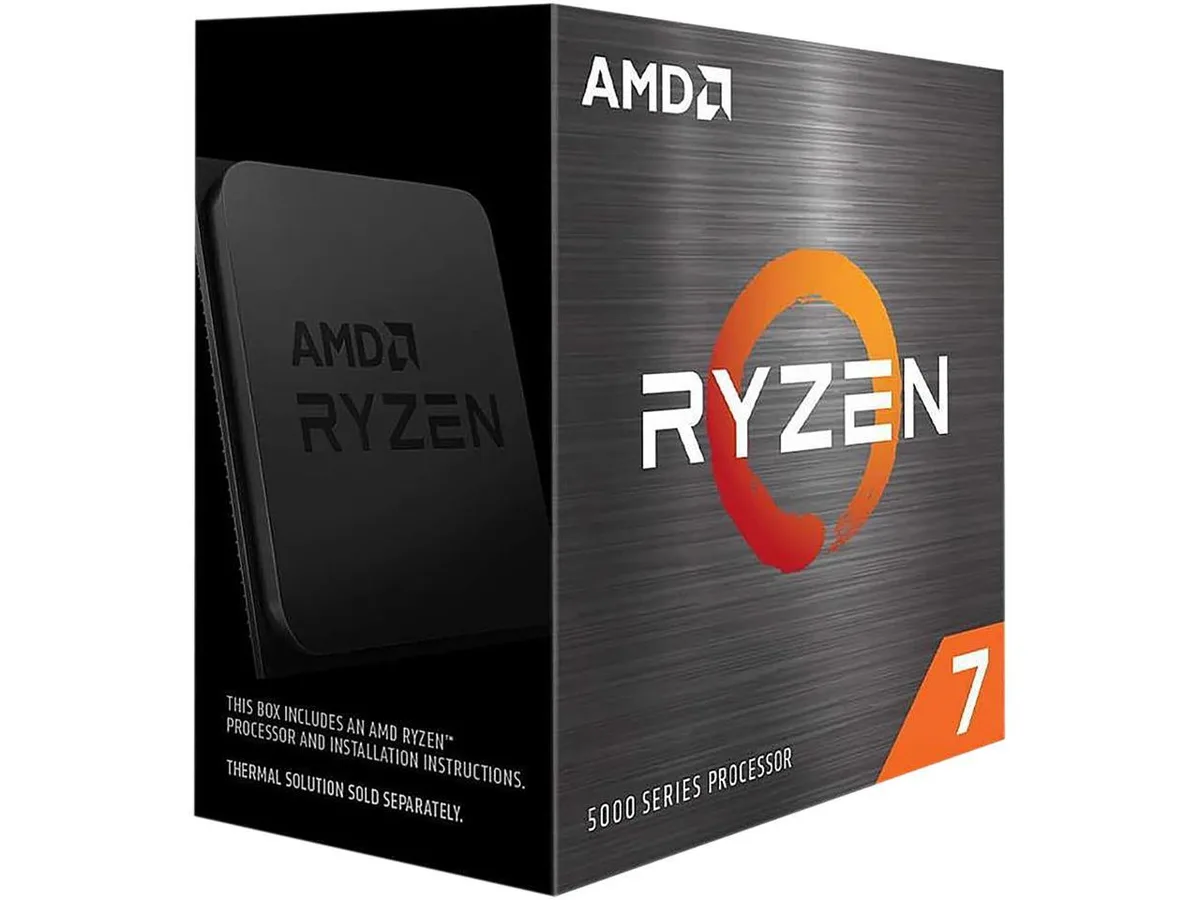

This bundle pairs a micro ATX B550 motherboard with an 8-core Ryzen 7 5700X processor. The board supports DDR4 memory up to 4866 MHz overclocked and 128 GB total capacity. It includes Wi-Fi, HDMI 2.1 output, 7.1-channel audio, and dual M.2 slots for storage. The CPU runs at a 65 W TDP with 32 MB L3 cache and no integrated graphics.
Suits AM4 builders wanting Wi-Fi
Builders needing a compact board with wireless networking and two M.2 sockets will fit this platform. The 65 W CPU works with modest cooling in smaller cases. Users requiring full-size ATX expansion, more than four SATA ports, or a processor with integrated graphics should choose a different motherboard or CPU combination.
Chipset B550 with PCIe 4.0 x16 and dual M.2
The B550 chipset provides a PCIe 4.0 x16 slot for graphics cards when a Ryzen 5000 processor is installed. Two M.2 slots connect via the chipset for PCIe 3.0 storage. Four SATA 6 Gb/s ports handle additional drives. This connectivity mix determines whether the board matches your GPU and storage plans.
Points forts
- 8-core 3.4 GHz CPU handles heavy workloads
- 65 W TDP keeps power draw and heat low
- Micro-ATX B550 board fits compact cases
- Dual-channel DDR4 supports up to 128 GB
- PCIe 4.0 x16 slot ready for modern GPUs
Caractéristiques
| Brand | ASUS |
|---|---|
| Model | TUF GAMING B550M-E WIFI |
| CPU Type | Ryzen 5000 Series |
| Chipset | AMD B550 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory* * ECC memory (ECC mode) support varies by CPU. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) |
| PCI Express 3.0 x16 | AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) |
| PCI Express x1 | AMD B550 Chipset 2 x PCIe 3.0 x1 slots |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| Form Factor | Micro ATX |
Questions sur cet article
Will the board fit inside a standard micro-ATX case?
Yes, the board uses the micro-ATX form factor and matches any case that supports that size.
Can I run four sticks of DDR4 memory at the same time?
The board provides four 288-pin DDR4 slots and supports up to 128 GB in dual-channel mode.
Does the included Ryzen 7 5700X processor come with a built-in graphics engine?
No, the 5700X does not have integrated graphics, so a discrete graphics card is required for video output.
