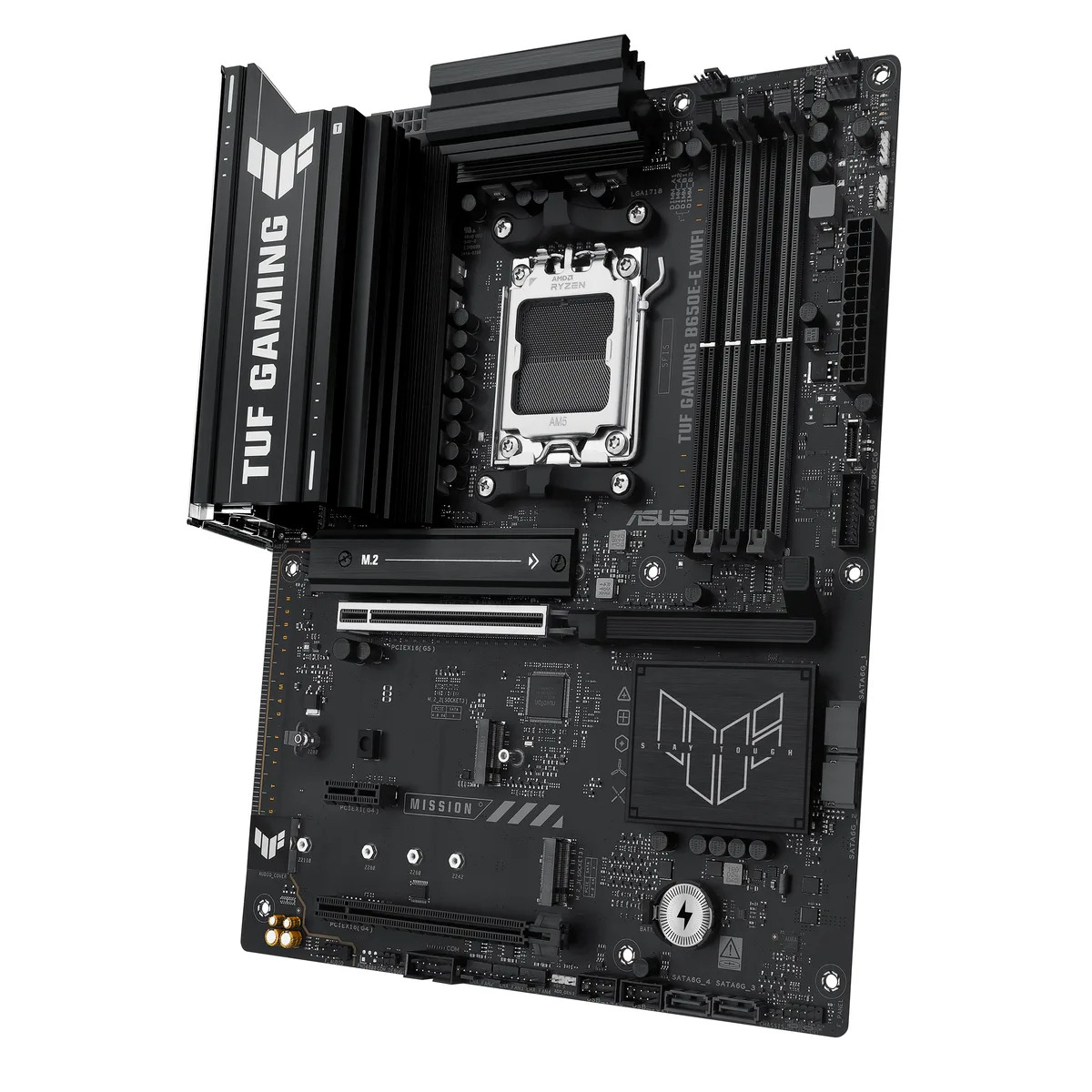

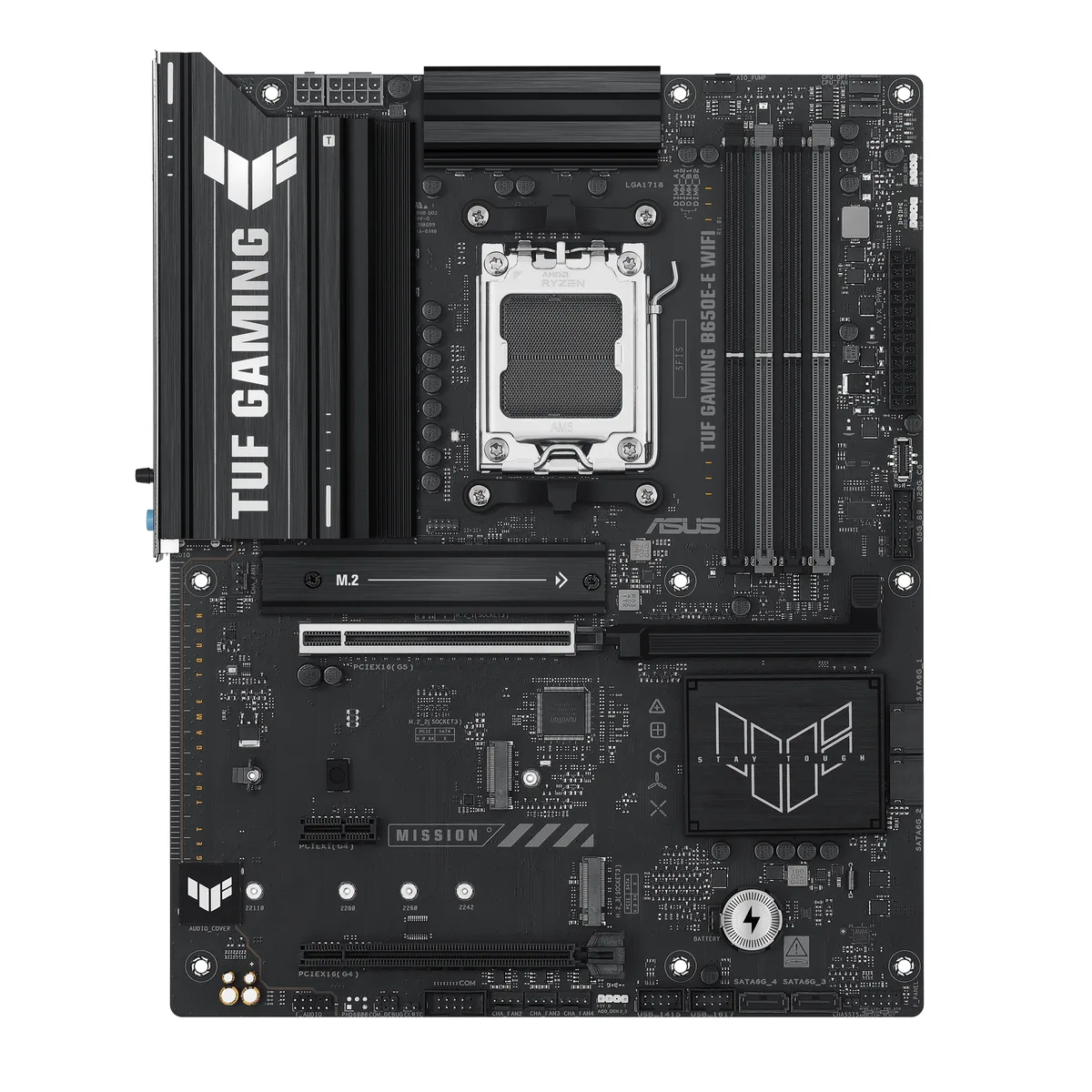

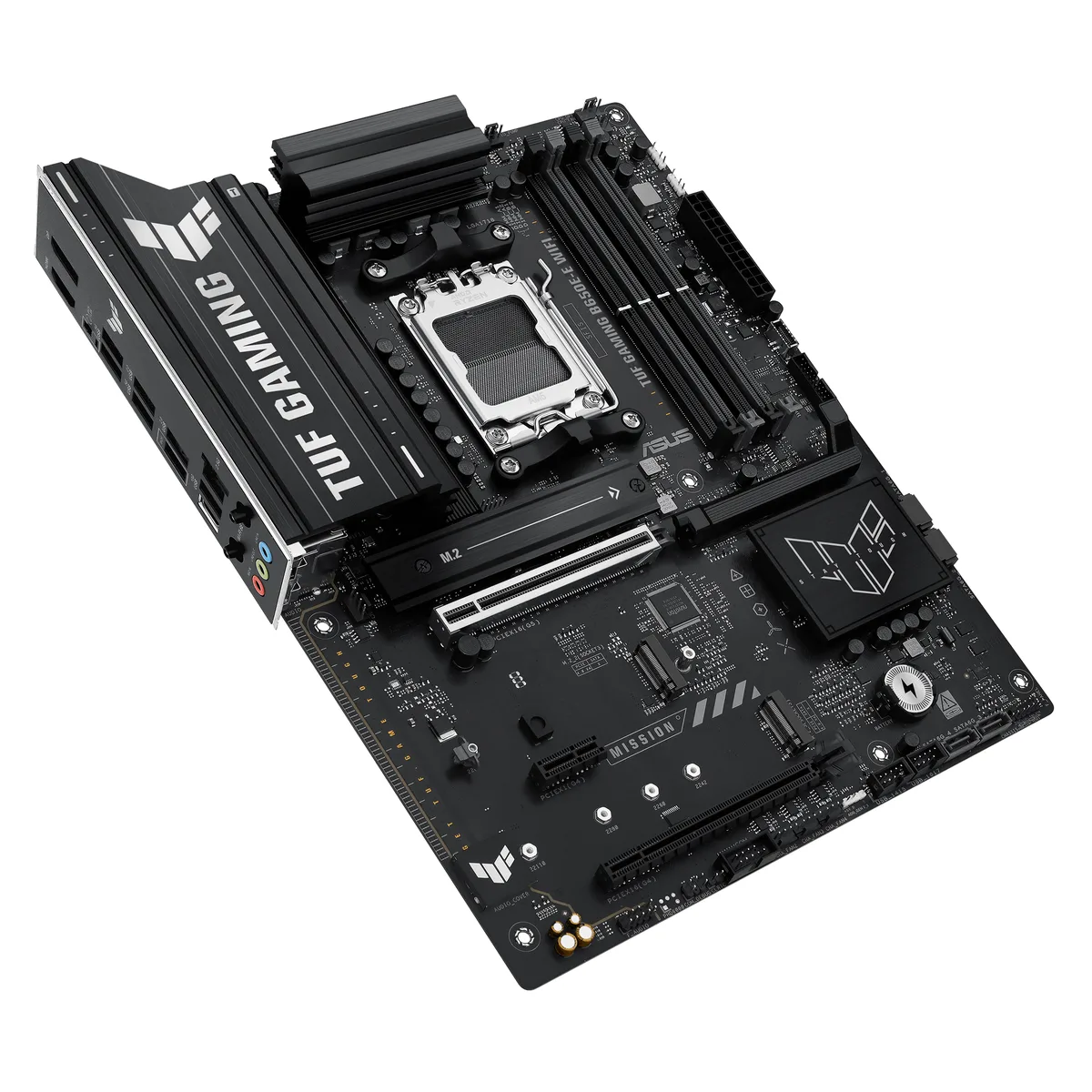

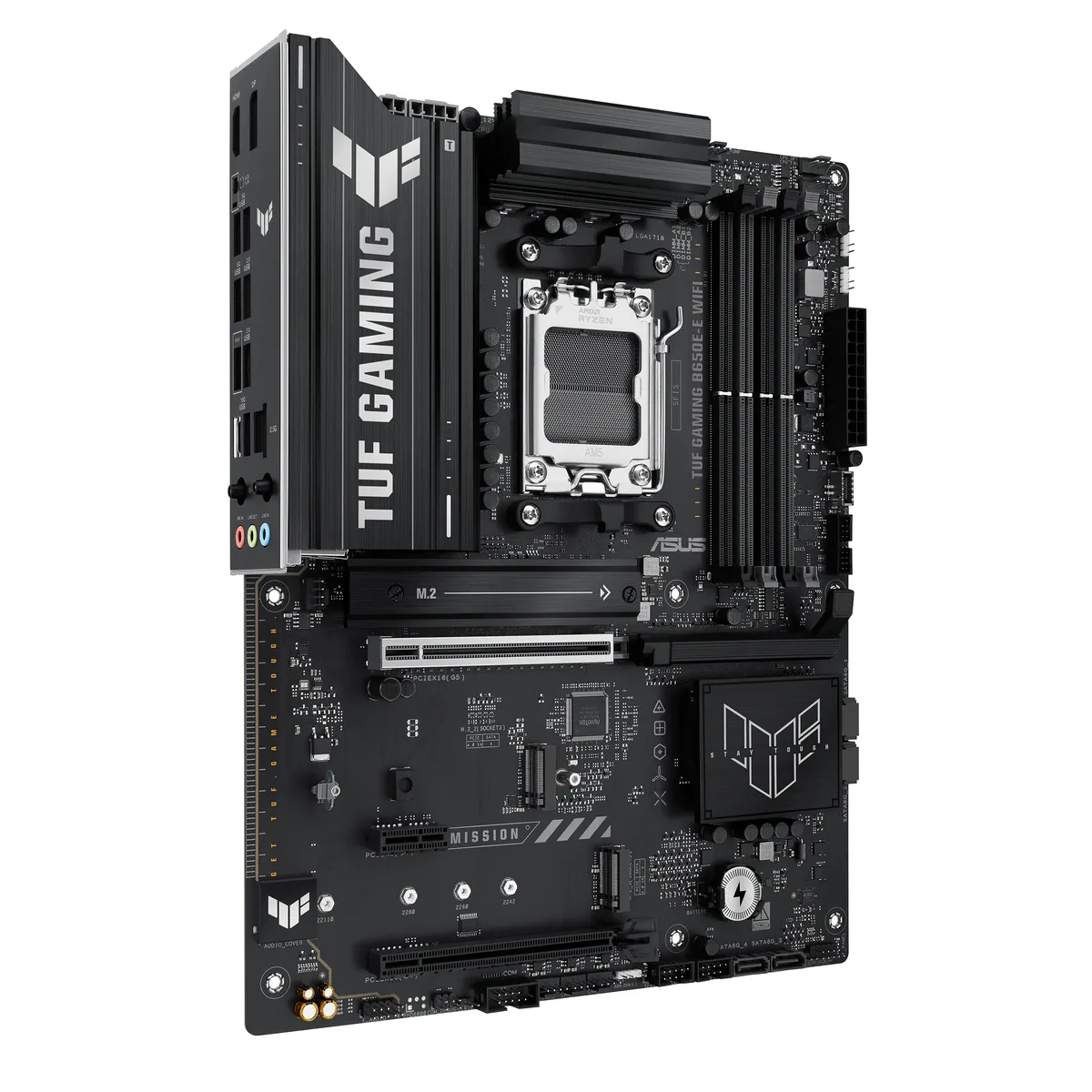

ATX motherboard with grey and black heatsinks, pre-mounted I/O shield, four DDR5 slots, three M.2 heatsinks

ASUS

ASUS TUF GAMING B650E-E WIFI AMD motherboard

SKU CH-EY4W-CEHDC MPN TUF GAMING B650E-E WIFI

AM5 board for Ryzen 7000, 8000 and 9000 series with DDR5 up to 8000 MT/s, PCIe 5.0 M.2, Wi-Fi 6E and 2.5 Gb LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8000+MT/s(OC)
  • Maximum Memory Supported256GB

Option TUF GAMING B650E-E WIFI

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Ready for Ryzen 7000, 8000 and 9000 series processors via AM5 socket
  • Stable power delivery from 8+2+1 80A DrMOS stages with 8-layer PCB
  • One PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 6E, 2.5Gb Ethernet and front USB 20Gbps Type-C for quick connectivity
  • Enlarged VRM heatsink, M.2 heatsink and Fan Xpert 4 keep temperatures low

Built for AMD AM5 Ryzen systems

This ATX motherboard fits AMD Ryzen 7000, 8000 and 9000 series processors into the AM5 socket. It targets builders who want a full-size board with robust power delivery and modern connectivity for gaming or workstation tasks.

PCIe 5.0 limited to CPU generation

Ryzen 7000 and 9000 CPUs enable one PCIe 5.0 x16 slot and one PCIe 5.0 M.2 slot at 2280 length. Ryzen 8000 CPUs drop the primary slot to PCIe 4.0 x8 or x4 and the top M.2 to PCIe 4.0, so peak throughput depends on the processor installed.

Steps up from B650 boards without PCIe 5.0

The upgrade adds a 5.0 x16 graphics slot, a 5.0 M.2 slot, Wi-Fi 6E, 2.5 Gb LAN and a front USB 20Gbps Type-C header. The jump is worth it when you need that extra bandwidth headroom for current or near-future GPUs and fast storage.

Points forts

  • Ready for Ryzen 7000, 8000 and 9000 series processors via AM5 socket
  • Stable power delivery from 8+2+1 80A DrMOS stages with 8-layer PCB
  • One PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 6E, 2.5Gb Ethernet and front USB 20Gbps Type-C for quick connectivity
  • Enlarged VRM heatsink, M.2 heatsink and Fan Xpert 4 keep temperatures low

Caractéristiques

BrandASUS
ModelTUF GAMING B650E-E WIFI
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x16AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x1 mode)
PCI Express x11 x PCIe 4.0 x1 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3

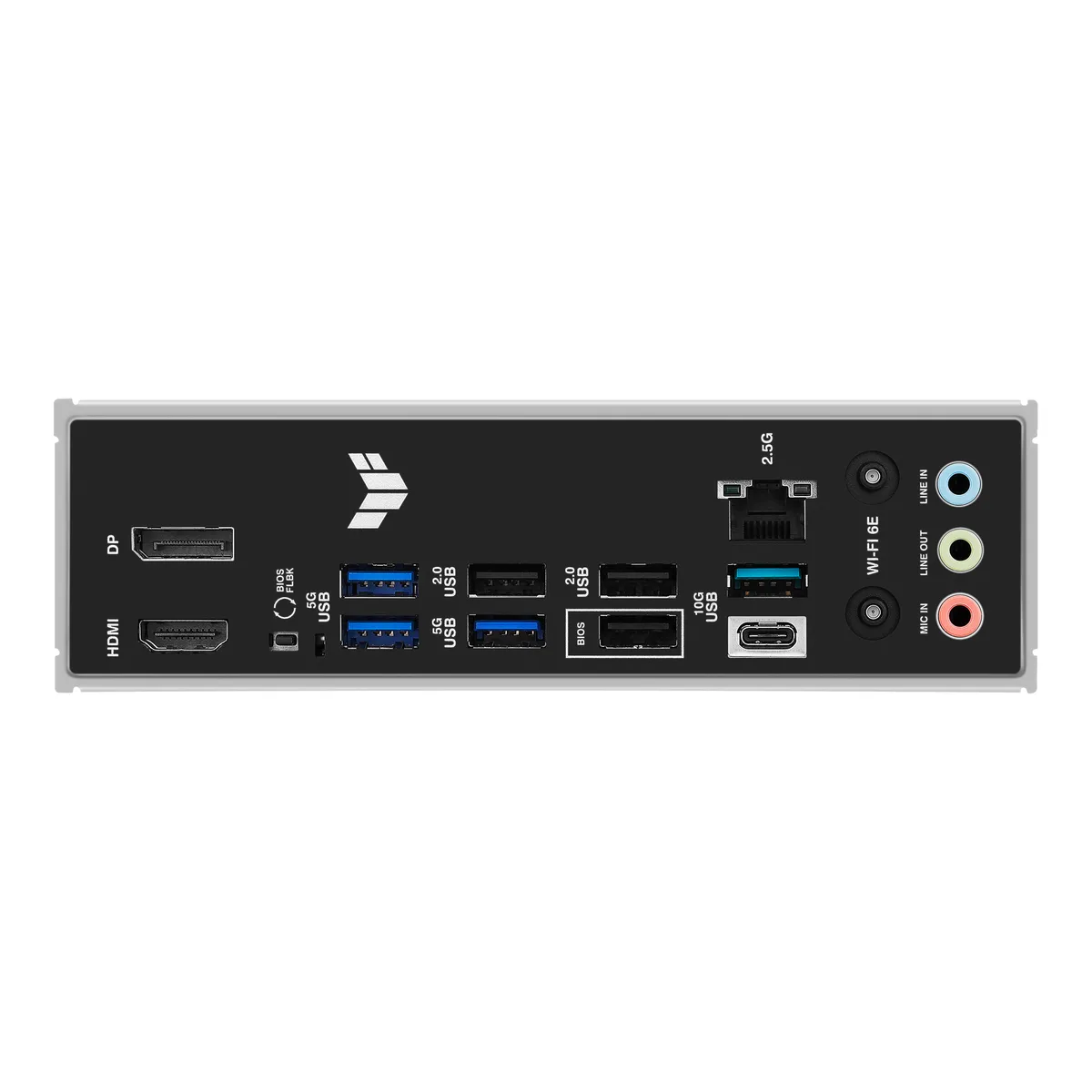

Back I/O Ports2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
3 x USB 5Gbps ports (3 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
-Two-Way Al Noise cancelation
Al Suite 3
-TurboV EVO
-DIGI+ VRM
-PC Cleaner
ASUS DriverHub
TUF GAMING CPU-Z
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x TUF Gaming sticker
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide
Poids d’expédition1.79 kg
Dimensions du colis356 × 277 × 74 mm

Autres versions de ce modèle

4 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I choose a Ryzen 7000, 8000 or 9000 series CPU for this AM5 board?

All three families fit the AM5 socket; Ryzen 9000 and 7000 enable the PCIe 5.0 x16 slot and PCIe 5.0 M.2, while Ryzen 8000 runs those at PCIe 4.0 speeds.

What does the 8000+ MT/s memory rating mean once the board is built?

It is an overclocked ceiling reachable with EXPO or AEMP profiles; actual speed depends on the DDR5 kit, CPU memory controller and cooling.

How does the PCIe 5.0 x16 slot and Wi-Fi 6E perform in practice?

With Ryzen 9000 or 7000 the top slot runs at full PCIe 5.0 x16; with Ryzen 8000 it drops to PCIe 4.0 x8 or x4. Wi-Fi 6E provides 6 GHz band access where regulations allow.
