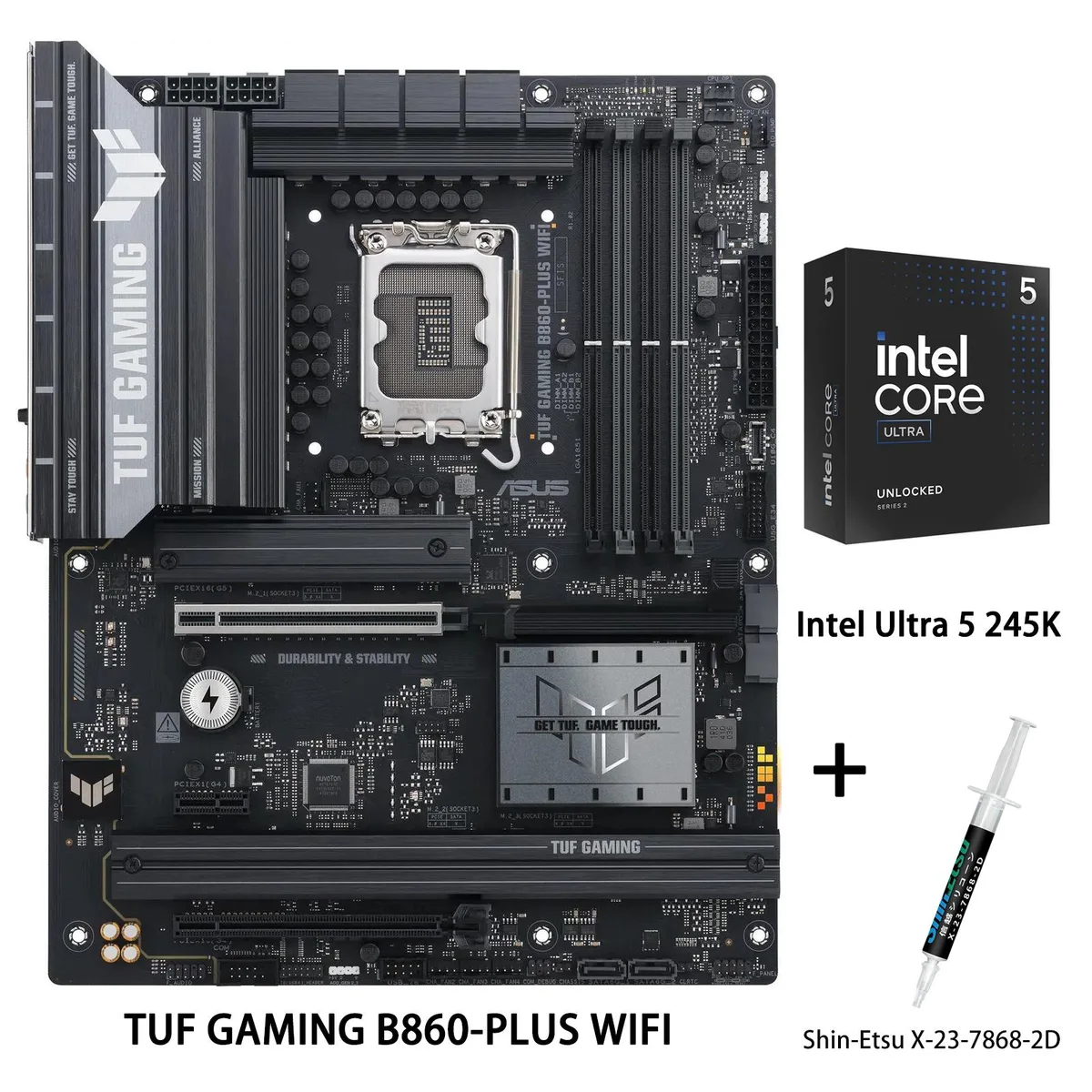

ATX motherboard with silver heatsinks, black PCB, LGA 1851 socket, boxed Intel Ultra 5 245K CPU, Shin-Etsu thermal grease tube

ASUS

ASUS TUF GAMING B860-PLUS WIFI + Ultra 5 245K Intel motherboard combo

SKU CH-DYCK-6JVK5

A motherboard and CPU bundle with LGA 1851 socket, 12+2+1 80A power stages, DDR5 up to 8666 MT/s, three M.2 slots including one PCIe 5.0, Wi-Fi 7, Bluetooth 5.4.

  • CPU Socket TypeLGA 1851
  • ChipsetIntel B860
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8666+MT/s (OC)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel

model TUF GAMING B860-PLUS WIFI

+CPU +Ultra 5 245K

  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 12+2+1 80A DrMOS power stages deliver stable CPU power
  • DDR5 memory support up to 8666 MT/s and 192 GB capacity
  • One PCIe 5.0 and two PCIe 4.0 M.2 slots with heatsinks
  • Wi-Fi 7, Bluetooth 5.4 and 2.5 Gb Ethernet for fast networking

Combo Contents

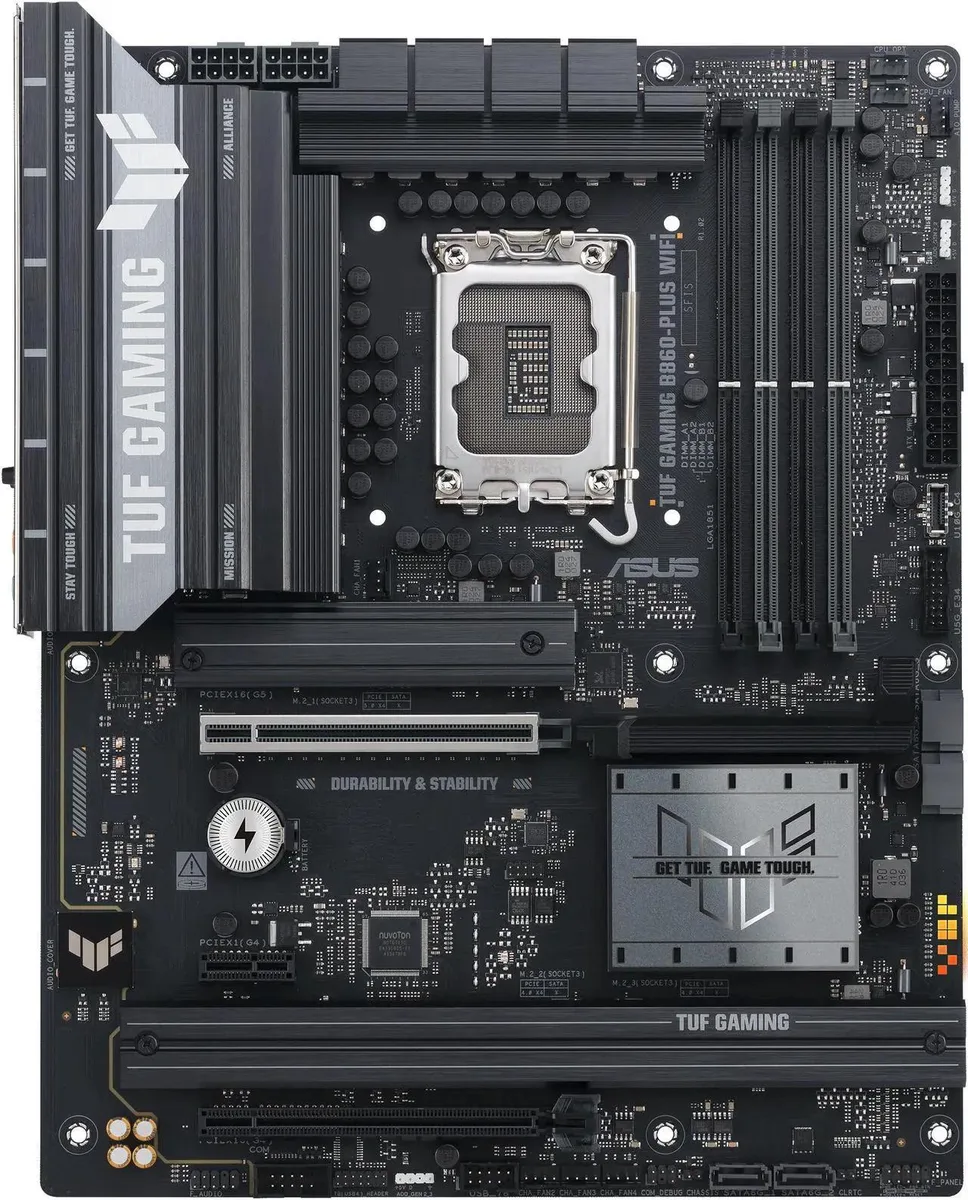

This bundle pairs an ASUS TUF GAMING B860-PLUS WIFI motherboard with an Intel Ultra 5 245K processor and Shin-Etsu X-23-7868-2D thermal grease. The board uses the Intel B860 chipset and LGA 1851 socket, built for Intel Core Ultra Series 2 CPUs. It targets builders who want a ready-to-install platform for gaming and AI workloads.

DDR5 Memory Limits

Four 288-pin slots support dual-channel DDR5 up to 192 GB total capacity. Rated speeds reach 8666 MT/s when overclocked, with XMP and AEMP III profiles available. The board also provides one PCIe 5.0 x16 slot from the CPU and one PCIe 4.0 x16 slot from the chipset that shares bandwidth with a PCIe 4.0 x1 slot.

Deciding Specification

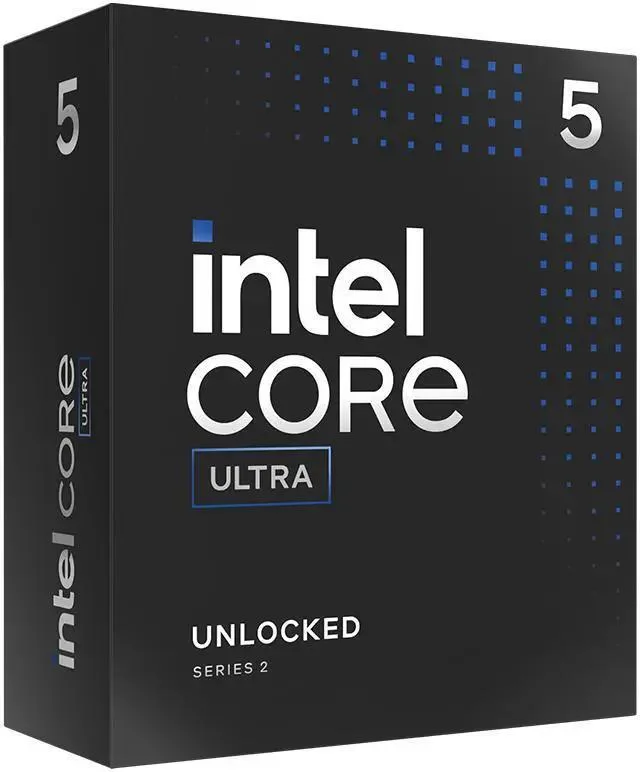

The CPU delivers 24 MB L3 cache and 26 MB L2 cache on a 3 nm process with a 125 W base power rating. Networking includes Wi-Fi 7 (802.11be), Bluetooth 5.4 and 2.5 Gbps Ethernet. Storage options comprise one PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots, all heatsinked, alongside four SATA 6 Gb/s ports.

Points forts

  • Ready for Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 12+2+1 80A DrMOS power stages deliver stable CPU power
  • DDR5 memory support up to 8666 MT/s and 192 GB capacity
  • One PCIe 5.0 and two PCIe 4.0 M.2 slots with heatsinks
  • Wi-Fi 7, Bluetooth 5.4 and 2.5 Gb Ethernet for fast networking

Caractéristiques

BrandASUS
ModelTUF GAMING B860-PLUS WIFI+Ultra 5 245K
Part NumberTUF GAMING B860-PLUS WIFI+Ultra 5 245K
CPU Socket TypeLGA 1851
ChipsetIntel B860
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8666+MT/s (OC)
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureSupport up to 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
PCI Express 5.0 x16Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
PCI Express x11 x PCIe 4.0 x1 slot*
* PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID* Intel Rapid Storage Technology supports, SATA RAID 0/1/5/10.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
2 x USB 10Gbps ports (2 x USB Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
ASUS DriverHub
ASUS GlideX
TUF GAMING CPU-Z
Adobe Creative Cloud (Free Trial)
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Windows 11 (22H2 & later)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package Contents1 x Intel Ultra 5 245K CPU
1 x Thermal grease: Shin-Etsu X-23-7868-2D
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I pick the DDR5 8666 MT/s memory or a slower kit for this TUF GAMING B860-PLUS WIFI combo?

The board supports up to 8666+ MT/s when overclocked with XMP or AEMP III profiles, so a high-speed DDR5 kit will run at its rated frequency if the memory controller on the Ultra 5 245K can sustain it; a slower kit will work fine but leaves headroom unused.

What does the 125 W base power of the Ultra 5 245K mean for my cooler choice?

The processor has a 125 W base power rating and no cooler in the box, so you need a CPU cooler rated for at least that TDP — preferably higher — to keep temperatures in check under sustained loads.

Which M.2 slot gives me PCIe 5.0 x4 speeds and what size drives fit?

The M.2_1 slot is wired to the CPU and runs at PCIe 5.0 x4, accepting 2280 drives; the other two slots run at PCIe 4.0 x4 and take 2280, 22110, 2242 or 2260 lengths.
