Green mATX motherboard with silver heatsinks, black PCB, four DDR5 slots, three covered M.2 slots, rear I/O shield installed

ASUS

ASUS TUF GAMING B860M-PLUS WIFI Intel motherboard

SKU CH-9NN5-8R1JM MPN TUF GAMING B860M-PLUS WIFI

mATX Intel B860 board with LGA 1851 socket, 12+2+1 80A power stages, four DDR5 slots up to 8800 MT/s, one PCIe 5.0 M.2 and two PCIe 4.0 M.2 slots, Wi-Fi 7, 2.5G LAN.

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel B860
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8800+ MT/s (OC)
  • Maximum Memory Supported192GB

Option TUF GAMING B860M-PLUS WIFI

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports Intel Core Ultra Series 2 processors with LGA 1851 socket
  • 12+2+1 80A DrMOS power stages deliver stable power for demanding workloads
  • DDR5 memory up to 8800 MT/s and 192 GB capacity for high-speed multitasking
  • One PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots with heatsinks for fast storage
  • Wi-Fi 7 and 2.5 Gbps LAN provide high-performance networking

Ready for Intel Core Ultra Series 2

This micro-ATX board uses the Intel B860 chipset and LGA 1851 socket to support Intel Core Ultra Processors (Series 2). It targets builders who want a compact platform for AI workloads and gaming. Four DDR5 slots accept up to 192 GB of memory running at 8800+ MT/s with XMP 3.0 profiles.

Bundled DIY features simplify the build

PCIe Slot Q-Release, M.2 Q-Latch and Q-Antenna let you install graphics cards, up to three M.2 drives and the Wi-Fi 7 antenna without tools. A pre-mounted I/O shield, Q-Dashboard diagnostics and BIOS FlashBack reduce setup steps. The rear USB 20Gbps Type-C port adds DisplayPort Alt Mode for direct monitor connection.

Straightforward installation with clear diagnostics

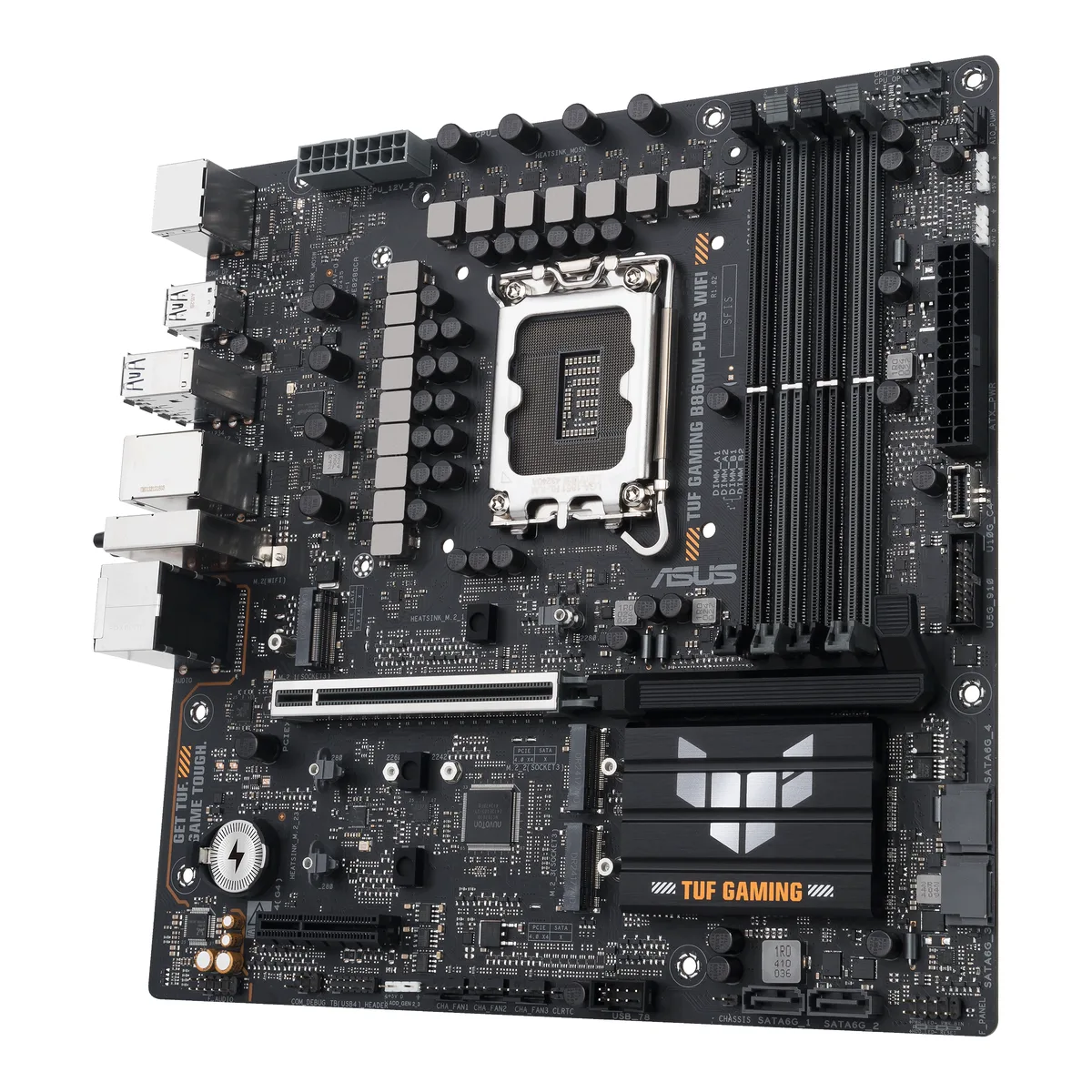

Q-LED indicators show CPU, memory, graphics and boot status at a glance. Fan Xpert 4 controls hybrid fan headers for balanced cooling. Large VRM, M.2 and PCH heatsinks keep temperatures in check. The 8+8 pin ProCool connectors and 80A DrMOS stages deliver stable power for 12+2+1 phase operation.

Points forts

  • Supports Intel Core Ultra Series 2 processors with LGA 1851 socket
  • 12+2+1 80A DrMOS power stages deliver stable power for demanding workloads
  • DDR5 memory up to 8800 MT/s and 192 GB capacity for high-speed multitasking
  • One PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots with heatsinks for fast storage
  • Wi-Fi 7 and 2.5 Gbps LAN provide high-performance networking

Caractéristiques

BrandASUS
ModelTUF GAMING B860M-PLUS WIFI
Part Number90MB1JV0-M0AAY0
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel B860
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8800+ MT/s (OC)
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot
PCI Express x4Intel B860 Chipset
1 x PCIe 4.0 x4 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SATA RAID* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4

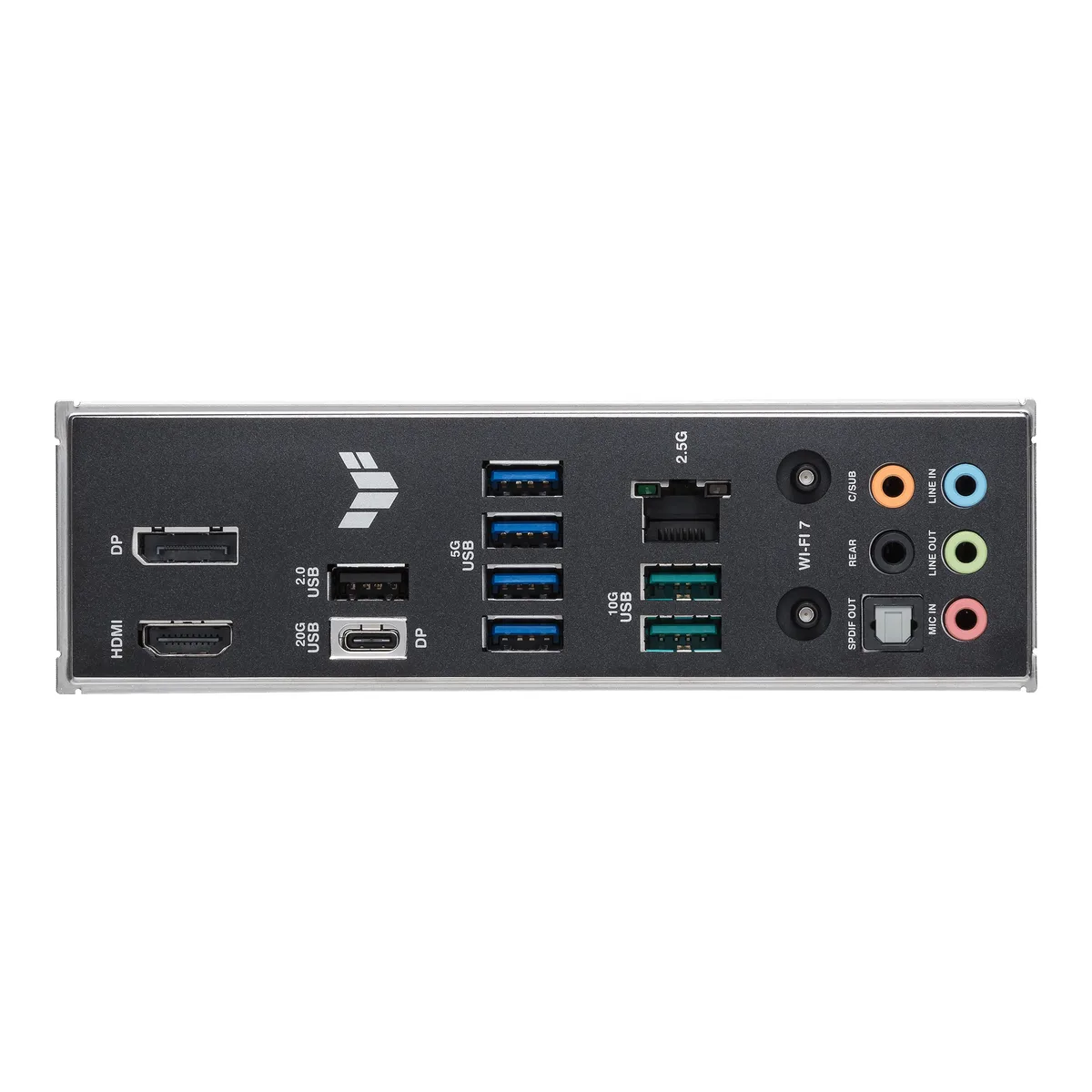

Back I/O Ports1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front panel audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
BIOS Feature2 x 128 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
Windows 11Windows 11
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Addressable Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 Rubber Packages
1 x TUF Gaming sticker
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Poids d’expédition1.66 kg
Dimensions du colis279 × 279 × 76 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What maintenance or replacement will the VRM cooling need on the TUF GAMING B860M-PLUS WIFI?

The large VRM heatsinks are passive with no moving parts, so they require no scheduled maintenance or replacement under normal use.

What limit appears first during sustained load on the 12+2+1 80A DrMOS power stages?

The 80A per-stage rating is the ceiling; VRM temperature will reach its limit before the current rating is exceeded.

How loud and hot does the board get when running all day with Wi-Fi 7 and 2.5G LAN active?

Passive VRM, M.2 and PCH heatsinks plus Fan Xpert 4 controlled chassis fans keep temperatures low and noise minimal during continuous operation.
