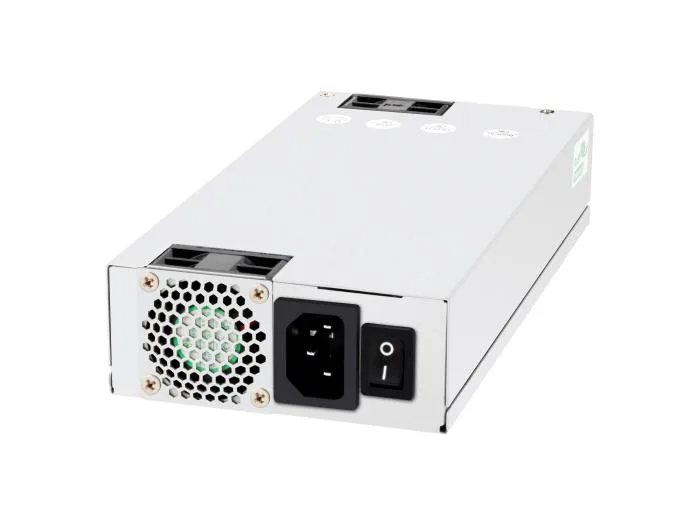

Silver metal rectangular 1U server power supply with dual 40mm fans, front grille and rear connector panel

Athena Power

Athena Power AP-1U60P868 600W 1U server power supply

SKU CH-5X3V-S1T6C

A 600 W single 1U server power supply with dual 40 mm fans, active PFC and 80Plus Platinum efficiency

  • Type1U EPS
  • Single/RedundantSingle
  • Maximum Power600W
  • Main Connector20+4Pin
  • Output Current+3.3V@18A, +5V@20A,12V1/V2@24/24A, [email protected] , [emai
  • Output+3.3V, +5V,12V1/V2, -12V, +5Vsb
  • 600 W output powers dense 1U servers
  • 250 000-hour MTBF at 25 °C ensures long service life
  • Dual 40 mm fans with auto speed control exhaust 100 % internal heat
  • Certified to IEC/UL/CSA/EN 62368-1 for US, Canada and Europe
  • Active PFC and remote on/off boost efficiency and reliability

Athena Power 600W 1U server PSU

The Athena Power AP-1U60P868 is a 600 watt single power supply built for the 1U rackmount form factor. It delivers +3.3V, +5V, dual +12V rails, -12V and +5Vsb outputs with a 20+4 pin main connector. Efficiency exceeds 80 percent and the unit meets UL/TUV 62368-1 safety compliance.

Suits 1U rack builds needing dual EPS and PCIe power

This supply fits administrators populating 1U server chassis that require both an 8 pin and an 8 (4+4) pin EPS connector plus two 6+2 pin PCIe connectors. It is not intended for redundant power configurations or for systems that need more than three SATA devices without additional adapters.

Standard 1U depth eases rack installation

At 200 millimetres long the unit slides into typical 1U rails without modification. Dual 40 millimetre ball-bearing fans at front and rear expel heat through the chassis. Installers should verify that the 9.0 amp draw at 110 volt input matches the rack PDU rating before powering on.

Points forts

  • 600 W output powers dense 1U servers
  • 250 000-hour MTBF at 25 °C ensures long service life
  • Dual 40 mm fans with auto speed control exhaust 100 % internal heat
  • Certified to IEC/UL/CSA/EN 62368-1 for US, Canada and Europe
  • Active PFC and remote on/off boost efficiency and reliability

Caractéristiques

BrandAthena Power
ModelAP-1U60P868
Type1U EPS
Single/RedundantSingle
Maximum Power600W
Main Connector20+4Pin
Output Current+3.3V@18A, +5V@20A,12V1/V2@24/24A, [email protected] , [email protected]
Output+3.3V, +5V,12V1/V2, -12V, +5Vsb
Input Voltage90 - 264 V
Input Frequency Range47 - 63 Hz
Input Current9.0A@110V, 4.5A@ 240V
MTBF250,000 Hours on Maximum Load at +25 degree C
Efficiency> 80%
Hold-up Time11 ms Minimum at Nominal Input Voltage
ProtectionOCP, OVP,
FeaturesRise time: Less than 70 ms
Dimensions(L x W x H) 200 x 100 x 40.5 mm/ 7.87 x 3.94 x 1.59 in
Weight4.50 lbs
Humidity20%-90%
TemperatureOperating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C

Questions sur cet article

Does the 20+4Pin main connector and EPS 12V 8Pin plus 8(4+4)Pin give me everything a dual-socket server motherboard needs?

Yes. The unit ships with one 24-pin ATX connector, one 8-pin EPS connector and one 8-pin (4+4) EPS connector, matching the standard dual-processor power layout.

Will the 90-264 V input range and 47-63 Hz frequency let me move the server between 110 V and 240 V sites without changes?

Yes. The power supply accepts 90 to 264 V at 47 to 63 Hz, so it operates on both common mains voltages without any switch or jumper.

How can I confirm the PSU is delivering stable power once installed?

Check that the system posts reliably, that voltages in BIOS or monitoring software stay within ATX tolerances, and that the dual 40 mm fans spin up and adjust speed under load.
