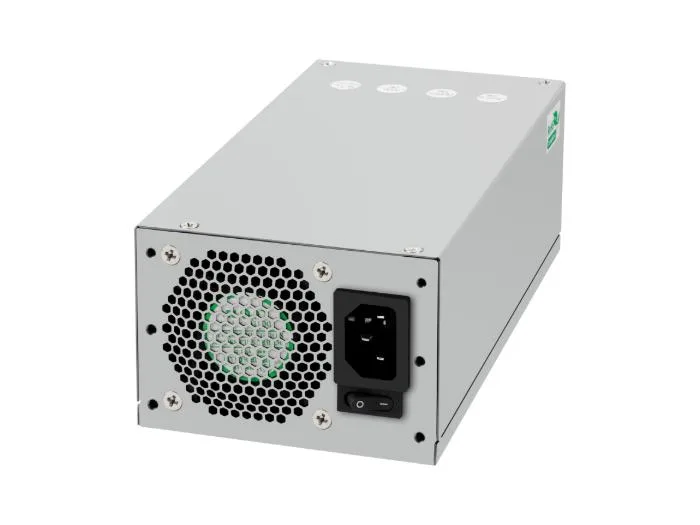

Silver rectangular 2U server PSU with dual fans and mesh grille

Athena Power

Athena Power AP-2UMK12P868 1200W 2U server power supply

SKU CH-Y50M-48AER

Delivers 1200W continuous power with 92% efficiency, ATX 3.1 and PCIe 5.0 compliance, and a 12V-2x6 GPU connector in a compact 2U form factor

  • TypeATX
  • Single/RedundantSingle
  • Maximum Power1200W
  • Fans2
  • Main Connector20+4Pin
  • Output Current+3.3V@18A, +5V@18A,+12V@100A, [email protected] , [email pro
  • 1200W continuous power supports demanding server workloads
  • 80 PLUS Platinum certification delivers up to 92% efficiency
  • ATX 3.1 and PCIe 5.0 compliance ensures next-gen compatibility
  • 12V-2x6 H++ connector provides 600W for modern GPUs
  • Dual smart fans with thermal control enable quiet cooling

1200W 2U Server Power Supply

The Athena Power AP-2UMK12P868 is a single 1200W unit built for 2U rackmount servers and workstations. It delivers continuous output at up to 92 percent efficiency with 80 PLUS Platinum certification. Active PFC and universal 100-240V input support global deployments. Dual smart fans provide thermal speed control for sustained loads.

Suited for high-density GPU compute and AI nodes

This PSU fits builders who need the 12V-2x6 600W connector for modern accelerators and dual EPS12V for multi-socket boards. It is not for teams that require redundant hot-swap modules or systems limited to legacy 6-pin PCIe power. Buyers needing more than one 12V-2x6 connection should look elsewhere.

ATX 3.1 and PCIe 5.0 compliance decides fit

The unit meets ATX 3.1 and PCIe 5.0 electrical specifications, enabling the 12V-2x6 H++ interface and 17 ms hold-up time. IEC/UL 62368-1 certification covers enterprise safety requirements. If your platform demands an earlier ATX revision or lacks the 12V-2x6 header, this supply will not match.

Points forts

  • 1200W continuous power supports demanding server workloads
  • 80 PLUS Platinum certification delivers up to 92% efficiency
  • ATX 3.1 and PCIe 5.0 compliance ensures next-gen compatibility
  • 12V-2x6 H++ connector provides 600W for modern GPUs
  • Dual smart fans with thermal control enable quiet cooling

Caractéristiques

BrandAthena Power
Series2U
ModelAP-2UMK12P868
TypeATX
Single/RedundantSingle
Maximum Power1200W
Fans2
Main Connector20+4Pin
Output Current+3.3V@18A, +5V@18A,+12V@100A, [email protected] , [email protected]
Output+3.3V, +5V,12V, -12V, +5Vsb
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current13A@110V, 6A@ 240V
MTBF100,000 Hours on Maximum Load at +25 degree C
Efficiency> =92%
Hold-up Time17 ms Minimum at Nominal Input Voltage
ProtectionOCP, OVP,
FeaturesRise time: Less than 20 ms
Dimensions(L x W x H) 200 x 100 x 70 mm / 7.87 x 3.94 x 2.76 in
Weight5.0 lbs
Humidity20%-90%
TemperatureOperating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C

Questions sur cet article

How much GPU power can the 12V-2x6 connector actually deliver in a real build?

The 12V-2x6 (H++) connector is rated for 600W, supporting modern high-current graphics cards for AI, rendering and compute workloads.

What does ATX 3.1 and PCIe 5.0 compliance cap in practice?

These standards enable the 12V-2x6 connector and ensure compatibility with next-generation GPU power delivery and system timing requirements.

What clearance does the 2U form factor need to fit in a rack chassis?

The unit measures 200 x 100 x 70 mm (7.87 x 3.94 x 2.76 in) and weighs 5.0 lbs, fitting standard 2U server bays.
