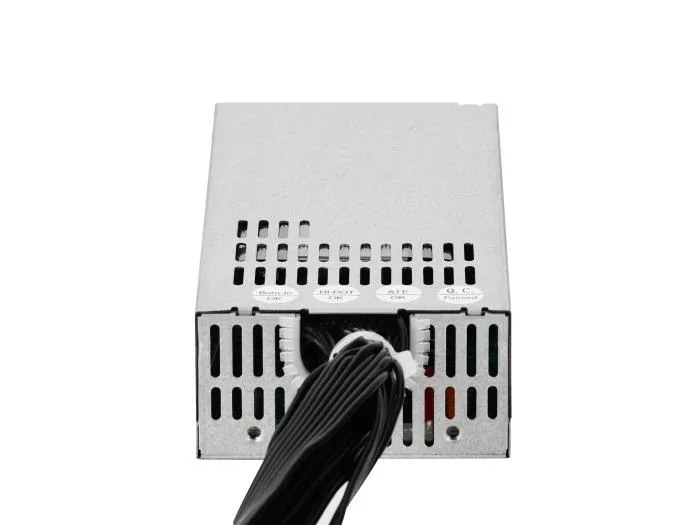

Silver rectangular Flex ATX server PSU with fan grille and cable bundle

Athena Power

Athena Power AP-MFATX70P868 Flex ATX 700W server power supply

SKU CH-V63T-2WT1C

Flex ATX 700 W unit with active PFC and 80 Plus Bronze efficiency for compact servers

  • TypeATX
  • Single/RedundantSingle
  • Maximum Power700W
  • Main Connector20+4Pin
  • Output Current+3.3V@18A, +5V@20A,12V1/V2@28/28A, [email protected] , [emai
  • Output+3.3V, +5V,12V1/V2, -12V, +5Vsb
  • 700 W output powers compact servers and workstations
  • 80Plus Bronze efficiency reduces heat and running costs
  • Flex ATX 150 × 81.5 × 40.5 mm form factor fits 1 U and mini-ITX builds
  • Active PFC with 90–264 V input supports worldwide mains without switching
  • IEC/UL/CSA/EN 62368-1 certification confirms safety compliance for US, Canada and Europe

Flex ATX 700W server power supply

The Athena Power AP-MFATX70P868 is a Flex ATX form-factor unit rated at 700W for small-form-factor servers and high-performance IPC systems. It delivers +3.3V@18A, +5V@20A and dual 12V rails at 28A each, with a 90-264V full-range input and active PFC meeting EN61000-3-2. The design complies with FLEX ATX-12V and EPS-12V standards and carries IEC/UL/CSA/EN 62368-1 safety certification.

Build quality and daily connectivity

The chassis measures 150 x 81.50 x 40.5 mm and weighs 3.75 lbs, with an exhaust 12V DC fan governed by a thermal speed controller. Protections include OCP and OVP, while hold-up time is rated at 11 ms minimum at nominal input. A remote on/off function is provided, and every unit undergoes 100% hi-pot, ATE and burn-in testing. MTBF is specified as 250,000 hours at maximum load and +25°C.

Bundled cables and their impact

The cable set includes one 24(20+4) pin ATX connector, one EPS 8-pin and one 8(4+4) pin CPU connector, two PCIe 6+2 pin connectors, three SATA 15-pin power leads, two Molex 4-pin and one floppy 4-pin connector. This complement supports a single graphics card, multiple drives and legacy peripherals without adapters, simplifying cable routing in compact 1U or mini-ITX builds.

Points forts

  • 700 W output powers compact servers and workstations
  • 80Plus Bronze efficiency reduces heat and running costs
  • Flex ATX 150 × 81.5 × 40.5 mm form factor fits 1 U and mini-ITX builds
  • Active PFC with 90–264 V input supports worldwide mains without switching
  • IEC/UL/CSA/EN 62368-1 certification confirms safety compliance for US, Canada and Europe

Caractéristiques

BrandAthena Power
ModelAP-MFATX70P868
TypeATX
Single/RedundantSingle
Maximum Power700W
Main Connector20+4Pin
Output Current+3.3V@18A, +5V@20A,12V1/V2@28/28A, [email protected] , [email protected]
Output+3.3V, +5V,12V1/V2, -12V, +5Vsb
Input Voltage90 - 264 V
Input Frequency Range47 - 63 Hz
Input Current9.0A@110V, 4.5A@ 240V
MTBF250,000 Hours on Maximum Load at +25 degree C
Efficiency> 80%
Hold-up Time11 ms Minimum at Nominal Input Voltage
ProtectionOCP, OVP,
FeaturesRise time: Less than 70 ms
Dimensions(L x W x H) 150 x 81.50 x 40.5 mm/ 6 x 3.2 x 1.59 in
Weight3.75 lbs
Humidity20%-90%
TemperatureOperating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C

Questions sur cet article

What mains voltage and frequency range does the 90–264 V input with 47–63 Hz cover in practice?

The unit accepts 90–264 V AC across 47–63 Hz, drawing 9.0 A at 110 V or 4.5 A at 240 V, so it works on most global grids without a voltage switch.

Will the 150 × 81.5 × 40.5 mm Flex ATX chassis fit my 1U or mini-ITX case?

At 150 mm long, 81.5 mm wide and 40.5 mm high it matches the Flex ATX form factor used in 1U IPC servers and mini-ITX builds; verify your case clearance against those dimensions.

How do I wire the 20+4-pin ATX, dual EPS 8-pin and two PCIe 6+2-pin connectors without missing the remote on/off signal?

Plug the 24-pin ATX, one 8-pin and one 4+4-pin EPS, both PCIe 6+2-pin cables, then connect the remote on/off header to the motherboard so the PSU starts when the system signals it.
