Rectangular silver metal PS2 server power supply unit with rear cooling fan and cable connectors

Athena Power

Athena Power AP-PS3280P868 800W PS2 server power supply

SKU CH-KWTE-07D37

Delivers 800W of 80 PLUS Platinum efficient power in a standard PS2 form factor with integrated cooling fan, PCIe 5.0 ready P5 connector.

  • TypeATX
  • Single/RedundantSingle
  • Maximum Power800W
  • Fans1
  • Main Connector20+4Pin
  • Output Current+3.3V@18A, +5V@18A,+12V@64A, [email protected] , [email prot
  • 800W stable output powers demanding workstations
  • 80 PLUS Platinum efficiency above 92% cuts energy waste
  • PCIe 5.0 ready P5 16-pin connector supports modern GPUs
  • Standard PS2 form factor 140 x 150 x 85 mm fits existing chassis
  • MTBF 100,000 hours at full load ensures long-term reliability

Industrial workstation power

The Athena Power AP-PS3280P868 is an 800W PS2 server power supply built for industrial and workstation systems that demand continuous, stable output. It carries 80 PLUS Platinum certification and IEC/UL 62368-1 safety approval, making it suitable for environments where efficiency and compliance are required.

PS2 form factor integration

The unit fits a standard PS2 chassis measuring 140 x 150 x 85 mm and includes a single integrated cooling fan for thermal management. It accepts a wide 100-264V AC input range at 47-63 Hz, allowing deployment across global power grids without additional configuration.

Legacy redundancy replacement

This single-unit design replaces older redundant PS2 modules where a non-redundant 800W solution is now sufficient, and it adds a P5 16-pin connector for PCIe 5.0 graphics support. It is not for builders who need hot-swap redundancy or systems that require a different form factor.

Points forts

  • 800W stable output powers demanding workstations
  • 80 PLUS Platinum efficiency above 92% cuts energy waste
  • PCIe 5.0 ready P5 16-pin connector supports modern GPUs
  • Standard PS2 form factor 140 x 150 x 85 mm fits existing chassis
  • MTBF 100,000 hours at full load ensures long-term reliability

Caractéristiques

BrandAthena Power
SeriesPS2
ModelAP-PS3280P868
TypeATX
Single/RedundantSingle
Maximum Power800W
Fans1
Main Connector20+4Pin
Output Current+3.3V@18A, +5V@18A,+12V@64A, [email protected] , [email protected]
Output+3.3V, +5V,12V, -12V, +5Vsb
Input Voltage100 - 264 V
Input Frequency Range47 - 63 Hz
Input Current13A@110V, 6A@ 240V
MTBF100,000 Hours on Maximum Load at +25 degree C
Efficiency> 92%
Hold-up Time17 ms Minimum at Nominal Input Voltage
ProtectionOCP, OVP,
FeaturesRise time: Less than 20 ms
Dimensions(D x W x H) 140 x 150 x 85 mm / 5.5 x 5.9 x 3.4 in
Weight4.2 lbs
Humidity20%-90%
TemperatureOperating: 0°C ~ +55°C on Full Load; Storage & Shipping: -25°C ~ +85°C

Questions sur cet article

How long can the AP-PS3280P868 run at 800 W before the 100,000-hour MTBF limit becomes a concern?

MTBF is rated at 100,000 hours at maximum load and +25 °C, so sustained 800 W operation at room temperature stays within that design target.

What noise and heat should I expect from the single fan when the supply runs at full load all day?

The 80 PLUS Platinum rating means over 92 % efficiency, so waste heat is minimised; the integrated fan is the only active cooling and will run continuously under full load.

Which motherboard power connectors must my system already have to use this PS2 unit?

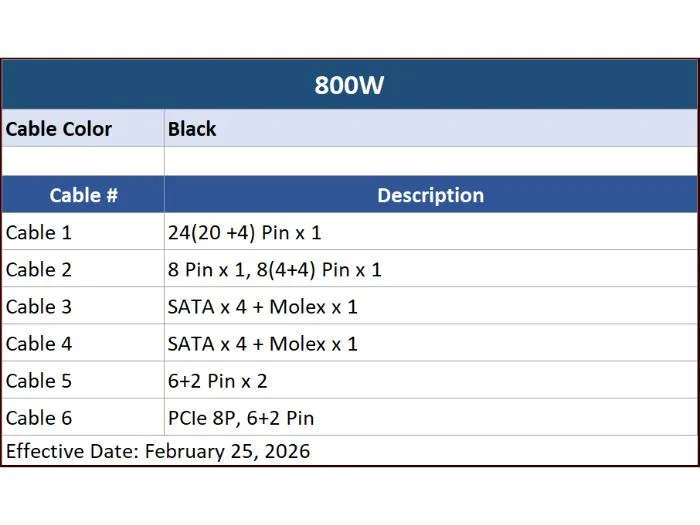

Your motherboard needs a 20+4 pin ATX socket, an EPS 8-pin (or 4+4) CPU socket, and at least one PCIe 6+2 or 8-pin connector for graphics; the unit also provides SATA and Molex leads for drives.
