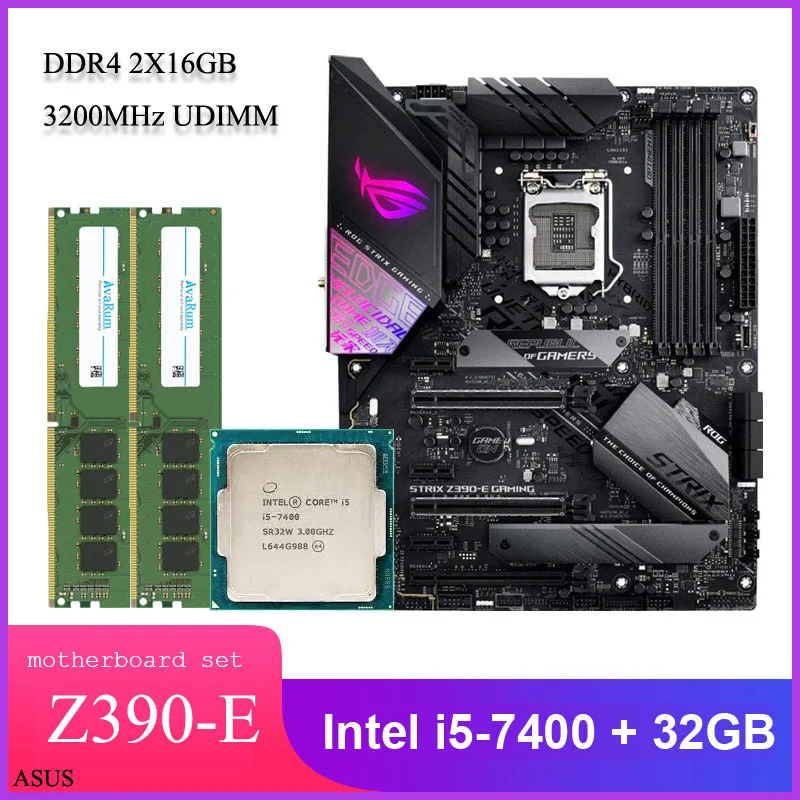

ATX motherboard with CPU and two DDR4 memory modules installed

Avarum

Avarum Embedded Solution 32GB DDR4 3200MHz for Asus ROG STRIX Z390-E GAMING i5-7400

SKU CH-TD5Q-JM8SJ

Pre-tested motherboard, CPU and 32GB DDR4-3200 kit for LGA 1151 builds

  • Combo TypeMotherboard / CPU / Memory Combo

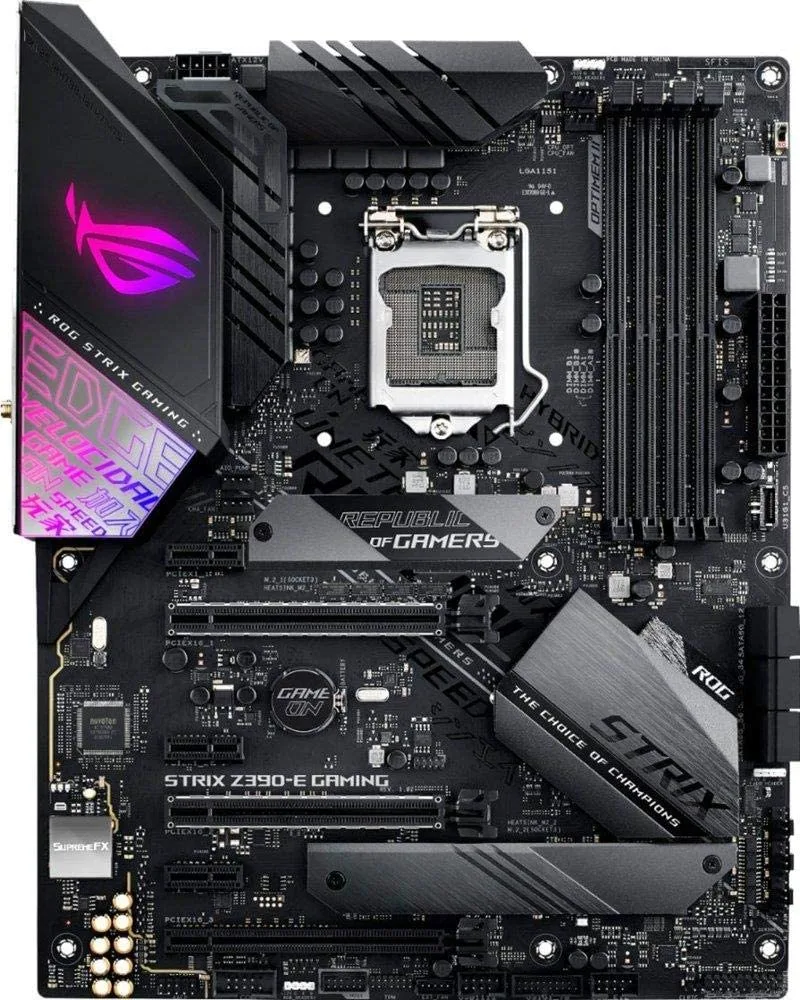

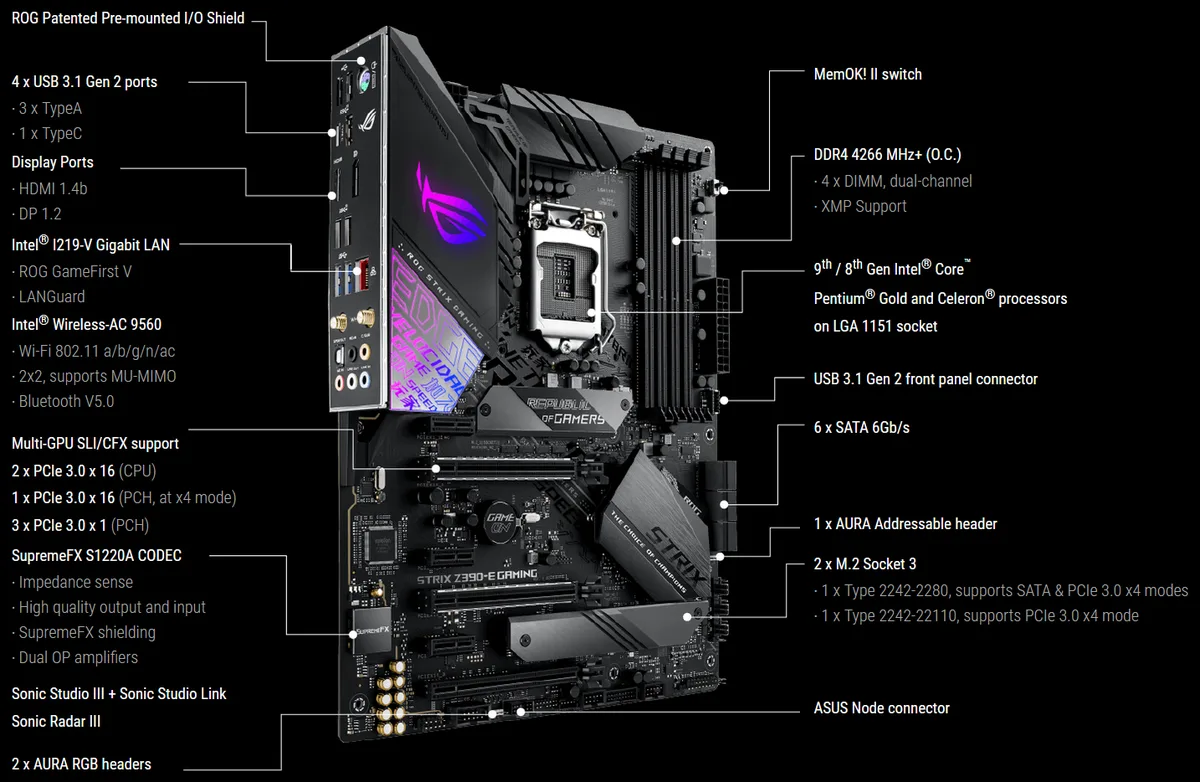

  • MotherboardASUS ROG STRIX Z390-E GAMING
  • CPUIntel Core i5-7400
  • With CoolerNo
  • MemoryAvarum DDR4 16GB 3200MHz UDIMM * 2
  • CPU Socket TypeLGA 1151
  • Complete Asus ROG STRIX Z390-E combo with i5-7400 CPU and 32GB Avarum DDR4 3200MHz
  • Dual-channel 32GB DDR4 3200MHz memory kit ready for multitasking
  • Intel Core i5-7400 LGA 1151 processor included for immediate use
  • Z390 chipset motherboard supports up to 128GB DDR4 across four slots
  • SupremeFX 8-channel audio and Intel I219-V LAN built in

Combo contents

This package combines an Asus ROG STRIX Z390-E GAMING motherboard, an Intel Core i5-7400 processor and two Avarum DDR4 16GB 3200MHz UDIMM modules for a total of 32GB. It suits builders who want a ready-matched board, CPU and memory kit in one order.

Socket and generation match

The motherboard uses an LGA 1151 socket and the Z390 chipset supports 8th and 9th Generation Intel Core processors, while the supplied i5-7400 is a 7th Generation part. Buyers who need a drop-in working combination must verify that the board BIOS already accepts this CPU before purchase.

Thermals and power

No cooler is included for either the motherboard or the processor, so a separate LGA 1151-compatible cooler must be sourced. The memory runs at standard DDR4 voltage and the board provides 8-channel audio plus Intel I219-V LAN without additional active cooling on those components.

Points forts

  • Complete Asus ROG STRIX Z390-E combo with i5-7400 CPU and 32GB Avarum DDR4 3200MHz
  • Dual-channel 32GB DDR4 3200MHz memory kit ready for multitasking
  • Intel Core i5-7400 LGA 1151 processor included for immediate use
  • Z390 chipset motherboard supports up to 128GB DDR4 across four slots
  • SupremeFX 8-channel audio and Intel I219-V LAN built in

Caractéristiques

BrandASUS
ModelROG STRIX Z390-E GAMING
Combo TypeMotherboard / CPU / Memory Combo
MotherboardASUS ROG STRIX Z390-E GAMING
CPUIntel Core i5-7400
With CoolerNo
MemoryAvarum DDR4 16GB 3200MHz UDIMM * 2
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
Number of Memory Slots4×288pin
Memory StandardDDR4 3200
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express x162 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express x13 x PCIe 3.0/2.0 x1
SATA6 x SATA 6Gb/s
SATA RAID0/1/5/10
Audio ChipsetROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Audio Channels8 Channels * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
LAN ChipsetIntel I219-V
LAN Speed10/100/1000Mbps
Wireless LANIntel Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
BluetoothBluetooth 5.0
Other ConnectorsIntegrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Form FactorATX
Dimensions (W x L)12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Questions sur cet article

Will the 3200MHz DDR4 memory run at its rated speed with the i5-7400 on this Z390 board?

The i5-7400 officially supports DDR4 up to 2400MHz. The Z390 chipset allows overclocked memory profiles, so the Avarum modules can run at 3200MHz if XMP is enabled in the BIOS, but the CPU memory controller operates outside its specification at that frequency.

What PCIe lane configuration does the board provide for the two x16 slots when both are populated?

The two primary PCIe 3.0 x16 slots share 16 lanes from the CPU; with both occupied they run at x8/x8. The third x16-length slot is wired for x4 maximum and connects through the chipset.

What mounting pattern and clearance does the motherboard need for a CPU cooler?

The board uses the standard LGA 1151 mounting holes. Any cooler rated for LGA 1151 that clears the ATX form-factor layout and surrounding components will install correctly.
