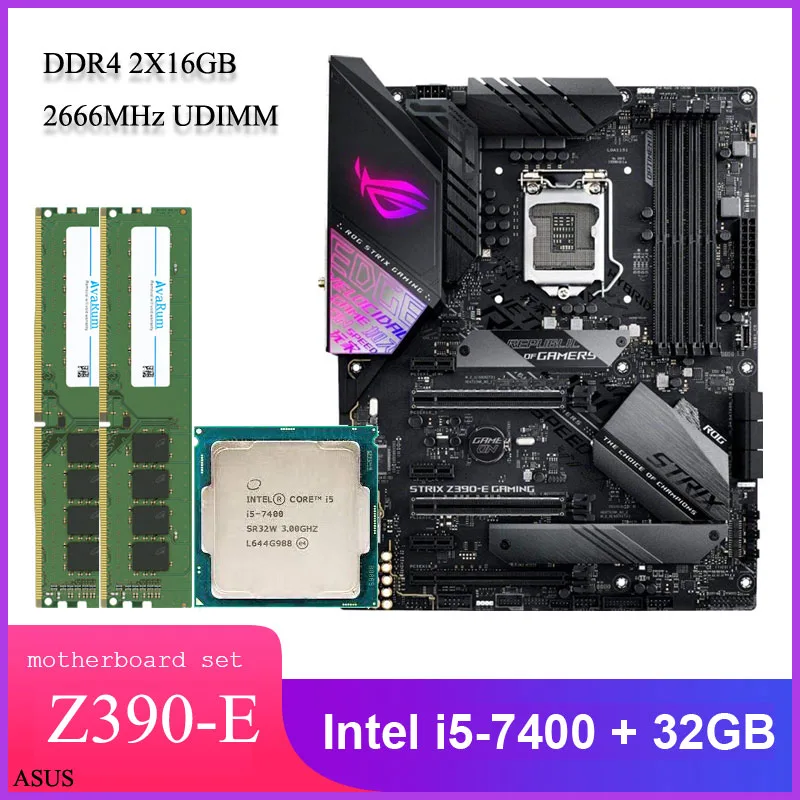

ATX motherboard with CPU and four DDR4 memory modules installed

Avarum

Avarum Embedded Solution i5-7400 Z390-E 32GB DDR4 2666MHz

SKU CH-1VCX-N6KP6

ATX motherboard combo with Intel Core i5-7400 CPU, Z390 chipset and 32GB DDR4 2666MHz memory

  • Combo TypeMotherboard / CPU / Memory Combo

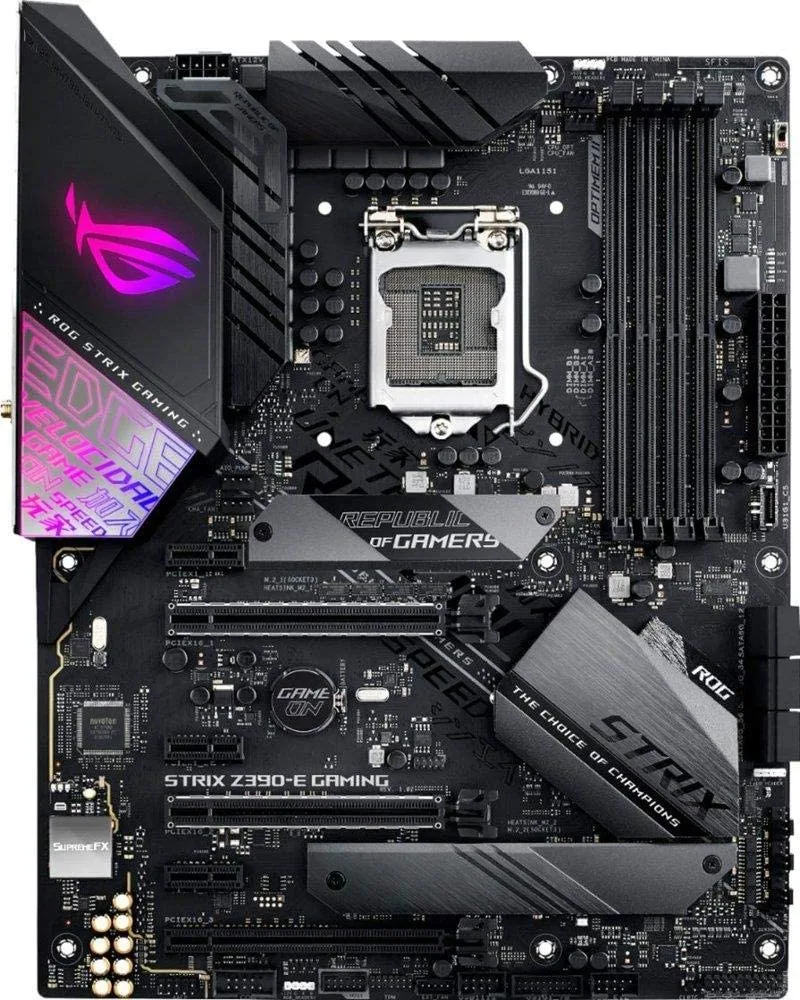

  • MotherboardASUS ROG STRIX Z390-E GAMING
  • CPUIntel Core i5-7400
  • With CoolerNo
  • MemoryAvarum DDR4 16GB 2666MHz UDIMM * 4
  • CPU Socket TypeLGA 1151
  • Ready-to-build combo with motherboard, CPU and 32 GB DDR4
  • Z390 chipset supports 8th and 9th Gen Intel Core processors
  • Four DDR4 slots allow up to 128 GB memory capacity
  • Dual x16 PCIe 3.0 slots for multi-GPU configurations
  • SupremeFX S1220A audio delivers 8-channel high-definition sound

Ready-to-run embedded combo

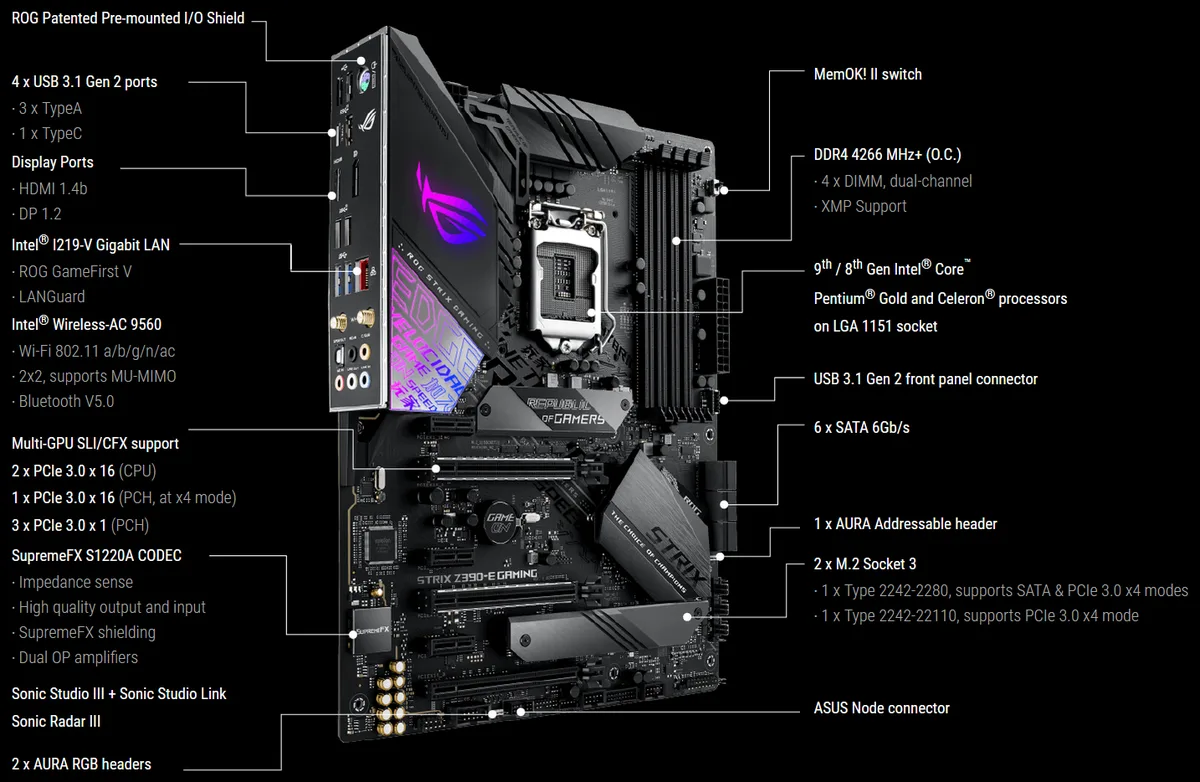

This bundle pairs an Asus ROG STRIX Z390-E GAMING motherboard with an Intel Core i5-7400 processor and 32GB of Avarum DDR4 2666MHz memory in a dual-channel kit. The LGA 1151 socket board delivers six SATA 6Gb/s ports, three PCIe 3.0 x1 slots and two full-length PCIe 3.0 x16 slots that can run at x16 or dual x8. SupremeFX 8-channel audio and an Intel I219-V LAN controller handle sound and networking out of the box. The package ships as a tested assembly of factory-stock components.

Suits integrators building a single-box appliance

Developers who need a pre-validated platform for kiosks, digital signage or light industrial controllers can deploy this combo without sourcing separate parts. The four populated memory slots leave no room for further RAM expansion, so projects that may exceed 32GB should evaluate a different starting point. No CPU cooler is included, so the integrator must supply a compatible LGA 1151 thermal solution before power-on.

Four DIMM slots already filled with 32GB

The motherboard supports up to 128GB across four 288-pin slots running in dual-channel mode, yet this kit occupies every slot with 16GB modules at 2666MHz. Any future memory upgrade requires removing existing sticks, so confirm that 32GB satisfies the workload before committing.

Points forts

  • Ready-to-build combo with motherboard, CPU and 32 GB DDR4
  • Z390 chipset supports 8th and 9th Gen Intel Core processors
  • Four DDR4 slots allow up to 128 GB memory capacity
  • Dual x16 PCIe 3.0 slots for multi-GPU configurations
  • SupremeFX S1220A audio delivers 8-channel high-definition sound

Caractéristiques

BrandASUS
ModelROG STRIX Z390-E GAMING
Combo TypeMotherboard / CPU / Memory Combo
MotherboardASUS ROG STRIX Z390-E GAMING
CPUIntel Core i5-7400
With CoolerNo
MemoryAvarum DDR4 16GB 2666MHz UDIMM * 4
CPU Socket TypeLGA 1151
CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
Number of Memory Slots4×288pin
Memory StandardDDR4 2666
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express x162 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express x13 x PCIe 3.0/2.0 x1
SATA6 x SATA 6Gb/s
SATA RAID0/1/5/10
Audio ChipsetROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Audio Channels8 Channels * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
LAN ChipsetIntel I219-V
LAN Speed10/100/1000Mbps
Wireless LANIntel Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
BluetoothBluetooth 5.0
Other ConnectorsIntegrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Form FactorATX
Dimensions (W x L)12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Questions sur cet article

Will the i5-7400 CPU need a cooler replaced later?

No cooler is included with the CPU, so a compatible LGA 1151 cooler must be sourced before first use and may need replacement if fan bearings wear out.

What limit appears first when the motherboard runs at full load for hours?

The board supports DDR4 up to 4266 MT/s overclocked, but the installed Avarum modules run at 2666 MT/s, so memory bandwidth caps before the VRM or PCIe 3.0 lanes saturate.

How loud and hot does the combo get when it runs all day?

With no stock cooler on the i5-7400 and the Z390-E relying on passive VRM heatsinks, sustained load noise and temperature depend entirely on the aftermarket cooler chosen.
