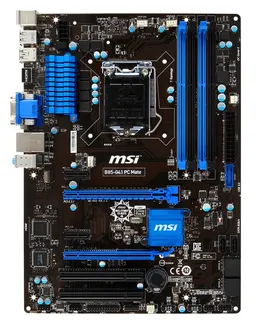

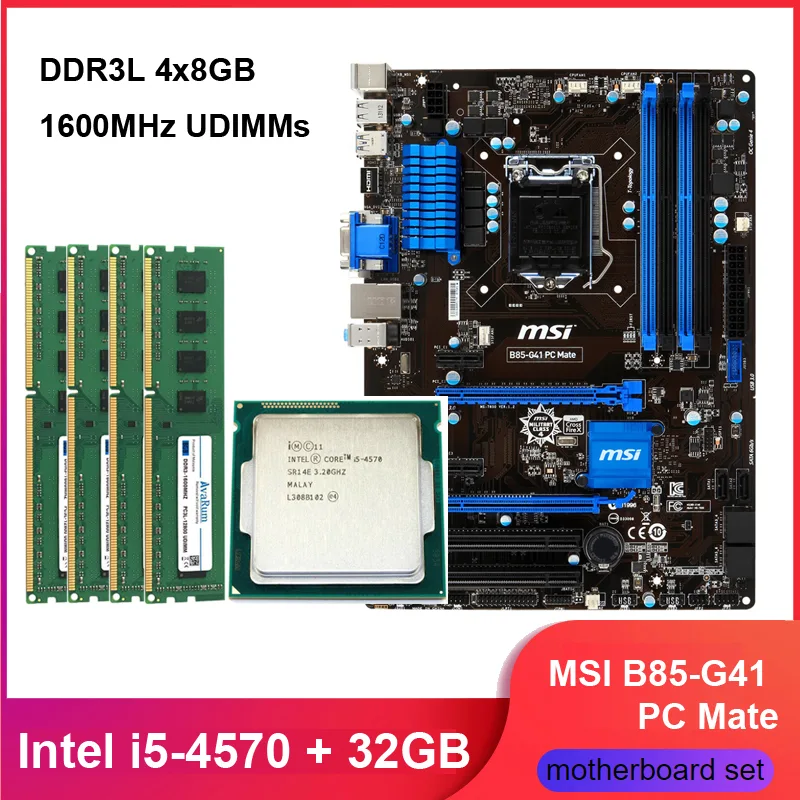

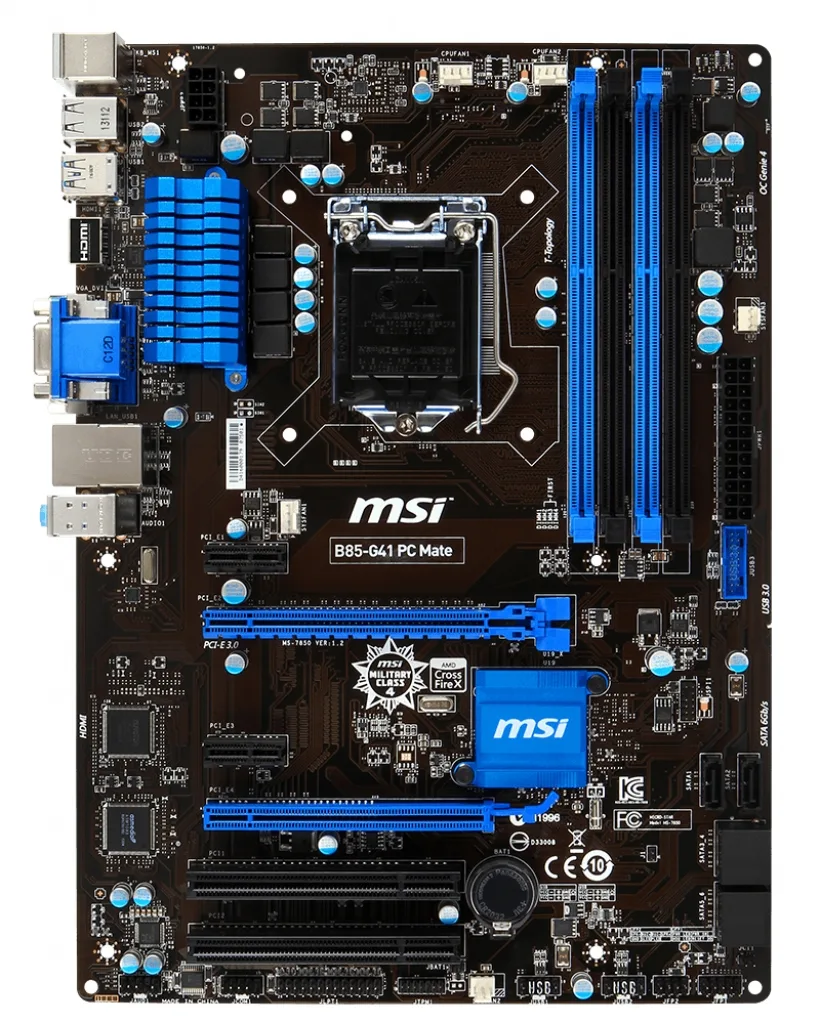

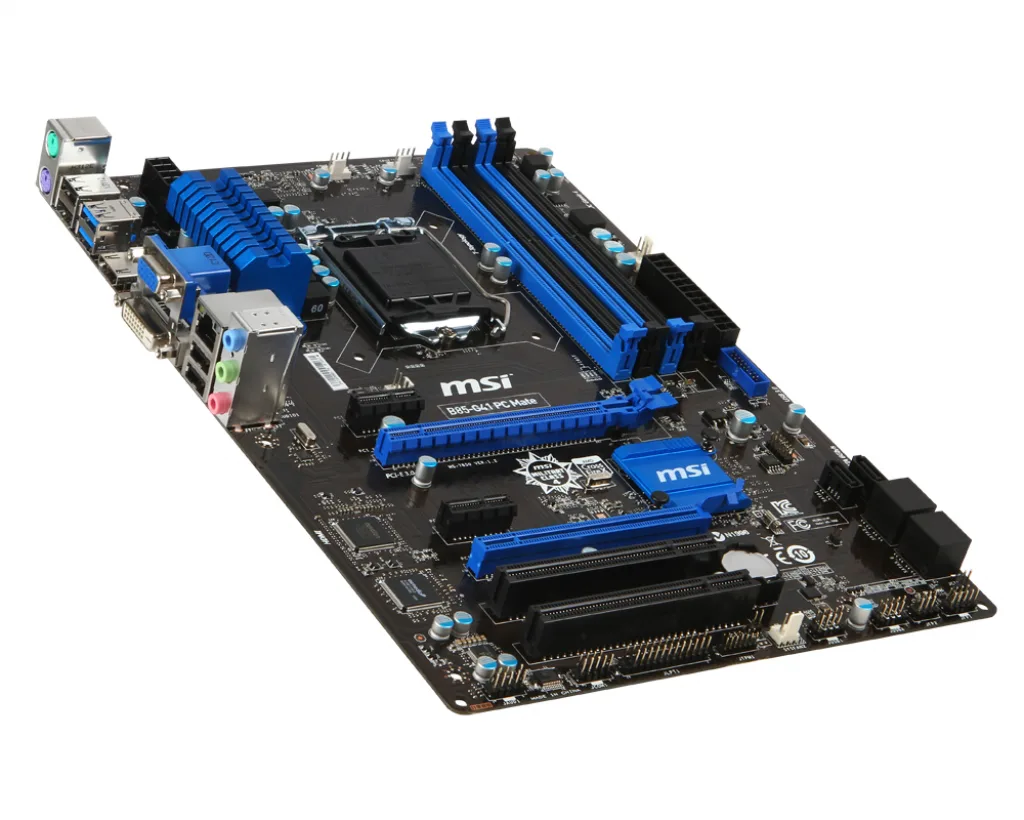

MSI B85-G41 PC Mate motherboard with Intel Core i5-4570 CPU and four DDR3L memory modules

Avarum

Avarum MSI B85-G41 PC Mate i5-4570 32GB DDR3L Embedded Solution

SKU CH-Z41Z-ZHT45

Embedded combo with Intel Core i5-4570, 32 GB DDR3L 1600 MHz memory and B85 chipset motherboard

  • Combo TypeMotherboard / CPU / Memory Combo
  • MotherboardMSI B85-G41 PC Mate
  • CPUIntel Core i5-4570
  • With CoolerNo
  • MemoryAvarum DDR3 8GB 1600MHz UDIMM * 4pcs
  • CPU Socket TypeLGA 1150
  • Ready-to-deploy embedded platform with pre-installed Intel Core i5-4570 processor
  • 32GB DDR3L 1600MHz 1.35V memory kit fills all four slots for dual-channel bandwidth
  • MSI B85 chipset motherboard provides six SATA ports including four 6Gb/s connections
  • Realtek 8111G gigabit LAN and 8-channel Realtek ALC887 audio built into rear I/O
  • PCIe 3.0 x16 slot plus two PCIe x1 and two legacy PCI slots for expansion cards

Ready embedded platform

This combo delivers a tested LGA 1150 motherboard paired with an Intel Core i5-4570 and 32 GB of DDR3L memory in a single package. It targets system integrators and hobbyists who need a complete, validated platform for legacy industrial or commercial workloads without sourcing parts separately.

Sustained-load behaviour

The board runs dual-channel DDR3L at 1.35 V across four populated slots while the quad-core processor handles continuous threads within its rated thermal envelope. Six SATA ports — two at 3 Gb/s and four at 6 Gb/s — keep storage arrays fed during long transfers, and the Realtek 8111G LAN maintains steady gigabit throughput for network-attached tasks.

Pre-order checklist

Verify that your chassis can accept a standard ATX board and that the power supply provides the necessary 24-pin and 4-pin CPU connectors for this socket. Confirm your operating system supports 4th-generation Core architecture and that any add-in cards fit the single PCIe 3.0 x16 slot, one PCIe 2.0 x16 slot running at x4 speed, two PCIe 2.0 x1 slots or two legacy PCI slots.

Points forts

  • Ready-to-deploy embedded platform with pre-installed Intel Core i5-4570 processor
  • 32GB DDR3L 1600MHz 1.35V memory kit fills all four slots for dual-channel bandwidth
  • MSI B85 chipset motherboard provides six SATA ports including four 6Gb/s connections
  • Realtek 8111G gigabit LAN and 8-channel Realtek ALC887 audio built into rear I/O
  • PCIe 3.0 x16 slot plus two PCIe x1 and two legacy PCI slots for expansion cards

Caractéristiques

BrandMSI
ModelB85-G41 PC Mate
Combo TypeMotherboard / CPU / Memory Combo
MotherboardMSI B85-G41 PC Mate
CPUIntel Core i5-4570
With CoolerNo
MemoryAvarum DDR3 8GB 1600MHz UDIMM * 4pcs
CPU Socket TypeLGA 1150
CPU Type4th-generation Core i3,i5,i7,Pentium,Celeron(LGA1150)
Number of Memory Slots4×240pin
Memory StandardDDR3 1066/1333/1600
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express x161 x PCI Express 3.0 x16
PCI Express x12 x PCI Express x1
PCI Slots2 x PCI Slots
SATA2 x SATA 3Gb/s, 4 x SATA 6Gb/s
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
LAN ChipsetRealtek 8111G
LAN Speed10/100/1000Mbps
PS/22
Video PortsD-Sub + DVI
HDMI1 x HDMI
USB 1.1/2.04 x USB 2.0
USB 3.02 x USB 3.0
Audio Ports3 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other Connectors1 x ATX 24-Pin power connector1 x 8-pin ATX 12V power connectorCPU x 2 / System x 3 FAN connectors1 x Clear CMOS jumper1 x Serial port connector1 x TPM Module connector1 x Parallel Port connector1 x Front Panel Audio connector1 x Front Panel connector1 x Chassis Intrusion connector
Form FactorATX
Dimensions (W x L)12" x 8.66"

Questions sur cet article

How much power does the i5-4570 and 32 GB DDR3L draw under sustained load?

The i5-4570 is a 4-core CPU; the four DDR3L modules run at 1.35 V and 1600 MHz. No cooler is included, so you must supply your own LGA 1150-compatible cooler.

What cooler and power connectors are required to run this combo out of the box?

Neither the motherboard nor the CPU ships with a cooler. You need an LGA 1150 cooler and a standard ATX power supply with a 24-pin main connector plus a 4-pin CPU power connector.

Will my PCI Express 2.0 graphics card and SATA 3 Gb/s SSDs work without bandwidth loss on this B85 board?

The board provides one PCIe 3.0 x16 slot that is backward compatible with PCIe 2.0 cards. It also has two SATA 3 Gb/s and four SATA 6 Gb/s ports for your existing drives.
