AZZA
AZZA NEO 500 ATX Mid Tower PC Case Black Silver 4 x 120 mm ARGB Fans
ATX mid-tower with tempered glass, four 120 mm ARGB fans and support for up to 360 mm radiators front and top
- TypeATX Mid Tower
- ColorBlack / Silver
- Case MaterialSteel / Tempered Glass
- With Power SupplyNo
- Power Supply MountedBottom
- Motherboard CompatibilityEATX(<330mm)?ATX?Micro ATX?ITX
- Four pre-installed 120 mm ARGB fans provide vibrant lighting out of the box
- Front and top radiator mounts up to 360 mm enable high-capacity liquid cooling
- Supports E-ATX boards up to 330 mm for flexible motherboard choices
- Graphics cards up to 380 mm and CPU coolers up to 165 mm fit with room to spare
- Front-panel USB 3.0, Type-C and HD audio keep modern peripherals within easy reach

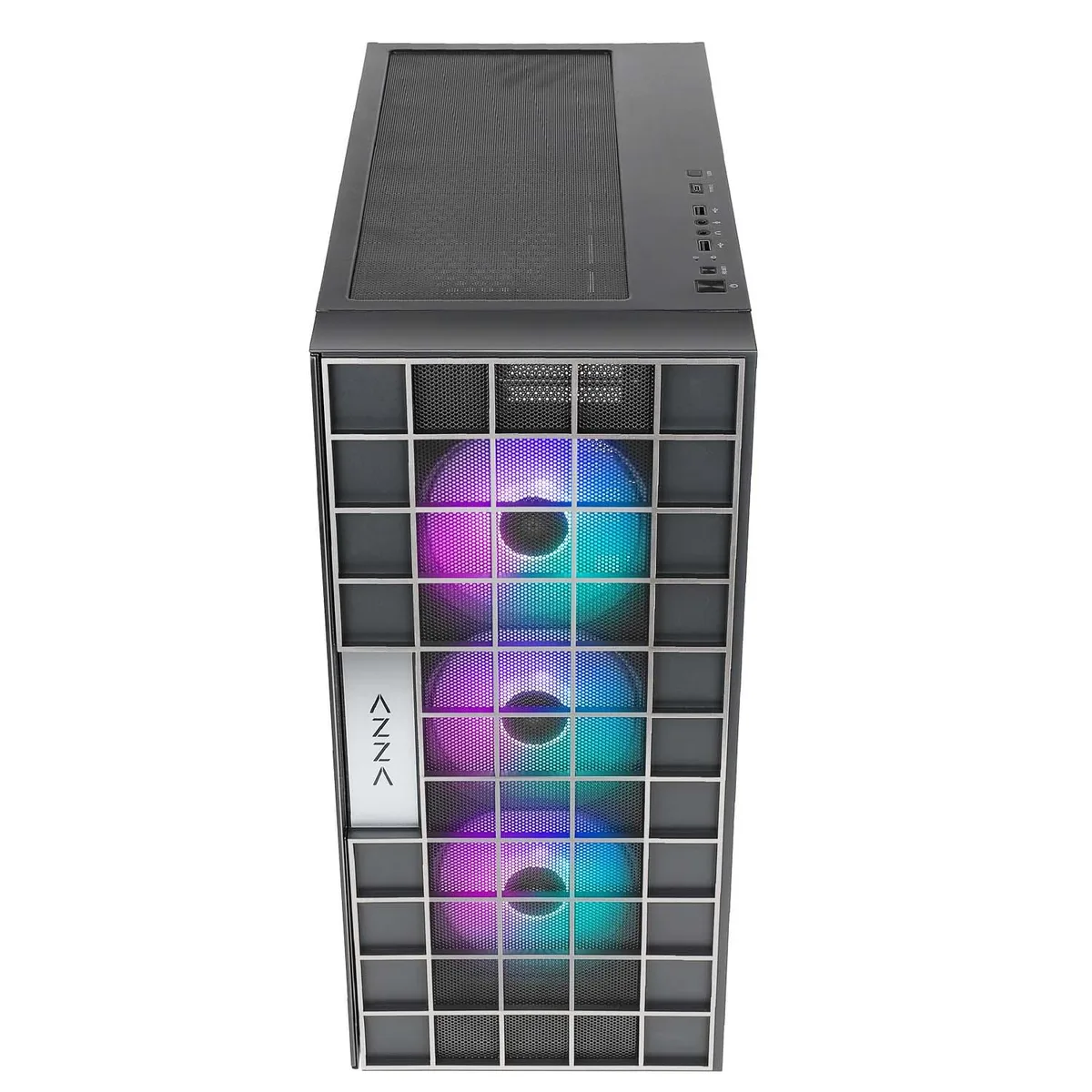

AZZA NEO 500 ATX Mid Tower
The AZZA NEO 500 is a steel and tempered glass ATX mid-tower case finished in black and silver. It comes with four pre-installed 120 mm ARGB PWM fans and supports EATX boards up to 330 mm, ATX, Micro-ATX and ITX form factors. The design targets builders who want strong visual impact without sacrificing internal flexibility.
Check motherboard width and GPU clearance
Verify that your EATX board does not exceed 330 mm in width, as wider server-style boards will not fit. Confirm your graphics card length is within 380 mm and your CPU cooler height stays under 165 mm. Ensure your power supply is a standard ATX unit, because the mount is located at the bottom of the chassis.
Four ARGB fans and LED button control
The four included 120 mm ARGB fans connect to the case lighting controller and are managed by the top-panel LED button, letting you cycle through modes without software. Additional fan ports on the front, top, rear and PSU shroud allow up to nine 120 mm fans in total, and both front and top positions accept 360 mm radiators for liquid cooling upgrades.
Points forts
- Four pre-installed 120 mm ARGB fans provide vibrant lighting out of the box
- Front and top radiator mounts up to 360 mm enable high-capacity liquid cooling
- Supports E-ATX boards up to 330 mm for flexible motherboard choices
- Graphics cards up to 380 mm and CPU coolers up to 165 mm fit with room to spare
- Front-panel USB 3.0, Type-C and HD audio keep modern peripherals within easy reach
Caractéristiques
| Brand | AZZA |
|---|---|
| Model | NEO 500 |
| Type | ATX Mid Tower |
| Color | Black / Silver |
| Case Material | Steel / Tempered Glass |
| With Power Supply | No |
| Power Supply Mounted | Bottom |
| Motherboard Compatibility | EATX(<330mm)?ATX?Micro ATX?ITX |
| Side Panel | with Side Window |
| Dust Filters | Yes |
| Internal 3.5" Drive Bays | up to 2 |
| Internal 2.5" Drive Bays | up to 4 |
| Expansion Slots | 7 |
| Front Ports | Power button, LED button, HD audio, 2 x USB 3.0, Type C |
| Fan Options | 3 x 120 mm or 3 x 140 mm fan ports in the front 3 x 120 mm or 2 x 140 fan ports on the top 1 x 120 mm fan port in the rear 2 x120 mm fan ports on the power supply shroud |
| Radiator Options | Front: Up to 360 mm, Top : Up to 360 mm |
| 120mm Fans | 4 |
| Max GPU Length | 380 mm |
| Max CPU Cooler Height | 165 mm |
| Max PSU Length | ATX power supply |
| Dimensions | 490 mm x 220 mm x 460 mm |
Questions sur cet article
Does the NEO 500 come with any fans already fitted?
Four 120 mm ARGB PWM fans are pre-installed and controlled by the top-panel LED button.
Should I choose an E-ATX board or a standard ATX board for this case?
E-ATX boards up to 330 mm wide fit alongside ATX, Micro-ATX and ITX.
What length of graphics card will fit once the front fans are in place?
Cards up to 380 mm long are supported with the front fans installed.
