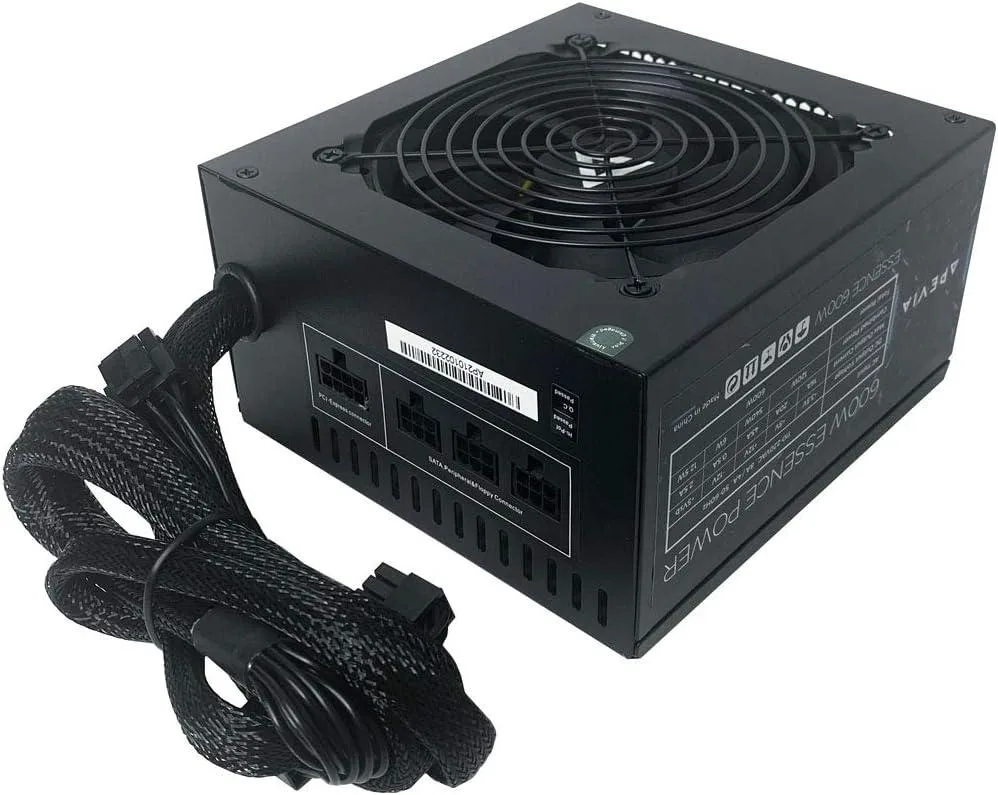

Black sandblasted ATX semi-modular power supply with 120mm black fan

BFKK

BFKK 600W ATX Semi-Modular Power Supply

SKU CH-FQ1S-W4DRP

A 600 W semi-modular ATX power supply with a thermally controlled 120 mm fan, 115/230 V input switch and full protection suite

  • TypeATX
  • Semi-modular cabling reduces clutter inside the case
  • 600W continuous output powers multi-core CPUs and GPUs
  • Auto-thermally controlled 120mm fan adjusts speed to temperature
  • Heavy-duty protections guard against short-circuit and over-power events
  • Voltage switch selects 115V or 230V input for global use

600W ATX Semi-Modular Power Supply

This BFKK ATX power supply delivers 600W for desktop builds that need a single strong 12V rail. It suits gaming rigs and workstations with dual, quad or multi-core CPUs. The semi-modular design keeps cable clutter lower than a fully fixed loom while the main motherboard and CPU cables stay permanently attached.

Installation and common issues

The 120mm black fan is auto-thermally controlled so it spins only as fast as temperatures require. Builders must route the fixed 20/24-pin and 4+4-pin cables first, then add the two PCI 6+2-pin, four SATA and four peripheral leads as needed. A missing floppy connector or an overloaded 12V rail are the typical reasons a build will not post.

Capacity and headroom

The unit provides +12V at 45A with +3.3V at 16A and +5V at 20A, plus -12V and +5VSB rails. It comfortably handles mid-range graphics cards and multi-core processors within the 600W limit. Heavy overclocking or dual high-end GPUs will exceed the available 12V current and trip the over-power protection.

Points forts

  • Semi-modular cabling reduces clutter inside the case
  • 600W continuous output powers multi-core CPUs and GPUs
  • Auto-thermally controlled 120mm fan adjusts speed to temperature
  • Heavy-duty protections guard against short-circuit and over-power events
  • Voltage switch selects 115V or 230V input for global use

Caractéristiques

TypeATX

Questions sur cet article

How can I confirm the 120mm fan is auto-thermally controlled and the unit is delivering power correctly after installation?

The fan speed should rise and fall with internal temperature, and the system should boot and run stably under load, showing the +12V rail at 45A capacity.

Which cables are permanently attached and which modular cables are included for SATA drives and PCIe graphics cards?

The 20/24-pin main and 4+4-pin CPU cables are fixed; two PCIe 6+2-pin and four SATA modular cables are supplied in the box.

Is the 600W single 12V rail design at 45A suitable for a modern multi-core CPU and a mid-range graphics card?

Yes, the 600W unit provides a single +12V rail rated at 45A, supporting dual or quad-core CPUs and a graphics card needing two 6+2-pin connectors.
