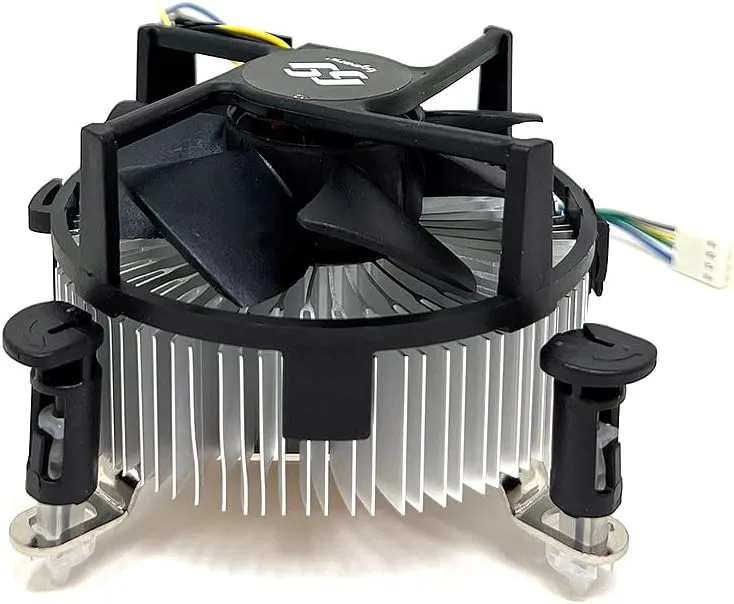

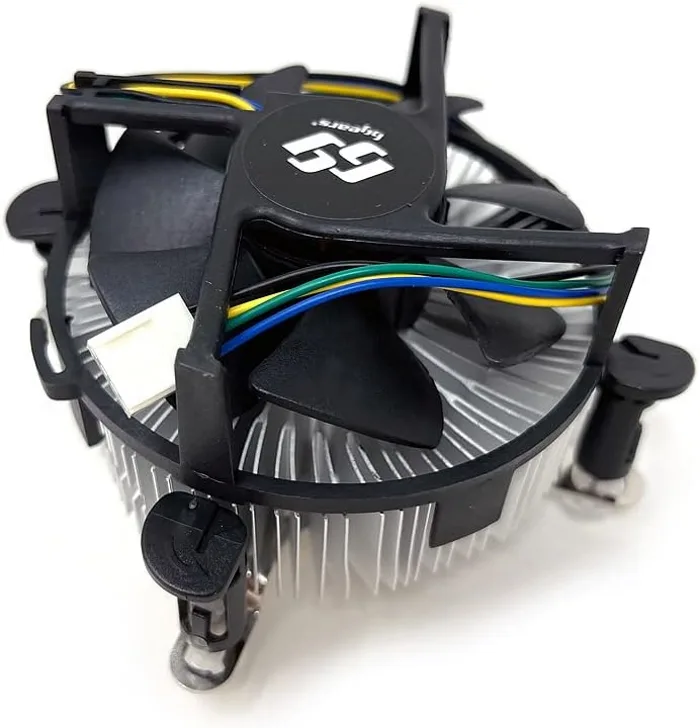

Compact aluminium heatsink with copper core and black 90mm PWM fan, horizontal mount, 57mm tall

BGears

BGears b-Cooler LGA 115X CPU cooler 90mm PWM 90W TDP

SKU CH-280B-ZWSAR MPN b-Cooler LGA 115X

Compact air cooler with copper-core aluminium heatsink and 90mm PWM fan handles up to 90W TDP for Intel LGA 7775/1150/1151/1155/1156 sockets

  • TypeFan & Heatsinks
  • Fan Size90mm
  • CPU Socket CompatibilityIntel LGA 7775/1150/1151/1155/1156
  • Bearing TypeFluid Dynamic
  • RPM1000-2400 RPM
  • Air Flow26 to 52 CFM +/- 10%
  • Efficient heat transfer through copper-core aluminium fins
  • Quiet operation from 16 to 24 dBA fluid-dynamic bearing fan
  • PWM speed control between 1000 and 2400 RPM for demand-based cooling
  • Fits Intel LGA 7775/1150/1151/1155/1156 sockets with 90 W TDP limit
  • Ready to install with pre-applied thermal grease and push-pin mounting

Compact Intel LGA 115X cooler

The BGears b-Cooler LGA 115X is a low-profile air cooler built for Intel sockets 7775, 1150, 1151, 1155 and 1156. It fits processors with a thermal design power up to 90 W. The 57 mm height suits small-form-factor chassis where taller towers cannot be installed. Builders upgrading legacy office or home PCs will find the socket coverage matches many older platforms.

Pre-applied grease and push-pin mounting

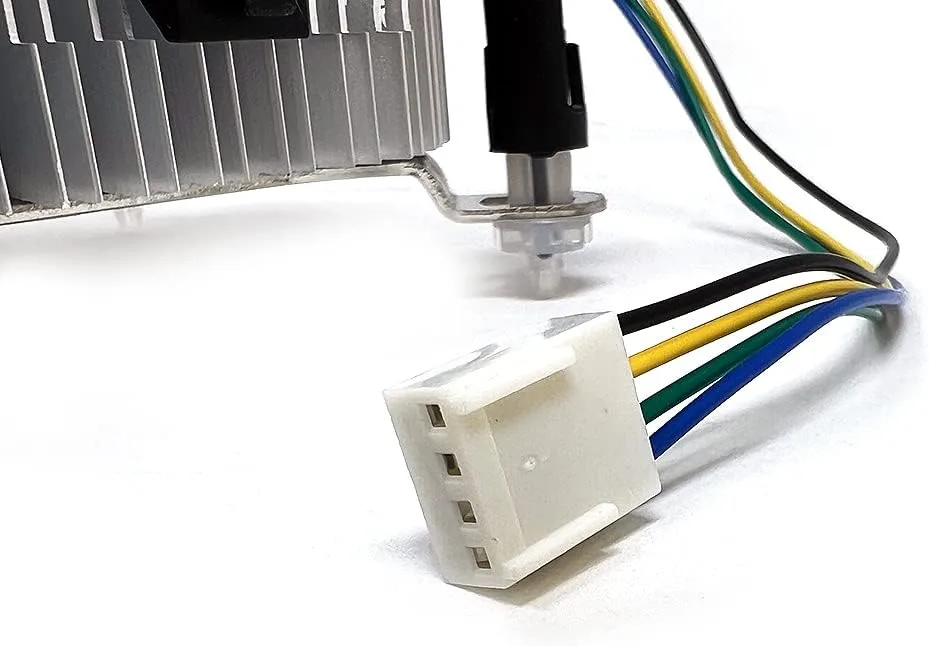

Thermal paste is already on the copper-core base so no separate tube is needed. The push-pin mechanism locks the unit onto the motherboard without tools or a back-plate. A 4-pin PWM connector lets the motherboard control the 90 mm fan speed automatically. No extra brackets, adapters or software utilities are included in the package.

90 W TDP rating decides suitability

The cooler is rated for 90 W maximum heat dissipation. Systems running CPUs that exceed this limit will throttle or overheat under sustained load. Buyers who need more thermal headroom for higher-power processors must choose a different solution. The 90 mm fan spins between 1000 and 2400 RPM, delivering 26 to 52 CFM at 16 to 24 dBA.

Points forts

  • Efficient heat transfer through copper-core aluminium fins
  • Quiet operation from 16 to 24 dBA fluid-dynamic bearing fan
  • PWM speed control between 1000 and 2400 RPM for demand-based cooling
  • Fits Intel LGA 7775/1150/1151/1155/1156 sockets with 90 W TDP limit
  • Ready to install with pre-applied thermal grease and push-pin mounting

Caractéristiques

BrandBGears
Seriesb-Cooler
ModelLGA115X
Part Numberb-Cooler LGA115X
TypeFan & Heatsinks
Fan Size90mm
CPU Socket CompatibilityIntel LGA 7775/1150/1151/1155/1156
Bearing TypeFluid Dynamic
RPM1000-2400 RPM
Air Flow26 to 52 CFM +/- 10%
Noise Level16 to 24 dBA +/- 10%
Power Connector4 Pin
LEDNon-LED
Heatsink MaterialAluminum & Copper
Fan Mounting Types to HeatsinkHorizontal
Max CPU Cooler Height57 mm
Fan Dimensions90 x 90 x 25mm
FeaturesUnique high efficiency fins with Copper Core for Maximum Thermal Performance
PWM 4-Pin 90mm Fan with High Speed Range 1000-2400 RPM
Compatible with Intel CPU: Intel LGA 7775/1150/1151/1155/1156
TDP (Thermal Design Power) up to 90W
Ready to Install with Pre-Applied Thermal Grease
Push Pin design for effortless installation
Poids d’expédition1.50 kg
Dimensions du colis100 × 100 × 60 mm

Questions sur cet article

How often should I replace the fluid dynamic bearing fan on the BGears b-Cooler LGA 115X?

The fluid dynamic bearing fan is rated for long life and typically does not need scheduled replacement; monitor noise or RPM drop after several years of continuous use.

What thermal limit appears first when the cooler runs at its 90W TDP rating for extended periods?

At the rated 90W TDP the 90mm fan must spin toward 2400 RPM to maintain temperatures, so fan speed headroom becomes the limiting factor before the copper-core heatsink saturates.

How loud and hot does the 90mm PWM fan get when it runs all day at full load?

At full load the fan reaches 2400 RPM producing 24 dBA and 52 CFM, while the heatsink stays within its 57mm height envelope and draws power only from the 4-pin connector.
