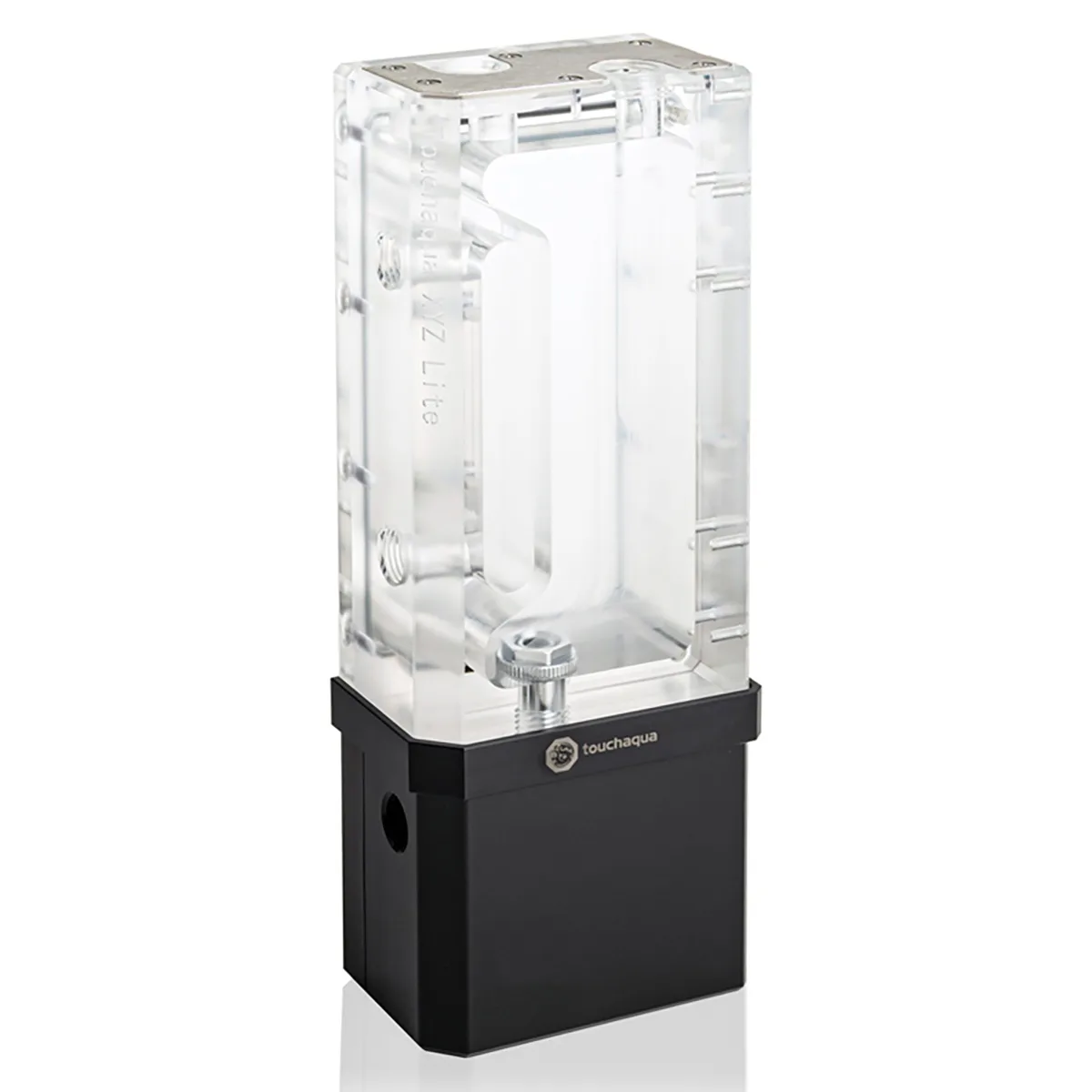

Clear acrylic reservoir with digital RGB lighting and integrated K1M pump, mounted on aluminum brackets above a radiator

Bitspower

Bitspower XYZ Reservoir Lite 215ml with K1M Pump

SKU CH-ESX4-Q9FSP

A 215 ml acrylic reservoir with digital RGB lighting and an included K1M pump mounts directly on a radiator for space-saving custom loops

  • TypePump
  • Pump Speed460±15%L/h
  • Compact 215 ml reservoir saves radiator-mount space
  • Integrated K1M pump delivers up to 7.7 L/min flow
  • Digital RGB certified for ASUS AURA Sync, GIGABYTE RGB Fusion 2.0, MSI Mystic Light Sync, ASRock Polychrome, BIOSTAR VIVID LED DJ.
  • Quiet 24 dBA operation at 12 V DC rated voltage
  • 15 000-hour MTBF ensures long-term reliability

Reservoir and pump combo

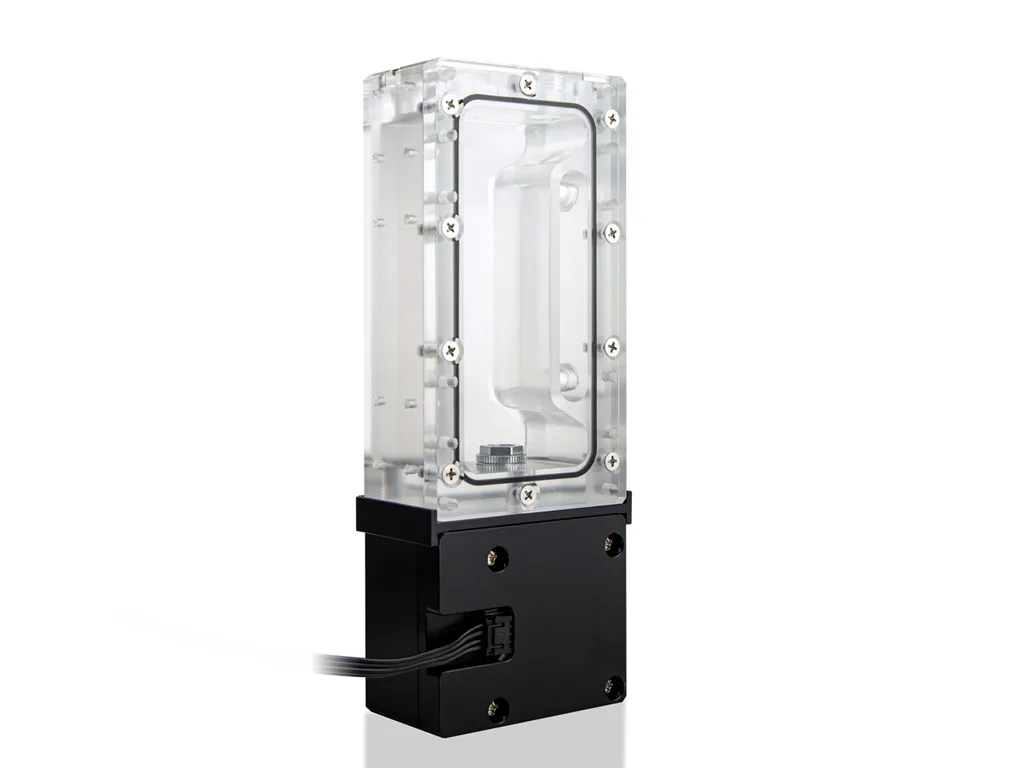

The Bitspower XYZ Reservoir Lite combines a 215ml acrylic reservoir with an integrated K1M pump for custom liquid-cooling loops. It mounts directly on top of a radiator using the supplied aluminum brackets and mounting hardware. The dual-loop design provides additional routing options for tubing runs. Digital RGB lighting is compatible with major motherboard synchronization ecosystems.

Thermals noise and power

The K1M pump operates at a rated 12V DC with an operating range of 8 to 16V and draws 0.7A for 8.4W of power consumption. Acoustic output is rated at 24dBA under normal operation. Maximum flow reaches 7.7 LPM while the pump speed is specified at 460±15% L/h. The assembly is rated for continuous system temperatures between -25 and 80 °C with an MTBF of 15,000 hours.

215ml capacity constraint

The reservoir holds up to 215ml of coolant, which limits total loop volume for builders planning large or multi-radiator configurations. Physical dimensions of 220 by 85 by 50.5 mm require sufficient clearance above the chosen radiator for the bracket mounting system. Buyers needing greater fluid capacity or a remote pump mounting location should consider alternative reservoir designs.

Points forts

  • Compact 215 ml reservoir saves radiator-mount space
  • Integrated K1M pump delivers up to 7.7 L/min flow
  • Digital RGB certified for ASUS AURA Sync, GIGABYTE RGB Fusion 2.0, MSI Mystic Light Sync, ASRock Polychrome, BIOSTAR VIVID LED DJ.
  • Quiet 24 dBA operation at 12 V DC rated voltage
  • 15 000-hour MTBF ensures long-term reliability

Caractéristiques

TypePump
Pump Speed460±15%L/h

Questions sur cet article

How do I mount the Bitspower XYZ Reservoir Lite on a radiator using the included aluminum brackets?

Attach the supplied brackets to the radiator with the provided screws, then secure the 220 mm long acrylic reservoir body on top; ensure the 215 ml tank sits level so the K1M pump inlet stays submerged during filling.

What maintenance does the K1M pump require and when should I plan for replacement?

The pump is rated for 15,000 hours MTBF at 24 dBA; inspect the impeller and clean the reservoir annually, and budget for a new K1M unit once continuous running time approaches that figure.

At what coolant temperature does the system hit its thermal limit during sustained load?

The K1M pump and reservoir are specified for a system temperature range up to 80 °C; sustained loop temperatures above that point exceed the rated operating envelope.
