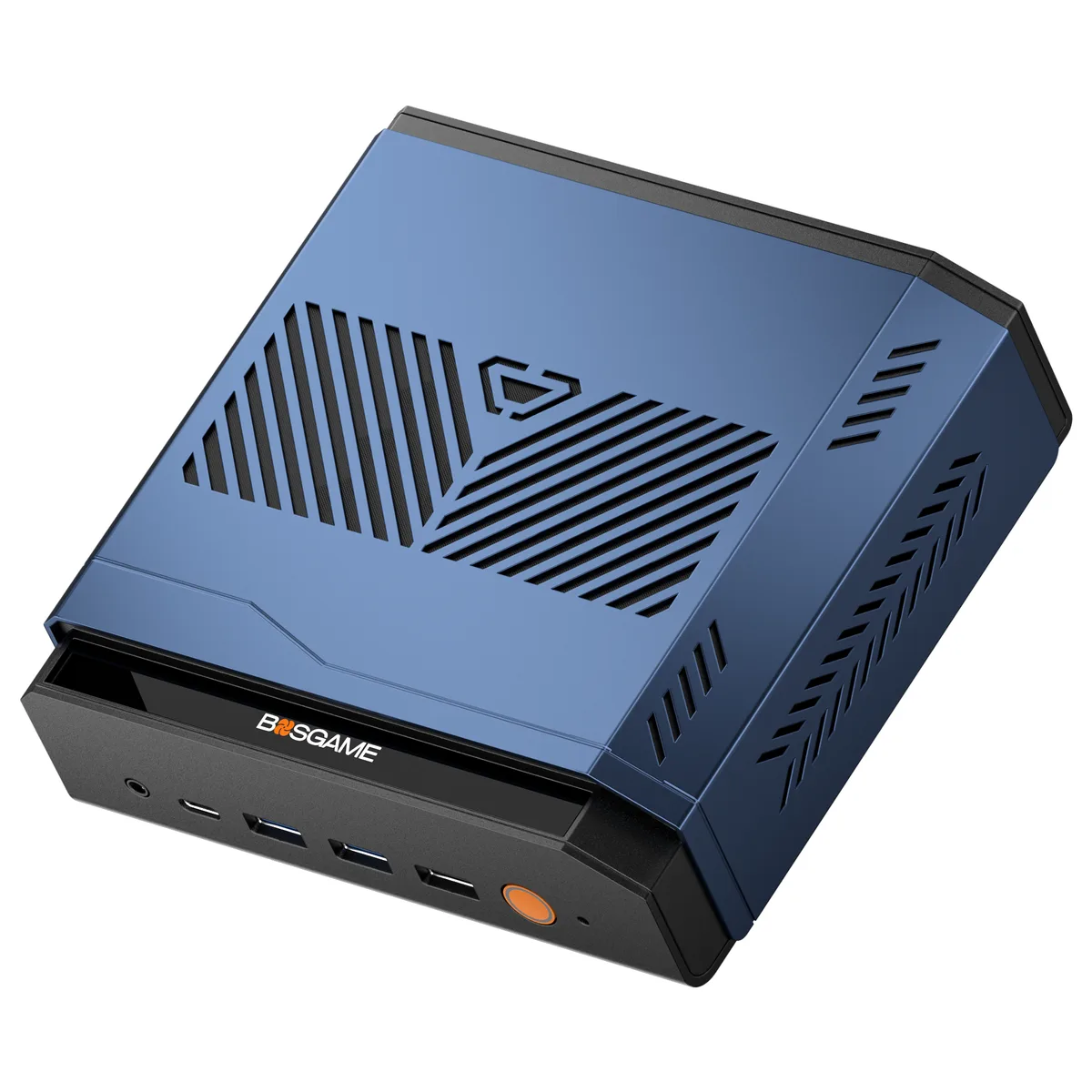

Compact blue-and-black barebone mini PC, square chassis, front USB4 and USB ports visible

BOSGAME

BOSGAME BG/VTA-439/HX470 barebone mini PC, Ryzen AI 9 HX 470, DDR5, triple M.2

SKU CH-ZY4R-XXK67 MPN BG/VTA-439/HX470

Barebone mini PC with 12-core Ryzen AI 9 HX 470, Radeon 890M graphics, dual 2.5 GbE, Wi-Fi 7, Bluetooth 5.4, USB4, OCuLink, triple M.2 slots for DDR5 and NVMe, supports quad 8K displays

  • ColorBlue / Black
  • AI FeaturesAI Ready
  • CPU TypeAMD Ryzen AI 9 HX 470
  • CPU Cores12-Core
  • CPU Feature12C/24T, Base Clock 2GHz, Up to 5.2GHz
  • Memory installedNo Memory

Option

  • BOSGAME VTA-439 Barebone Mini PC, Personal-AI PC AMD Ryzen AI 9 HX 470 (86 Tops, Up to 5.2GHz), Dual 2.5G LAN, Wi-Fi 7 & BT 5.4, USB4 & OCuLink, Triple 8K Displ

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Ryzen AI 9 HX 470 delivers 86 TOPS for local AI workloads
  • Radeon 890M graphics drives triple 8K displays at 60 Hz
  • Dual 2.5 GbE plus Wi-Fi 7 gives high-speed wired and wireless networking
  • OCuLink PCIe 4.0 x4 adds external GPU expansion for desktop-class graphics
  • Two DDR5 5600 SO-DIMM slots and three M.2 2280 bays enable large memory and storage upgrades

AI-ready barebone for creators

The BOSGAME BG/VTA-439/HX470 is a barebone mini PC built around the AMD Ryzen AI 9 HX 470 processor with 12 cores and 24 threads reaching 5.2 GHz. Integrated Radeon 890M graphics with 16 cores at 3100 MHz and an 86 TOPS NPU handle AI workloads, 8K editing and light gaming. You supply two DDR5 5600 SO-DIMMs and up to three M.2 2280 NVMe SSDs for a complete system.

Thermals and power in daily use

The 19 V 6.3 A adapter feeds the 12-core chip and dual 2.5 GbE RTL8125 controllers while Wi-Fi 7 and Bluetooth 5.4 maintain wireless links. Under typical productivity loads the cooling solution keeps the 24 MB L3 cache processor stable without excessive fan noise. Power draw scales with the 100 W USB4 Power Delivery port when charging attached devices.

Build quality and day-to-day connectivity

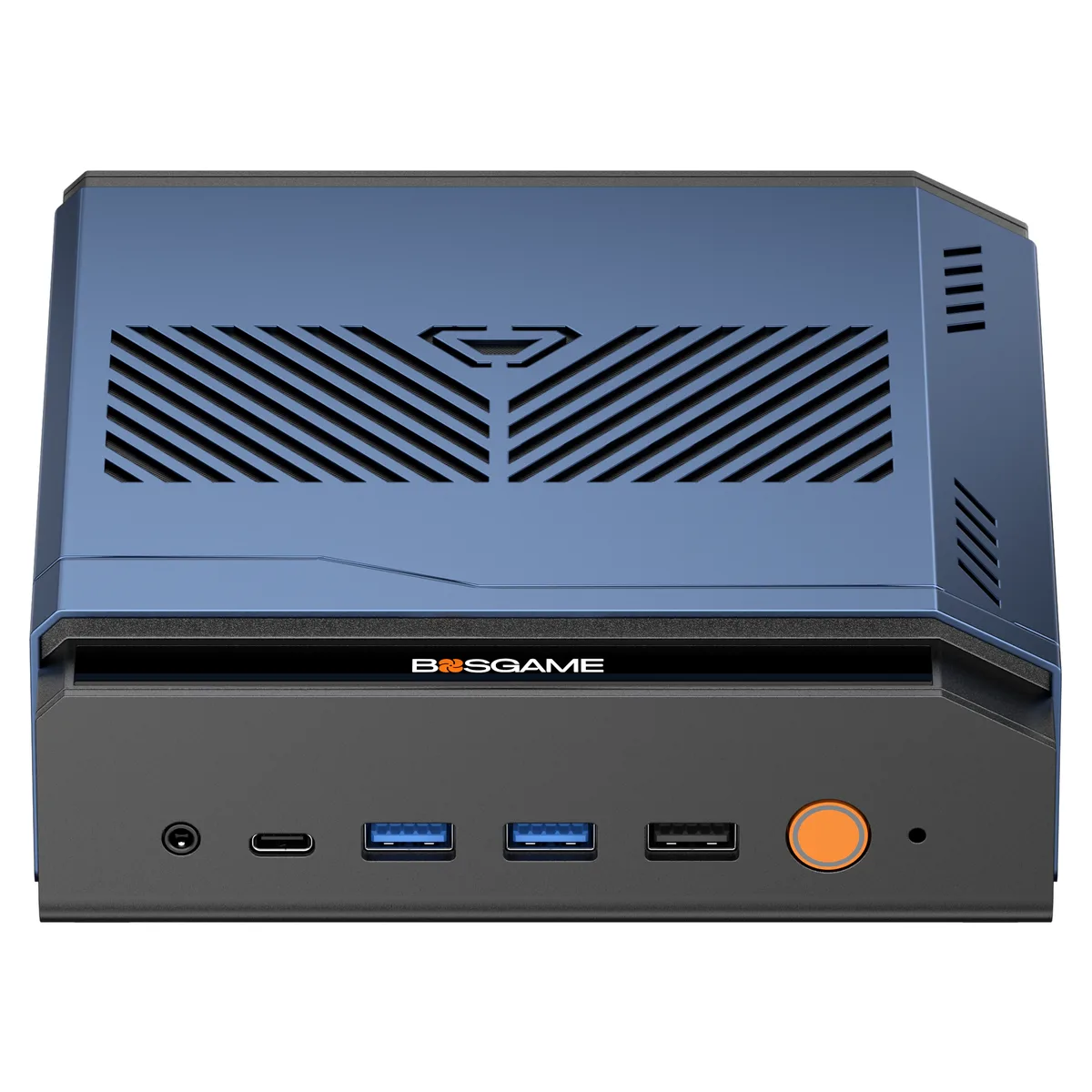

A VESA mount lets the blue-black chassis disappear behind a display. Four simultaneous video outputs — HDMI 2.1, DP 1.4, USB4 and USB-C — drive up to 8K 60 Hz or 4K 144 Hz panels. The rear OCuLink PCIe 4.0 x4 port adds desktop GPU expansion. Front USB4 and two USB 3.2 Gen2 ports plus rear USB 2.0 and dual 3.5 mm jacks cover peripherals and audio.

Points forts

  • Ryzen AI 9 HX 470 delivers 86 TOPS for local AI workloads
  • Radeon 890M graphics drives triple 8K displays at 60 Hz
  • Dual 2.5 GbE plus Wi-Fi 7 gives high-speed wired and wireless networking
  • OCuLink PCIe 4.0 x4 adds external GPU expansion for desktop-class graphics
  • Two DDR5 5600 SO-DIMM slots and three M.2 2280 bays enable large memory and storage upgrades

Caractéristiques

BrandBosgame
ModelVTA-439
Part NumberBG-VTA-439-HX47
ColorBlue / Black
AI FeaturesAI Ready
CPU TypeAMD Ryzen AI 9 HX 470
CPU Cores12-Core
CPU Feature12C/24T, Base Clock 2GHz, Up to 5.2GHz
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
Dual Channel Memory SupportedYes
Storage InstalledNo Storage
M.2 Slot3 x M.2 PCIe 2280 SSD Slot max 8TB
Integrated GraphicsAMD Radeon 890M
Max LAN SpeedDual 2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
Front USB1 USB4 (8K@60Hz + 100W PD) + 2 USB3.2 Gen2 ports
HDMI1 x HDMI 2.1 (4K@144Hz)
DisplayPort1 x DP1.4 4K@144Hz
RJ452 x 2.5G LAN
Other Rear PortsOculink (for external GPU)
InputAC 100~240V, 50/60Hz
Power SupplyDC 19V 6.3A (119.7W)
Dimensions153 x 147 x 45mm
Weight765g
PackagingDelivery Content
- Mini VTA-439
- Power adapter
- HDMI cable
- VESA mount with screws
- User manual
Poids d’expédition1.81 kg
Dimensions du colis210 × 208 × 156 mm

Questions sur cet article

How do I install DDR5 memory in the 262-pin SO-DIMM slots, and what step is often missed?

Insert each DDR5 5600 SO-DIMM at an angle until the gold contacts disappear, then press down firmly until both side clips click — the step often missed is not seating the module fully before locking it.

What maintenance or replacement will the three M.2 2280 slots need later?

The slots accept NVMe SSDs up to 8 TB each; you only replace a drive when you need more capacity or a faster model — no other part in the bays wears out.

Which thermal limit appears first during sustained AI or graphics workloads on the Radeon 890M?

The processor hits its 5.2 GHz boost ceiling and the integrated Radeon 890M reaches 3100 MHz, so the built-in power and temperature throttling activates before any external bottleneck.
