Small square mini PC with dark matte finish and front USB-C port

BRE NUC

BRE NUC N7P Ryzen 7 8845HS barebone mini PC

SKU CH-YQNX-4YSP3 MPN N7P

Barebone mini PC with AMD Ryzen 7 8845HS up to 5.1 GHz, Radeon 780M graphics, dual-channel DDR5 5600 support to 64 GB, dual 2.5 Gb LAN, Wi-Fi 6 and triple 4K 60 Hz display outputs

  • CPU TypeAMD Ryzen 7 8845HS
  • Memory installedNo Memory
  • Memory slot2 x 288Pin DIMM
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported64GB
  • Dual Channel Memory SupportedYes

Group 16GB RAM / 1TB SSD

  • 8-core Ryzen 7 8845HS hits 5.1 GHz for fast compute
  • Radeon 780M integrated graphics drives triple 4K 60 Hz displays
  • Dual-channel DDR5 5600 SO-DIMM slots support up to 64 GB
  • Two 2.5 GbE Intel i226V ports plus Wi-Fi 6 and Bluetooth 5.2
  • USB4, HDMI 2.0, DP 1.4 and 10 Gbps USB 3.2 Gen 2 front I/O

Compact barebone with Ryzen 7 8845HS

The BRE NUC N7P is a mini PC barebone built around an AMD Ryzen 7 8845HS processor with eight cores and sixteen threads. Integrated AMD Radeon 780M graphics handle display output without a discrete card. The chassis includes a 120 W power adapter, HDMI cable and manual, leaving memory and storage for the buyer to choose.

Who this suits and who it does not

This unit suits builders who want a small desktop for office work, media playback or light content creation and who prefer to supply their own DDR5 SO-DIMMs and M.2 drives. It is not for buyers who need pre-installed RAM or an SSD, nor for systems that require a 288-pin DIMM form factor instead of SO-DIMM.

Memory and storage you must add

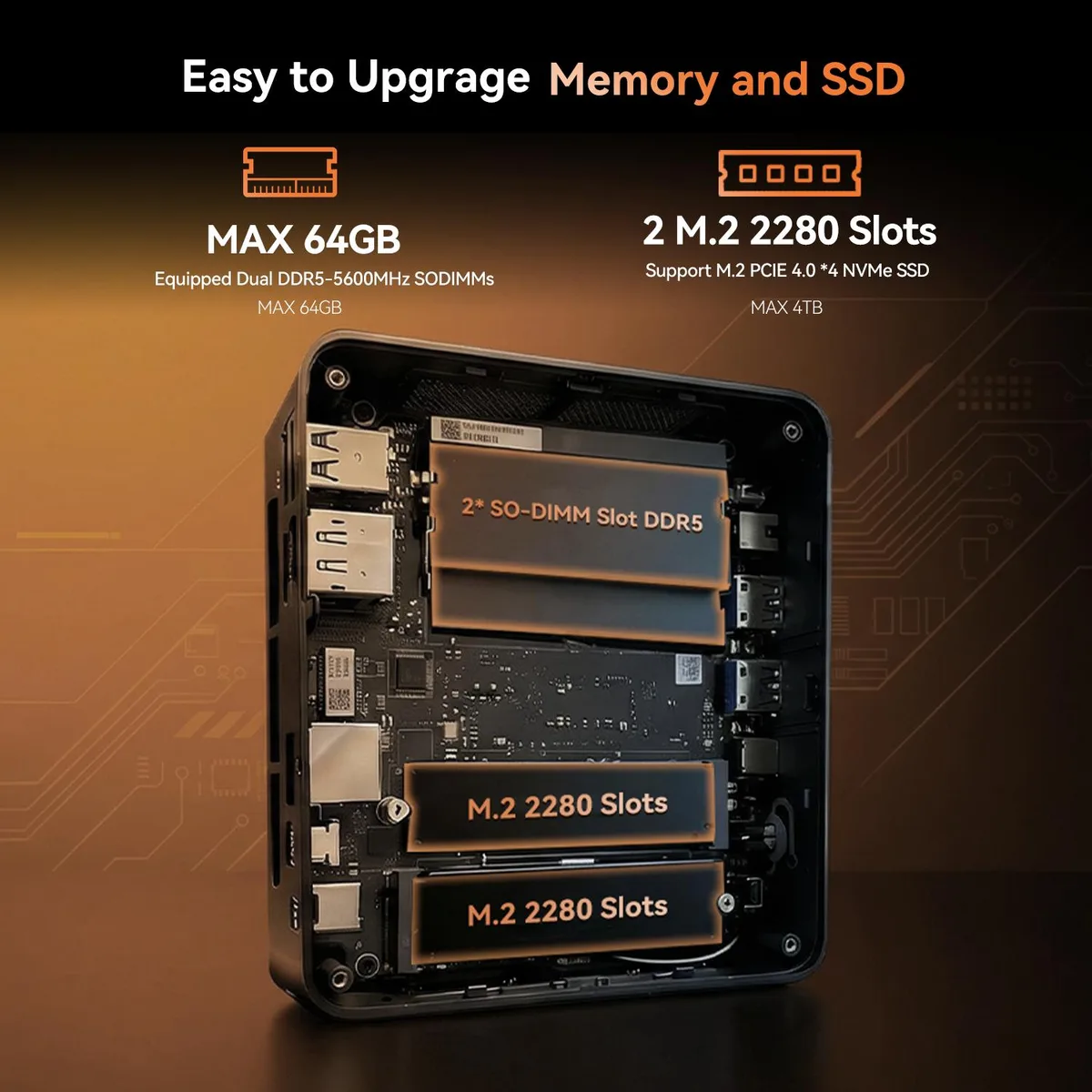

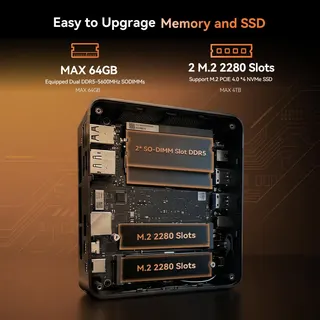

Two SO-DIMM slots accept DDR5 5600 memory up to 64 GB in dual-channel mode. Two M.2 2280 slots support PCIe 4.0 NVMe SSDs up to 4 TB each. Selecting compatible modules and drives is the single step that makes the system operational.

Points forts

  • 8-core Ryzen 7 8845HS hits 5.1 GHz for fast compute
  • Radeon 780M integrated graphics drives triple 4K 60 Hz displays
  • Dual-channel DDR5 5600 SO-DIMM slots support up to 64 GB
  • Two 2.5 GbE Intel i226V ports plus Wi-Fi 6 and Bluetooth 5.2
  • USB4, HDMI 2.0, DP 1.4 and 10 Gbps USB 3.2 Gen 2 front I/O

Caractéristiques

BrandBRE NUC
SeriesN7P
ModelN7P 8845HS
CPU TypeAMD Ryzen 7 8845HS
Memory installedNo Memory
Memory slot2 x 288Pin DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot2 x M.2
Integrated GraphicsAMD Radeon 780M
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6
BluetoothBluetooth 5.2
Front USB2 x USB 3.2Gen2 (10Gbps ) Type-A
1 x USB 3.2 Gen2 (10Gbps ) Type-C
Front Audio Ports3.5mm Audio Jack
HDMI1 x HDMI 2.0
DisplayPort1 x DP1.4
Rear USB2 x USB 2.0 Type-A
1 x USB 4
RJ452 x 2.5Gb RJ45
Input19V/5.26A
Power Supply120W
Dimensions136mmx123mmx51mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What size SO-DIMM modules do the two 288-pin DDR5 5600 slots accept?

The board has two 288-pin SO-DIMM slots for DDR5 5600 memory and supports up to 64 GB total in dual-channel mode.

Does the 19 V 5.26 A 120 W power adapter connect directly to the unit or does it need an internal PSU?

The 19 V 5.26 A 120 W adapter plugs straight into the DC-in jack on the mini PC; no internal power supply is required.

Which M.2 2280 drives can be added later and how many slots are free?

Two M.2 2280 PCIe 4.0 x4 slots are available and both are empty, so you can install one or two NVMe SSDs up to 4 TB each.
