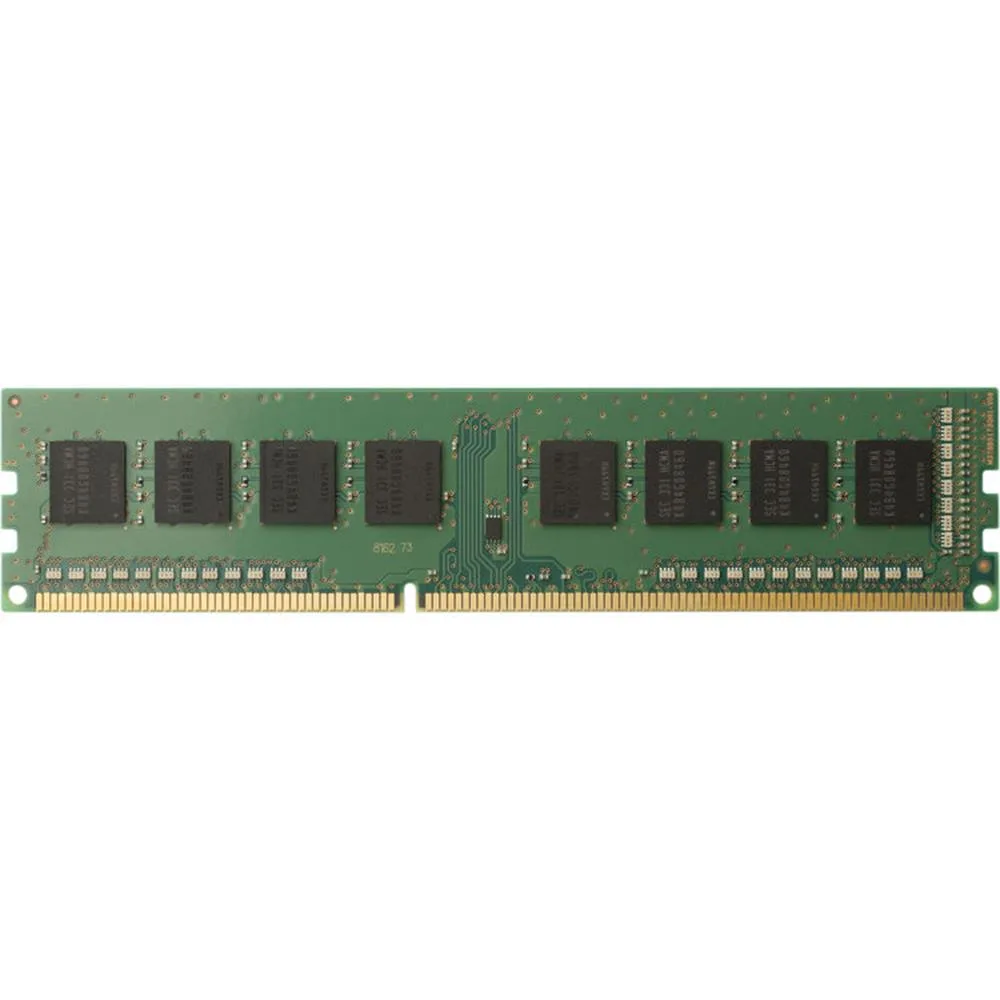

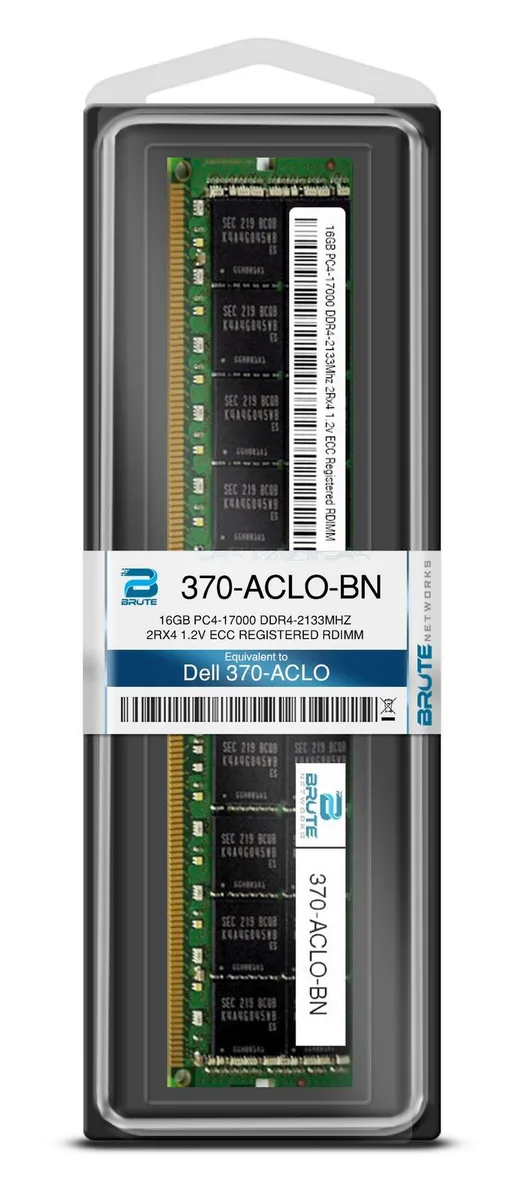

Brute Networks 16GB DDR4-2133 ECC Registered RDIMM 2Rx4 CL15 1.2V Dell 370-ACLO

Dell-Compatible 16GB DDR4-2133 ECC RDIMM

This 16GB DDR4-2133 ECC Registered RDIMM is built to Dell 370-ACLO specifications for server infrastructure. It targets administrators expanding memory capacity in compatible Dell PowerEdge systems to support larger virtualisation workloads or database caches. The module uses major-brand DRAM chips and meets OEM requirements for registered ECC operation.

Straightforward 288-Pin Installation

Installation follows the standard 288-pin DDR4 DIMM procedure: align the key notch, press firmly until the retention clips engage, and verify recognition in the BIOS or iDRAC. The registered buffer adds negligible physical complexity. The usual issue is mixing this 2Rx4 CL15 1.20V module with dissimilar ranks, speeds or voltages, which can prevent the system from posting or force a down-clock to the lowest common settings.

DDR4-2133 Bandwidth Ceiling

The PC4-17000 interface caps theoretical bandwidth at 17 GB/s per channel, which can become the bottleneck for memory-intensive applications before CPU utilisation peaks. Registered ECC adds a one-cycle command delay versus unbuffered modules, a fixed trait of the RDIMM standard. Systems limited to 2133 MT/s cannot leverage higher-speed DDR4 modules beyond this data rate, so total throughput scales only with channel count and DIMM population.
