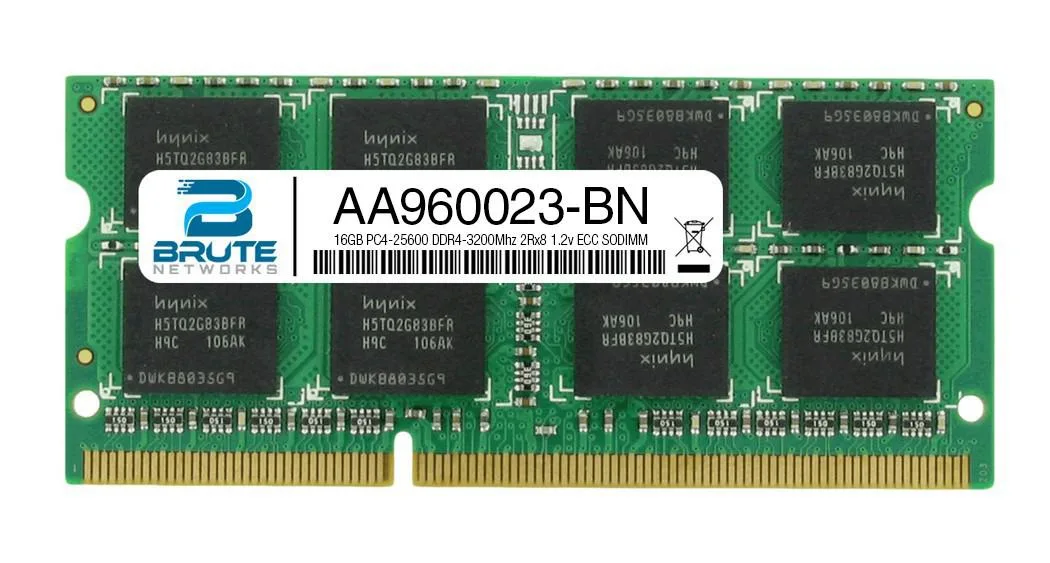

Green 288-pin DDR4 SODIMM module with black chips

Brute Networks

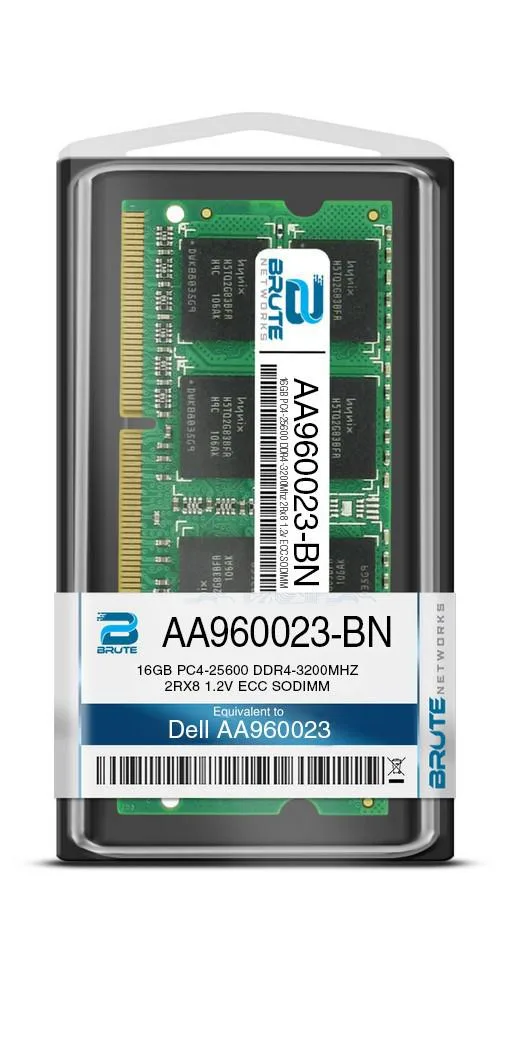

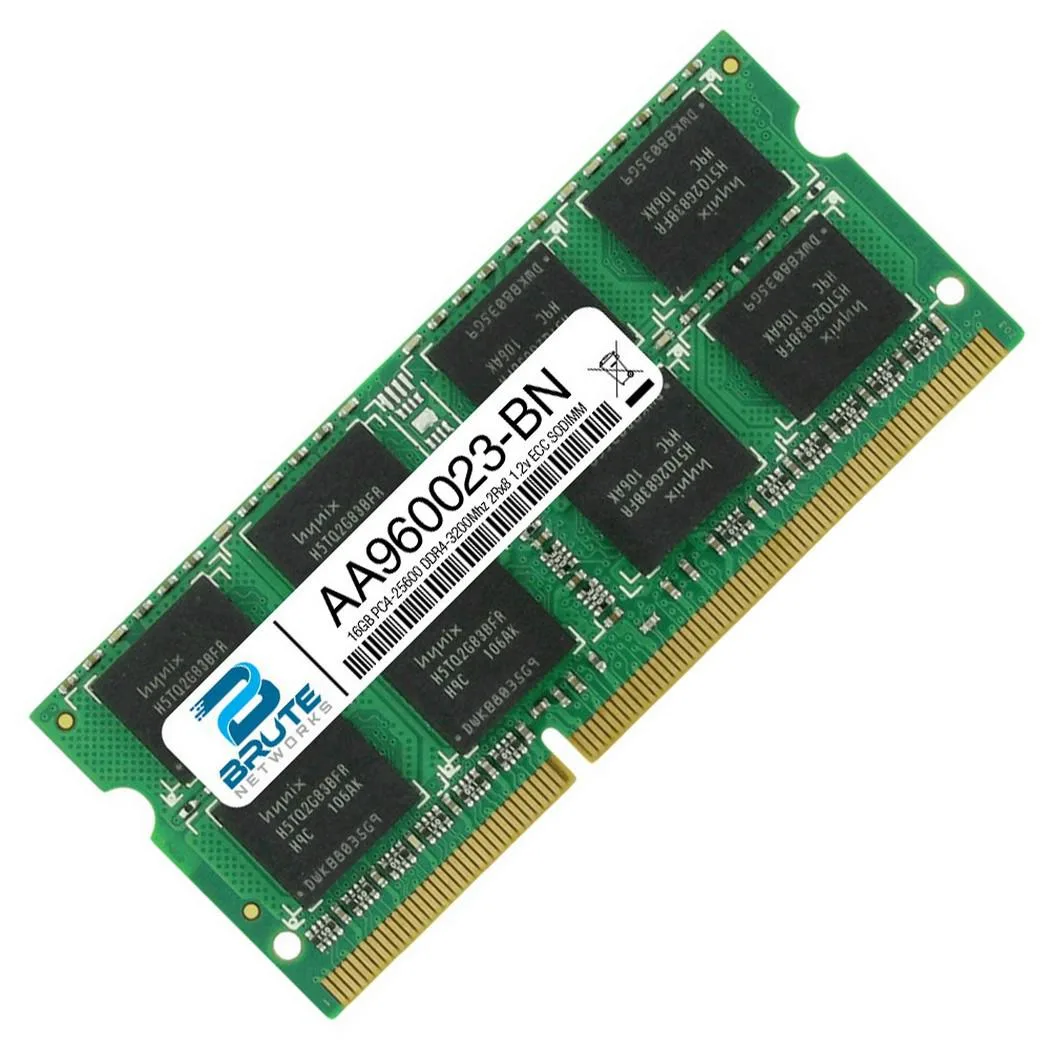

Brute Networks 16GB DDR4-3200 2Rx8 ECC SODIMM Dell AA960023

SKU CH-E1DS-H357J

16 GB DDR4-3200 ECC SODIMM with 2Rx8 organisation, 1.2 V operation and Dell AA960023 compatibility

  • Capacity16GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 3200 (PC4 25600)
  • Voltage1.20V
  • ECCYes
  • Rank2Rx8
  • 16 GB capacity expands server memory headroom
  • DDR4-3200 speed delivers 25 600 MT/s bandwidth
  • ECC protection detects and corrects single-bit errors
  • 2Rx8 dual-rank organisation improves memory density
  • 2 V operation reduces power draw per module

Dell-compatible 16 GB DDR4 ECC SODIMM

This 16 GB DDR4-3200 ECC SODIMM runs at 1.2 V with a 2Rx8 organisation and 288 pins. It is built with major-brand DRAM chips and matches Dell part number AA960023 for direct replacement in supported Dell servers and workstations.

Upgrade from lower-capacity or non-ECC modules

The jump is worth it when your workload needs registered error correction and 16 GB per slot to keep virtual machines or databases stable. Systems limited to slower DDR4 speeds or single-rank sticks will see the benefit only if the platform accepts PC4-25600 2Rx8 modules.

Simple SODIMM seat with matching modules

Installation follows the standard SODIMM slot procedure; all sticks in an order are identically matched to avoid timing mismatches. The usual problem is mixing ranks or voltages in the same channel, which this kit avoids by supplying uniform 2Rx8 1.2 V parts.

Points forts

  • 16 GB capacity expands server memory headroom
  • DDR4-3200 speed delivers 25 600 MT/s bandwidth
  • ECC protection detects and corrects single-bit errors
  • 2Rx8 dual-rank organisation improves memory density
  • 2 V operation reduces power draw per module

Caractéristiques

BrandDell
Capacity16GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 3200 (PC4 25600)
Voltage1.20V
ECCYes
Rank2Rx8
ChipsetMajor Brand Chipset

Questions sur cet article

Will the 288-Pin DDR4 SODIMM fit my Dell server's memory slots?

The module uses the standard 288-Pin DDR4 SODIMM form factor and is guaranteed 100% compatible with Dell part number AA960023, so it fits the same slots as the original Dell module.

What is the correct way to seat this ECC SODIMM during installation?

Align the notch on the module with the key in the slot, insert at a slight angle, then press down firmly until the side clips click into place; the step often missed is verifying both clips lock simultaneously.

When should I consider replacing this 16GB DDR4-3200 module?

The module carries a lifetime warranty and uses major-brand chips (Samsung, SK Hynix, or Micron); replacement is only needed if diagnostics report correctable ECC errors increasing over time or a DIMM fails POST.
