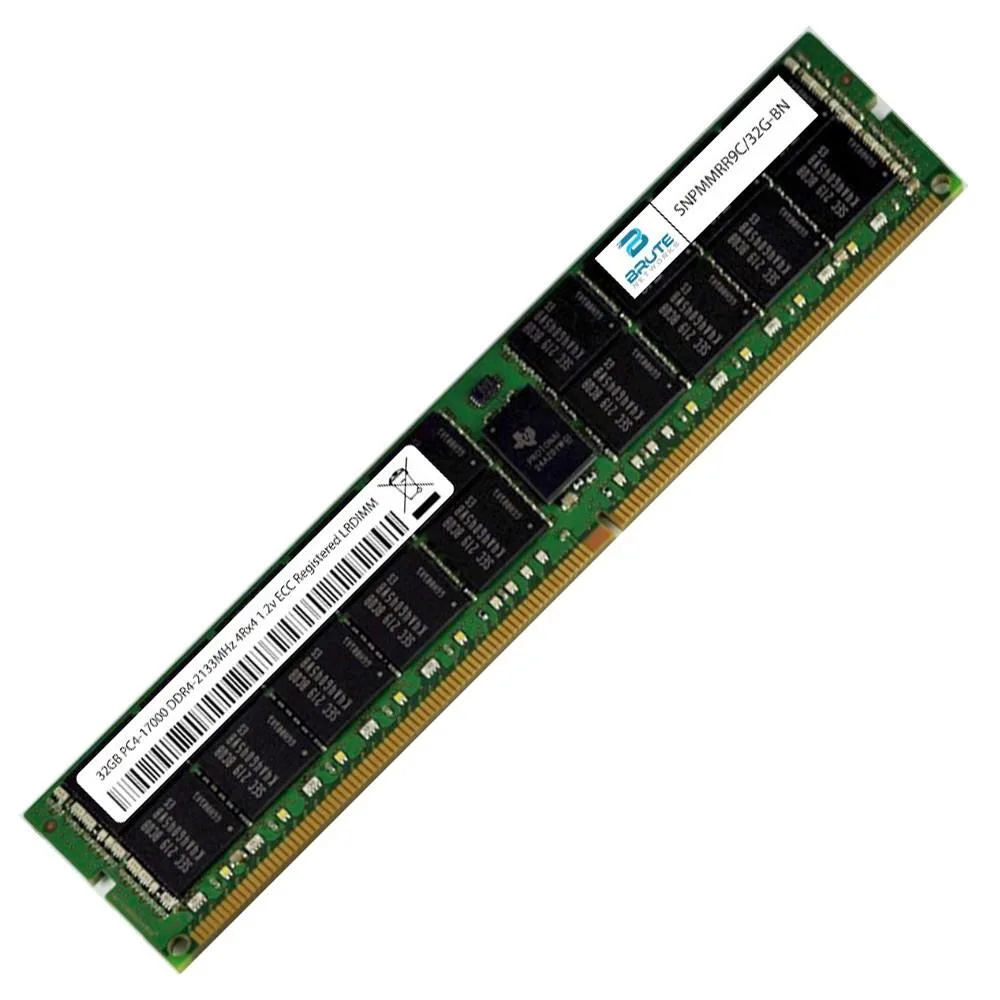

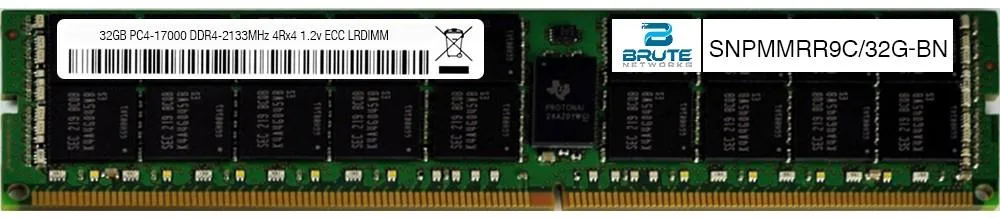

Green 288-pin DDR4 LRDIMM module with black chips and gold contacts

Brute Networks

Brute Networks 32GB DDR4-2133 ECC LRDIMM 4Rx4 CL15 1.2V

SKU CH-NNQJ-MMCPP

32GB DDR4-2133 ECC LRDIMM with CL15 latency, 4Rx4 rank and 1.2V operation for SNPMMRR9C Dell-compatible server upgrades

  • Capacity32GB
  • Type288-Pin DDR4 SDRAM
  • CAS LatencyCL15
  • Voltage1.20V
  • ECCYes
  • Buffered/RegisteredLoad Reduced
  • 32 GB capacity lets you run more virtual machines
  • DDR4-2133 speed accelerates server applications
  • CL15 latency keeps response times low
  • 2 V operation reduces power draw per module
  • 4Rx4 load-reduced design maximises installed memory capacity

32GB DDR4-2133 ECC LRDIMM for Dell Servers

This 32GB DDR4-2133 ECC LRDIMM is built for Dell servers needing maximum memory capacity. It uses Load Reduced technology to support 4Rx4 density at 1.2V. The module suits administrators expanding virtualisation hosts or database nodes where every slot counts.

Installing the 288-Pin LRDIMM

Installation follows standard 288-pin DDR4 procedure; seat the module until the ejector clips click. The main risk is mixing LRDIMMs with standard RDIMMs or UDIMMs in the same channel, which prevents boot. Verify the server manual allows 4Rx4 population rules for your CPU configuration.

Check CPU Memory Channels and Rank Limits

Before ordering, confirm your processor supports 4Rx4 Load Reduced DIMMs at 2133 MT/s and that enough memory channels remain free. Some Dell platforms restrict maximum rank count per channel or require specific slot populations for LRDIMMs. Match the existing voltage of 1.2V and CL15 timing if mixing with installed modules.

Points forts

  • 32 GB capacity lets you run more virtual machines
  • DDR4-2133 speed accelerates server applications
  • CL15 latency keeps response times low
  • 2 V operation reduces power draw per module
  • 4Rx4 load-reduced design maximises installed memory capacity

Caractéristiques

BrandDell
Capacity32GB
Type288-Pin DDR4 SDRAM
CAS LatencyCL15
Voltage1.20V
ECCYes
Buffered/RegisteredLoad Reduced
Rank4Rx4
ChipsetMajor Brand Chipset

Questions sur cet article

How do I confirm the 32GB DDR4-2133 ECC LRDIMM is running at CL15 and 1.20V after installation?

Enter the server BIOS or use a hardware monitoring tool to verify the memory operates at 2133 MT/s with CAS latency 15 and 1.20V; ECC status should show active and the module identified as 4Rx4 Load Reduced.

What comes in the box with the Brute Networks 32GB PC4-17000 module and what must be sourced separately?

The box contains the single 32GB 288-pin DDR4 ECC LRDIMM; no extra cables, brackets or software are included — compatible DDR4 server slots are required and must already be present in the system.

Which capacity and rank option should I choose for a Dell server needing SNPMMRR9C-equivalent memory?

Select the 32GB 4Rx4 DDR4-2133 LRDIMM; it matches the Dell SNPMMRR9C part number, runs at PC4-17000 speed and uses major-brand chips for full compatibility.
