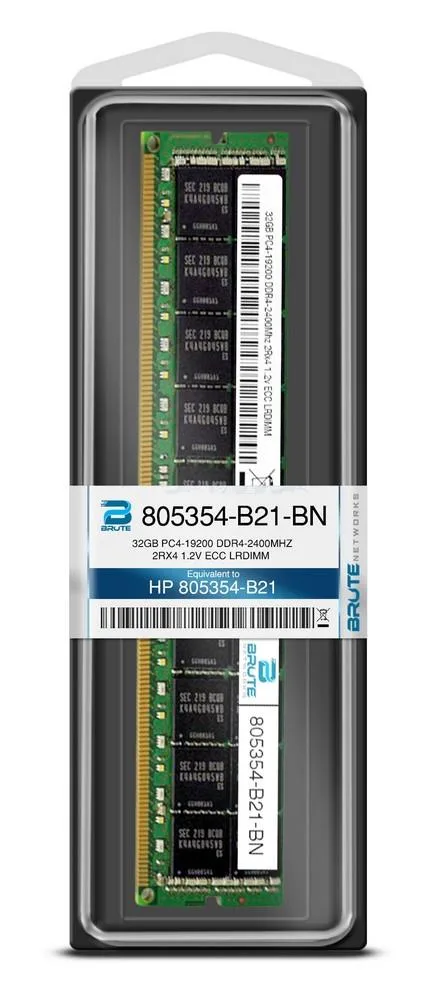

Green rectangular server memory module with gold contacts and black chips on both sides

Brute Networks

Brute Networks 32GB DDR4-2400 PC4-19200 ECC LRDIMM 2Rx4 1.2V CL15 288-Pin 805354-B21-BN

SKU CH-6BDQ-A71XA

32 GB DDR4-2400 ECC load-reduced DIMM with CL15 latency and 1.2 V operation for HP servers

  • Capacity32GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL15
  • Voltage1.20V
  • ECCYes
  • 32 GB capacity expands server memory headroom
  • Load-reduced ECC design protects data integrity at scale
  • DDR4-2400 CL15 timing balances speed and stability
  • 2 V operation reduces power draw per module
  • HP 805354-B21 compatible for validated drop-in upgrades

HP-Compatible 32GB DDR4-2400 LRDIMM

This 32GB DDR4-2400 load-reduced DIMM operates at 1.2V with CL15 timing and ECC protection. It uses a 2Rx4 organisation on a 288-pin PCB and is built with major-brand DRAM components. The module is validated for HP servers carrying part number 805354-B21.

Replacing Lower-Capacity Registered DIMMs

Upgrading from standard registered DIMMs to this load-reduced design lets a memory controller drive more ranks per channel without signal degradation. The jump is worth it when the platform supports LRDIMM population rules and the workload needs maximum capacity per socket.

Sustained Load Behaviour

Under continuous operation the 1.2V supply and ECC circuitry maintain data integrity across all 32GB. Load-reduced buffering reduces electrical load on the memory bus, helping stability when every slot is populated at 2400 MT/s.

Points forts

  • 32 GB capacity expands server memory headroom
  • Load-reduced ECC design protects data integrity at scale
  • DDR4-2400 CL15 timing balances speed and stability
  • 2 V operation reduces power draw per module
  • HP 805354-B21 compatible for validated drop-in upgrades

Caractéristiques

BrandHP
Capacity32GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL15
Voltage1.20V
ECCYes
Buffered/RegisteredLoad Reduced
Rank2Rx4
ChipsetMajor Brand Chipset

Questions sur cet article

Will the 288-pin DDR4 LRDIMM fit my HP server's memory slots?

Yes, the module uses the standard 288-pin DDR4 form factor required by compatible HP servers.

What is the correct way to install this 2Rx4 ECC LRDIMM, and what step is often missed?

Align the notch with the slot key, press firmly until both retention clips click, and ensure the 1.2V DDR4-2400 speed is recognised in BIOS.

When will this 32GB PC4-19200 module need replacement under normal server use?

The module carries a lifetime warranty and has no scheduled replacement interval; it runs until a fault occurs.
