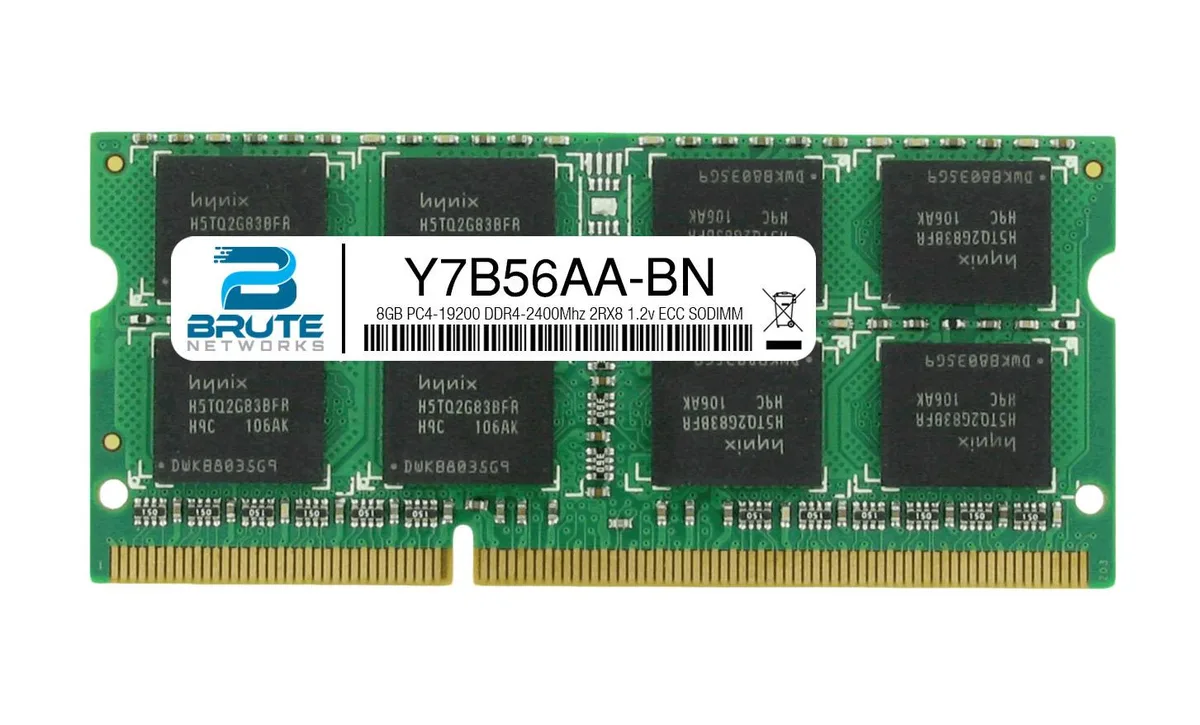

Green rectangular DDR4 SODIMM module with black chips and gold edge connector

Brute Networks

Brute Networks 8GB DDR4-2400 ECC SODIMM 2Rx8 CL15 1.20V

SKU CH-5Q0S-VF614

8GB DDR4-2400 ECC SODIMM with CL15 latency and 1.20V operation for HP-compatible servers

  • Capacity8GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL15
  • Voltage1.20V
  • ECCYes
  • ECC protection prevents data corruption in servers
  • DDR4-2400 speed delivers 19200 MB/s bandwidth
  • 20 V operation reduces power consumption
  • 2Rx8 dual-rank layout increases memory density
  • HP Y7B56AA compatibility ensures validated integration

8GB DDR4-2400 ECC SODIMM

This module is an 8GB DDR4-2400 ECC SODIMM designed for HP servers and workstations that require error-correcting memory. It operates at 1.20V with a CAS latency of CL15 and uses a 2Rx8 rank configuration. The part is built with major-brand DRAM chips and matches HP part number Y7B56AA.

Replaces factory DDR4 SODIMM

It upgrades or replaces an existing DDR4-2400 ECC SODIMM in compatible HP platforms when additional capacity is needed. The jump is worth it when the system currently runs with fewer modules or lower density and the workload benefits from extra memory bandwidth. Systems already populated to the maximum supported capacity will not see further gains.

Simple slot installation

Installation consists of inserting the SODIMM into an available DDR4 SO-DIMM slot until the retention clips engage. The most common issue occurs when the module is not fully seated, causing the system to fail POST or report a memory error. Mixing this unbuffered ECC module with registered DIMMs will also prevent the server from booting.

Points forts

  • ECC protection prevents data corruption in servers
  • DDR4-2400 speed delivers 19200 MB/s bandwidth
  • 20 V operation reduces power consumption
  • 2Rx8 dual-rank layout increases memory density
  • HP Y7B56AA compatibility ensures validated integration

Caractéristiques

BrandHP
Capacity8GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL15
Voltage1.20V
ECCYes
Buffered/RegisteredUnregistered
Rank2Rx8
ChipsetMajor Brand Chipset

Questions sur cet article

Does this 288-pin DDR4 SODIMM fit the standard SO-DIMM slot in my HP server?

The module uses the 288-pin DDR4 SODIMM form factor, which matches the SO-DIMM slots on compatible HP platforms.

What is the correct seating technique for the 2Rx8 ECC module, and what step do people often miss?

Align the notch with the slot key, insert at a slight angle, then press firmly until both side clips click — many forget to verify both clips are fully locked.

When should I consider replacing this 8GB DDR4-2400 ECC stick?

Replace it if the system logs correctable ECC errors that become uncorrectable, or if memory diagnostics report persistent faults after reseating.
