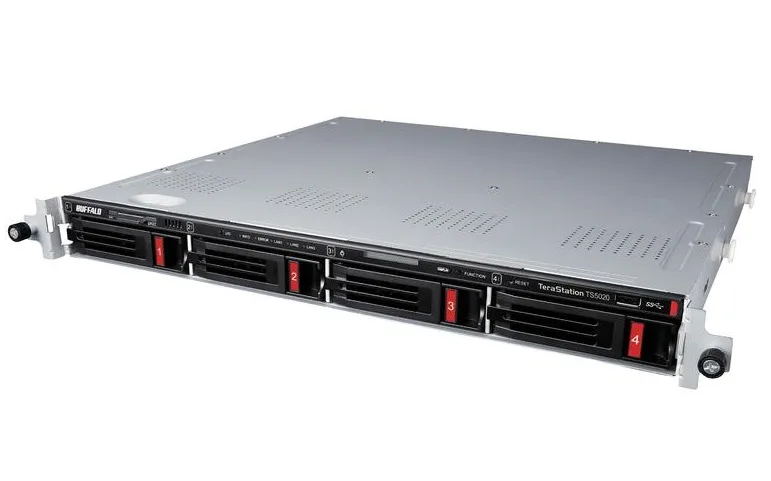

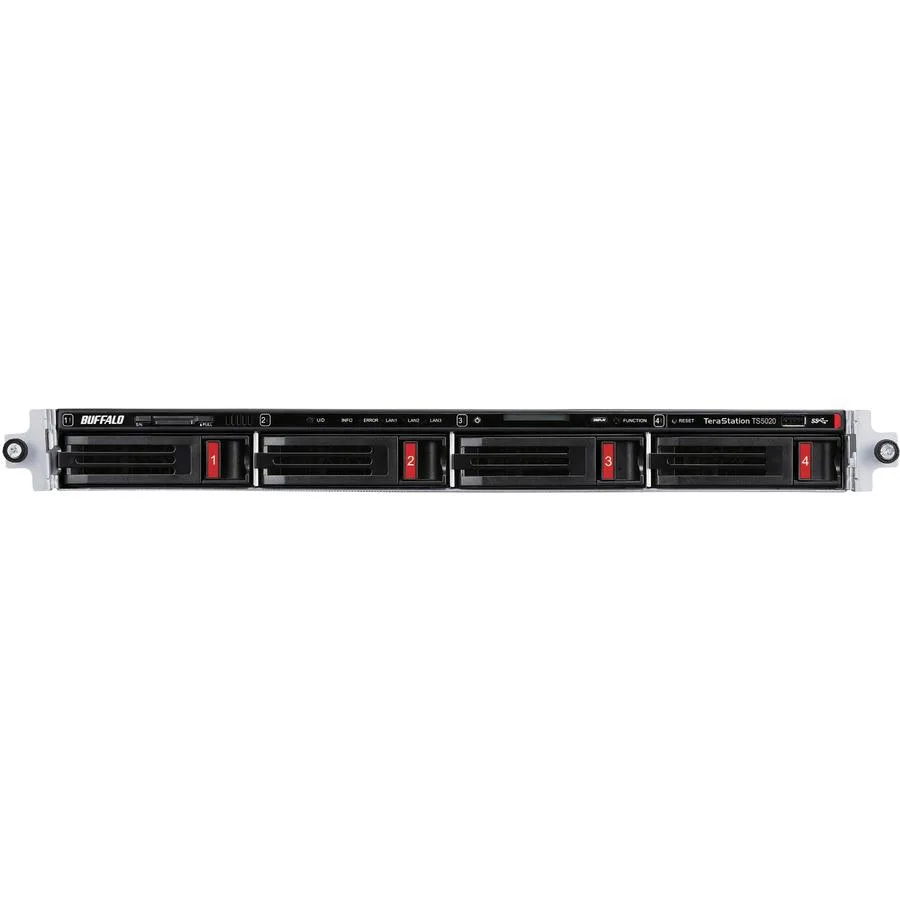

Black 1U rackmount NAS chassis with four drive bays, front status LEDs and rear 10GbE plus dual 1GbE ports

Buffalo Technology

Buffalo Technology TS5420RN8004 4-Bay 80TB rackmount NAS

SKU CH-6B6B-RDG36 MPN TS5420RN8004

A 4-bay rackmount NAS with 80 TB of pre-installed drives, a quad-core 2.04 GHz processor, 8 GB DDR4, one 10GbE and two 1GbE ports, plus RAID 0, 1, 5, 6, 10 and JBOD support

  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab

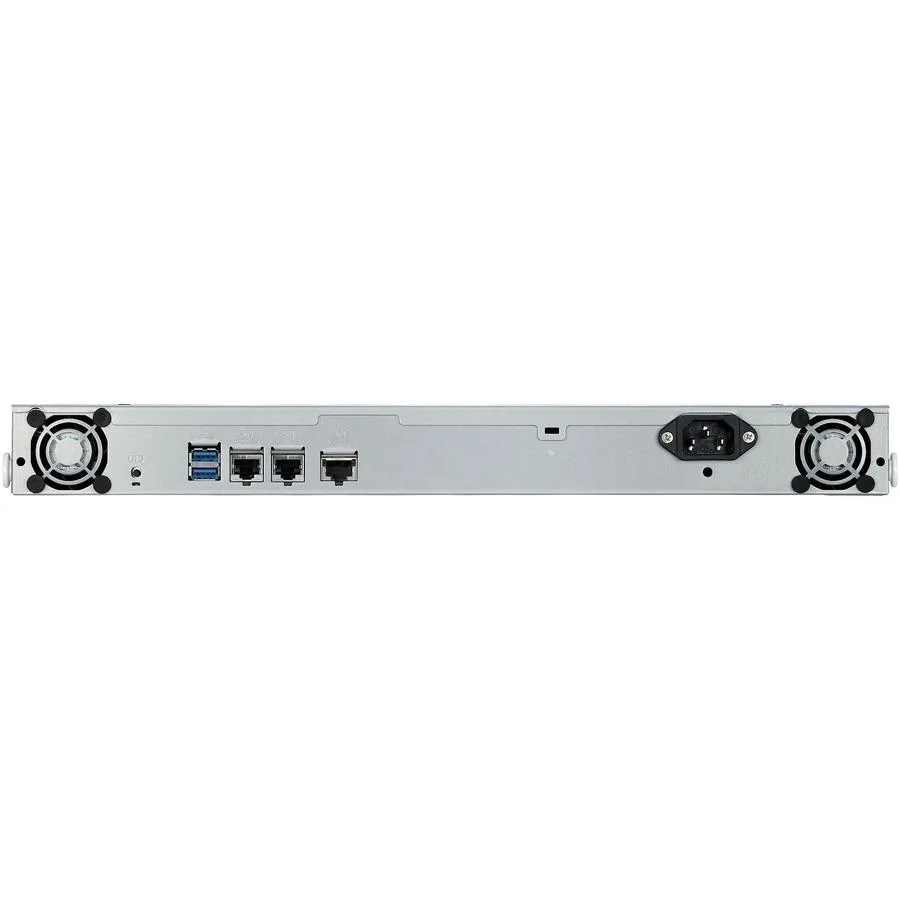

  • Port RJ-451 x 10GbE + 2 x 1GbE
  • Port USB2 x USB3.0 + 2 x USB2.0
  • HDD Interface4 x SATA (4 x Bay)
  • Form Factor4-Bay
  • ProcessorAnnapurna Labs Alpine Processor AL524 (2.04 GHz Quad-Core)

Included HDD Capacity 80TB (4 x 20TB)

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Ready-to-use storage with 80 TB pre-installed in RAID
  • Native 10 GbE port enables fast file transfers without new cabling
  • Quad-core 2.04 GHz processor and 8 GB DDR4 handle demanding workloads
  • Multiple RAID levels plus snapshots protect data against drive failure
  • VMware and Windows Server 2022 certified for virtualisation deployments

Product identity

The Buffalo Technology TS5420RN8004 is a 1U rackmount network-attached storage appliance pre-populated with four 20 TB NAS-grade hard drives for a total of 80 TB. It targets small and medium businesses that need a ready-to-deploy file server with integrated cloud backup and virtualization certification.

Deciding specification

A single native 10 GbE RJ-45 port sits alongside two 1 GbE ports, so the appliance fits straight into existing copper infrastructure without additional transceivers or cable upgrades. Buyers whose network core stops at 1 GbE will not benefit from the higher-speed uplink.

Bundled value

Drives arrive pre-tested and RAID-configured, eliminating the usual burn-in and array-build steps before production use. The package also includes a quick setup guide, AC power cable and warranty statement, while the management console enables centralised monitoring of multiple units from one interface.

Points forts

  • Ready-to-use storage with 80 TB pre-installed in RAID
  • Native 10 GbE port enables fast file transfers without new cabling
  • Quad-core 2.04 GHz processor and 8 GB DDR4 handle demanding workloads
  • Multiple RAID levels plus snapshots protect data against drive failure
  • VMware and Windows Server 2022 certified for virtualisation deployments

Caractéristiques

BrandBUFFALO
ModelTS5420RN8004
Part NumberTS5420RN8004
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Port RJ-451 x 10GbE + 2 x 1GbE
Port USB2 x USB3.0 + 2 x USB2.0
HDD Interface4 x SATA (4 x Bay)
Form Factor4-Bay
ProcessorAnnapurna Labs Alpine Processor AL524 (2.04 GHz Quad-Core)
Installed Memory8GB DDR4
Included HDD Capacity80TB (4 x 20TB)
Drive CompatibilityOP-HD20.0N
RAIDRAID 0, 1, 5, 6, 10, and JBOD
Supported ProtocolsTCP/IP
LEDsPower, HDD (Hard Disk Drive), LAN (10/100)
Power100-240 VAC 50/60Hz
Power Consumption62.85W
UsageHigh read/write performance with RAID
Temperature0°C - 40 °C
Humidity0-80% RH non-condensing
Dimensions29.0 x 16.93 x 1.74 in
Weight18.69 lbs.
Package ContentsTeraStation, Quick Setup Guide, AC Cable, and Warranty Statement
Poids d’expédition13.15 kg
Dimensions du colis584 × 533 × 203 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How does the 80 TB raw capacity translate into usable space once RAID is configured?

With four 20 TB drives installed, RAID 5 yields about 60 TB usable, RAID 6 about 40 TB, and RAID 10 about 40 TB before formatting overhead.

What network speeds do the IEEE 802.3, 802.3u and 802.3ab ports actually deliver?

The standards cover 10 Mb/s, 100 Mb/s and 1 Gb/s Ethernet; the hardware provides one 10 GbE port and two 1 GbE ports for up to ten gigabits on a single link.

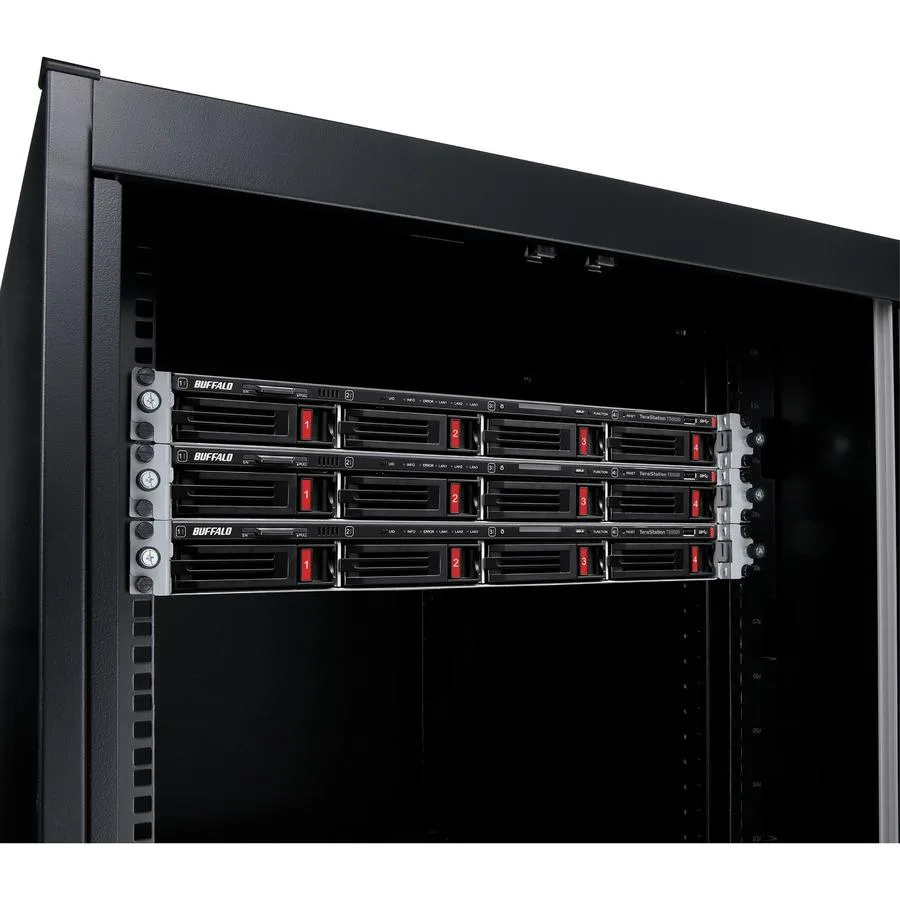

What rack depth and clearance does the 1.74 in high chassis require?

The unit measures 29.0 x 16.93 x 1.74 in and weighs 18.69 lbs, fitting a standard 1U rack space with at least 16.93 in of usable depth.
