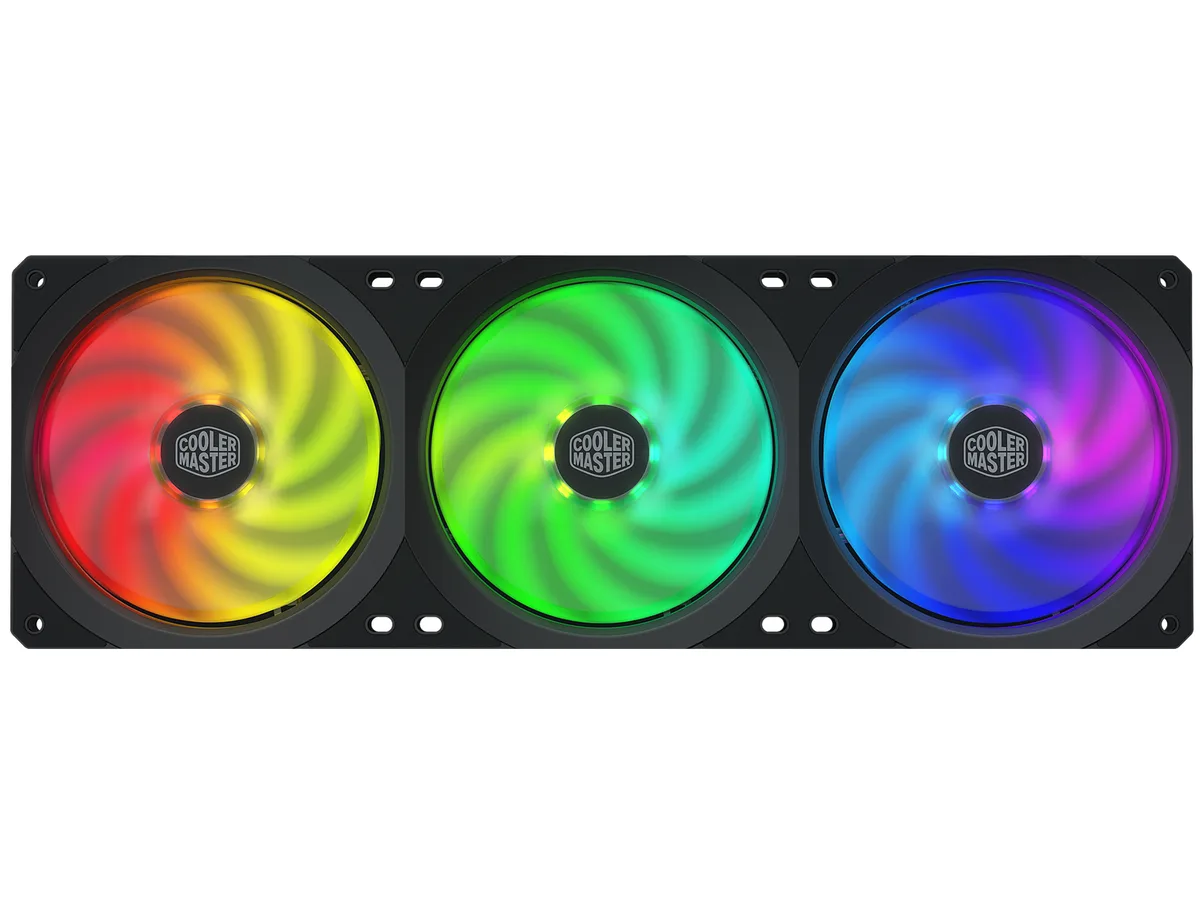

Three black 360mm square-frame fans joined side by side with ARGB lighting

Cooler Master

Cooler Master MFX-B2D3-18NPA-R1 360mm case fan 3-pack

SKU CH-GKAG-82X9R MPN MFX-B2D3-18NPA-R1

Three integrated 120 mm ARGB fans in a single 360 mm frame mount on cases or radiators with one PWM and one ARGB cable

  • Fan Counts3 Fans
  • Fan ControllerController
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size360mm
  • Fan Thickness25mm

Fan Size 360mm

  • 240mm
  • 360mm

Les versions barrées existent, mais ne sont pas disponibles ici.

Model SF360R

  • SF240R
  • SF360R

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Three 120 mm fans combined into one 360 mm frame for simpler installation
  • ARGB lighting syncs with Asus Aura, ASRock RGB, Gigabyte Fusion and MSI RGB software
  • PWM speed range 650–2000 RPM adjusts airflow from 43 CFM up to maximum
  • Rifle bearing plus sound-absorbing rubber pads keep noise between 8 and 30 dBA
  • Included ARGB controller and three-in-one cabling reduce connector clutter to two cables

Three-Fan 360mm ARGB Kit

This Cooler Master MasterFan SF360R ARGB kit combines three 120mm fans into a single 360mm square frame. The integrated unit connects through one 4-pin PWM header and one 3-pin ARGB header. An included controller provides standalone lighting control when motherboard sync is unavailable.

Suits Radiator and Case Mounts

Builders fitting a 360mm liquid-cooling radiator or a matching case opening benefit from the pre-aligned trio and reduced cable count. The rifle bearing and rubberised frame pads target low vibration at speeds between 650 and 2000 RPM. Systems needing only one or two fans, or cases without a 360mm mounting pattern, should choose individual 120mm units instead.

43 CFM per Fan at 30 dBA

Each of the three fans delivers 43 CFM with a noise ceiling of 30 dBA at full speed. The hybrid blade profile balances static pressure and airflow for radiator restriction. Buyers who need higher static-pressure ratings or lower minimum noise floors must verify those figures against their cooler specifications.

Points forts

  • Three 120 mm fans combined into one 360 mm frame for simpler installation
  • ARGB lighting syncs with Asus Aura, ASRock RGB, Gigabyte Fusion and MSI RGB software
  • PWM speed range 650–2000 RPM adjusts airflow from 43 CFM up to maximum
  • Rifle bearing plus sound-absorbing rubber pads keep noise between 8 and 30 dBA
  • Included ARGB controller and three-in-one cabling reduce connector clutter to two cables

Caractéristiques

BrandCOOLER MASTER
SeriesMasterFan SF360R ARGB
ModelMFX-B2D3-18NPA-R1
Fan Counts3 Fans
Fan ControllerController
TypeCase Fan
CompatibilityCase
Fan Size360mm
Fan Thickness25mm
Bearing TypeRifle
RPM650 - 2000 RPM +/- 10%
Air Flow43 x 3 CFM ± 10%
Noise Level8-30 dBA
Power Connector4-Pin (PWM)
3-Pin ARGB
ColorBlack
LEDARGB
FeaturesSoftware Certified: Compatible with Asus Aura, ASRock RGB, Gigabyte Fusion and MSI RGB
Cable Management: Three in One fan combination trims power and ARGB connections to two
PWM Control: Dynamically adjust speed between 650 RPM to 2,000 RPM, minimizing noise or maximizing airflow
Hybrid Design: Jet engine and helicopter blade designs for low-noise operation without sacrificing airflow performance
Silent Cooling Technology: Noise reduction Silent Driver IC technology and sound absorbing rubber pad frame
Dimensions360.00 x 120.00 x 25.00 mm (14.2" x 4.7" x 1”)
Package ContentsMasterFan SF360R ARGB
Manual
Poids d’expédition0.56 kg
Dimensions du colis419 × 127 × 36 mm

Questions sur cet article

Will the 360 mm long by 25 mm thick frame fit my case or radiator mounting holes?

The unit measures 360 mm long, 120 mm wide and 25 mm thick, matching standard triple 120 mm mounting patterns used on cases and radiators.

How do I connect the three fans and ARGB lighting using the included controller?

Plug the combined 4-pin PWM and 3-pin ARGB cables into the controller, then connect the controller to a motherboard PWM header and a 5 V ARGB header; the reset button on the case also controls lighting modes.

When should I expect to replace the rifle-bearing fans or clean the rubber-padded frame?

Rifle bearings are rated for long life; clean dust from the blades and rubber pads every 6-12 months and replace the fans only if noise or RPM becomes irregular.
