Black 360 mm radiator with three 120 mm fans and square pump block

Cooler Master

Cooler Master MLX-D36M-A24PK-R1 360 mm liquid cooler

SKU CH-C2E3-60Y3W MPN MLX-D36M-A24PK-R1

A 360 mm all-in-one liquid cooler with a dual-chamber pump and three pre-installed 120 mm Mobius PWM fans for AMD AM5, AM4 and Intel LGA 1700, 1851 sockets

  • TypeAIO
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA
  • Pump Dim.84.9 x 81 x 53.15 mm / 3.3 x 3.2 x 2.1 inch
  • Pump Noise<25dBA
  • Radiator Size394 mm
  • Radiator MaterialAluminum

Option Atmos Stealth 360 mm

  • Atmos Stealth 240 mm
  • Atmos Stealth 360 mm

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Patented dual-chamber pump targets CPU hotspot for R9 and i9

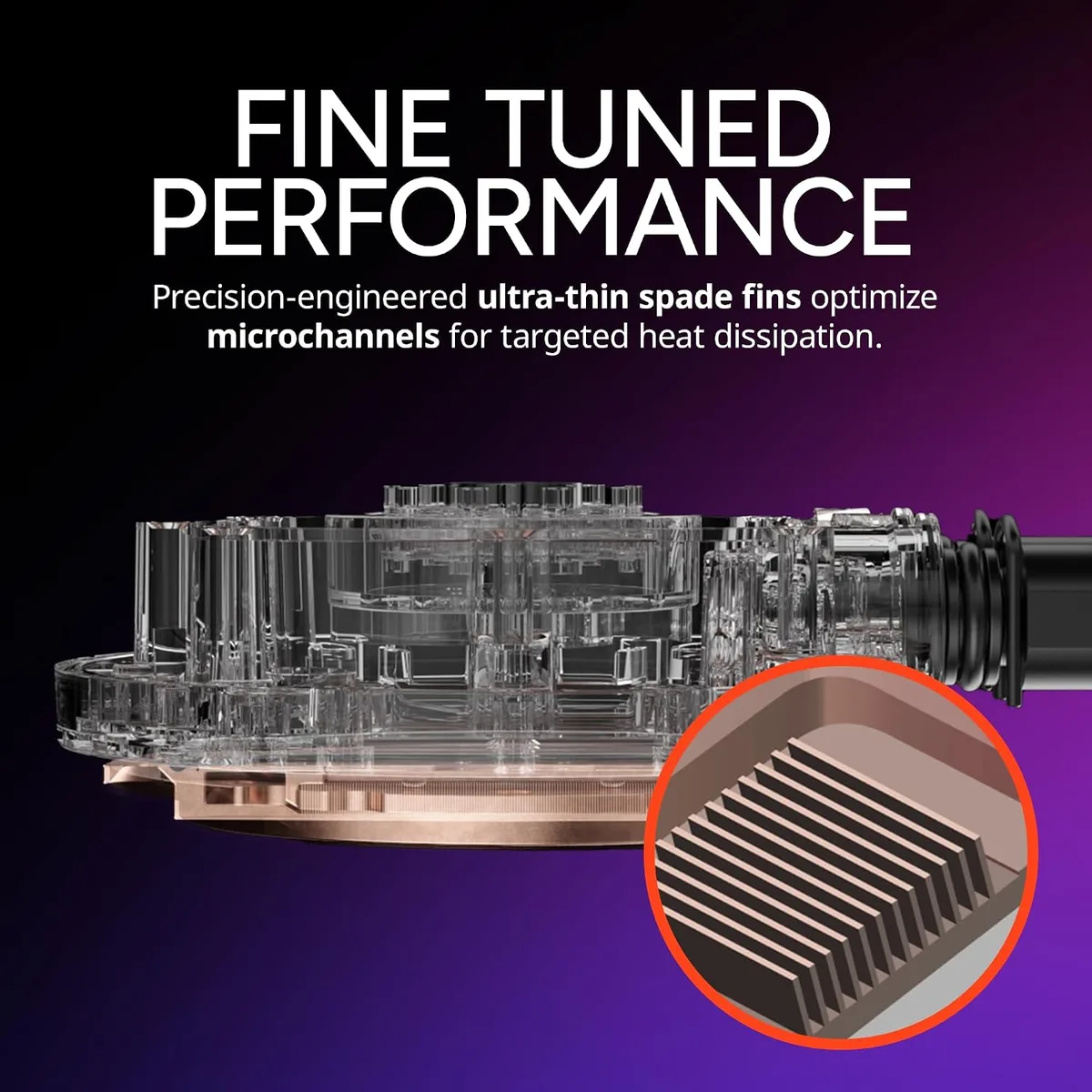

  • Ultra-thin spade fins optimize microchannels for focused heat dissipation
  • Pre-installed Mobius 120 fans deliver 75.2 CFM airflow at 2400 RPM

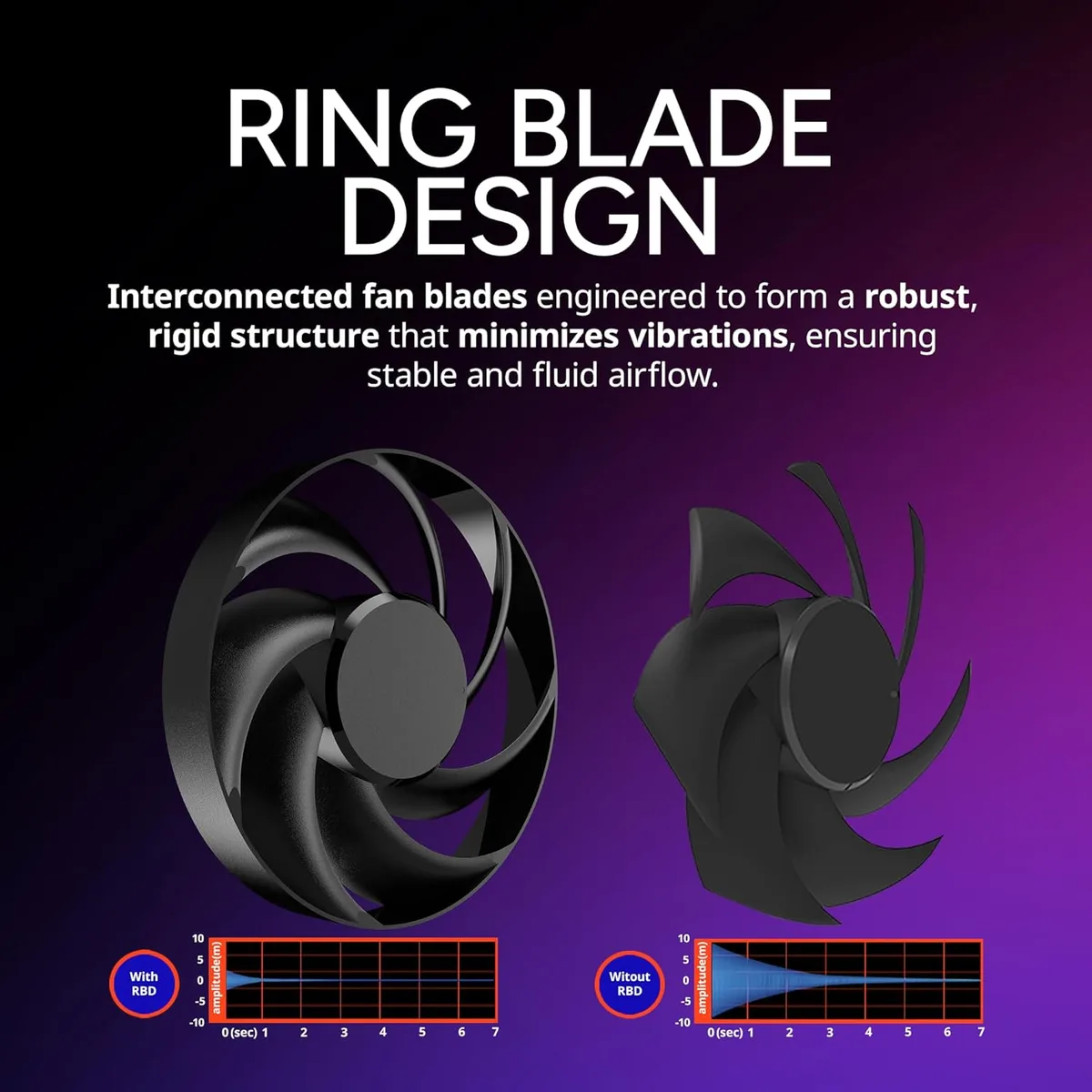

  • Ring blade structure minimizes vibration for stable airflow at 30 dBA
  • Simplified brackets enable quick mounting on AM5 and LGA 1851/1700

360 mm AIO for high-end CPUs

The MasterLiquid 360 Atmos Stealth is an all-in-one liquid cooler built around a 394 mm aluminium radiator and three pre-installed 120 mm Mobius PWM fans. It mounts on AMD AM4, AM5 and Intel LGA 1150 through 1851 sockets, targeting R9 and i9 processors that demand sustained heat removal.

Dual-chamber pump and Mobius fans

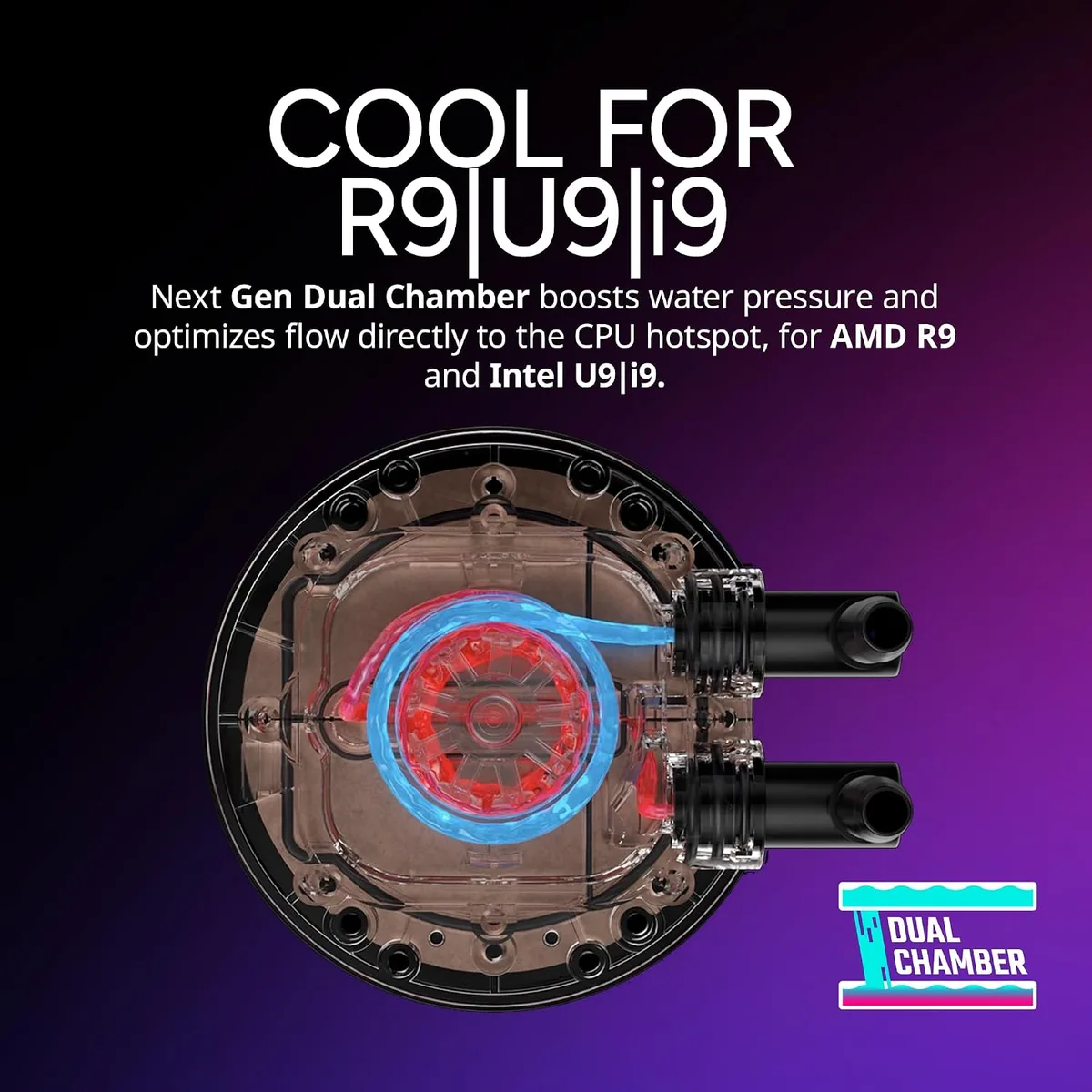

A patented dual-chamber pump isolates hot and cold coolant paths to increase pressure at the CPU hotspot while keeping pump noise below 25 dBA. The bundled Mobius 120 fans use interconnected ring blades and loop dynamic bearings to deliver up to 75.2 CFM at 2,400 RPM with a maximum static pressure of 3.63 mmH2O, and fan noise is rated at 30 dBA.

Headroom for overclocked 9-class chips

The 360 mm radiator surface and high-flow pump combination comfortably handle the thermal output of overclocked R9 and i9 CPUs under sustained loads. The cooler runs out of capacity when total package power exceeds the dissipation limit of the aluminium radiator and three 120 mm fans, making custom loops the next step for extreme voltage scenarios.

Points forts

  • Patented dual-chamber pump targets CPU hotspot for R9 and i9
  • Ultra-thin spade fins optimize microchannels for focused heat dissipation
  • Pre-installed Mobius 120 fans deliver 75.2 CFM airflow at 2400 RPM
  • Ring blade structure minimizes vibration for stable airflow at 30 dBA
  • Simplified brackets enable quick mounting on AM5 and LGA 1851/1700

Caractéristiques

BrandCOOLER MASTER
ModelMasterLiquid 360 Atmos Stealth
Part NumberMLX-D36M-A24PK-R1
TypeAIO
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851
Pump Dim.84.9 x 81 x 53.15 mm /
3.3 x 3.2 x 2.1 inch
Pump Noise<25dBA
Radiator Size394 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
4.7 x 4.7 x 1.0 inch
Bearing TypeLoop Dynamic Bearing

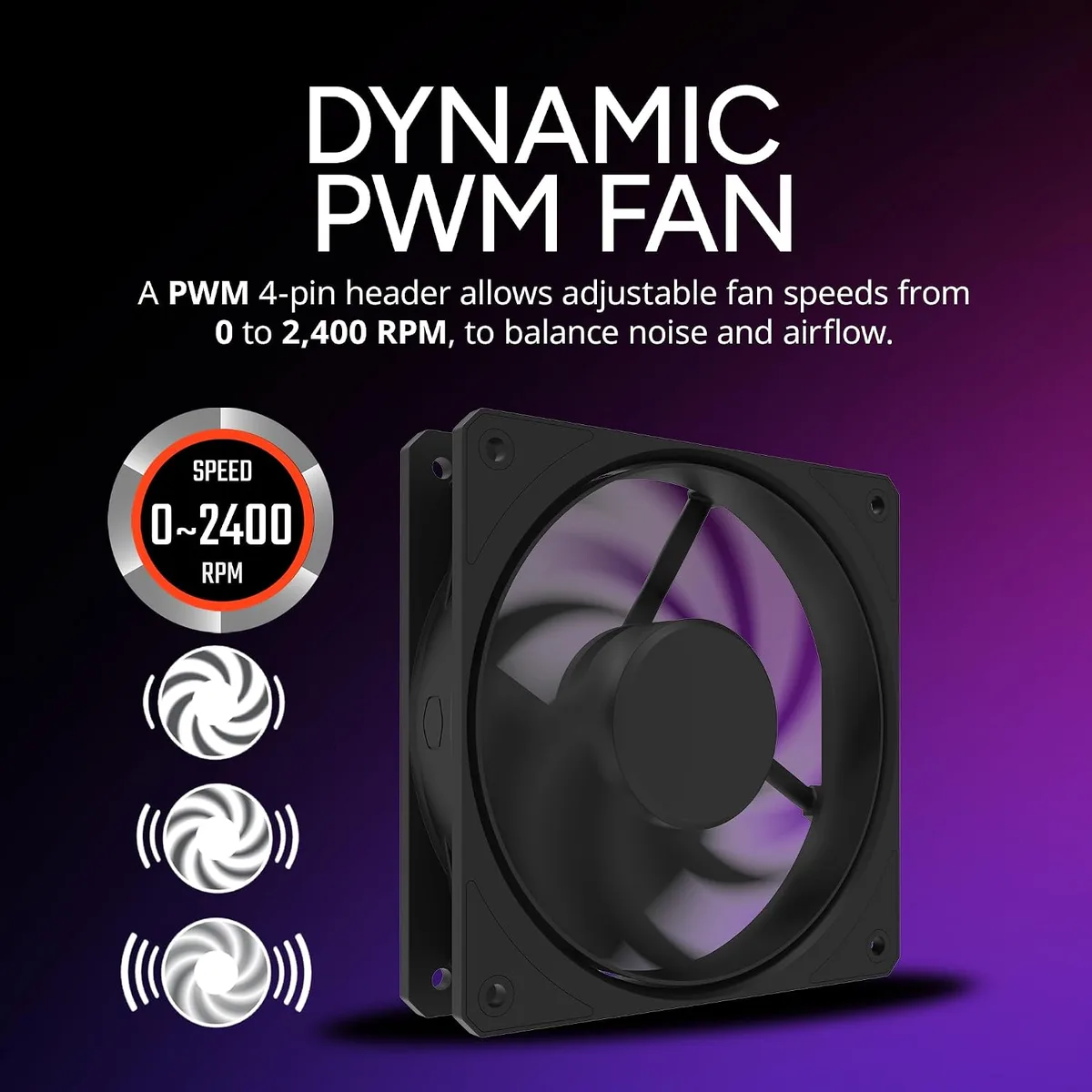

Fan RPM0~2400RPM±10%
Fan Air Flow75.2 CFM (127.6 m³/h)
Fan Noise30 dBA
Fan Connector4-Pin (PWM)
ColorBlack
LED ColorNon LED
Pressure3.63 mmH2O (Max)
Poids d’expédition2.45 kg
Dimensions du colis411 × 208 × 132 mm

Questions sur cet article

How often should I check or replace the coolant in this sealed 360 mm AIO loop?

The MasterLiquid 360 Atmos Stealth is a factory-sealed AIO with no user-serviceable coolant ports; under normal use the loop does not require refilling or scheduled fluid replacement.

What thermal limit will the dual-chamber pump hit first during a sustained all-core load on an i9 or R9?

The pump is rated below 25 dBA and the three Mobius fans peak at 2400 RPM with 3.63 mmH₂O static pressure; the practical ceiling is the radiator's ability to reject heat once fan speed and coolant temperature stabilise.

How loud and hot does the unit get when the three 120 mm fans run at full 2400 RPM all day?

At maximum speed the fans produce 30 dBA and move 75.2 CFM each; the pump stays under 25 dBA, so total acoustic output remains low while the 394 mm aluminium radiator handles the heat load.
