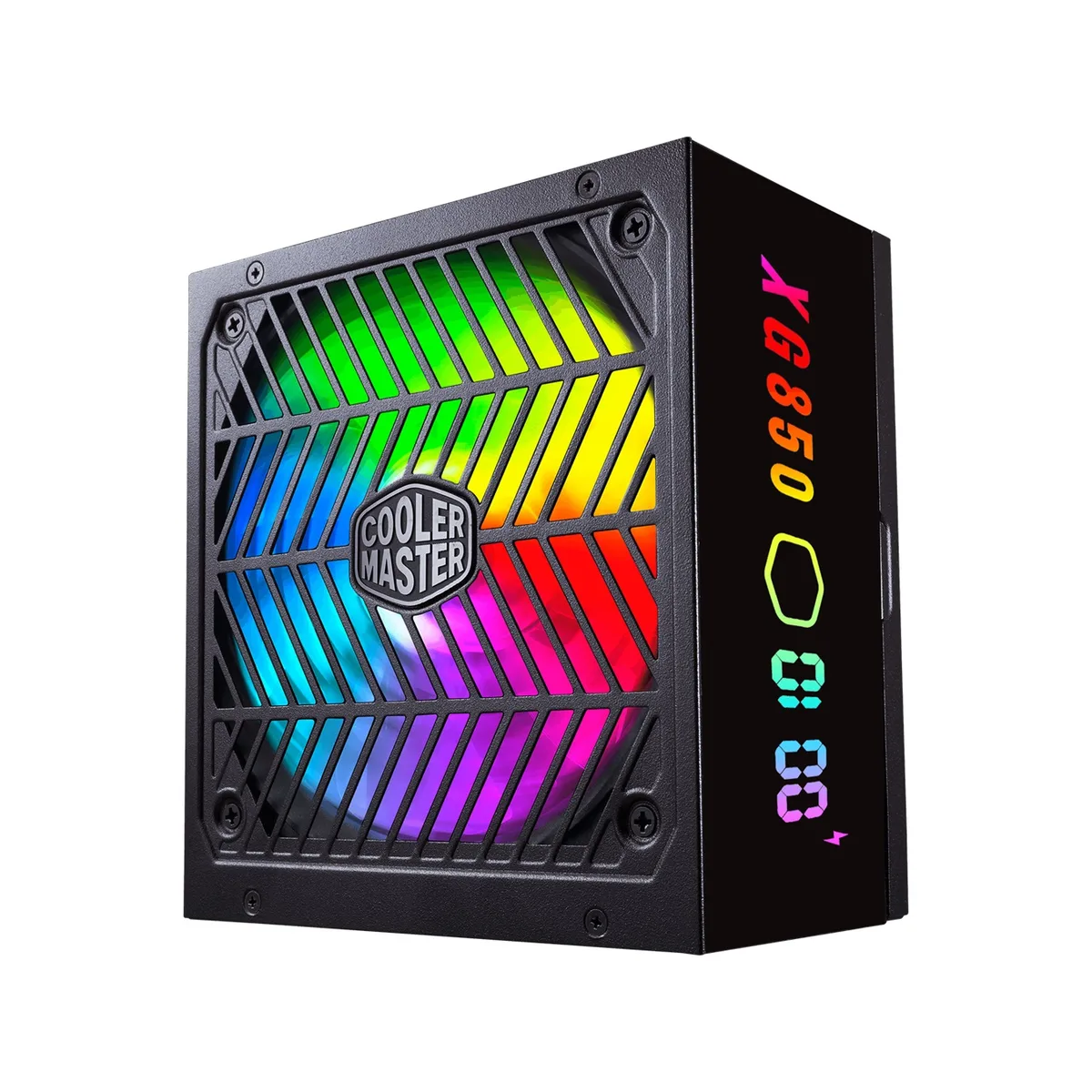

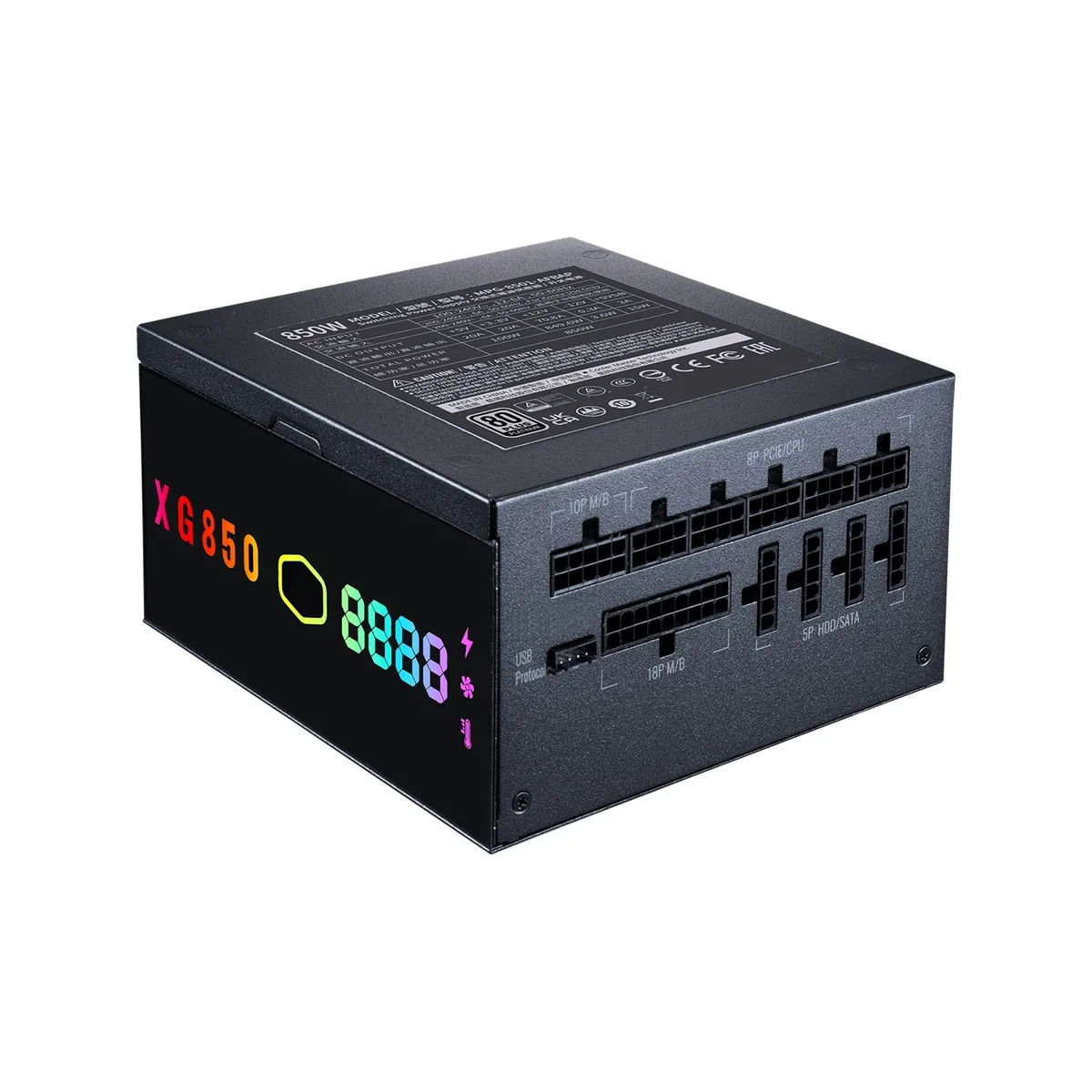

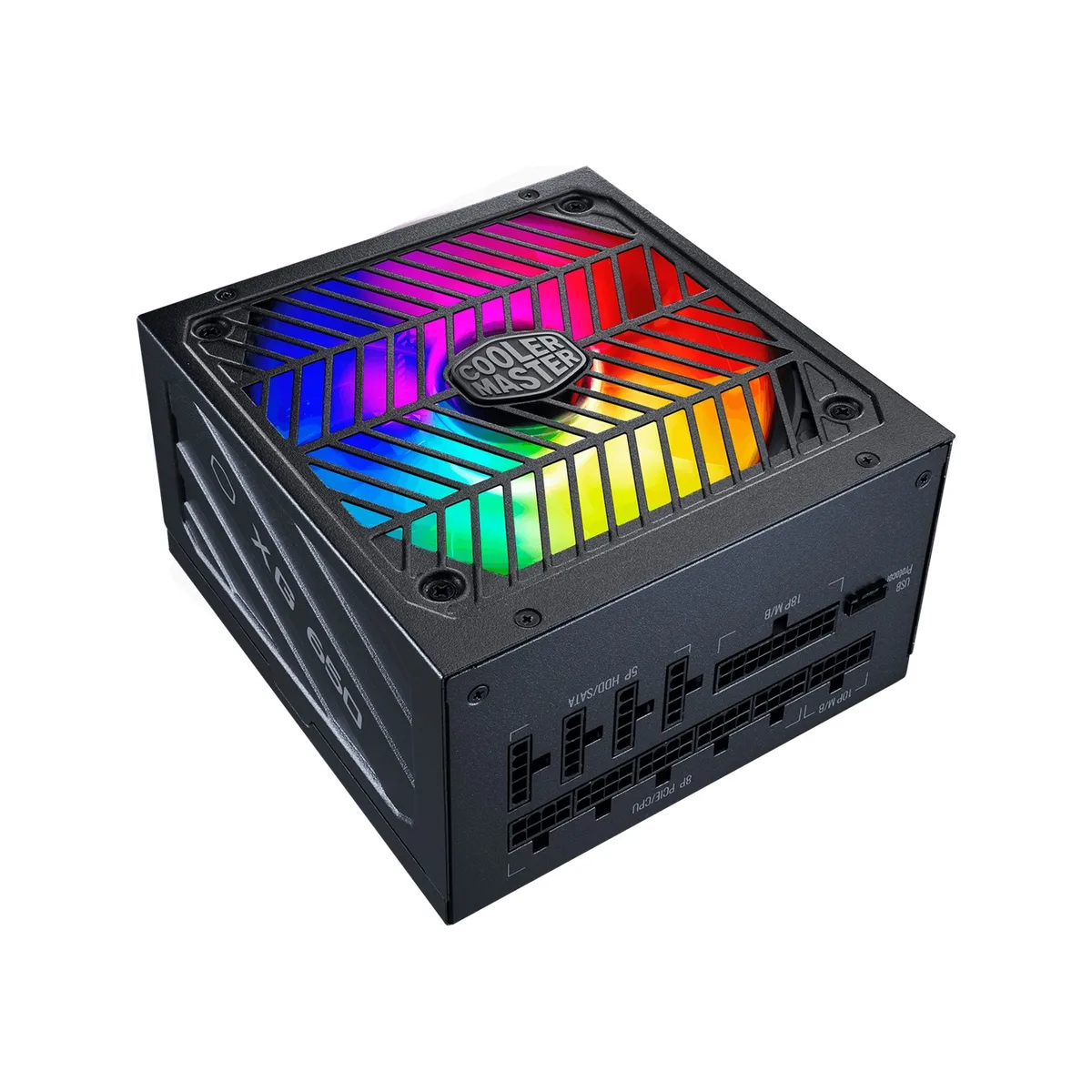

Black ATX power supply with a 135 mm fan and built-in display panel

Cooler Master

Cooler Master MPG-8501-AFBAP-XUS 850 W power supply

SKU CH-N2KZ-7W9RH MPN MPG-8501-AFBAP-XUS

Fully modular 850 W ATX unit with 80 PLUS Platinum efficiency, a 135 mm fan rated Cybenetics A-, twelve SATA connectors and a built-in information display panel

  • ColorBlack
  • TypeATX12V
  • Maximum Power850 W
  • Fans1 x 135 mm
  • PFCActive
  • Main Connector24Pin
  • 850 W output powers demanding builds
  • 80 PLUS Platinum certified delivers 92% typical efficiency
  • Fully modular design simplifies cable routing
  • 135 mm fan rated Cybenetics A- for quiet operation

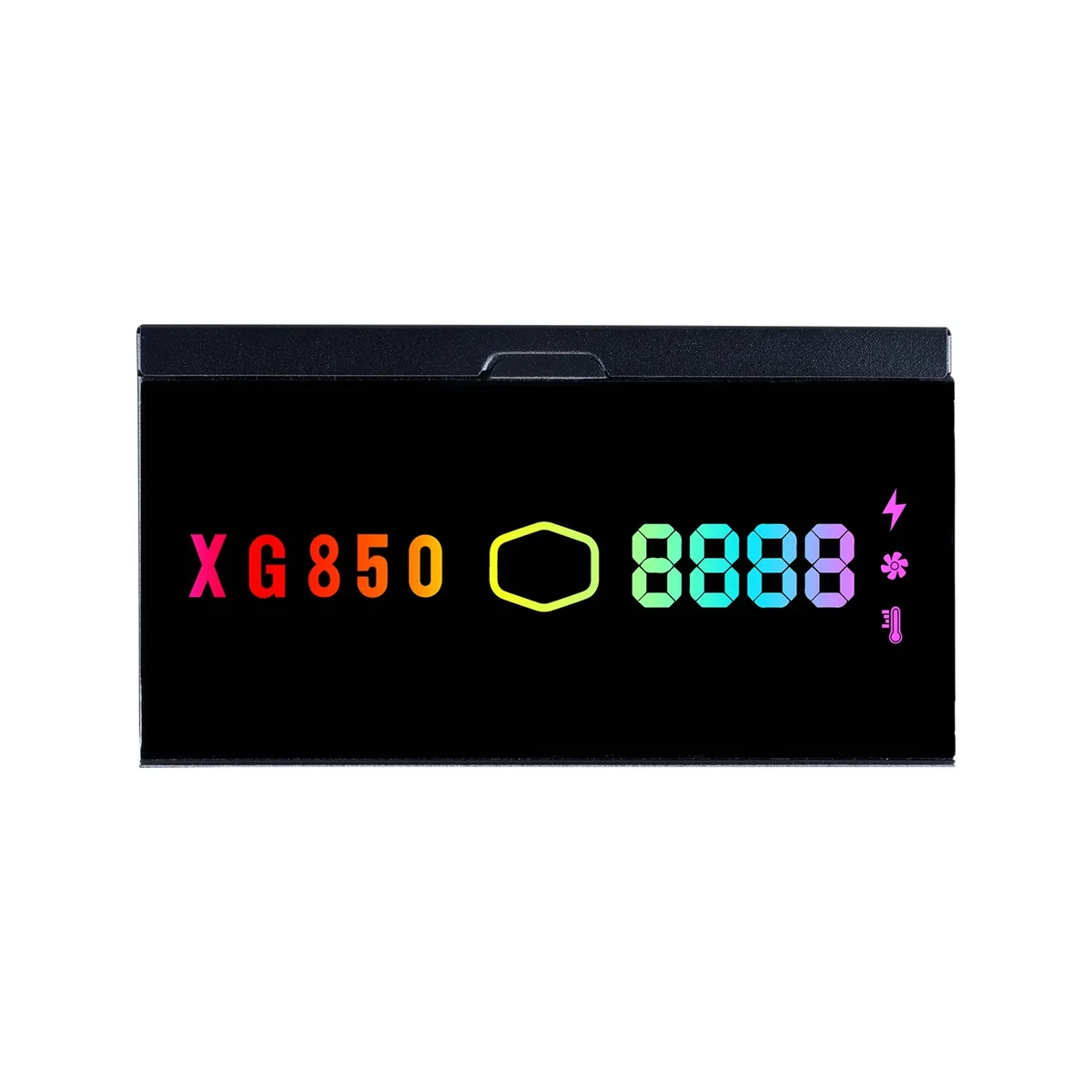

  • Built-in information display panel shows real-time status

Cooler Master 850 W ATX12V PSU

This Cooler Master unit delivers 850 W of fully modular power for high-performance desktop builds. The ATX12V design supports modern multi-rail loads while the compact 160 mm length fits most standard cases. A 135 mm fan runs under Cybenetics A- acoustics for quiet operation. It is suited to enthusiasts who want clean cable routing and reliable efficiency.

Platinum efficiency and connector headroom

80 PLUS Platinum certification guarantees at least 92 percent efficiency at typical loads, reducing waste heat and electricity cost. Six 6+2-pin PCIe connectors and four 4-pin CPU connectors provide ample headroom for dual high-end graphics cards and power-hungry processors. Twelve SATA connectors handle large storage arrays. Protection circuits include OPP, OVP, OCP, UVP, SCP, OTP, surge and inrush protection.

Fully modular build integration

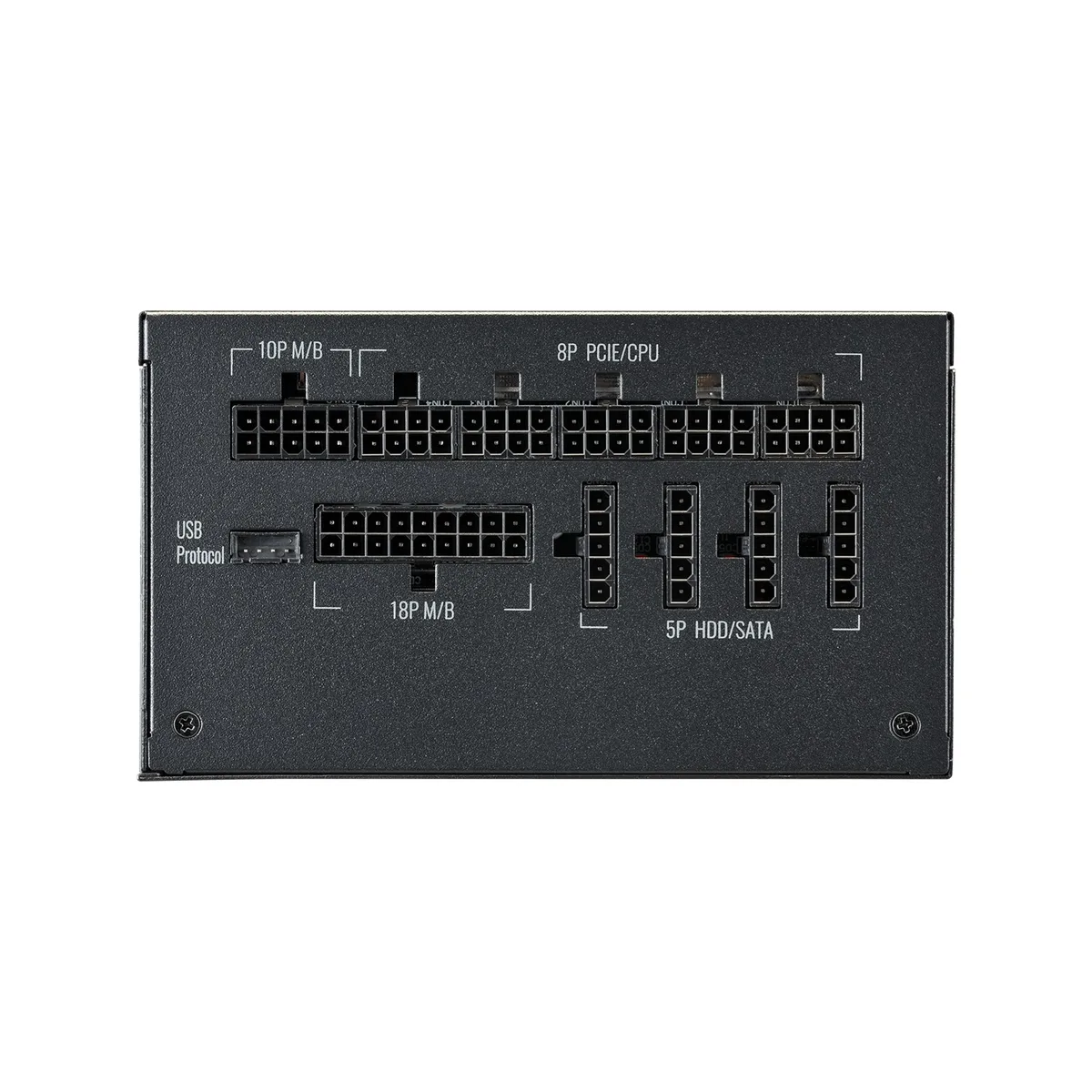

Full modularity lets you connect only the cables your build needs, improving airflow and simplifying assembly. The 24-pin ATX, EPS 4+4-pin and EPS 8-pin cables attach directly to the PSU housing. Active PFC accepts 100-240 V input at 50/60 Hz for worldwide compatibility. A built-in information display panel shows real-time status. MTBF exceeds 100,000 hours for long-term confidence.

Points forts

  • 850 W output powers demanding builds
  • 80 PLUS Platinum certified delivers 92% typical efficiency
  • Fully modular design simplifies cable routing
  • 135 mm fan rated Cybenetics A- for quiet operation
  • Built-in information display panel shows real-time status

Caractéristiques

BrandCooler Master
ModelMPG-8501-AFBAP-XUS
ColorBlack
TypeATX12V
Maximum Power850 W
Fans1 x 135 mm
PFCActive
Main Connector24Pin
PCI-Express Connector6 x 6+2-Pin, 4 x 4 pin
SATA Power Connector12
Max PSU Length160 mm
ModularFull Modular
Power Good Signal100 - 150 ms
Hold-up Time>= 20ms
Efficiency>=92% @ Typical Load
Energy-Efficient80 PLUS PLATINUM Certified
PSU Noise LevelCybenetics A-
ProtectionOPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current12 - 6A
Output+3.3V@20A, +5V@20A, [email protected] , [email protected] , +5VSB@3A
MTBF>100,000 Hours
Connectors1 x ATX 24 Pin Connectors
1 x EPS 4+4 Pin Connectors
1 x EPS 8 Pin Connector
12 x SATA Connectors
4 x Peripheral 4 Pin Connectors
6 x PCI-e 6+2 Pin Connectors
FeaturesIn-House Platform Design: This is Cooler Master's first in-house designed PSU platform, built for high-end performance with reduced temperature requirements.
ARGB Fans with Digital Side Panel: The XG Plus Platinum ARGB fan with digital display panel can monitor real time performance data, showing fan speed, temperature, power load, and customized ARGB lighting.
80 PLUS Platinum Certified: This certification guarantees a minimum typical efficiency of 92% under normal operating conditions.
Quiet 135mm Fan: The fluid dynamic fan bearing creates less friction, making it great for low RPM
Dimensions3.39" x 5.91" x 6.30"
Weight5.83 lbs.
Package ContentXG850 Plus Platinum
Connectors
Power Cord
4x screws
Manuel
Poids d’expédition1.27 kg
Dimensions du colis178 × 160 × 107 mm

Questions sur cet article

Will the 160 mm depth and 24-pin ATX connector fit my older ATX12V case and motherboard?

The 160 mm length matches standard ATX12V dimensions and the 24-pin main connector is the current ATX standard, so it will install in any compatible case and motherboard.

How can I confirm the 135 mm ARGB fan and built-in display panel are operating correctly after installation?

The display panel shows real-time power draw and the fan spins up according to the semi-passive curve; both activate as soon as the system powers on.

Which cables are included and what must I purchase separately for a typical build?

The box supplies the fully modular PSU, a 24-pin ATX cable, two EPS cables (4+4-pin and 8-pin), six PCIe 6+2-pin cables, twelve SATA cables and four peripheral 4-pin cables; no extra cables are needed for standard configurations.
