Black 120mm square case fan with dual RGB light loops visible on the frame

Corsair

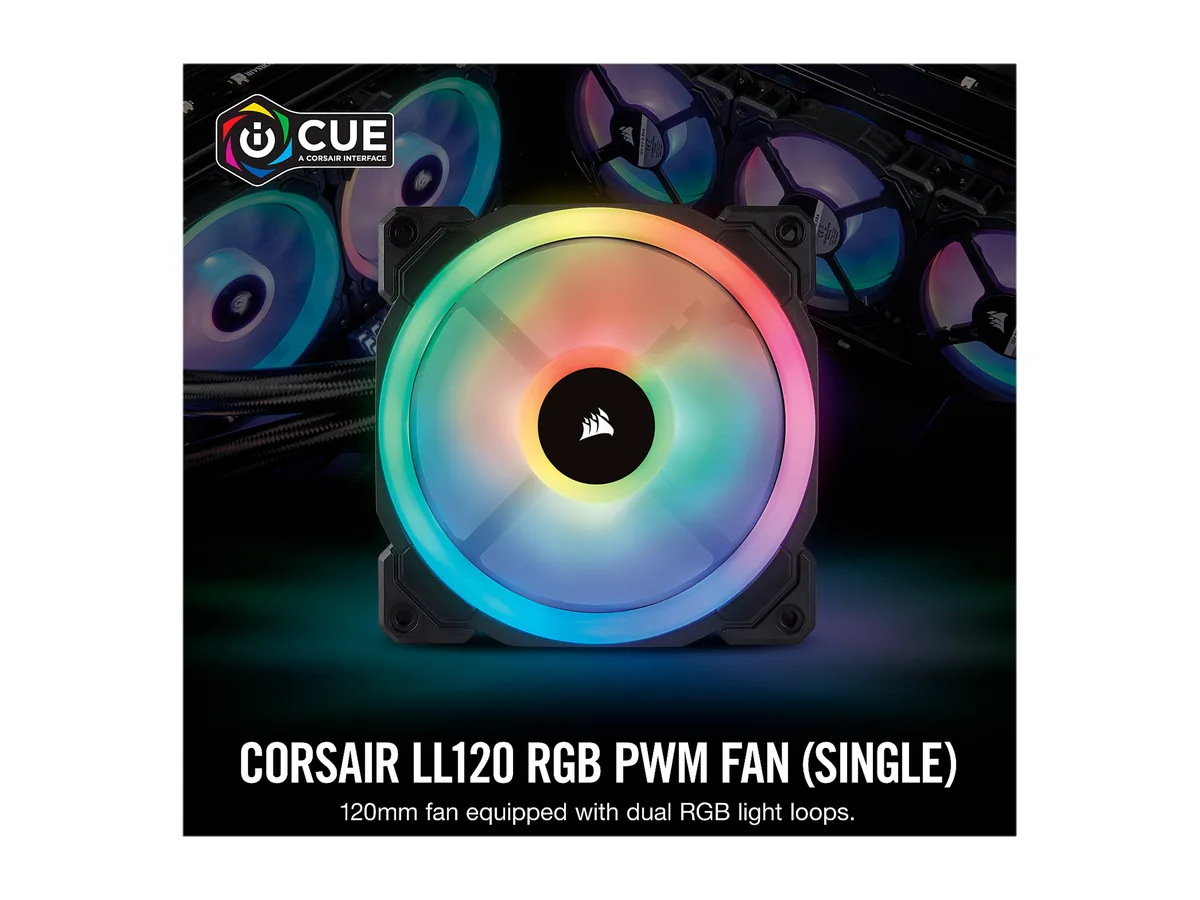

Corsair CO-9050071-WW LL120 RGB 120mm case fan

SKU CH-EVB8-FVZNW MPN CO-9050071-WW

120 mm PWM case fan with dual RGB light loops, 16 independent LEDs, hydraulic bearing, 600–1500 RPM, 43.25 CFM airflow and 24.8 dBA noise

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness25mm

Fan Size 120mm

Model · Option Single Pack · 1 Pack

  • Dual light loops with 16 independent RGB LEDs enable extensive lighting customisation
  • Hydraulic bearing and PWM control from 600 to 1500 RPM balance airflow and noise
  • 25 CFM airflow at 24.8 dBA delivers effective cooling quietly
  • 120 mm x 25 mm frame fits standard case mounts with four included screws
  • Expansion kit design requires RGB hub and Lighting Node PRO for full RGB control

Single 120 mm RGB case fan

This Corsair LL120 RGB fan is a single 120 mm unit designed for PC builders who want addressable RGB lighting and PWM speed control in a standard case slot. It uses a hydraulic bearing and a 4-pin connector for motherboard-controlled operation.

Airflow and noise limits

The fan spins between 600 and 1500 RPM and delivers 43.25 CFM at a reported 24.8 dBA, giving enough airflow for typical chassis cooling while staying quiet at lower speeds. At maximum RPM the noise rises and the static pressure may not overcome dense radiator fins or restrictive filters.

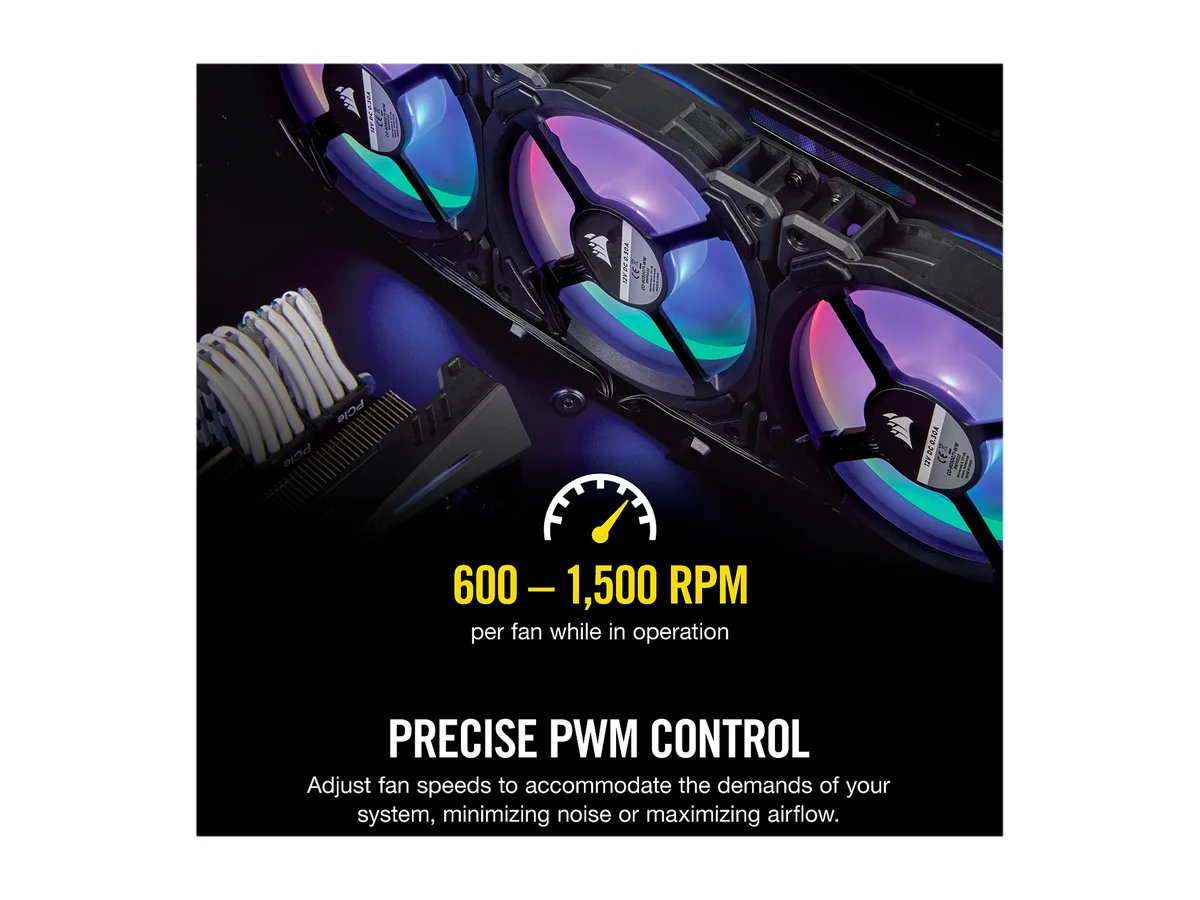

PWM control and lighting dependencies

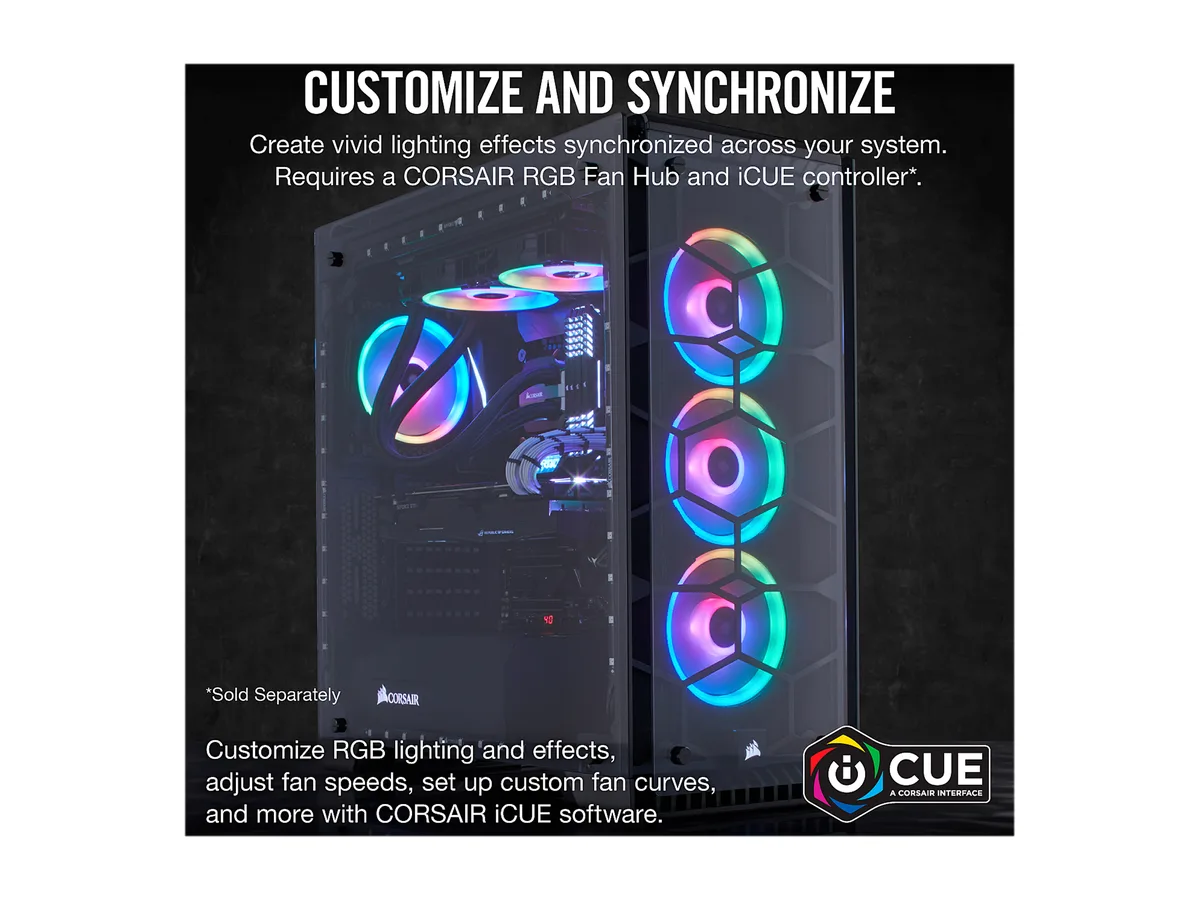

The 4-pin PWM connector allows the motherboard to vary speed across the full 600 to 1500 RPM range, but the 16 RGB LEDs split across two light loops require a separate Corsair RGB Lighting Hub and Lighting Node PRO to function. Without those controllers the lighting remains inactive.

Points forts

  • Dual light loops with 16 independent RGB LEDs enable extensive lighting customisation
  • Hydraulic bearing and PWM control from 600 to 1500 RPM balance airflow and noise
  • 25 CFM airflow at 24.8 dBA delivers effective cooling quietly
  • 120 mm x 25 mm frame fits standard case mounts with four included screws
  • Expansion kit design requires RGB hub and Lighting Node PRO for full RGB control

Caractéristiques

BrandCorsair
SeriesLL Series LL120 RGB
ModelCO-9050071-WW
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness25mm
Bearing TypeHydraulic Bearing
RPM600 - 1500 +/- 10% RPM
Air Flow43.25 CFM
Noise Level24.8 dBA
Power Connector4 Pin
ColorBlack
LEDRGB

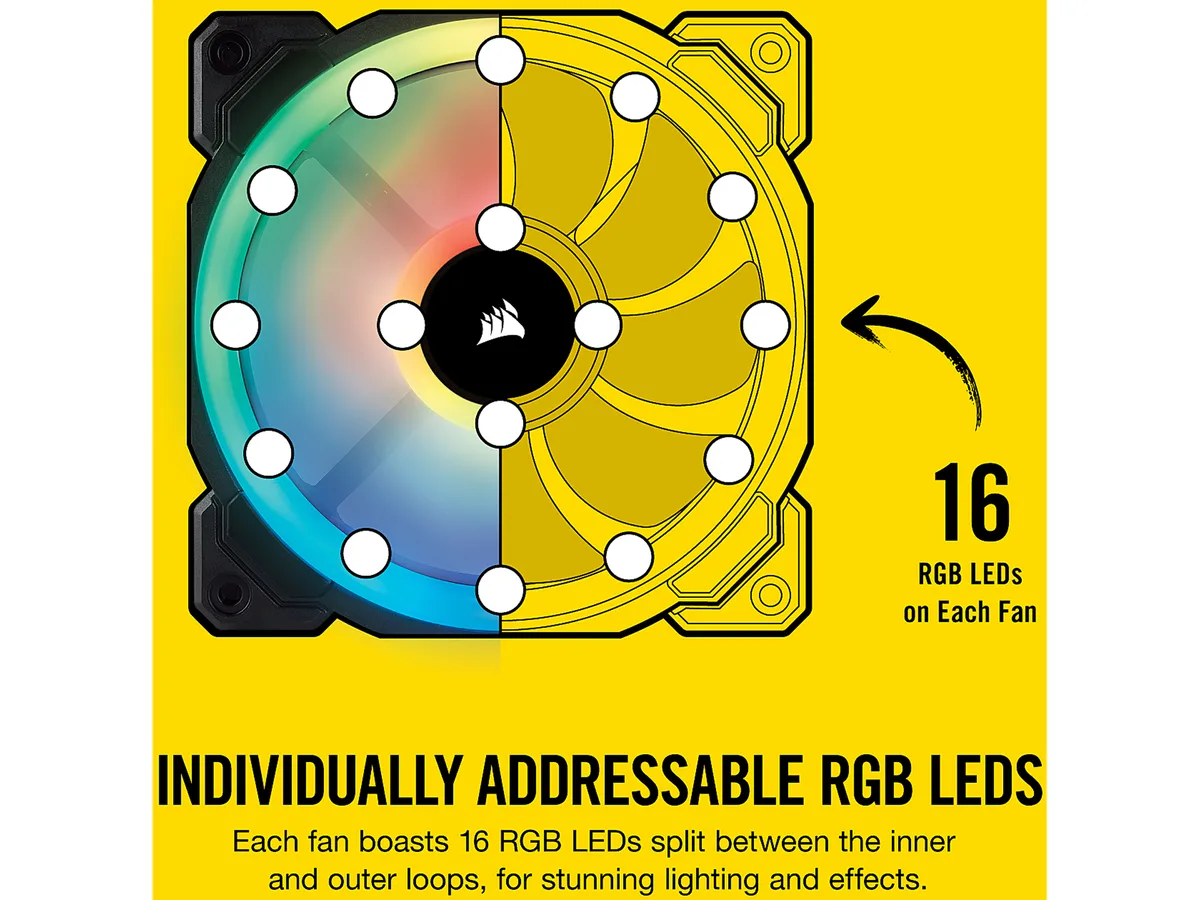

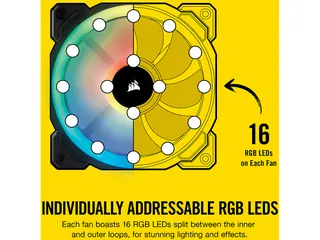

FeaturesDual RGB Lighting Loop: 16 Independent RGB LEDs in every fan, split between two separate light loops, allow for nearly endless customization.
Expansion Kit: This product is intended as an expansion of the LL120 RGB LED 3 fan kit with Lighting Node PRO. The RGB functionality of this product requires a RGB Lighting hub and Lighting Node PRO.
Complete PWM Control: Dynamically control fan speed from 600 RPM to 1,500 RPM to minimize noise or maximize airflow.

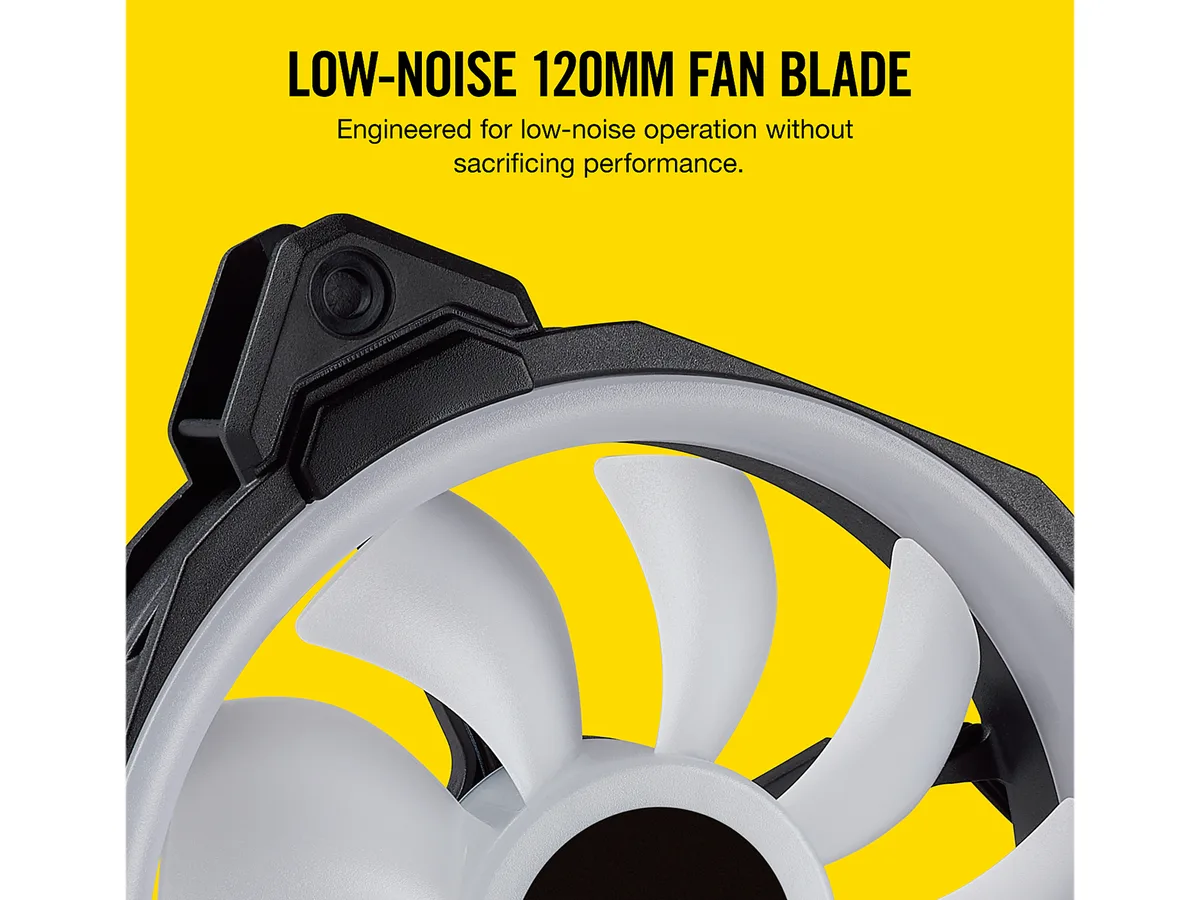

Created for Quiet: 120mm Fan blade engineered for low-noise operation without sacrificing performance.
Dimensions120.00 x 120.00 x 25.00 mm
Package Contents1 x Fans
4 x Fan Mounting Screws
Poids d’expédition0.24 kg
Dimensions du colis147 × 130 × 33 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the 120mm frame and 4-pin PWM connector fit my older case and motherboard?

Yes, the fan uses a standard 120mm square frame with 25mm thickness and a 4-pin PWM connector, matching common case mounting holes and motherboard headers.

How can I verify the dual light loops and 16 RGB LEDs are functioning after installation?

Connect the fan to a Corsair RGB Lighting Hub and Lighting Node PRO, then use iCUE software to confirm both light loops illuminate and all 16 LEDs respond to colour changes.

Does the single pack include the Lighting Node PRO and RGB hub needed for RGB control?

No, the box contains only one fan and four mounting screws; the Lighting Node PRO and RGB Lighting Hub are sold separately and are required for RGB functionality.
