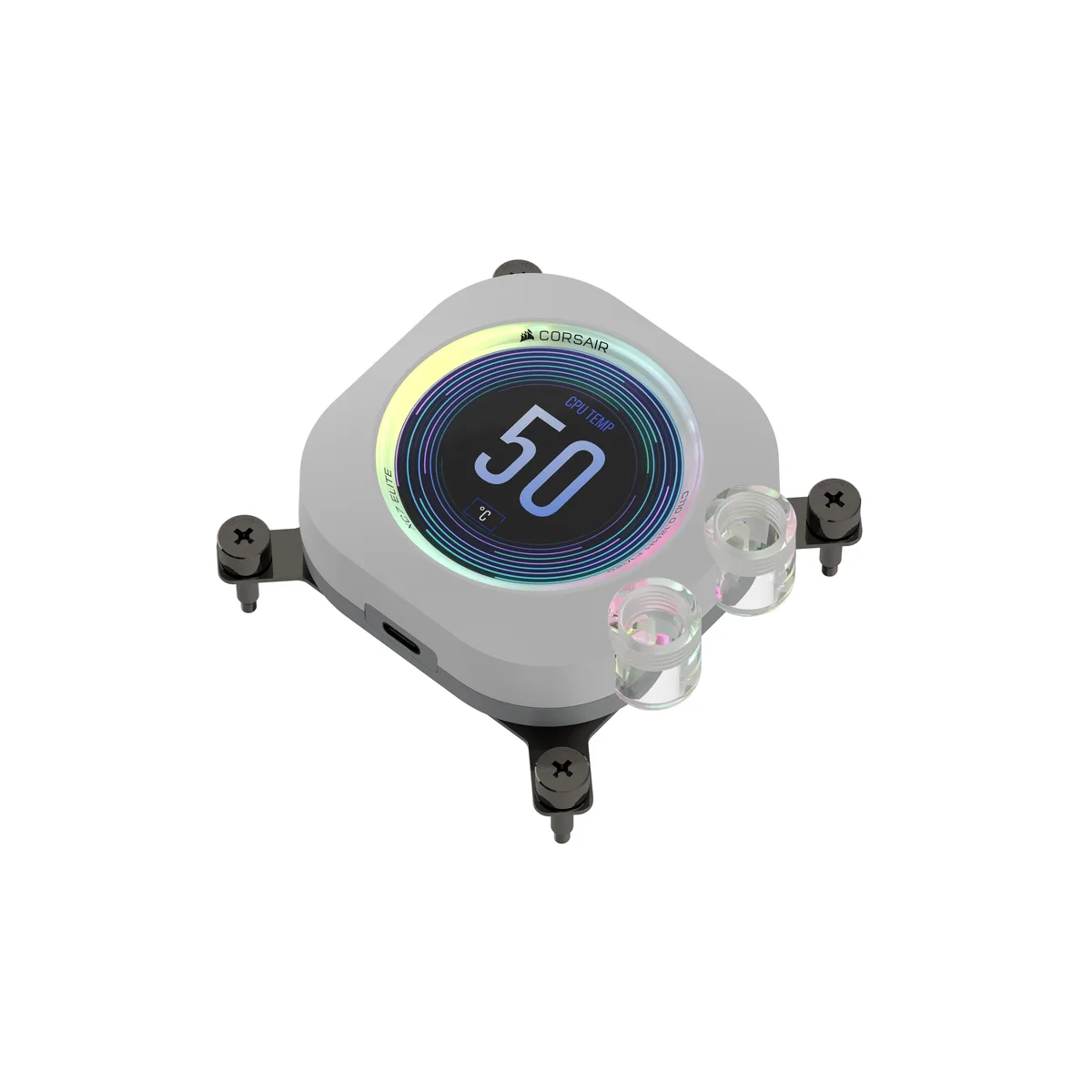

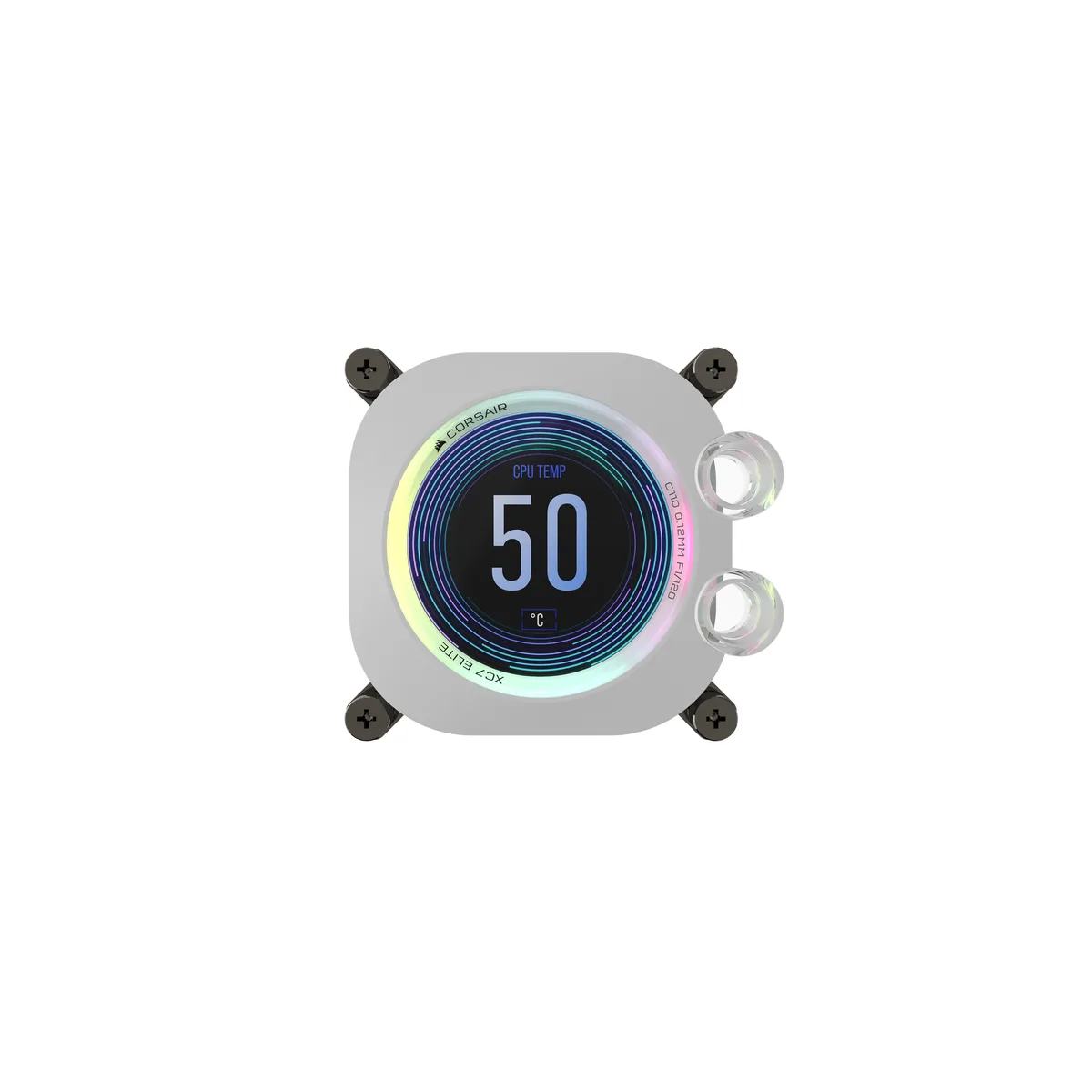

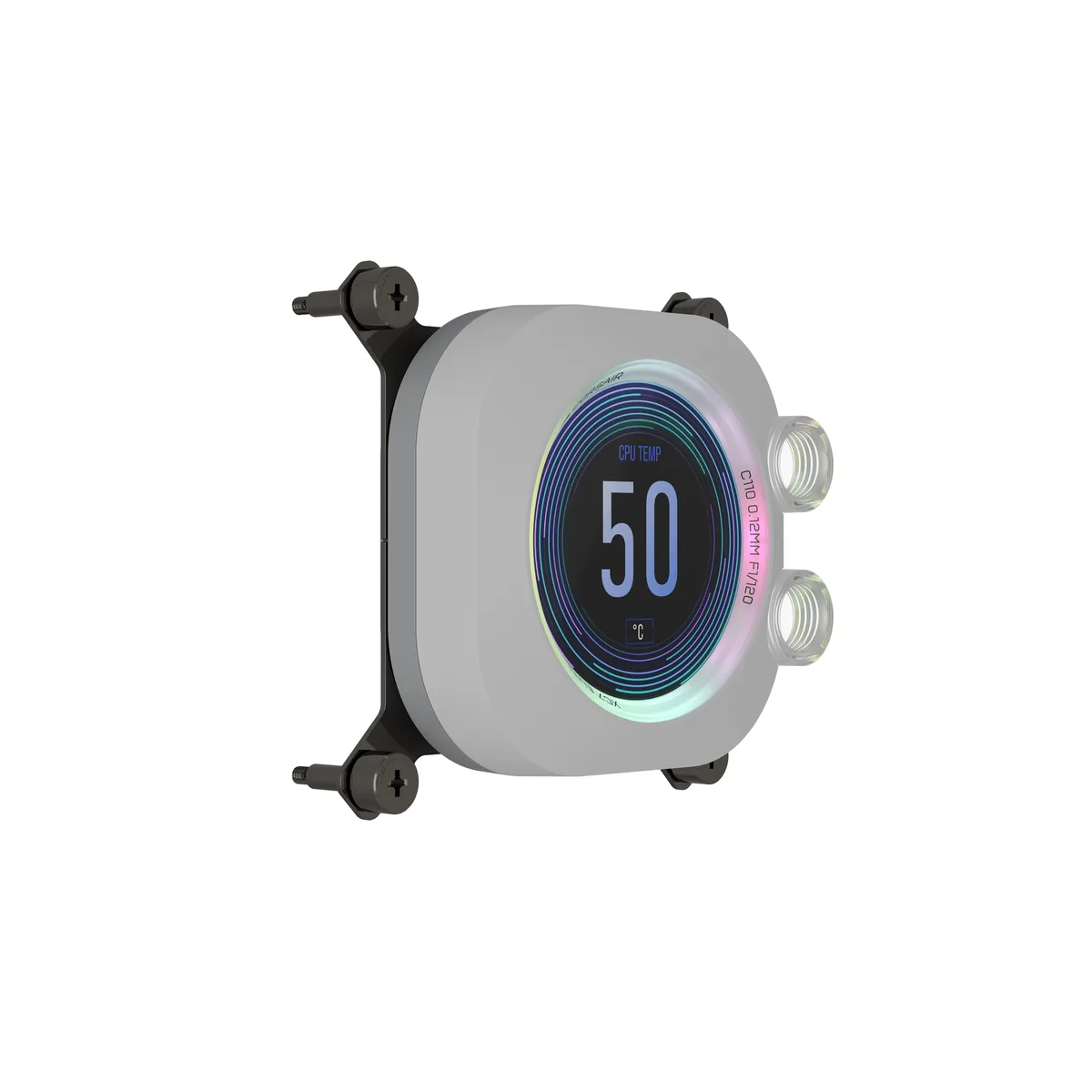

White CPU water block with square LCD screen and RGB lighting

Corsair

Corsair CX-9010024-WW XC7 RGB ELITE LCD WHITE CPU Water Block 480x480 IPS 31 RGB diy cooling

SKU CH-HZM8-QH0NN MPN CX-9010024-WW

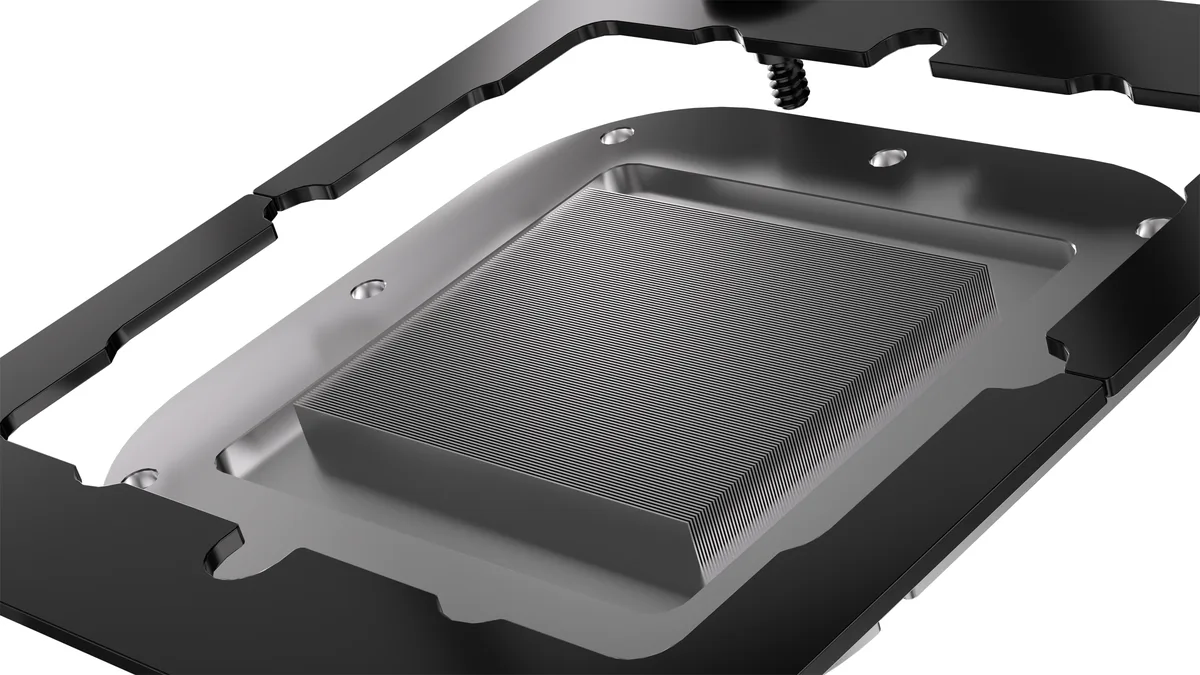

CPU water block with a 480x480 IPS LCD screen, 31 RGB LEDs and a nickel-plated copper cold plate with over 120 micro-fins

  • TypeCPU Water Block
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1700
  • ColorWhite
  • LED ColorRGB
  • SpecificationProduct Type: CPU Water Block Cold Plate Fins: 120+ Cold Pla
  • FeaturesBrilliant IPS LCD Display: Showcase your creativity and pers
  • Customise your build with a 30 FPS 480x480 IPS LCD showing temps or GIFs
  • 31 addressable RGB LEDs add vivid lighting effects across the water block
  • Hexa-Flow engine with 120+ micro-fins cools CPU cores evenly
  • Built-in cold-plate sensor reports real-time coolant temperature up to 60°C
  • Tool-less captive screws and pre-applied XTM70 paste simplify installation

XC7 RGB ELITE LCD CPU Water Block

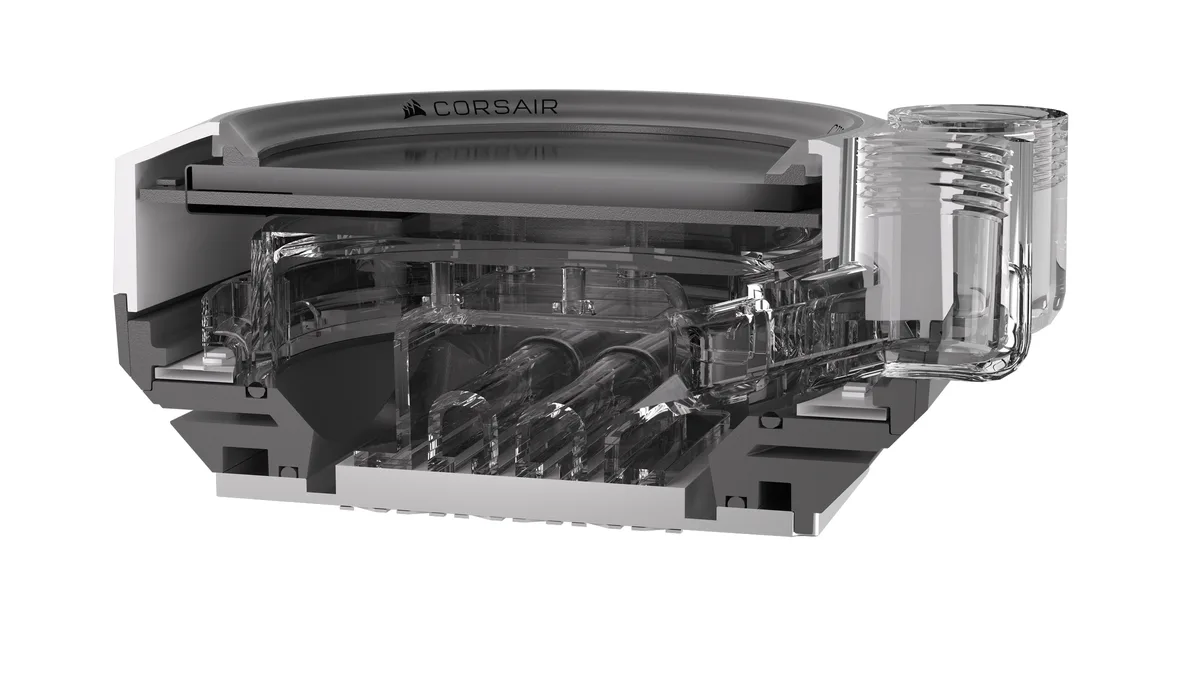

The Corsair XC7 RGB ELITE LCD WHITE is a CPU water block designed for custom liquid-cooling loops. It fits Intel LGA 1700 and AMD AM5 or AM4 sockets. A 480x480 IPS LCD screen running at 30 FPS displays real-time temperatures, animated GIFs or custom images. Thirty-one addressable RGB LEDs add further lighting control. The cold plate uses over 120 micro-fins on nickel-plated copper with a nylon fluid chamber. A built-in sensor monitors coolant temperature up to 60°C.

Tool-less mounting with captive screws

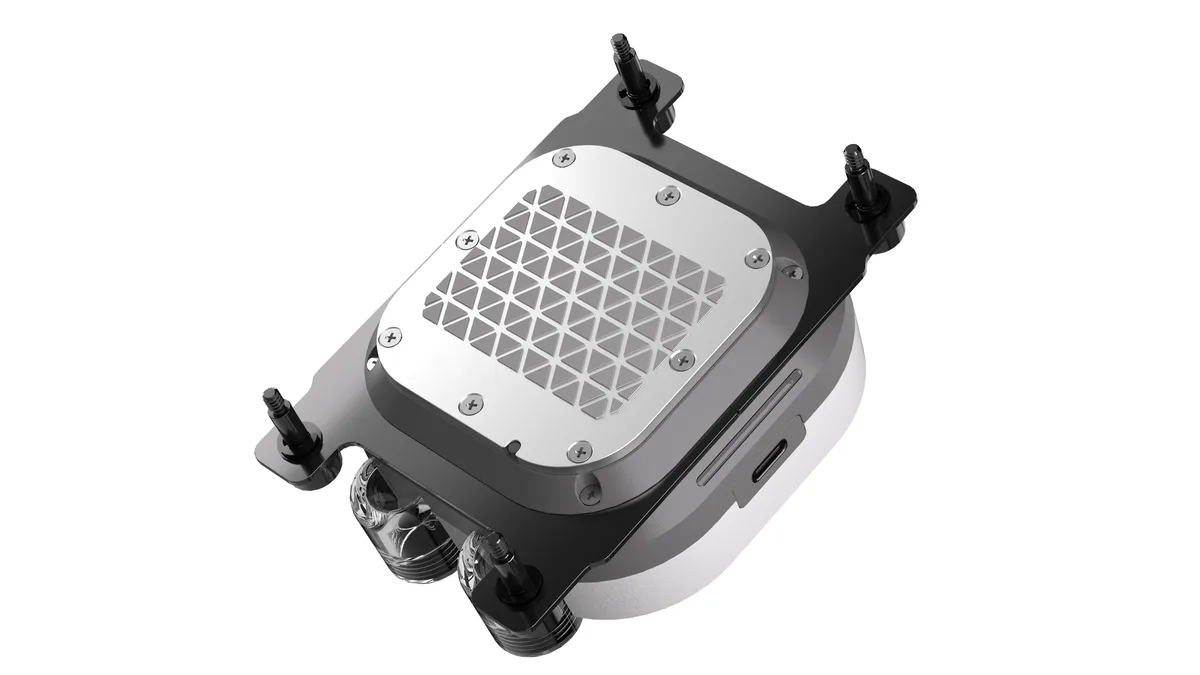

Installation uses captive thumbscrews and pre-installed brackets for Intel LGA 1700 and AMD AM5/AM4, so no separate tools are required. High-performance XTM70 thermal paste is pre-applied to the cold plate. The block connects to the system via a single USB-C cable for iCUE software control and power. G1/4" BSPP ports accept standard fittings. Common issues include forgetting to remove the protective film from the cold plate, misaligning the backplate orientation, or using coolants not rated for copper and brass loops.

Verify loop compatibility and controller needs

Before ordering, confirm your loop uses only copper or brass components and a compatible coolant such as CORSAIR XL or equivalent. The block requires a USB 2.0 header or port on the motherboard for the USB-C connection and the CORSAIR iCUE software for LCD and RGB configuration. Ensure your case has clearance for the block height and routing space for the USB cable and two G1/4" fittings. The unit is not compatible with aluminum radiators or mixed-metal loops.

Points forts

  • Customise your build with a 30 FPS 480x480 IPS LCD showing temps or GIFs
  • 31 addressable RGB LEDs add vivid lighting effects across the water block
  • Hexa-Flow engine with 120+ micro-fins cools CPU cores evenly
  • Built-in cold-plate sensor reports real-time coolant temperature up to 60°C
  • Tool-less captive screws and pre-applied XTM70 paste simplify installation

Caractéristiques

BrandCORSAIR
SeriesXC7 RGB ELITE LCD WHITE
ModelCX-9010024-WW
TypeCPU Water Block
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1700
ColorWhite
LED ColorRGB
SpecificationProduct Type: CPU Water Block
Cold Plate Fins: 120+
Cold Plate Material: Nickel-Plated Copper
Fluid Chamber Material: Nylon
Socket Compatability: Intel 1700 | AMD AM5 | AMD AM4
Compatible Materials: Only mix with other copper / brass products
Compatible Coolants: CORSAIR XL or equivalent
Port Thread: G1/4" BSPP
Max Operating Temperature: 60°C coolant temperature
Thermal Material: Pre-applied XTM70 thermal paste
Required Controller For iCUE Support: CORSAIR iCUE
FeaturesBrilliant IPS LCD Display: Showcase your creativity and personalize your build like never before with real-time CPU temperature, animated GIFs, memes, or your team’s logo on a custom 30 FPS IPS LCD screen with 480x480 resolution, ultra-bright 600cd/m² backlight, 24-bit true color depth.
Vivid Integrated RGB Lighting: Enhance your PC's aesthetics with stunning customizable lighting that can be tailored to your preferences using 31 individually addressable RGB LEDs.
Hexa-Flow Cooling engine: Hexa-Flow cooling engine mitigates laminar flow and ensures that all CPU cores are more evenly
Package ContentsXC7 ELITE CPU Water Block
Intel LGA 1700 bracket with pre-installed mounting screws
AMD AM5/AM4 bracket with pre-installed mounting screws
Backplate
Poids d’expédition0.51 kg
Dimensions du colis351 × 185 × 53 mm

Questions sur cet article

How do I verify the 480x480 IPS LCD is displaying real-time CPU temperature correctly after installation?

Connect the block via USB-C, open CORSAIR iCUE, and confirm the screen shows live coolant temperature from the built-in sensor at up to 30 FPS with 24-bit color depth.

Which mounting brackets and thermal paste are included, and what must I supply separately?

The box contains Intel LGA 1700 and AMD AM5/AM4 brackets with pre-installed screws, a backplate, and pre-applied XTM70 thermal paste; you must provide G1/4 fittings, tubing, coolant, and a pump/reservoir.

Which socket bracket should I use for my Intel LGA 1700 or AMD AM5 build?

Use the Intel LGA 1700 bracket with pre-installed screws for Intel platforms, or the AMD AM5/AM4 bracket for AMD platforms; both are included and feature tool-less captive screws.
