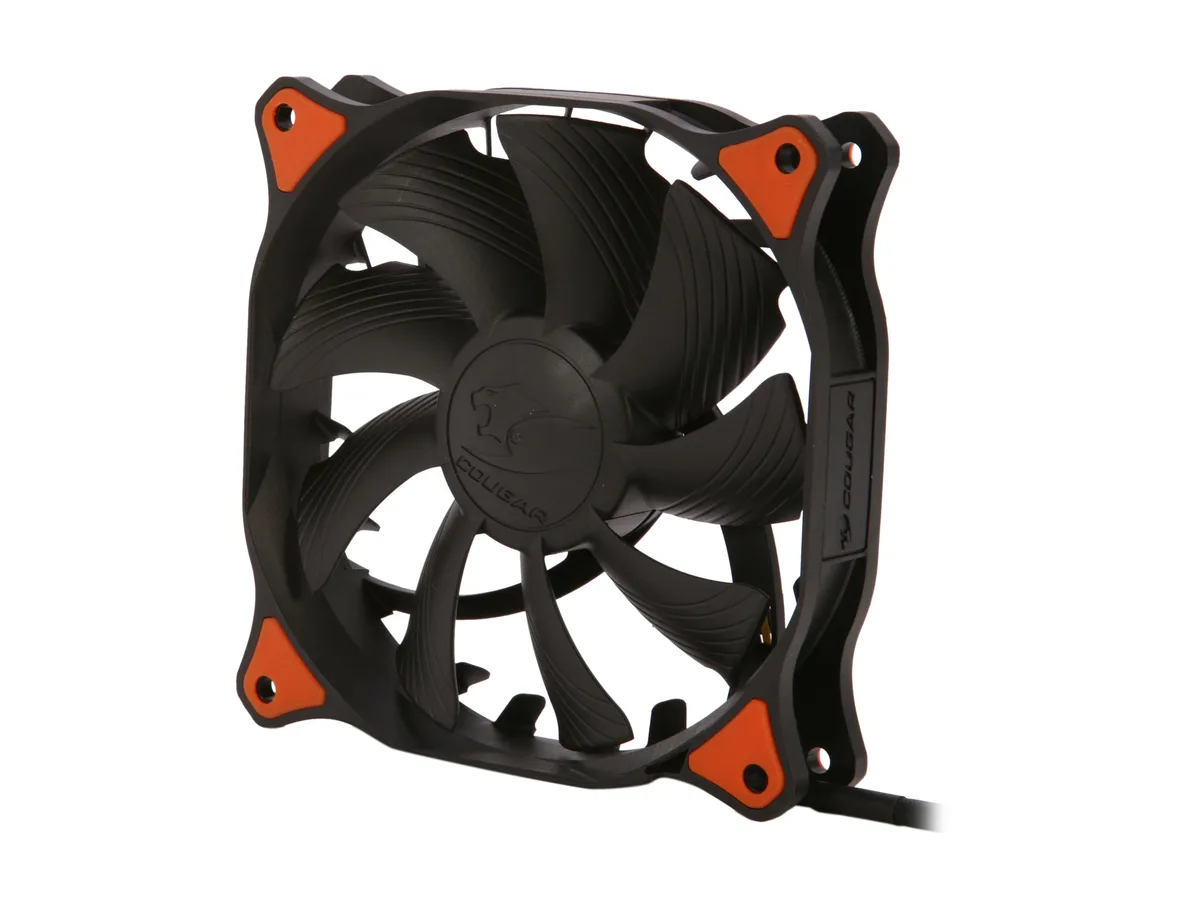

Black 120mm case fan with turbine blades and anti-vibration pads

COUGAR

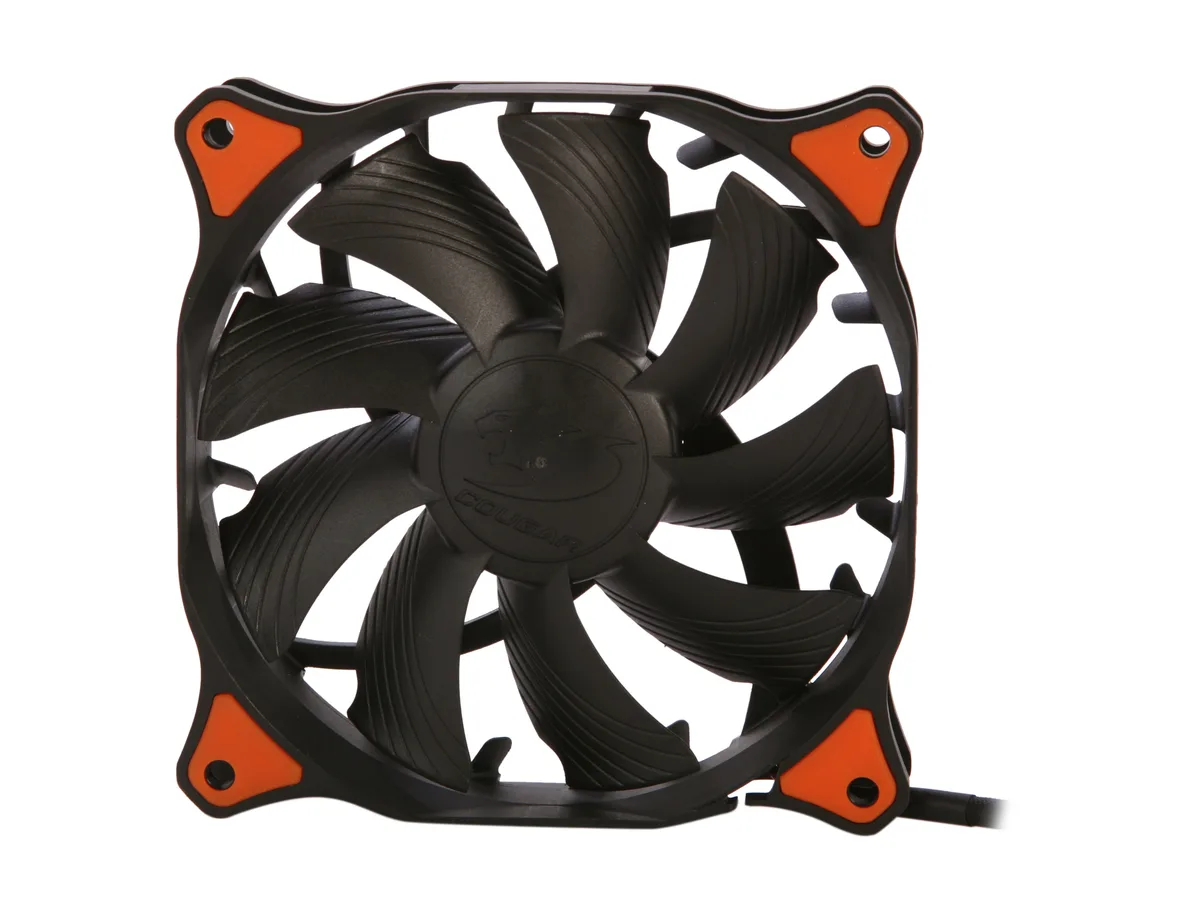

COUGAR CF-V12HB 120mm case fan 1200 RPM 60.4 CFM Hydro Dynamic

SKU CH-V2C1-QB45N MPN CF-V12HB

A 120 mm case fan with hydro dynamic bearing delivers 60.4 CFM airflow at 1200 RPM while running at 17.7 dBA

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Thickness25mm
  • Bearing TypeHydro Dynamic
  • RPM1200 RPM
  • High-vortex turbine blade design delivers 60.4 CFM airflow
  • Hydro-dynamic bearing runs without friction for 300000-hour MTBF
  • Anti-vibration pads plus tool-less rubber pins cut resonance to 17.7 dBA
  • Diversion groove blades focus air stream for optimum cooling efficiency
  • Aero-dynamical inlet reduces turbulent noise while maintaining 1200 RPM speed

Purpose-built cooling for standard 120mm mounts

The COUGAR CF-V12HB is a single 120mm case fan designed for builders who need reliable airflow in a standard mounting position. It targets systems where a balance of air movement and low noise is preferred over maximum static pressure. The fan suits typical chassis intake or exhaust roles in everyday desktop builds.

Thermals and acoustics at 1200 RPM

At its fixed speed of 1200 RPM the fan moves 60.4 CFM or 102.6 CMH while producing 17.7 dBA. The Hydro Dynamic bearing runs without friction, contributing to the quiet output and a rated 300000-hour MTBF. Anti-vibration pads and rubber tool-less pins further dampen mechanical noise transmitted to the case.

Build details and mounting convenience

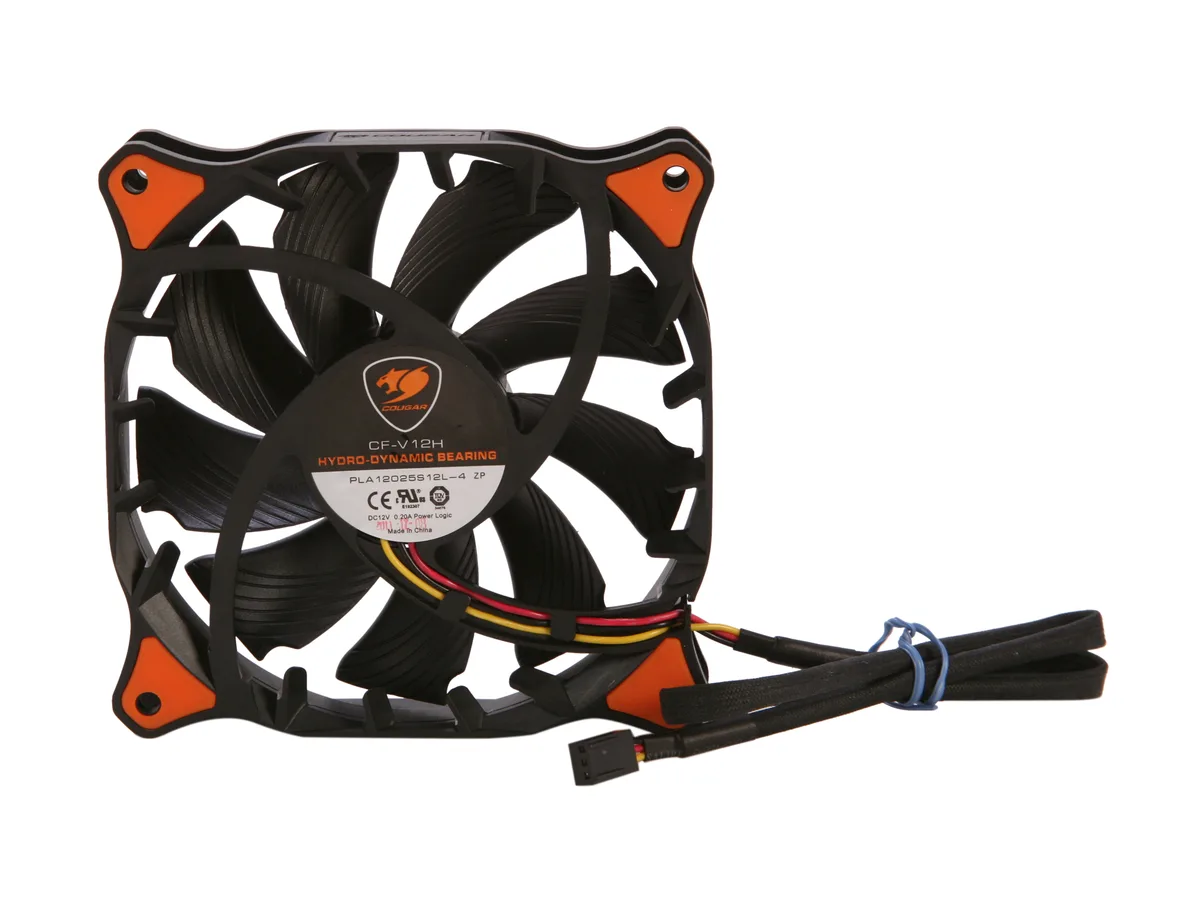

The 25mm-thick black frame houses turbine-style blades with diversion grooves that focus the airstream. A 3-pin power connector is supplied together with a 3-to-4-pin adapter, allowing connection to either motherboard headers or fan controllers. Tool-less fixed pins and traditional screws are both included, giving the installer a choice of quick mounting or a screwed fit.

Points forts

  • High-vortex turbine blade design delivers 60.4 CFM airflow
  • Hydro-dynamic bearing runs without friction for 300000-hour MTBF
  • Anti-vibration pads plus tool-less rubber pins cut resonance to 17.7 dBA
  • Diversion groove blades focus air stream for optimum cooling efficiency
  • Aero-dynamical inlet reduces turbulent noise while maintaining 1200 RPM speed

Caractéristiques

BrandCougar
ModelCF-V12HB
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
Fan Thickness25mm
Bearing TypeHydro Dynamic
RPM1200 RPM
Air Flow60.4 CFM / 102.6 CMH
Noise Level17.7 dBA
Power Connector3 Pin
ColorBlack
FeaturesHIGH-VORTEX-AIRFLOW WITH TURBINE BLADE & FRAME DESIGN
Optimum airflow, air pressure & extremely silent performance
DIVERSION GROOVE BLADE DESIGN
Innovative blade design focus air flow & optimum cooling efficiency
ANTI-VIBRATION PAD DESIGN
Reduce the vibrations efficiently & silent operation
AERO-DYNAMICAL DESIGN
Air-inlet with optimal aero-dynamical design reducing noisy air turbulences
HYDRO-DYNAMIC-BEARING TECHNOLOGY
HDB runs more smoothly with no friction, make it quietly & durability (MTBF300,000hrs)
TOOL-LESS FIXED PINS
Rubber fixed pins also reduces vibrations (fan run more qui
Dimensions120.00 x 120.00 x 25.00mm

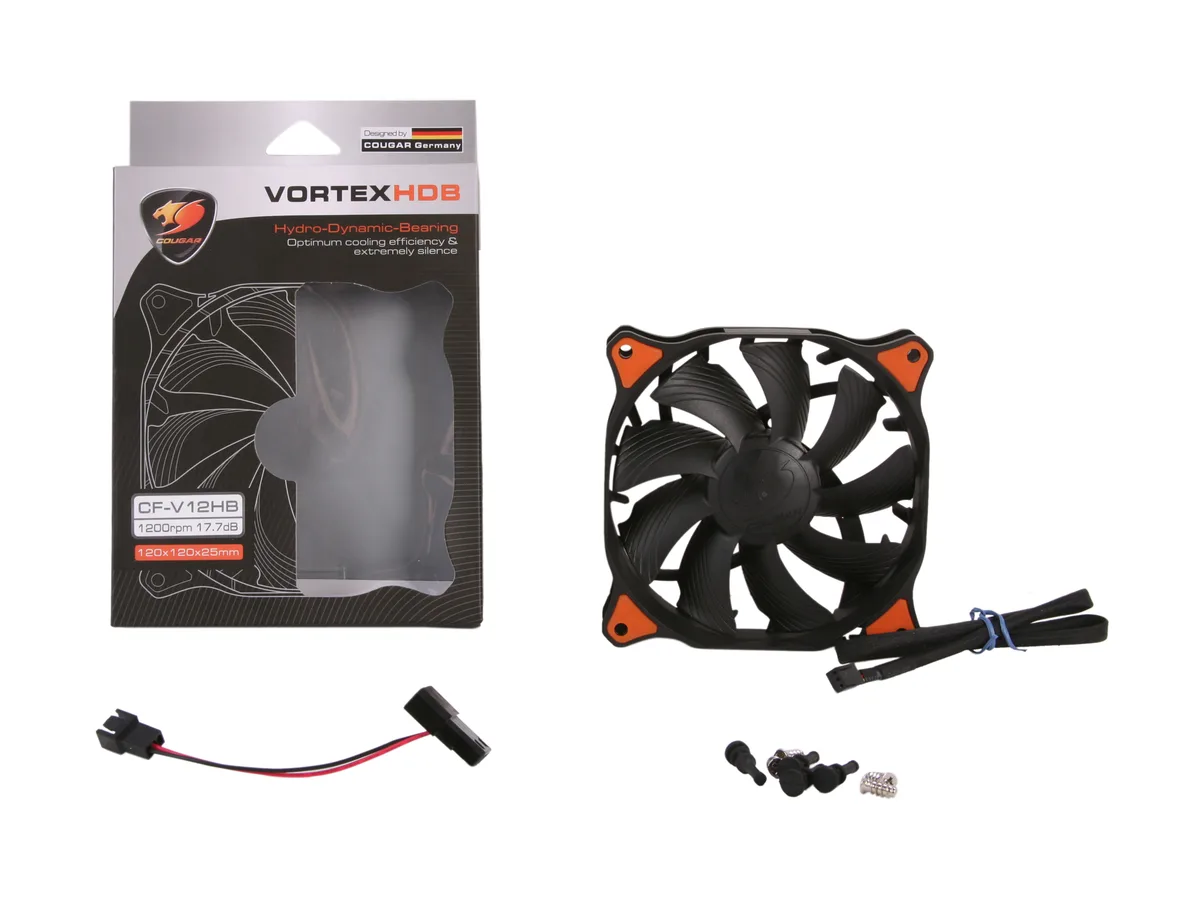

Package ContentsCOUGAR CF-V12HB Cooling Fan
3 to 4pin adapter
Tool-less fixed pins
Screws
Poids d’expédition0.22 kg
Dimensions du colis206 × 140 × 33 mm

Questions sur cet article

How do I install the CF-V12HB using the tool-less fixed pins, and what step do people often miss?

Push the rubber fixed pins through the 120mm mounting holes until they click; the step people miss is seating all four pins fully so the anti-vibration pads contact the frame and prevent 17.7 dBA noise from rising.

What maintenance or replacement will the CF-V12HB need later?

The hydro-dynamic bearing is rated for 300000 hours MTBF; no lubrication is required, but dust the diversion groove blades periodically to keep airflow near 60.4 CFM.

What limit appears first when the CF-V12HB runs continuously at 1200 RPM?

The 3-pin connector supplies fixed voltage, so speed cannot drop below 1200 RPM; the first limit is the 17.7 dBA noise floor, which becomes audible before bearing wear reaches the 300000-hour rating.
