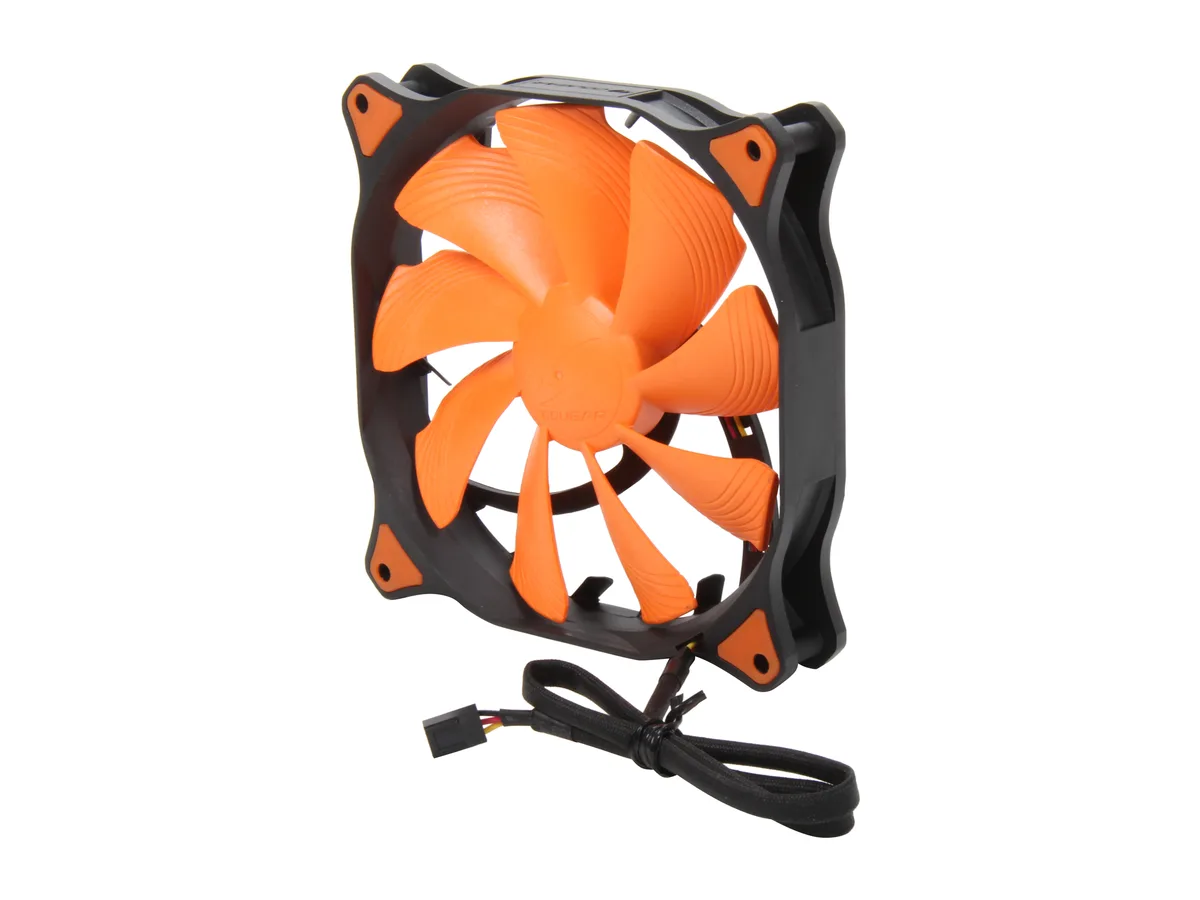

Orange 140mm case fan with turbine blade frame and rubber anti-vibration pins

COUGAR

COUGAR CF-V14H 140mm Case Fan 1200 RPM Hydro-Dynamic Bearing

SKU CH-19BN-3NDZN MPN CF-V14H

A 140 mm case fan with hydro-dynamic bearing runs at 1200 RPM for 70.5 CFM airflow at 19.2 dB, dropping to 700 RPM and 16.4 dB with the included adapter

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size140mm
  • Fan Thickness25mm
  • Quiet operation at 16.4 dB with the low-speed adapter
  • Strong airflow of 70.5 CFM at full 1200 RPM speed
  • Hydro-dynamic bearing rated for 300000 hours MTBF
  • Tool-less rubber pins cut vibration and simplify installation
  • Diversion groove blades focus airflow for efficient cooling

140mm Hydro-Dynamic Case Fan

The COUGAR CF-V14H is a single 140mm case fan built around a hydro-dynamic bearing rated for 300000 hours MTBF. It targets builders who want a balance of airflow and low noise for standard chassis cooling.

3-pin power with speed adapter

The fan connects via a 3-pin header and includes a 3-to-4-pin adapter plus a speed-adjustable cable for motherboard or manual control. Tool-less rubber pins and screws are supplied, so installation requires no extra hardware and the pads dampen vibration transferred to the case.

1200 RPM peak with low-noise adapter

At full speed the fan delivers 70.5 CFM at 19.2 dB, while the included low-speed adapter drops it to 700 RPM for 55.5 CFM at 16.4 dB. This range suits typical intake or exhaust duties but will not satisfy high-static-pressure needs such as dense radiators or restrictive filters.

Points forts

  • Quiet operation at 16.4 dB with the low-speed adapter
  • Strong airflow of 70.5 CFM at full 1200 RPM speed
  • Hydro-dynamic bearing rated for 300000 hours MTBF
  • Tool-less rubber pins cut vibration and simplify installation
  • Diversion groove blades focus airflow for efficient cooling

Caractéristiques

BrandCougar
ModelCF-V14H
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydro-Dynamic
RPM1200 RPM
700 RPM (w/ adapter)
Air Flow70.5 CFM / 119.8 CMH or 55.5 CFM / 94.3 CMH (w/ adapter)
Noise Level19.2dB
16.4dB (w/ adapter)
Power Connector3 Pin
ColorOrange
FeaturesHIGH-VORTEX-AIRFLOW WITH TURBINE BLADE & FRAME UNIQUE DESIGN
Optimum airflow, air pressure & extremely silent performance
DIVERSION GROOVE BLADE DESIGN
Innovative blade design focus air flow & optimum cooling efficiency
ANTI-VIBRATION PAD DESIGN
Reduce the vibrations efficiently & silent operation
AERO-DYNAMICAL DESIGN
Air-inlet with optimal aero-dynamical design reducing noisy air turbulences
HYDRO-DYNAMIC-BEARING TECHNOLOGY
HDB runs more smoothly with no friction, make it quietly & durability(MTBF300,000hrs)
TOOL-LESS FIXED PINS
Rubber fixed pins also reduces vibrations (fan run mo
Dimensions140 x 140 x 25mm

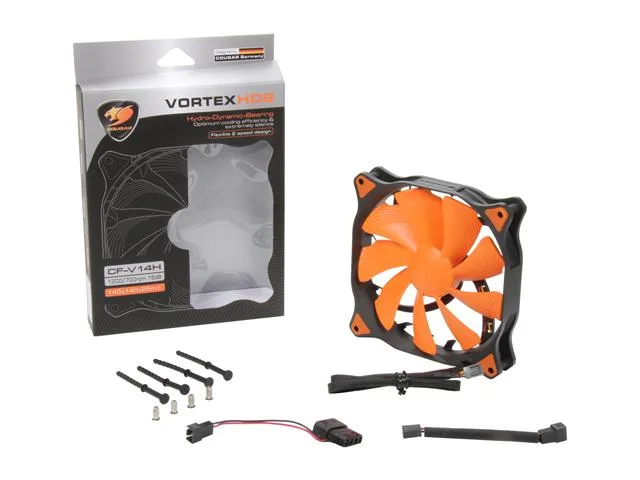

Package ContentsCase Fan
3 to 4pin adapter
Fan speed adjustable cable
Tool-less fixed pins
Screws
Poids d’expédition0.28 kg
Dimensions du colis201 × 157 × 25 mm

Questions sur cet article

How long does the hydro-dynamic bearing last at full 1200 RPM before it becomes the limiting factor?

The hydro-dynamic bearing is rated for 300000 hours MTBF, so it remains reliable even during continuous 1200 RPM operation.

What noise and heat levels should I expect when this fan runs all day at 1200 RPM?

At 1200 RPM the fan produces 19.2 dB noise and 70.5 CFM airflow; using the supplied adapter drops it to 700 RPM, 16.4 dB and 55.5 CFM for quieter all-day running.

Does my motherboard need a 4-pin header or PWM controller to use this fan?

The fan uses a 3-pin connector; a 3-to-4-pin adapter is included so it works with either 3-pin or 4-pin headers without a separate PWM controller.
