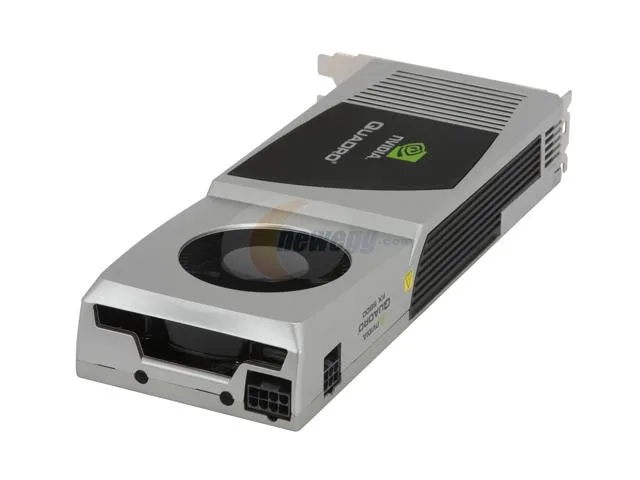

Full-height PCIe graphics card with silver fan cooler and metal rear bracket

DELL

DELL 01HKHC Quadro FX 5800 4GB 512-bit GDDR3 PCI Express 2.0 x16 workstation graphics card

SKU CH-G4P5-KNAX2

Delivers 4 GB GDDR3 memory on a 512-bit bus with 240 stream processors for professional 3D workloads

  • InterfacePCI Express 2.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUQuadro FX 5800
  • Stream Processors240
  • Memory Size4GB
  • Memory Interface512-bit
  • 4 GB frame buffer supports large models
  • 512-bit GDDR3 memory bus delivers high bandwidth
  • 240 stream processors accelerate professional workloads
  • PCI Express 2.0 x16 interface provides ample throughput
  • Dual-link DVI plus DisplayPort drive 2560 x 1600 panels

Professional workstation GPU for legacy CAD

The DELL 01HKHC Quadro FX 5800 delivers 4GB of GDDR3 memory across a 512-bit interface with 240 stream processors. It targets users maintaining certified applications on Windows XP, Vista or Linux workstations that require DirectX 10 and OpenGL 3.0 compatibility. The card occupies a PCI Express 2.0 x16 slot and includes one DisplayPort plus two dual-link DVI outputs supporting digital resolutions up to 2560 x 1600.

Straightforward installation in older workstations

The full-height bracket and standard PCI Express 2.0 x16 edge connector fit legacy Dell Precision and compatible OEM chassis without adapters. A single fan cooler exhausts heat toward the rear, so verify that the case airflow path is unobstructed. The stereo port uses a specialised 3-pin connector that is not a standard mini-jack; ensure your 3D glasses or emitter match this interface. SLI bridging requires a second identical Quadro FX 5800 and the appropriate ribbon connector.

Check power, driver support

Confirm the workstation power supply provides the necessary auxiliary PCIe connectors for this generation of card. Operating system support ends at Windows Vista and 32-bit Linux kernels; modern 64-bit Windows versions lack certified drivers. Digital displays need a DisplayPort or dual-link DVI cable capable of 2560 x 1600 at 60 Hz; single-link DVI or passive adapters will not achieve the maximum resolution.

Points forts

  • 4 GB frame buffer supports large models
  • 512-bit GDDR3 memory bus delivers high bandwidth
  • 240 stream processors accelerate professional workloads
  • PCI Express 2.0 x16 interface provides ample throughput
  • Dual-link DVI plus DisplayPort drive 2560 x 1600 panels

Caractéristiques

BrandDell
Model01HKHC
InterfacePCI Express 2.0 x16
Chipset ManufacturerNVIDIA
GPUQuadro FX 5800
Stream Processors240
Memory Size4GB
Memory Interface512-bit
Memory TypeGDDR3
DirectXDirectX 10
OpenGLOpenGL 3.0
DisplayPort1
DVI2
Other PortsStereo
Digital Resolution2560 x 1600
Analog Resolution2048 x 1536
SLI SupportedYes
CoolerWith Fan
Dual-Link DVI SupportedYes
Operating Systems SupportedMicrosoft Windows Vista (64-bit and 32-bit) Microsoft Windows XP (64-bit and 32-bit) Microsoft Windows 2000 (32-bit) Linux – Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit and 32-bit) Solaris AMD64, Intel EM64T
System RequirementsPC compatible with Intel Pentium 4/Xeon or AMD Opteron class processor or higher Open PCI Express x16 lane slot 512MB system memory 50MB of available disk space for full installation CD-ROM, DVD-ROM, or BD-ROM drive DVI-I or VGA compatible display(s) PCIE Gen 2 power supply with 8-pin auxiliary connector, 750 W (higher capacity may be required for SLI)
Auxiliary Power Connector6 Pin / 8 Pin

Questions sur cet article

How do I confirm the Quadro FX 5800 is running at PCI Express 2.0 x16 speed after installation?

In GPU-Z or NVIDIA Control Panel check the bus interface field; it should read PCIe 2.0 x16 and the 512-bit memory bus will also be reported.

Which cables or adapters come in the box for the DisplayPort and two DVI outputs?

The card ships with a fan cooler only; you must supply your own DisplayPort and DVI cables or active adapters for each monitor you connect.

Should I choose the 4GB GDDR3 version or a lower-capacity model for large CAD assemblies?

The 4GB GDDR3 frame buffer and 512-bit bus give the highest texture and geometry capacity in the FX 5800 line, so select this version for large assemblies.
