DELL
DELL PowerEdge M630 2x E5-2620v3 2.4GHz 512GB 2x 800GB SAS SSD H730
Blade server with dual 2.4 GHz Intel E5-2620v3 CPUs, 512 GB DDR4 and two 800 GB SAS SSDs on an H730 controller
- TypeRack
- CPU TypeIntel
- Installed Memory Size512GB
- Hard Drive (Installed)2x 800GB SAS WI SSD
- Storage ControllerH730
- Max HDD Capacity2x 2.5" Drive Bays
- Dual 6-core CPUs deliver strong multi-thread performance with 2 x E5-2620v3 at 2.4GHz
- 512GB DDR4 memory supports large virtualisation workloads using 16 x 32GB modules
- 2 x 800GB SAS SSDs provide fast storage for databases and boot volumes
- H730 RAID controller enables hardware RAID for data protection and throughput
- iDRAC8 Express remote management allows out-of-band server monitoring and control

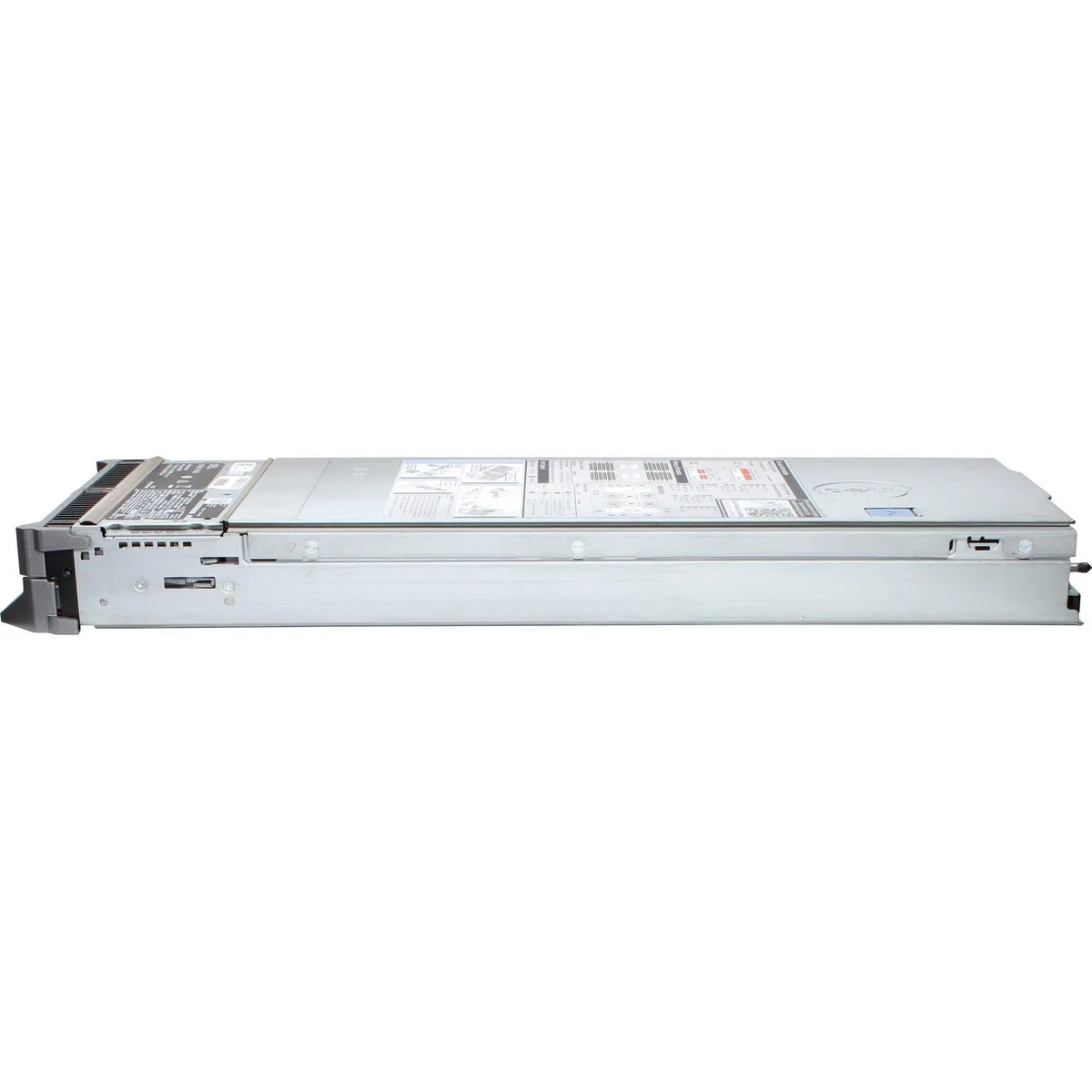

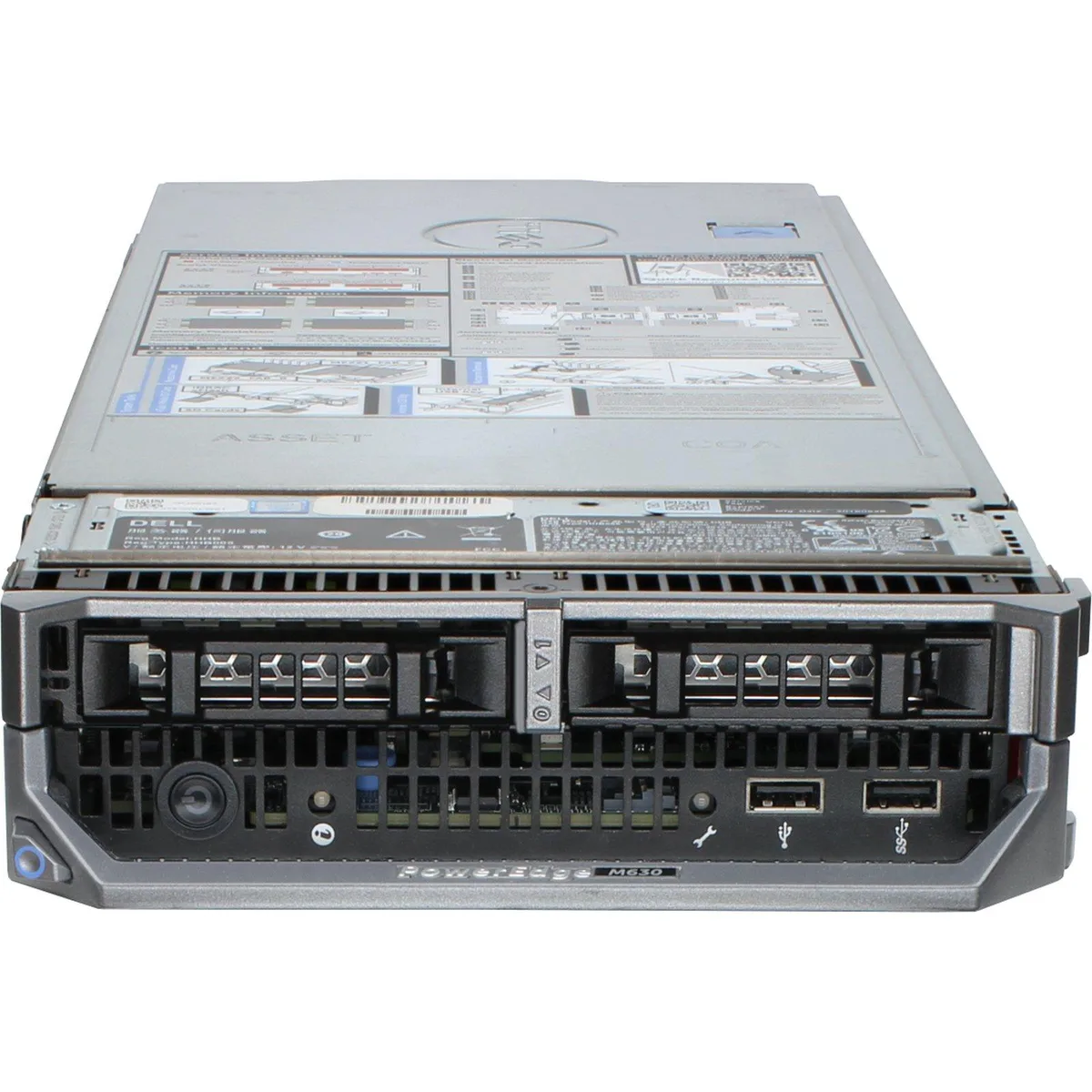

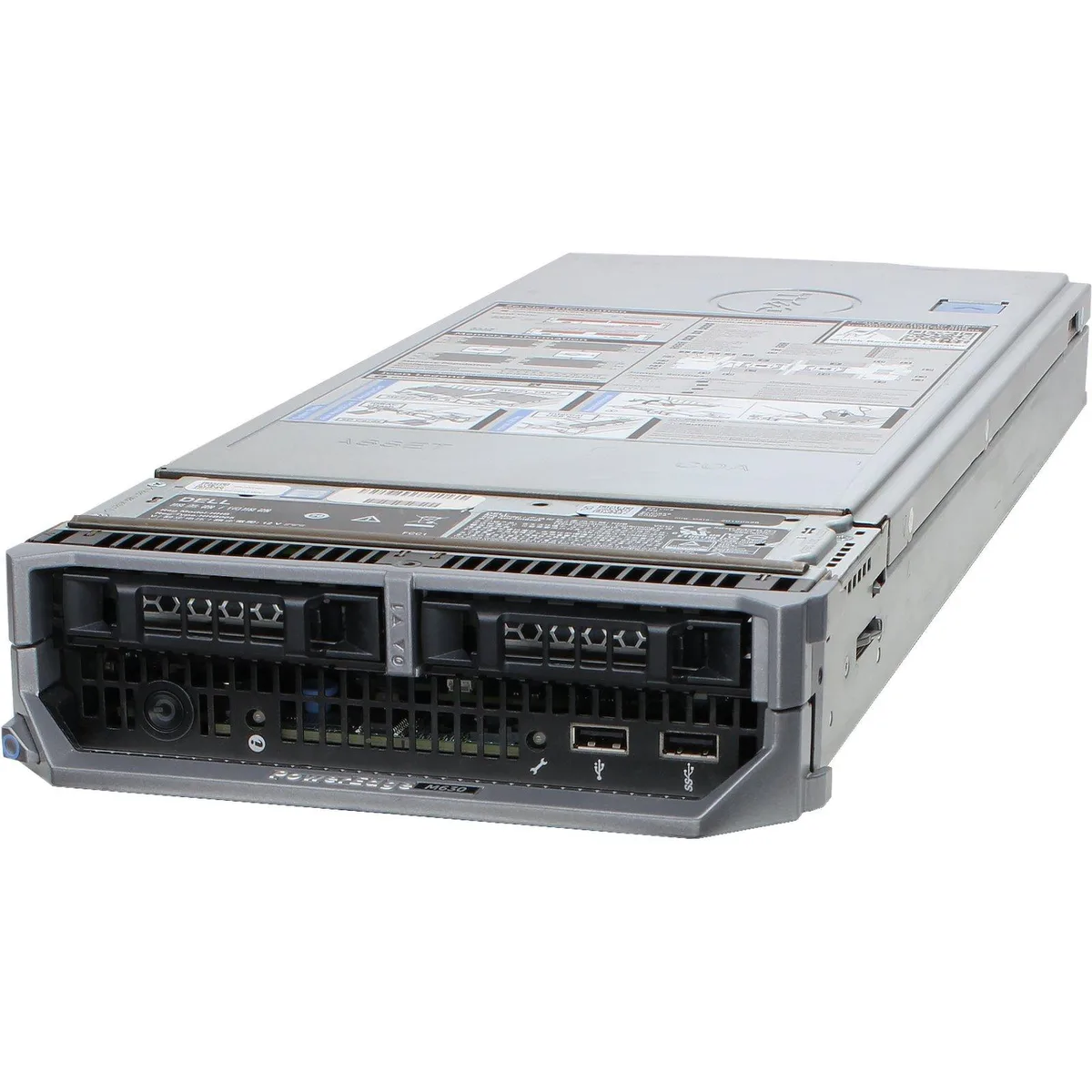

Dell PowerEdge M630 dual-socket server
The Dell PowerEdge M630 is a blade server built for dense virtualisation and database workloads. It ships with two Intel E5-2620v3 processors running at 2.4 GHz and 512 GB of DDR4 memory across sixteen 32 GB modules. A PERC H730 controller manages two 800 GB SAS solid-state drives. The chassis provides two 2.5-inch drive bays and up to two PCIe 3.0 mezzanine slots for expansion.
Ideal for memory-heavy virtualisation hosts
This configuration suits teams that need high core counts and large memory capacity in a single blade slot. The dual six-core CPUs and 512 GB of RAM support many concurrent virtual machines. Buyers who need more internal storage than two drive bays provide should consider a rack-mount chassis with additional bays. Workloads requiring newer instruction sets or higher single-thread frequencies will not benefit from this processor generation.
512 GB DDR4 installed memory
The system arrives with 512 GB of DDR4 memory populated in all sixteen DIMM slots using 32 GB modules at 2133 MT/s. This represents the maximum installed capacity for this specific unit and determines how many virtual machines or in-memory databases can run simultaneously. Memory upgrades would require replacing existing modules rather than adding to empty slots.
Points forts
- Dual 6-core CPUs deliver strong multi-thread performance with 2 x E5-2620v3 at 2.4GHz
- 512GB DDR4 memory supports large virtualisation workloads using 16 x 32GB modules
- 2 x 800GB SAS SSDs provide fast storage for databases and boot volumes
- H730 RAID controller enables hardware RAID for data protection and throughput
- iDRAC8 Express remote management allows out-of-band server monitoring and control
Caractéristiques
| Brand | DELL |
|---|---|
| Model | M630 |
| Type | Rack |
| CPU Type | Intel |
| Installed Memory Size | 512GB |
| Hard Drive (Installed) | 2x 800GB SAS WI SSD |
| Storage Controller | H730 |
| Max HDD Capacity | 2x 2.5" Drive Bays |
| Remote Management | iDRAC8 Express |
Questions sur cet article
How do I install the 16 DDR4 modules correctly across the two E5-2620v3 processors?
Populate all 16 DIMM slots evenly, eight per CPU, using the 32 GB PC4-2133 modules so each channel has identical capacity and rank.
When will the 800 GB SAS write-intensive SSDs need replacement?
Monitor SSD wear via iDRAC8 Express; replace drives once the media-wear indicator approaches the rated write-endurance limit.
What throughput ceiling appears first under sustained load on the H730 with two 800 GB SAS SSDs?
The dual 2.5-inch bay limit caps the array at two drives, so the H730's combined SAS bandwidth becomes the bottleneck before CPU or memory saturates.
