DELL
DELL PowerEdge M640 Blade 2x Xeon Gold 6240 384GB DDR4 2x 1.8TB SAS
A dual-socket blade server with two Xeon Gold 6240 processors, 384GB DDR4 memory and two 1.8TB SAS drives
- TypeBlade
- CPU TypeIntel Xeon
- CPU Speed2.60 GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size384GB
- Dual Xeon Gold 6240 CPUs deliver 36 cores at 2.60 GHz for heavy workloads
- 384 GB DDR4 ECC registered memory supports large virtualisation clusters
- Two 1.8 TB SAS drives on PERC H330 controller provide redundant storage
- iDRAC9 Enterprise enables remote power, console and firmware management
- 10 GbE 562T dual-port adapter handles high-throughput network traffic
Blade server for dense compute

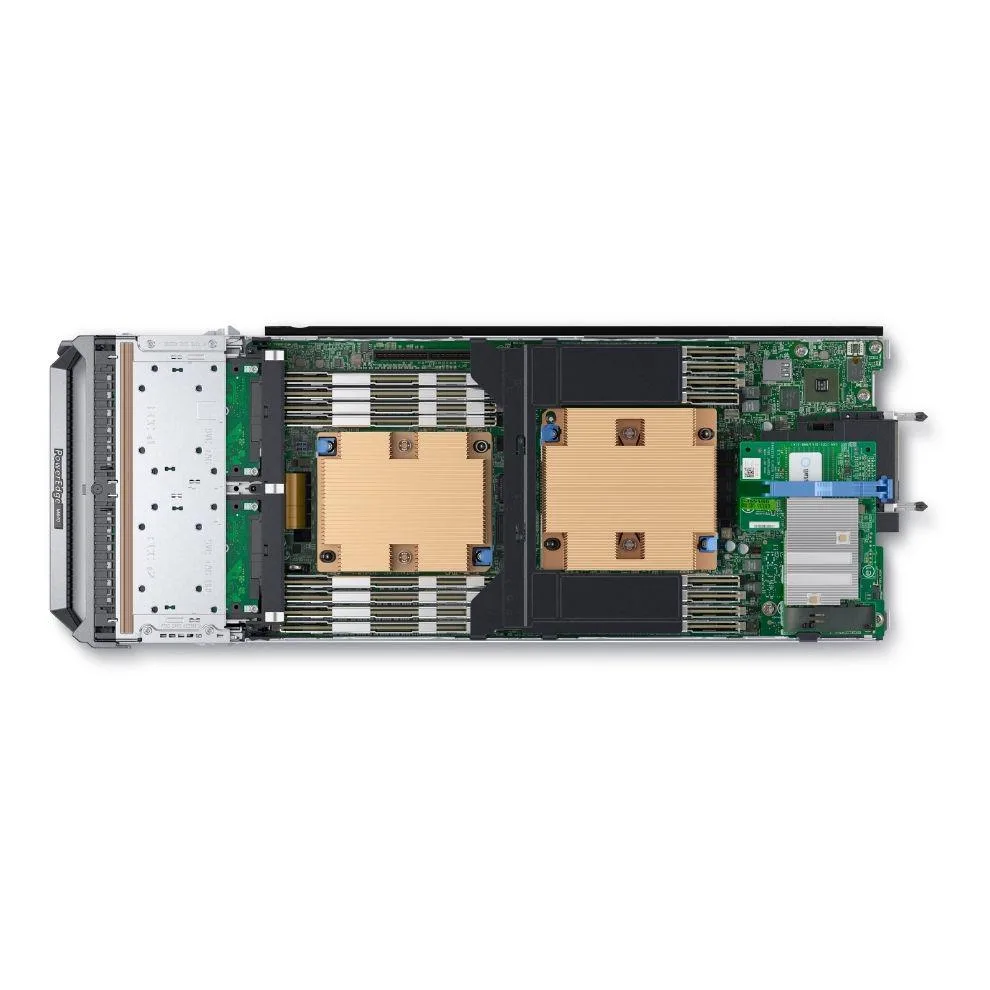

The Dell PowerEdge M640 blade fits into a shared chassis and delivers two Xeon Gold 6240 processors at 2.60 GHz with 18 cores each. It ships with 384 GB of DDR4 ECC registered memory and two 1.8 TB SAS hard drives managed by a PERC H330 controller. This configuration targets virtualisation clusters and database workloads that benefit from high core counts in a compact form factor.
Thermals and power in normal use
Dual processors and 384 GB of DDR4 draw significant power, so the blade relies on the chassis cooling fans and shared power supplies to maintain safe temperatures. Integrated graphics and the 10 GbE 562T adapter add minimal heat during typical operation. iDRAC9 Enterprise provides remote thermal monitoring and power capping without a local display or keyboard.
Behaviour under sustained load
Under continuous multi-threaded workloads the 36 combined cores and 24.75 MB cache per CPU sustain throughput while the chassis airflow handles the resulting heat. SAS drives and the PERC H330 controller maintain consistent I/O latency during long-running jobs. Memory capacity can be expanded to 1 TB if datasets grow beyond the installed 384 GB.
Points forts
- Dual Xeon Gold 6240 CPUs deliver 36 cores at 2.60 GHz for heavy workloads
- 384 GB DDR4 ECC registered memory supports large virtualisation clusters
- Two 1.8 TB SAS drives on PERC H330 controller provide redundant storage
- iDRAC9 Enterprise enables remote power, console and firmware management
- 10 GbE 562T dual-port adapter handles high-throughput network traffic
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Blade |
| Type | Blade |
| CPU Type | Intel Xeon |
| CPU Speed | 2.60 GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 384GB |
| Memory Type | DDR4 SDRAM |
| Max Memory Capacity | 1TB |
| Hard Drive (Installed) | 3,60 |
| Storage Controller | Dell PERC H330 SAS Storage Controller |
| HDD Interface | SAS |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC9 Enterprise |
| Dimensions | 22 x 22x 10 in |
| Weight | 20 |
Questions sur cet article
How do I insert the M640 blade into the chassis, and what step is often missed?
Slide the blade along the guide rails until the front latch clicks, then press the release lever to lock it fully; the lever must engage or the server will not power on.
Which components will need replacement first during the blade's service life?
The two 1.8 TB SAS hard drives and the PERC H330 RAID controller battery are the primary wear items; memory and CPUs have no scheduled replacement.
What limit appears first when the blade runs at full load for extended periods?
Thermal throttling of the two Xeon Gold 6240 processors at 2.60 GHz typically occurs before the 384 GB DDR4 memory or SAS storage bandwidth is saturated.
