DELL

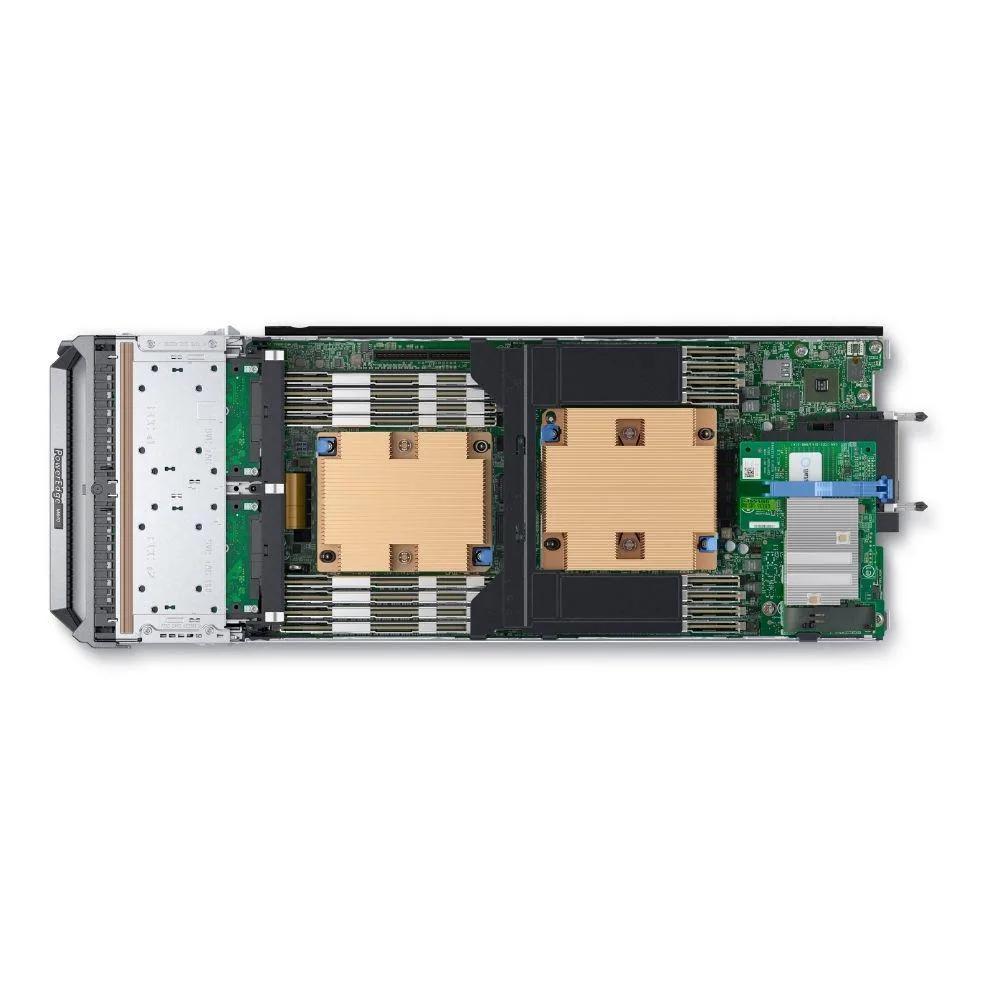

DELL PowerEdge M640 Blade Server 2x Xeon Platinum 8158 256GB DDR4 2x 300GB SAS
Dual-processor blade server with two 12-core Xeon Platinum 8158 CPUs, 256 GB DDR4 memory and dual 300 GB SAS drives
- TypeBlade
- CPU TypeIntel Xeon
- CPU Speed3 GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size256GB
- Dual Xeon Platinum 8158 CPUs deliver 24 cores at 3.0 GHz
- 256GB DDR4 ECC memory supports demanding virtualisation workloads
- Two 300GB 10K SAS drives provide fast redundant storage
- PERC H330 RAID controller manages data protection efficiently
- iDRAC9 Enterprise enables remote server management anywhere
Dual Xeon Platinum 8158 blade server
The Dell PowerEdge M640 fits into a standard blade enclosure and delivers two 12-core Xeon Platinum 8158 processors running at 3.0 GHz. It targets datacentre operators who need dense compute for virtualization, database or high-performance workloads in a shared chassis. The 256 GB of DDR4 ECC registered memory supports large working sets without leaving the blade form factor.
Enclosure power cooling and storage
The blade draws power and cooling from the chassis mid-plane so no separate PSU or fans are required. Two 2.5-inch 300 GB 10K SAS drives connect to the onboard PERC H330 RAID controller providing local OS or scratch space. A 10 GbE dual-port 562T adapter handles east-west traffic while iDRAC9 Enterprise gives remote console and lifecycle management over a dedicated network.
Sustained multi-thread throughput
With both sockets fully populated the server maintains its 3.0 GHz base clock across all 24 cores under continuous load, limited only by the enclosure thermal budget. DDR4 bandwidth scales with the dual-channel per CPU design feeding memory-intensive jobs. The SAS drives and H330 controller sustain sequential and random I/O for logging or checkpointing without the latency spikes seen on consumer storage.
Points forts
- Dual Xeon Platinum 8158 CPUs deliver 24 cores at 3.0 GHz
- 256GB DDR4 ECC memory supports demanding virtualisation workloads
- Two 300GB 10K SAS drives provide fast redundant storage
- PERC H330 RAID controller manages data protection efficiently
- iDRAC9 Enterprise enables remote server management anywhere
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Blade |
| Type | Blade |
| CPU Type | Intel Xeon |
| CPU Speed | 3 GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 256GB |
| Memory Type | DDR4 SDRAM |
| Max Memory Capacity | 1TB |
| Hard Drive (Installed) | 600,00 |
| Storage Controller | Dell PERC H330 SAS Storage Controller |
| HDD Interface | SAS |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC9 Enterprise |
| Dimensions | 22 x 22x 10 in |
| Weight | 20 |
Questions sur cet article
What is the installed memory capacity and type for this M640 blade?
This blade ships with 256 GB of DDR4 ECC registered memory installed.
How many drives can the M640 blade hold and what interface do they use?
The blade supports up to two 2.5-inch drives using a SAS interface through the PERC H330 controller.
What network adapter is installed for connectivity?
An Ethernet 10 GB 2-port 562T adapter is installed for network connectivity.
