DELL
DELL PowerEdge R630 10SFF Xeon E5-2620 v4 2.1GHz 384GB DDR4
A 1U rack server with ten 2.5-inch drive bays, one Xeon E5-2620 v4 processor at 2.1GHz and 384GB DDR4 ECC memory, ready for custom storage
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.1GHz
- # of Processors Installed1
- MAX Processors2
- Installed Memory Size384GB
- 10 2.5-inch drive bays for high storage density
- Single Xeon E5-2620 v4 2.1 GHz 8-core processor installed
- 384 GB DDR4 ECC registered memory capacity
- PERC H730 SAS RAID controller for data protection
- iDRAC8 Enterprise remote management with firmware updated
1U 10-bay Rack Server with Xeon E5-2620 v4

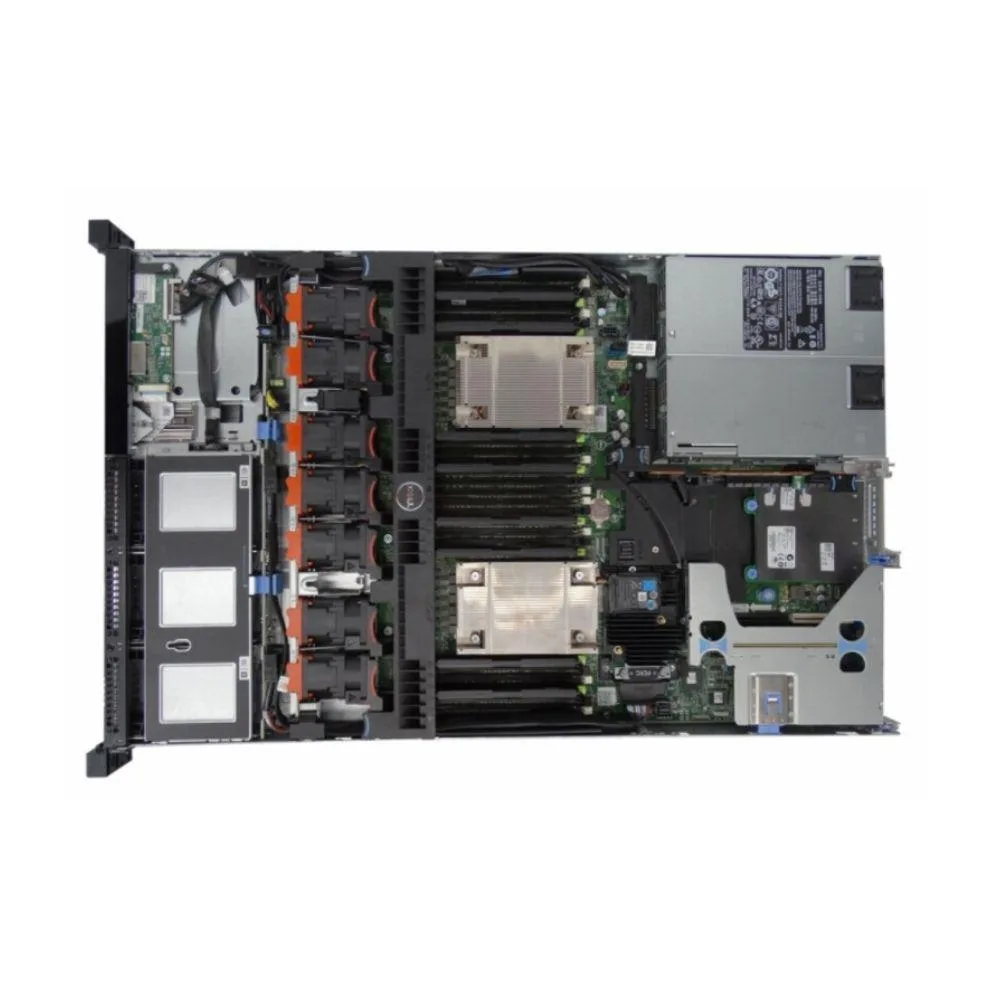

The Dell PowerEdge R630 is a 1U rack-mount server that fits up to ten 2.5-inch drive bays. It arrives with one Xeon E5-2620 v4 processor running at 2.1 GHz and 384 GB of DDR4 ECC registered memory. A PERC H730 SAS RAID controller and dual 495 W power supplies are installed. The system includes iDRAC8 Enterprise remote management and a quad-port network card with two 10 GbE and two 1 GbE links.
Virtualisation hosts needing dense memory
This configuration suits teams that run many virtual machines or containers and want a single-socket box with room to grow to a second CPU and up to 1.5 TB of RAM. The ten front bays accept SAS drives for local arrays. Buyers who need a second processor, GPU acceleration or more than ten drive bays should consider other platforms. The integrated graphics and lack of installed drives also make it a poor fit for graphics workloads or out-of-the-box storage.
Single Xeon E5-2620 v4 with 384 GB DDR4
The decisive specification is the single eight-core Xeon E5-2620 v4 paired with 384 GB of DDR4 memory. That combination sets the baseline for compute threads and memory capacity before any upgrade. If the workload demands more cores per socket or a higher memory ceiling, a different processor or a dual-socket build will be required.
Points forts
- 10 2.5-inch drive bays for high storage density
- Single Xeon E5-2620 v4 2.1 GHz 8-core processor installed
- 384 GB DDR4 ECC registered memory capacity
- PERC H730 SAS RAID controller for data protection
- iDRAC8 Enterprise remote management with firmware updated
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.1GHz |
| # of Processors Installed | 1 |
| MAX Processors | 2 |
| Installed Memory Size | 384GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 1.5TB |
| Hard Drive (Installed) | 3,60 |
| Storage Controller | Dell PERC H730 SAS Controller |
| HDD Interface | SAS |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC8 - Enterprise License |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
How loud and hot does the 1U chassis run with two 495W supplies under continuous load?
The 1U rackmount chassis uses dual 495W power supplies and draws air front-to-rear; fan speed scales with CPU and inlet temperature, so sustained loads will increase noise and exhaust heat proportionally.
Which drive caddies and SAS cables must I already own to populate the ten 2.5-inch bays?
Ten 2.5-inch drive bays require Dell 2.5-inch hot-plug caddies and SAS cables compatible with the PERC H730 controller; the server ships without drives or caddies installed.
Will the PERC H730 RAID controller and iDRAC8 work with my existing 12Gb SAS backplane and 10GbE network switches?
The PERC H730 supports 12Gb SAS backplanes and the Intel I350/X540 card provides two 10GbE and two 1GbE ports, matching standard 10GbE switches and existing SAS infrastructure.
