DELL
DELL PowerEdge R630 8SFF Xeon E5-2699 v3 2.3GHz 768GB DDR4
A 1U rack server with an 18-core Xeon at 2.3GHz, 768GB DDR4 and eight 2.5-inch drive bays ready for SAS or SATA storage
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.3GHz
- # of Processors Installed1
- MAX Processors2
- Installed Memory Size768GB
- 18-core Xeon E5-2699 v3 at 2.3GHz for heavy compute
- 768GB DDR4 ECC memory supports large datasets
- 8 x 2.5-inch drive bays with PERC H730 SAS controller
- Dual 10GbE plus 1GbE Intel networking built in
- iDRAC8 Enterprise enables full remote management

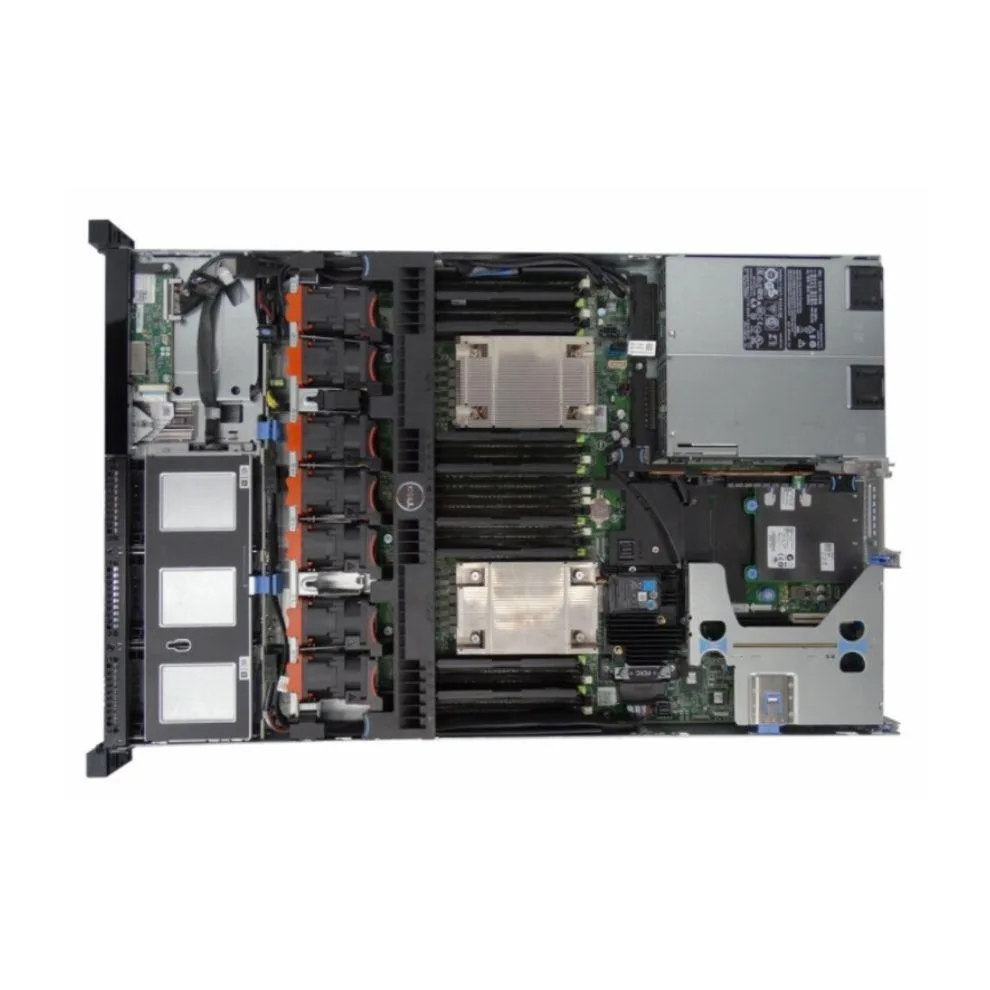

PowerEdge R630 18-Core 2.3 GHz Server
The Dell PowerEdge R630 is a 1U rack server fitted with one Intel Xeon E5-2699 v3 processor running at 2.3 GHz. Eighteen cores and 45 MB cache deliver strong multi-threaded throughput for virtualisation, database or compute workloads. The 8-bay 2.5-inch chassis supports SAS and SATA drives through a PERC H730 controller.
Suited for Dense Compute Not GPU Work
This configuration targets buyers who need high core density and large memory capacity in a single rack unit. The 768 GB DDR4 ECC registered memory suits memory-heavy applications such as in-memory databases or dense VM hosting. Buyers who require GPU acceleration or additional PCIe expansion should look at a different platform because the integrated graphics and limited slot space cannot meet that need.
768 GB DDR4 ECC Registered Memory
The installed memory totals 768 GB of DDR4 ECC registered DIMMs across the available slots. This amount decides whether the server can hold your working set without paging. The platform supports up to 1.5 TB maximum capacity, so further upgrades are possible if the workload grows beyond the current configuration.
Points forts
- 18-core Xeon E5-2699 v3 at 2.3GHz for heavy compute
- 768GB DDR4 ECC memory supports large datasets
- 8 x 2.5-inch drive bays with PERC H730 SAS controller
- Dual 10GbE plus 1GbE Intel networking built in
- iDRAC8 Enterprise enables full remote management
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.3GHz |
| # of Processors Installed | 1 |
| MAX Processors | 2 |
| Installed Memory Size | 768GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 1.5TB |
| Hard Drive (Installed) | 4,00 |
| Storage Controller | Dell PERC H730 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC8 - Enterprise License |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
How much power do the dual 495W supplies draw when the 18C Xeon E5-2699 v3 runs at 2.3GHz under sustained load?
Each 495W supply feeds the 18C Xeon E5-2699 v3 at 2.3GHz, 768GB DDR4, PERC H730 and dual 10GbE ports; peak draw stays within the 495W rating per supply.
Which drive caddies and backplane cables must I supply to populate the 8SFF 2.5" bays?
The 8SFF chassis accepts standard 2.5" SAS or SATA caddies that latch into the integrated backplane; no extra cables are required beyond the caddies themselves.
Will the PERC H730 RAID controller and iDRAC8 Enterprise work with my existing 12Gb SAS JBOD and legacy 1GbE management network?
The PERC H730 supports 12Gb SAS connectivity to external JBODs, and iDRAC8 Enterprise provides a dedicated 1GbE management port compatible with existing management networks.
