DELL
DELL PowerEdge R640 4LFF 1x Xeon Platinum 8260L 128GB DDR4 rack server
A 1U rack server holding four 3.5" drives, powered by a 24-core Xeon Platinum 8260L at 2.4GHz with 128GB DDR4 and a PERC H740P controller
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.4GHz
- # of Processors Installed1
- MAX Processors2
- Installed Memory Size128GB
- 24-core Xeon Platinum 8260L at 2.4 GHz handles heavy workloads
- 128 GB DDR4 ECC memory scales to 7.68 TB maximum capacity
- Four 3.5-inch drive bays with PERC H740P RAID controller
- Dual 750 W power supplies and 10 GbE 562T adapter built in
- iDRAC9 Enterprise licence enables full remote management

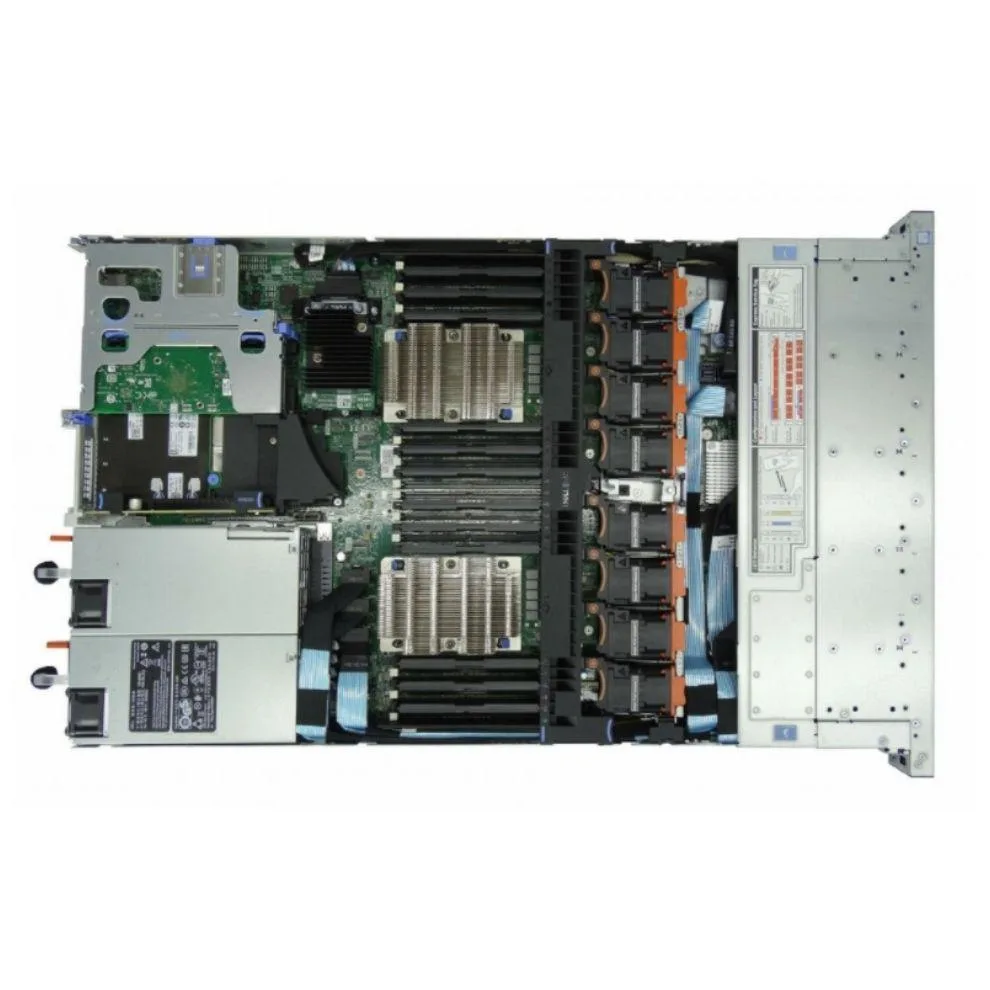

Dell PowerEdge R640 4LFF Server
This Dell PowerEdge R640 is a 1U rack server configured with a single Intel Xeon Platinum 8260L processor running at 2.4GHz. The CPU provides 24 cores and 35.75MB of cache. It includes 128GB of DDR4 ECC registered memory and a PERC H740P RAID controller. The 4LFF chassis supports up to four 3.5-inch SATA drives, though no drives are installed. Integrated graphics and an iDRAC9 Enterprise licence handle remote management.
Suited for memory-heavy workloads
This configuration suits buyers who need high core counts and large memory capacity in a compact 1U form factor. The 128GB of DDR4 and 24-core processor handle virtualisation, database or compute tasks well. The single CPU leaves one socket free for a future upgrade to two processors. Buyers who require installed storage, a second processor from day one or a GPU for acceleration should look at a different configuration.
128GB DDR4 ECC registered memory
The installed memory is 128GB of DDR4 ECC registered DIMMs, which provides error correction for data integrity. The system board supports a maximum of 7.68TB when fully populated with supported modules. This specific capacity and memory type determine whether the server matches the workload requirements for capacity and reliability.
Points forts
- 24-core Xeon Platinum 8260L at 2.4 GHz handles heavy workloads
- 128 GB DDR4 ECC memory scales to 7.68 TB maximum capacity
- Four 3.5-inch drive bays with PERC H740P RAID controller
- Dual 750 W power supplies and 10 GbE 562T adapter built in
- iDRAC9 Enterprise licence enables full remote management
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.4GHz |
| # of Processors Installed | 1 |
| MAX Processors | 2 |
| Installed Memory Size | 128GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 7.68TB |
| Hard Drive (Installed) | 2,00 |
| Storage Controller | Dell PERC H740P Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC9 - Enterprise License |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
What power infrastructure is required for the two 750W supplies?
The server ships with two 750W power supplies; plan for two PDU outlets or UPS circuits rated for the combined load.
Can the PERC H740P controller manage the existing SATA drives in a 3.5-inch bay?
Yes, the PERC H740P RAID controller supports SATA drives installed in the four 3.5-inch front bays.
How do I confirm the iDRAC9 Enterprise licence is active after first boot?
Open the iDRAC web interface, navigate to the licence section and verify that Enterprise features such as virtual console and remote media are enabled.
