DELL
DELL PowerEdge R6725 1U rack server AMD EPYC 9005 DDR5 24 slots 3TB max
1U rack server for AMD EPYC 9005 CPUs with 24 DDR5 slots and 3TB maximum memory
- WorkloadGeneral Purpose Server
- TypeRack
- Rack Height1U
- SecurityAMD Secure Encrypted Virtualization (SEV) AMD Secure Memory
- CPU TypeAMD EPYC 9005 Series
- # of Processors Installed0
- Supports dual AMD EPYC 9005 processors for scalable performance
- DDR5 memory across 24 slots enables up to 3TB capacity
- 1U rack form factor fits dense datacentre deployments

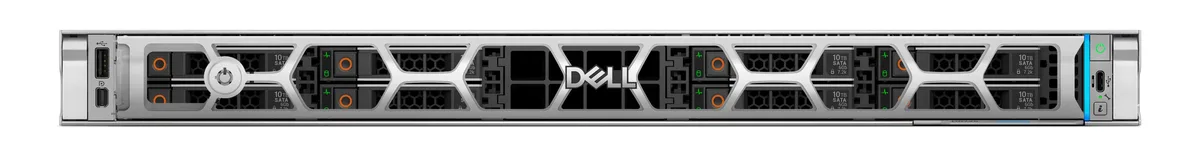

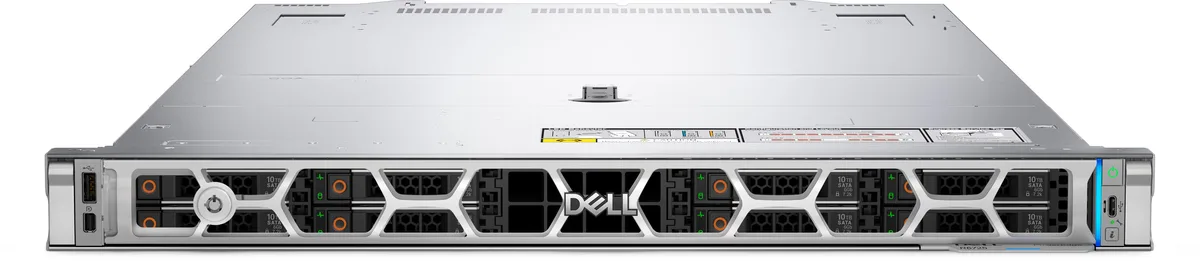

- Flexible front bays accommodate 3.5-inch, 2.5-inch and EDSFF E3.S drives
- Up to three PCIe Gen5 x16 slots provide high-speed expansion

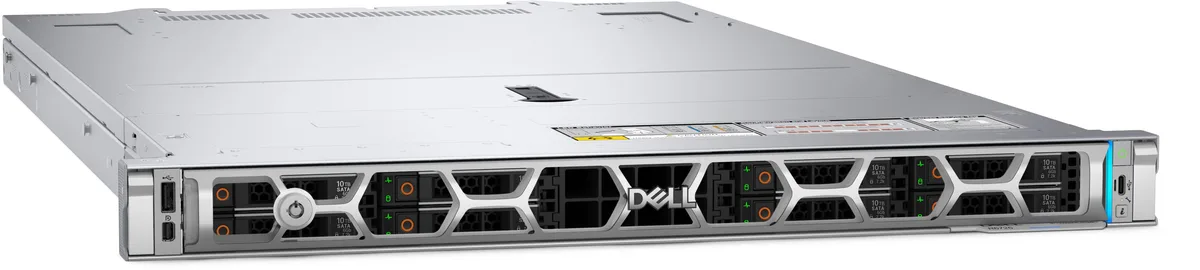

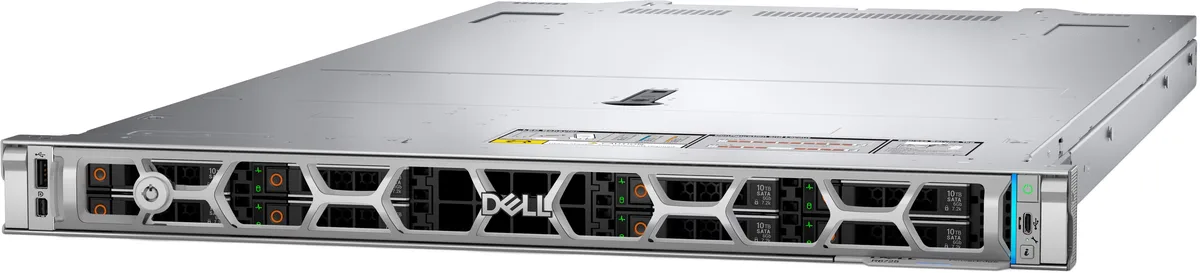

General-purpose 1U rack server
The Dell PowerEdge R6725 is a 1U rackmount server designed for general-purpose workloads. It supports up to two AMD EPYC 9005 series processors and uses DDR5 memory across 24 slots. The chassis provides flexible front-bay configurations for 3.5-inch or 2.5-inch drives, plus EDSFF E3.S options. No processors or memory are installed from the factory.
Buyers needing dense compute or high GPU counts
This platform suits organisations building virtualisation clusters, database nodes or high-performance computing clusters that benefit from the EPYC 9005 core count and DDR5 bandwidth. The three x16 Gen5 PCIe slots support accelerators or high-speed networking. Buyers who need more than two processor sockets, larger 4U storage density, or pre-populated CPU and memory kits should evaluate other chassis.
Maximum memory capacity of 3TB
The server accepts up to 3TB of DDR5 memory across its 24 DIMM slots. This ceiling determines whether the system can hold the working set for large in-memory databases or dense virtualisation. If the application requires more memory per node, a different platform must be chosen.
Points forts
- Supports dual AMD EPYC 9005 processors for scalable performance
- DDR5 memory across 24 slots enables up to 3TB capacity
- 1U rack form factor fits dense datacentre deployments
- Flexible front bays accommodate 3.5-inch, 2.5-inch and EDSFF E3.S drives
- Up to three PCIe Gen5 x16 slots provide high-speed expansion
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge R6725 |
| Workload | General Purpose Server |
| Type | Rack |
| Rack Height | 1U |
| Security | AMD Secure Encrypted Virtualization (SEV) AMD Secure Memory Encryption (SME) Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown TPM 2.0 FIPS, CC-TCG certified Chassis Intrusion Detection |
| CPU Type | AMD EPYC 9005 Series |
| # of Processors Installed | 0 |
| MAX Processors | 2 |
| Installed Memory Size | No |
| Memory Type | DDR5 |
| Max Memory Capacity | 3TB |
| Number of Memory Slots | 24 |
| Expansion Slots | Up to three PCIe slots (x16 connector) - Slot 1: 1 x16 Gen5 Full Height or Low Profile - Slot 2: 1 x16 Gen5 Low Profile or 1 x16 OCP3.0 - Slot 4: 1 x16 Gen5 Full Height or Low profile |
| Expansion Bays | Front bays: - 4 x 3.5-inch SAS/SATA - 8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA - 10 x 2.5-inch with 4 x Universal - 8 x EDSFF E3.S / 16 x EDSFF E3.S / 20 x EDSFF E3.S + Rear 2 x EDSFF E3.S |
| Dimensions | 1.68" x 18.97" x 32.09"-32.16" |
| Poids d’expédition | 27.22 kg |
| Dimensions du colis | 940 × 610 × 152 mm |
Questions sur cet article
How can I confirm the PowerEdge R6725 is operating correctly after installation?
Use the integrated Dell Remote Access Controller (iDRAC) to verify POST completion, check system health LEDs on the 1U chassis, and review Secure Boot and silicon root of trust status in the management console.
What components are included with the R6725 and what must I purchase separately?
The 1U chassis includes the system board with 24 DDR5 slots, up to three PCIe Gen5 x16 slots, and your chosen front-bay configuration; AMD EPYC 9005 processors, DDR5 memory modules, drives, and OS licences are not included.
Which front-bay version should I select for the R6725?
Choose 4 x 3.5-inch SAS/SATA for capacity, 8 or 10 x 2.5-inch SAS/SATA for density, 8/16/20 x EDSFF E3.S for high-speed flash, or 10 x 2.5-inch with 4 universal bays for mixed workloads.
