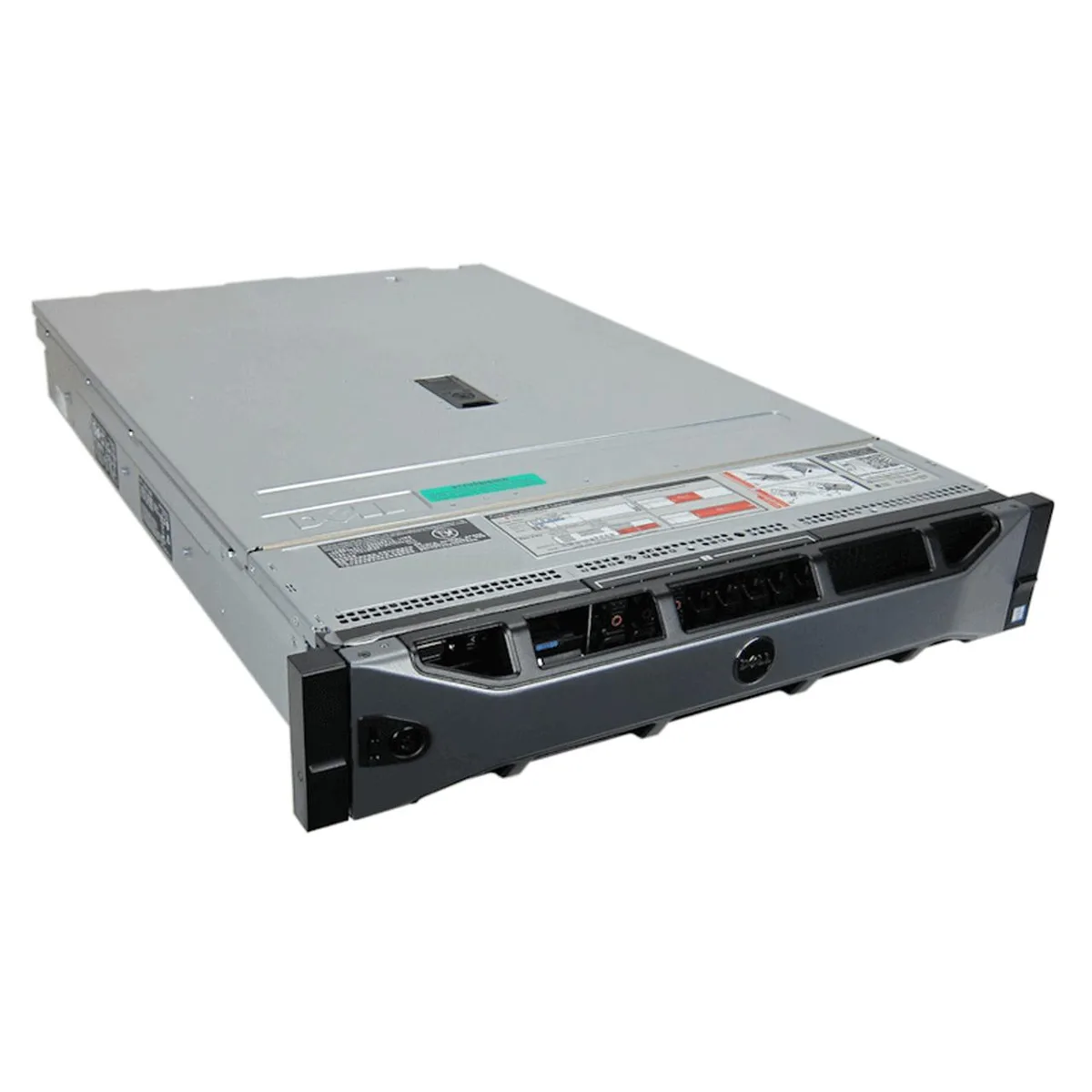

Silver 2U rack server with front bezel, eight 2.5-inch drive bays and dual hot-swap power supplies

DELL

DELL PowerEdge R730 2U Rack Server 2x Xeon E5-2620 v3 2.4GHz 256GB DDR4 8x 1.2TB SAS H730

SKU CH-SJED-DKY5Q

2U rack server with dual 6-core Xeon processors at 2.4 GHz, 256 GB DDR4 ECC memory, eight 1.2 TB SAS drives on a PERC H730 controller, dual 10 Gb SFP+ ports and redundant 750 W power supplies

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 256GB

HDD 8 x 1.2TB 10K SAS

  • Dual Xeon E5-2620 v3 CPUs deliver 12 cores at 2.4 GHz with 3.2 GHz turbo
  • 256 GB DDR4 registered ECC memory across 8 slots supports up to 1.5 TB total
  • PERC H730 1 GB controller enables RAID 0, 1, 5, 6, 10, 50, 60 and pass-through
  • Eight 1.2 TB 10K SAS drives provide high-speed 2.5-inch storage in 8 bays
  • Dual 750 W platinum hot-swap power supplies with iDRAC 8 Enterprise remote management

Dual-socket Xeon server for virtualisation

The PowerEdge R730 delivers two six-core Intel Xeon E5-2620 v3 processors at 2.4 GHz with 3.2 GHz turbo and 256 GB of DDR4-2133 registered ECC memory across 24 DIMM slots. It targets midsize and large enterprises running data warehouses, VDI, e-commerce or HPC data-node workloads that need balanced compute, memory capacity and internal storage in a 2U rack form factor.

Tool-less rails and hot-swap components simplify

ReadyRails allow tool-less mounting in standard four-post racks and the chassis supports hot-swap 2.5-inch drive bays, redundant 750 W platinum power supplies and the PERC H730 controller with battery-backed cache. Common issues include confirming SAS backplane cabling matches the eight installed 1.2 TB 10 K drives and verifying that the iDRAC8 Enterprise licence is activated for remote management before the server leaves the staging area.

Eight-bay 2.5-inch SAS chassis with PERC H730 RAID

The server provides eight front-accessible 2.5-inch bays populated with 1.2 TB 10 K SAS drives connected to a PERC H730 1 GB controller supporting RAID 0, 1, 5, 6, 10, 50 and 60. This bay count and controller combination determines whether the platform can meet a given capacity, redundancy or performance requirement without adding external enclosures or a second controller.

Points forts

  • Dual Xeon E5-2620 v3 CPUs deliver 12 cores at 2.4 GHz with 3.2 GHz turbo
  • 256 GB DDR4 registered ECC memory across 8 slots supports up to 1.5 TB total
  • PERC H730 1 GB controller enables RAID 0, 1, 5, 6, 10, 50, 60 and pass-through
  • Eight 1.2 TB 10K SAS drives provide high-speed 2.5-inch storage in 8 bays
  • Dual 750 W platinum hot-swap power supplies with iDRAC 8 Enterprise remote management

Caractéristiques

BrandDELL
SeriesPowerEdge R730
ModelR730
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 2011-3
Number of CPU Cores6-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size256GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 2.5" SATA/SAS Hot-Plug Drive Bays

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How can I confirm the PERC H730 controller is managing the 8x 1.2TB SAS drives correctly after installation?

During POST the controller BIOS will enumerate all eight 1.2TB SAS disks and display the configured RAID level; iDRAC8 Enterprise then shows each drive as "Online" with green status LEDs on the front panel.

Which components ship with the R730 and which must be sourced separately?

The unit includes two Xeon E5-2620 v3 CPUs, 256GB DDR4 RDIMMs (8x 32GB), PERC H730 1GB controller, eight 1.2TB 10K SAS drives, X520/I350 quad-port network daughter card, iDRAC8 Enterprise, two 750W platinum PSUs, ReadyRails and bezel; no extra parts are required for basic operation.

Should I choose the 256GB DDR4 configuration or plan for the 1.5TB maximum?

The system arrives with 256GB (8x 32GB) DDR4-2133 registered ECC installed across 24 slots; if workloads demand more capacity, additional RDIMMs can be added later up to the 1.5TB limit.
