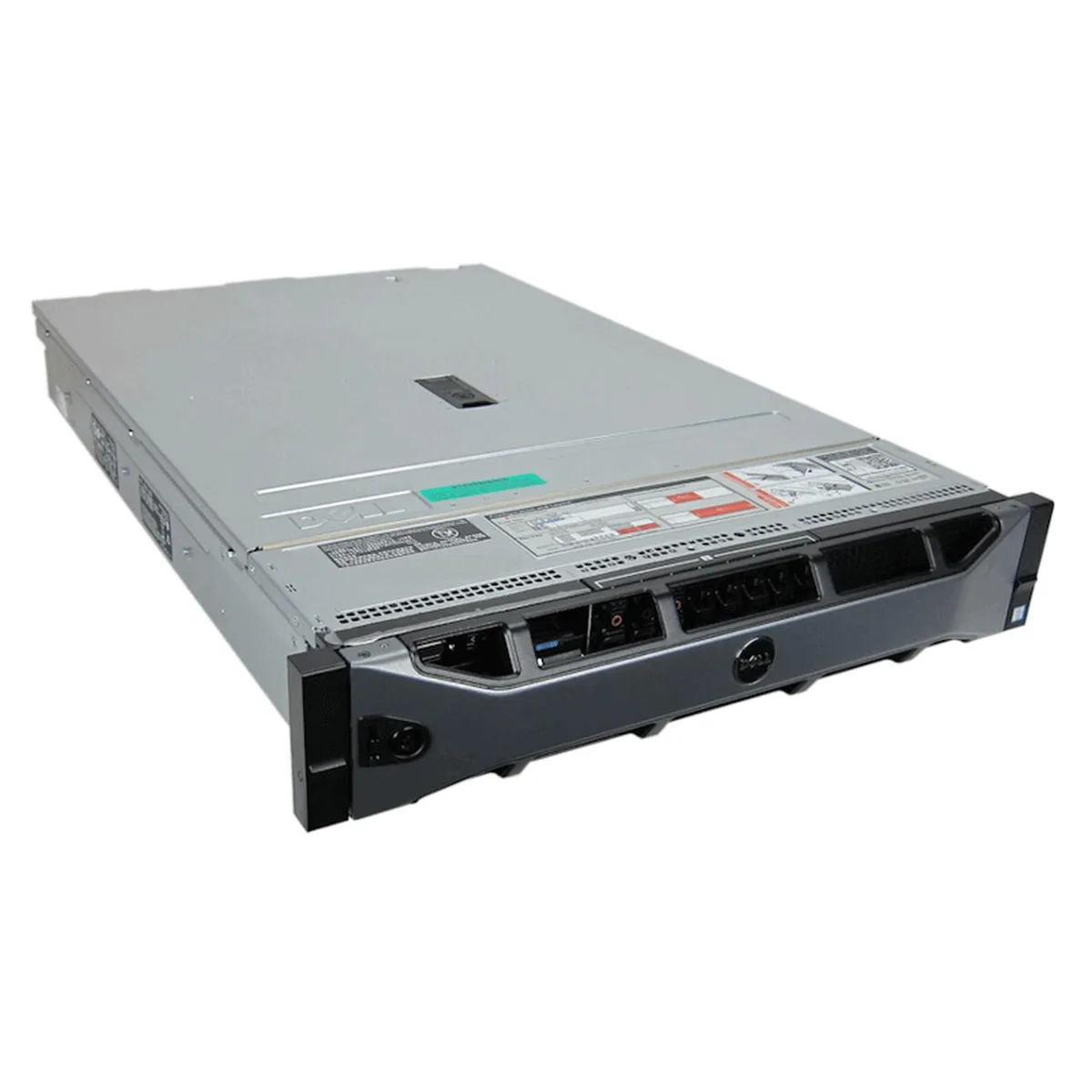

Silver 2U rack server with front bezel, eight 2.5-inch drive bays and dual power supplies

DELL

DELL PowerEdge R730 2U Rack Server 2x Xeon E5-2640 v3 2.6GHz 512GB DDR4 8x 2.4TB SAS H730

SKU CH-Y27R-C748V

A 2U rack server with dual 8-core Xeon processors at 2.6 GHz, 512 GB DDR4 ECC memory, PERC H730 RAID controller and eight 2.4 TB 10K SAS drives for high-capacity storage workloads

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.60 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 512GB

HDD 8 x 2.4TB 10K SAS

  • Dual Xeon E5-2640 v3 CPUs deliver 16 cores at 2.6 GHz base with 3.4 GHz turbo
  • 512 GB DDR4 2133 MHz ECC memory across 16 slots supports up to 1.5 TB
  • PERC H730 1 GB controller enables RAID 0/1/5/6/10/50/60 for 8 x 2.4 TB 10K SAS drives
  • X520/I350 quad-port card adds 2 x 1 GbE and 2 x 10 Gb SFP+ connectivity
  • iDRAC 8 Enterprise plus dual 750 W platinum PSUs and rails provide remote management and power redundancy

Built for midsize and large enterprise workloads

This 2U rack server ships with two Intel Xeon E5-2640 v3 processors running at 2.6 GHz with 3.4 GHz turbo. It includes 512 GB of DDR4 2133 MHz registered ECC memory across 16 modules. The Dell PERC H730 controller manages eight 2.4 TB 10K SAS drives in a 2.5 inch form factor. Dual 750 watt platinum power supplies provide redundant hot-swap power.

Storage and network limits

The PERC H730 handles SAS and SATA drives with RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through at 12 Gb/s. Eight 2.5 inch bays set the physical drive ceiling. Network connectivity comes from a quad-port daughter card delivering two 1 GbE and two 10 Gb SFP+ links. Memory tops out at 1.5 TB across 24 DDR4 slots. Processor sockets max out at two LGA 2011-3 CPUs.

Check rack space, power and memory plans

Verify you have 2U of rack height and compatible rails for the included Ready Rails kit. Confirm your PDU can feed two 750 watt supplies with the correct connectors. Plan any DDR4 expansion around the 24 registered ECC slots and 1.5 TB ceiling. Ensure your workload fits within eight 2.5 inch SAS bays and the H730 RAID feature set. iDRAC 8 Enterprise requires a dedicated management network port.

Points forts

  • Dual Xeon E5-2640 v3 CPUs deliver 16 cores at 2.6 GHz base with 3.4 GHz turbo
  • 512 GB DDR4 2133 MHz ECC memory across 16 slots supports up to 1.5 TB
  • PERC H730 1 GB controller enables RAID 0/1/5/6/10/50/60 for 8 x 2.4 TB 10K SAS drives
  • X520/I350 quad-port card adds 2 x 1 GbE and 2 x 10 Gb SFP+ connectivity
  • iDRAC 8 Enterprise plus dual 750 W platinum PSUs and rails provide remote management and power redundancy

Caractéristiques

BrandDELL
SeriesPowerEdge R730
ModelR730
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.60 GHz
CPU SocketLGA 2011-3
Number of CPU Cores8-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size512GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 2.5" SATA/SAS Hot-Plug Drive Bays

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I choose the 512 GB DDR4 configuration or add more modules up to the 1.5 TB maximum?

The server ships with 512 GB (16 x 32 GB) DDR4-2133 ECC registered memory installed across 24 slots, leaving 8 slots free for future expansion to the 1.5 TB limit.

What does the 2.6 GHz base clock with 3.4 GHz turbo mean for actual workloads?

Each of the two Xeon E5-2640 v3 processors has 8 cores running at 2.6 GHz base and can boost to 3.4 GHz under load, giving 16 total cores for virtualisation, databases or HPC tasks.

How does the PERC H730 12 Gb/s SAS controller limit drive performance?

The H730 supports 12 Gb/s SAS and SATA with RAID 0, 1, 5, 6, 10, 50 and 60, so the eight 2.4 TB 10K SAS drives can deliver full 12 Gb/s bandwidth per drive.
