DELL

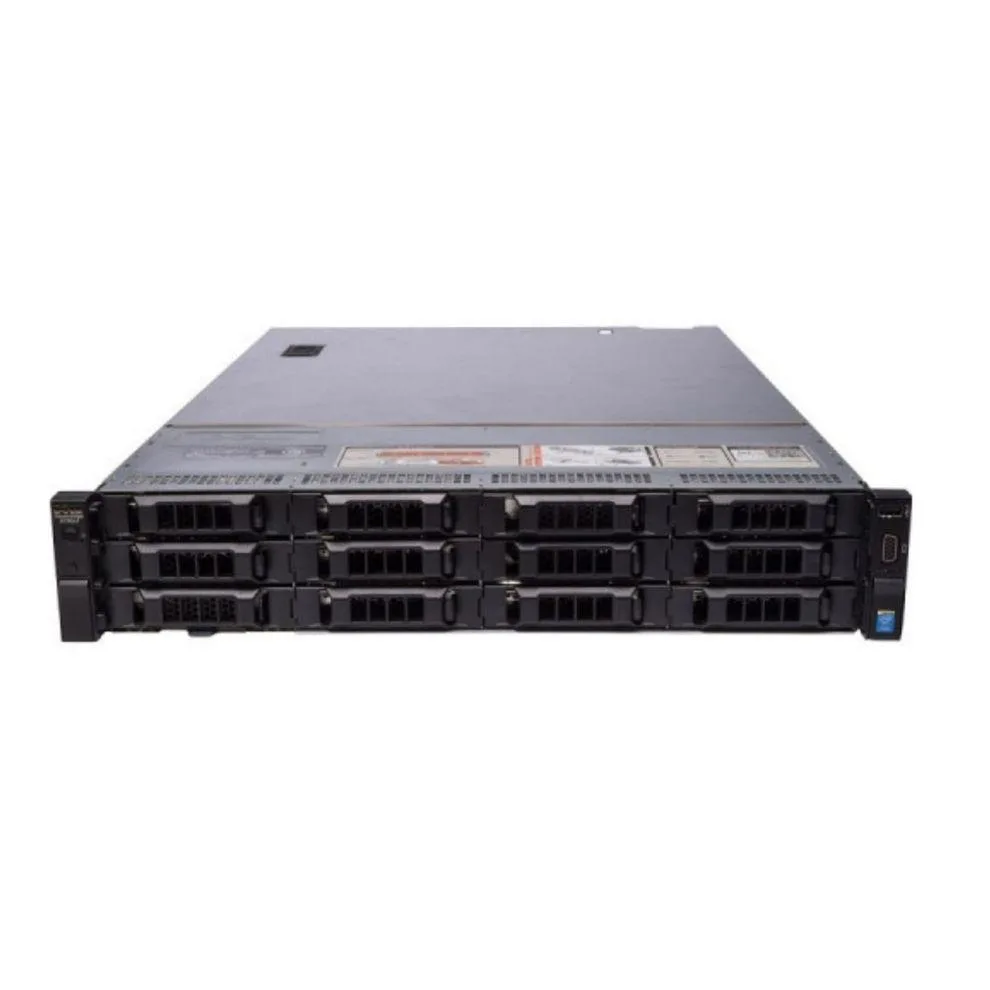

DELL PowerEdge R730xd 12LFF 2× Xeon E5-2698 v4 2.2GHz 128GB DDR4 No Drive Rack Server
Rack server with twelve 3.5-inch drive bays, dual Xeon E5-2698 v4 processors at 2.2 GHz and 128 GB DDR4 memory
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.2GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size128GB
- Dual Xeon E5-2698 v4 CPUs deliver 20 cores each at 2.2 GHz
- 128 GB DDR4 ECC memory supports virtualisation and database workloads
- 12 × 3.5″ drive bays with PERC H730 SAS controller enable high-capacity storage arrays
- Dual 10 GbE and dual 1 GbE ports provide flexible network connectivity
- iDRAC8 Enterprise remote management simplifies server administration
Dual Xeon 20-core rack server
This Dell PowerEdge R730xd arrives as a 2U rack-mount system with two Intel Xeon E5-2698 v4 processors running at 2.2 GHz. Each CPU provides 20 cores and 50 MB of cache, giving 40 threads for virtualisation or database workloads. The chassis holds up to twelve 3.5-inch drive bays and ships without any drives installed. Integrated graphics and an iDRAC8 Enterprise licence handle remote management out of the box.
Suited for high-thread compute and dense storage
The configuration suits teams that need maximum core count in a 2U form factor and plan to populate the twelve SATA/SAS bays with their own drives. The PERC H730 controller supports RAID across all bays and memory can grow from 128 GB DDR4 ECC to 768 GB. Buyers who need a smaller 1U footprint or more than two sockets should evaluate other platforms. The integrated graphics are not intended for GPU-accelerated workloads.
Twelve 3.5-inch drive bays with PERC H730 RAID
The single specification that decides fit is the twelve-bay 3.5-inch chassis paired with the PERC H730 SAS controller. It determines how many drives you can install and which RAID levels are available. Power is supplied by two 1100 W units and networking includes two 10 GbE plus two 1 GbE ports. Confirm rack depth and drive selection against these fixed chassis limits before ordering.
Points forts
- Dual Xeon E5-2698 v4 CPUs deliver 20 cores each at 2.2 GHz
- 128 GB DDR4 ECC memory supports virtualisation and database workloads
- 12 × 3.5″ drive bays with PERC H730 SAS controller enable high-capacity storage arrays
- Dual 10 GbE and dual 1 GbE ports provide flexible network connectivity
- iDRAC8 Enterprise remote management simplifies server administration
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.2GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 128GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 768GB |
| Hard Drive (Installed) | 24,00 |
| Storage Controller | Dell PERC H730 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC8 - Enterprise License |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
Should I pick the 12 LFF chassis or a smaller bay count?
The 12 LFF chassis gives twelve 3.5" drive bays, so choose it when you need maximum internal capacity in a 2U rack server.
What does the 2.2 GHz figure mean once the server is running workloads?
Each of the two Xeon E5-2698 v4 CPUs runs at 2.2 GHz base clock across 20 cores, delivering 40 threads for parallel tasks.
What does the PERC H730 SAS controller cap in practice?
The PERC H730 SAS controller manages RAID across SATA drives and supports up to 12 internal 3.5" devices in this chassis.
