DELL
Dell PowerEdge R730xd 12LFF Xeon E5-2660V3 384GB DDR4
A 12-bay 3.5-inch rack server with a 10-core 2.6GHz Xeon, 384GB DDR4 and a PERC H730 controller
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.6GHz
- # of Processors Installed1
- MAX Processors2
- Installed Memory Size384GB
- 12 3.5-inch drive bays provide high local storage capacity
- Single Xeon E5-2660 v3 with 10 cores at 2.6 GHz delivers multi-threaded performance
- 384 GB DDR4 ECC registered memory supports large virtualisation workloads
- PERC H730 SAS RAID controller enables flexible array configuration
- Dual 10 GbE plus dual 1 GbE network ports offer high-bandwidth connectivity

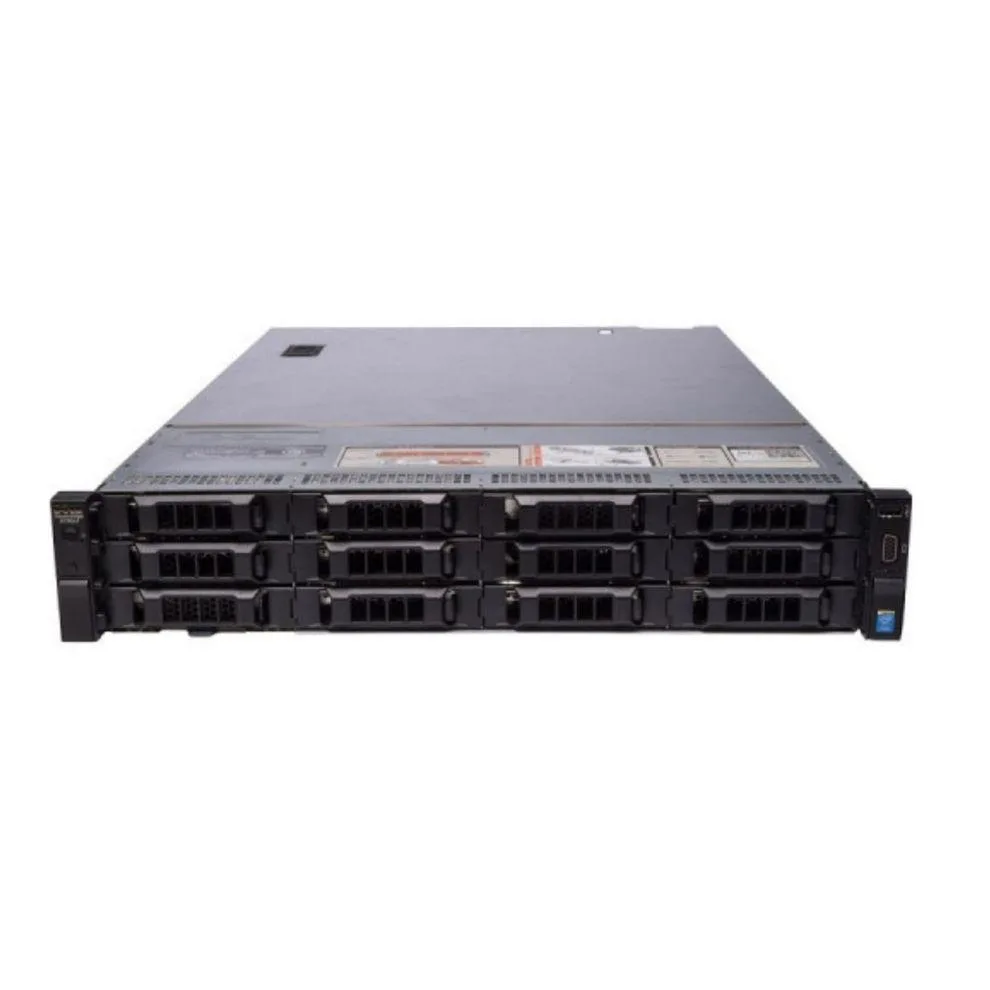

Dell PowerEdge R730xd 12-Bay Server
The Dell PowerEdge R730xd is a 2U rack server with a 12-bay 3.5-inch chassis designed for storage-dense workloads. It arrives with one Intel Xeon E5-2660V3 processor running at 2.6GHz with 10 cores and 384GB of DDR4 ECC registered memory. A Dell PERC H730 SAS controller manages the drive array while dual 1100W power supplies provide redundancy.
Suits storage-heavy roles, not GPU compute
This configuration fits users who need high local capacity in a compact rack footprint such as backup targets, software-defined storage nodes or media archives. The single CPU limits throughput for heavily threaded applications and the integrated graphics cannot accelerate compute tasks. Buyers who need more processing threads or dedicated GPU acceleration should look at a different platform.
12 large-form-factor bays set the capacity ceiling
The chassis supports up to 12 SATA or SAS drives of 3.5-inch form factor which determines the maximum raw storage you can install. The PERC H730 controller handles RAID across these bays while the single processor leaves a second socket open for a future upgrade to two CPUs. Memory currently occupies 384GB of the 768GB maximum leaving room for expansion.
Points forts
- 12 3.5-inch drive bays provide high local storage capacity
- Single Xeon E5-2660 v3 with 10 cores at 2.6 GHz delivers multi-threaded performance
- 384 GB DDR4 ECC registered memory supports large virtualisation workloads
- PERC H730 SAS RAID controller enables flexible array configuration
- Dual 10 GbE plus dual 1 GbE network ports offer high-bandwidth connectivity
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.6GHz |
| # of Processors Installed | 1 |
| MAX Processors | 2 |
| Installed Memory Size | 384GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 768GB |
| Hard Drive (Installed) | 16,00 |
| Storage Controller | Dell PERC H730 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC8 - Enterprise License |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
How much power do the dual 1100W supplies draw when the Xeon E5-2660V3 runs at 2.6GHz all day?
The server includes two 1100W power supplies; actual draw depends on workload but the units are sized for the 10-core processor and 384GB DDR4.
Which drive trays and cables must I already have to populate the 12-bay 3.5" chassis?
The 12 LFF bays accept 3.5" SAS or SATA drives; trays and backplane cables are specific to the R730xd chassis.
Can the PERC H730 RAID controller manage arrays that span both 12Gb SAS and 6Gb SATA drives?
The H730 supports mixed SAS and SATA drives behind the same backplane, letting you combine newer and older 3.5" disks.
